Serie PENGO CS-2 CS (Perforación)
La última incorporación de Pengo a las unidades de perforación de la serie Revolution son los modelos CS. Estos modelos son compactos y livianos y están diseñados para funcionar con nuestros sinfines Hex Aggressor®, TriMax® y Severe Rock Ripper® de uso general de 2". La combinación de esta unidad con el soporte CS-2 y su sinfín Pengo le brinda un paquete de sinfín completo.

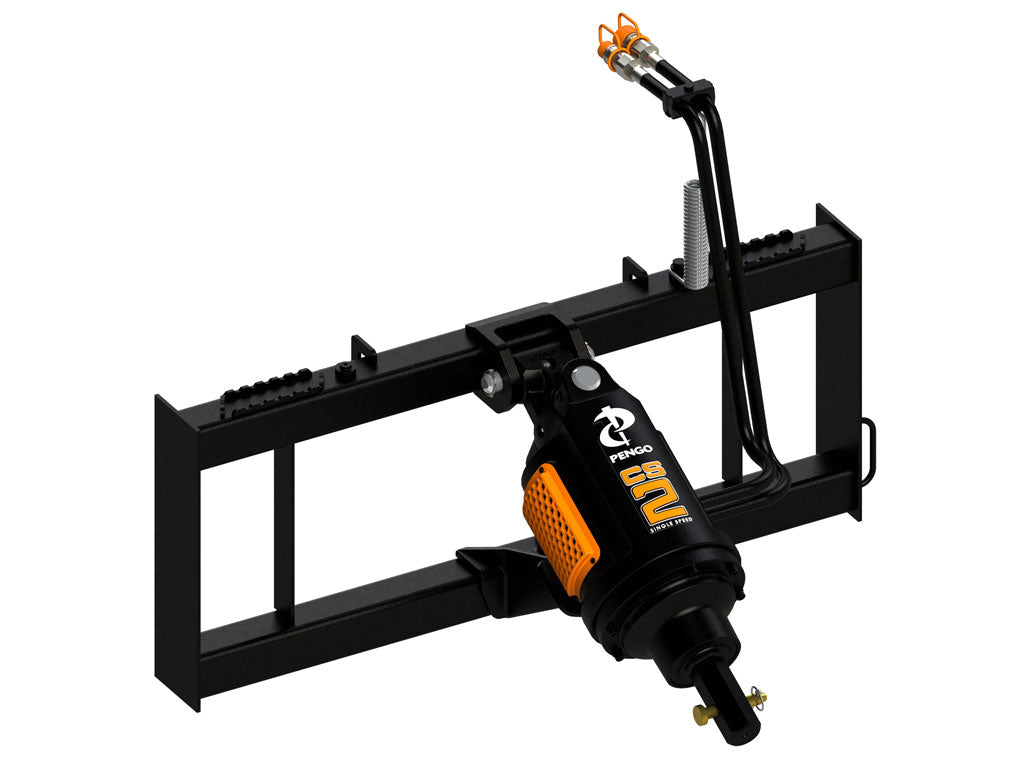

MONTAJE para CS-2
Esta unidad y soporte CS-2 se venden como una unidad. Combine su Aggressor®, TriMax® o Severe Rock Ripper® con esta unidad para obtener un paquete completo de transmisión de uso general.
DESPLAZAMIENTO | 15,4 pulgadas cúbicas |
TIPO DE MOTOR | VELOCIDAD SIMPLE, BIDIRECCIONAL |
SALIDA DEL MOTOR | 1 1/4" ESTRIA 14D |
MONTAJE DEL MOTOR | SAE A 2 PERNOS |
PIEZAS DEL MOTOR | JUNTA TÓRICA 7/8-14 UNF-2B |
TRANSVERSAL | N / A |
CAJA DE CAMBIOS | ETAPA ÚNICA PLANETARIA |
RELACIÓN DE REDUCCIÓN | 3.69:1 |
EJE DE SALIDA | HEXAGONAL DE 2" |
TAPÓN DE ACEITE INTERNO | 25 onzas |
TIPO DE ACEITE | SAE 80W90 GL-5 |
PROFUNDIDAD MÁXIMA DEL AGUJERO | 8' |
DIÁMETRO MÁXIMO DEL AGUJERO | 30" |
PESO | UNIDAD DE 130 LB / 300 LB CON MONTAJE SSL |
CAUDAL MÍNIMO / MÁXIMO | 5 - 25 GPM |
PRESIÓN MÁXIMA | 3000 |
SINFÍN DE DIÁMETRO MÁXIMO | 30" |
VELOCIDAD
FLUJO GPM | VELOCIDAD |
10 | 41 |
15 | 61 |
20 | 81 |
25 | 102 |
TABLA DE TORQUE
PRESIÓN | TEÓRICO |
1200 | 903 |
1400 | 1054 |
1600 | 1204 |
1800 | 1355 |
2000 | 1505 |
2200 | 1656 |
2400 | 1807 |
2600 | 1957 |
2800 | 2108 |
3000 | 2258 |
3200 | 2409 |
3400 | 2559 |
3600 | 2710 |

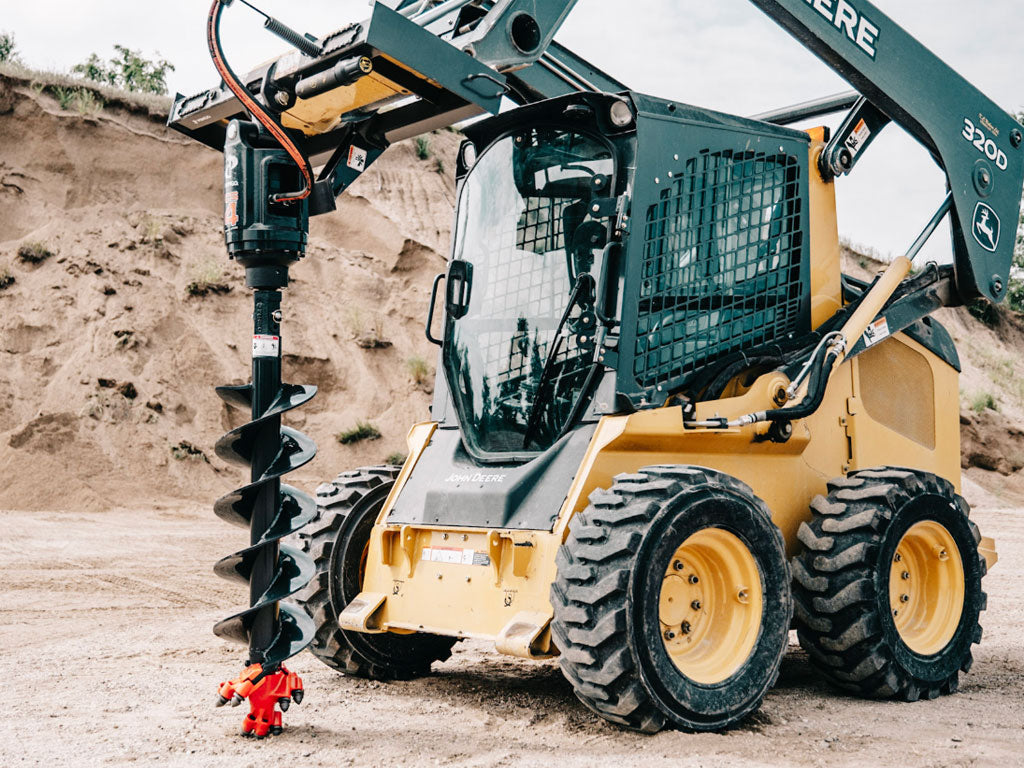

Esta transmisión se adapta a la mayoría de los minicargadores de bastidor mediano y grande. El rango de flujo es de 5 a 25 GPM. Tenga en cuenta que la presión máxima o PSI es de sólo 3000 PSI. 3000 Psi funcionarán en la mayoría de los minicargadores más antiguos, pero tal vez sea un problema en las máquinas más nuevas con presiones más altas. La broca más grande que se puede usar en esta barrena es de 30".
