2/25

Formally Allied Construction Products

HYDRAULIC HAMMERS

There is a Rammer® hydraulic hammer for virtually any breaking application. So whether you are working with demolition, recycling, mining, construction or quarrying, we have the hammer to give you the best results.

Rammer® hammers are tough, durable and offer you the most economical owning and operating costs while delivering maximum production.

EXCELLENCE LINE

Stronger than time, the Excellence Line is Rammer flagship line of hydraulic hammers, which has been serving customers around the world for over four decades. The Excellence Line continues Rammer's tradition of delivering innovative hammers designed to improve your profitability, safety and performance.

All Excellence Line hammers include integrated smart RD3 remote monitoring system. With MyFleet portal access to data you are able to follow operating hours, GPS location and service intervals for easier fleet management and more efficient processes.

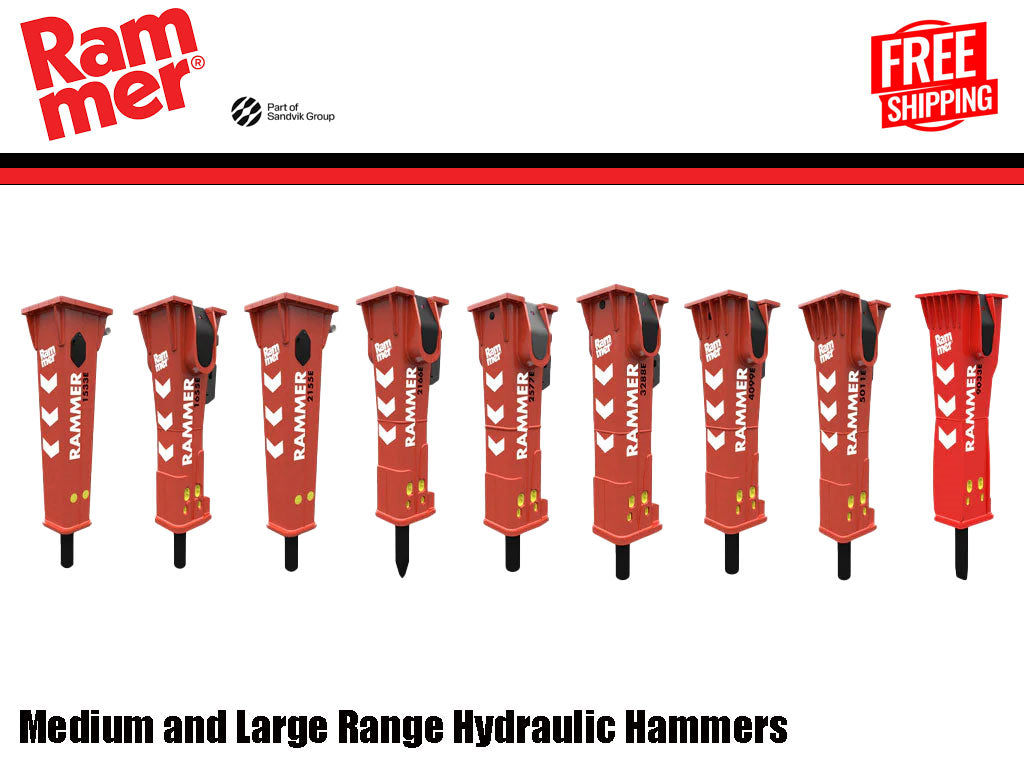

Rammer Excellence Hydraulic Hammers (Mid-Range)

With Rammer's Medium Range hydraulic hammers no job is too dirty and no conditions are too tough for you.

Slim and lightweight construction allows the hammer to reach narrow spaces and offers the best in market power-weight ratio for higher productivity.

Medium Range hydraulic hammers are your reliable long life solution for any breaking application for carriers between 10 and 32 tons (22 000–70 500 lb.).

Features:

Slim housing provides operator with good visibility and better accessibility in trenching and demolition applications
RamValve protects the hammer from damage due to excessive hydraulic input
VIDAT System includes vibration dampened tie rods that extend operating life, reduce operating costs and minimizes downtime
RamData III standard on all Excellence Line Hammers, GPS enabled
Simple In-Field Lower Tool Bushing Replacement (Except on 1322E)
Separate greasing channels from the valve body into the upper and lower bushing, which will increase the lifetime of your tool and bushings (Except on 1322E)
Idle blow on/off switch at the top of valve housing makes it easier to adjust

Rammer Excellence Hydraulic Hammers (Large Range)

Rammer Large Range hammers are undisputed leaders in their class. The use of advanced hydraulics combined with materials and production technology have enabled us to create hydraulic hammers that are powerful, durable and cost-effective.

So whether you are tackling the most challenging duties at general construction, demolition, quarrying, secondary and primary mining or special applications, Rammer's Large Range hydraulic hammers are your reliable solution for carriers between 26 and 120 tons (57 300–264 600 lb).

Features:

Sound-suppressed housing enhances use in urban areas and provides operator-friendly environment in the cab of carrier
RamValve detects overflow and prevents damage from system overload
VIDAT System includes vibration dampened tie rods that extend operating life, reduce operating costs and minimizes downtime
Separate greasing channels from the valve body into the upper and lower bushing, which will increase the lifetime of the tool and bushings
RamData III standard on all Excellence Line Hammers, GPS enabled
Simple In-Field Lower Tool Bushing Replacement (Except on 9033E)

MODEL	CARRIER EXCAVATOR	GPM	ENERGY CLASS	TOOL DIAMETER	WORKING LBS.
1322E	19800-33100 LBS	16 - 32	1600	3.74	1870
1655E	26500-44100 LBS	24 - 34	2500	4.53	2400
2166E	35300-57300 LBS	32 - 48	3500	4.92	3090
2577E	46300-70500 LBS	37-52.8	5000	5.31	3880
3288E	57300-92600 LBS	42.3-66	8000	5.59	5290
4099E	75000-121300 LBS	66-92.5	11000	6.54	7450
5011E	94800-176400 LBS	74-100.4	13000	7.48	10470
9033E	149900-264600 LBS	95.1-121.5	18000	8.46	16310

RD3 Smart Features & MyFleet Platform

All of Allied's Rammer E series breakers are now equipped with one of the first ever remote monitoring system for hydraulic hammers. This GPS enabled fleet management tool offers complete visibility over your entire fleet from the comfort of your computer chair. No more do you need to have a special reading device and the specific RamData unit, you can now access all your information from the MyFleet platform online.

FEATURES

Remote Data Access allows you to retrieve the RamData III information from your computer
With MyFleet, you have 24/7 access to your fleet data
Eliminate the guess work with MyFleet. You can know exactly how your hammer is being operated and utilized and you can have the real data you need to make informed decisions

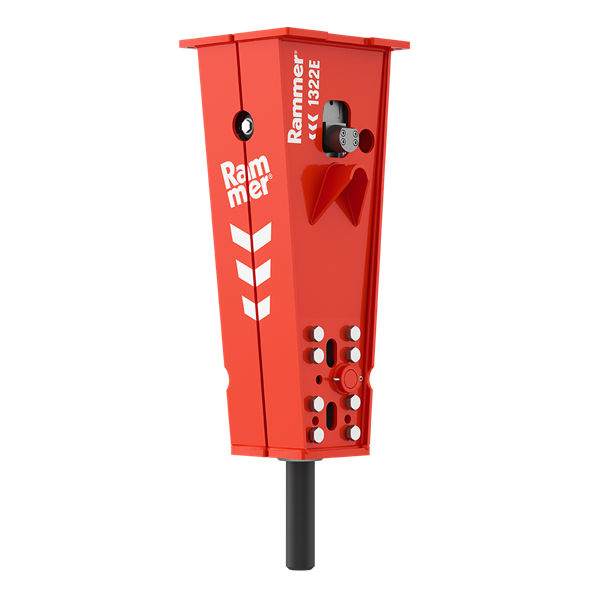

1322E

The Rammer 1322E has been built to last. The 850 kg hammer is suitable for carriers in the 9 to 15 tonne range. Low-maintenance design ensures lower owning and operating costs.

The 1322E features field replaceable lower tool bushing and sealed membrane-type accumulator to ensure that every blow is as hard as the previous, whilst providing protection against hydraulic spikes.

The Rammer 1322E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

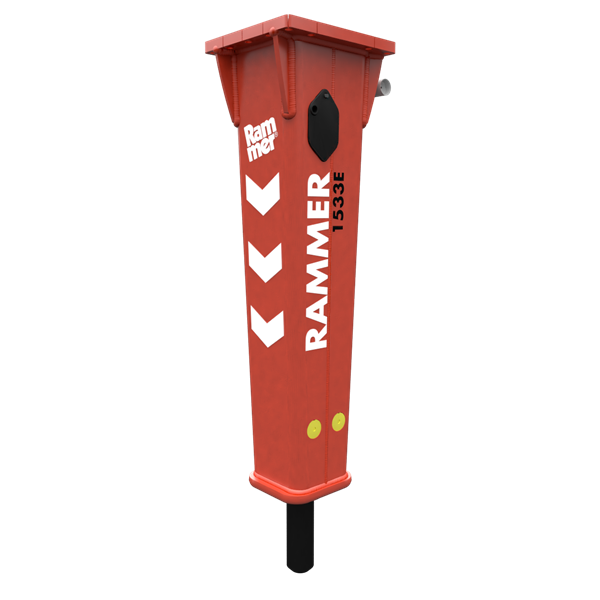

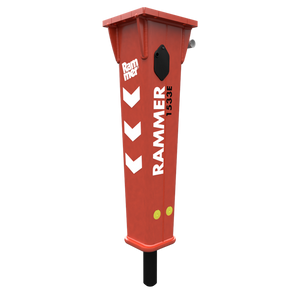

1533E

The 870 kg Rammer 1533E benefits from a radical lightweight design. Suitable for carriers between 10 and 19 tons.

Lightweight design gives this hammer a class-leading power-to-weight ratio and allows operators to enjoy a high level of productivity in a wide variety of demolition, recycling, quarrying or other applications.

The Rammer 1533E comes with the remote monitoring hardware RD3 installed.

FEATURES

Wheeled excavator hammer

APPLICATIONS

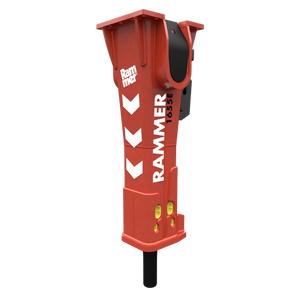

1655E

The Rammer 1655E hydraulic hammer is suitable for carriers in the 12 to 20 tonne range. The 1,100 kg hammer with an impact rate of 540–920 blows per minute, features Rammer’s Fixed Blow Energy operating principle, which ensures optimum impact energy with every blow, regardless of hydraulic flow fluctuations.

The Rammer 1655E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

2155E

Rammer 2155E embraces the very latest in hydraulic hammer design. The 1240 kg hammer is suitable for carriers in the 14 to 26 tonne range.

The 2155E has a slim body, robust housing made of wear resistant steel and a replaceable bottom plate and other smart features. A key feature is its design that provides exceptional flexibility to match the hammer precisely to application and material requirements by choosing additional parts from a range of options as “retrofit”.

The Rammer 2155E comes with the remote monitoring hardware RD3 installed.

FEATURES

Wheeled excavator hammer

APPLICATIONS

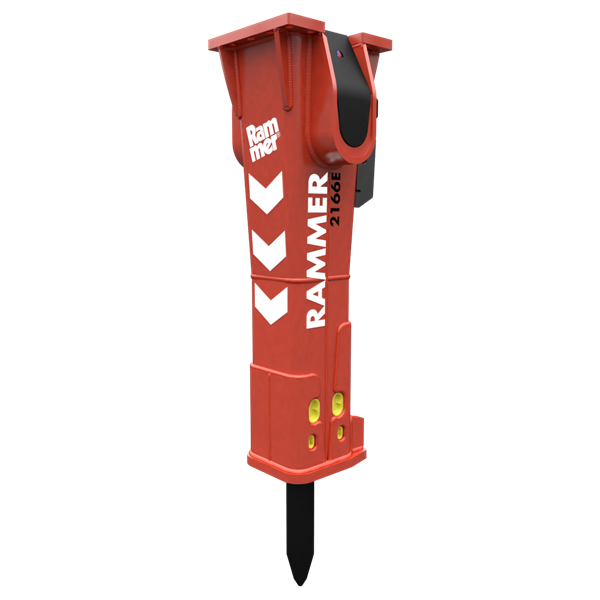

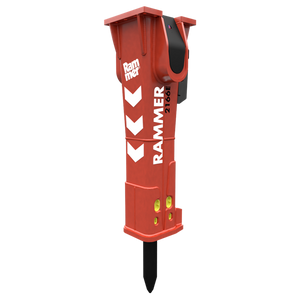

2166E

The Rammer 2166E hydraulic hammer is suitable for carriers in the 16 to 26 tonne range. The 1,360 kg hammer with an impact rate of 430 - 790 blows per minute features Rammer’s Fixed Blow Energy operating principle, which ensures optimum impact energy with every blow, regardless of hydraulic flow fluctuations.

The Rammer 2166E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

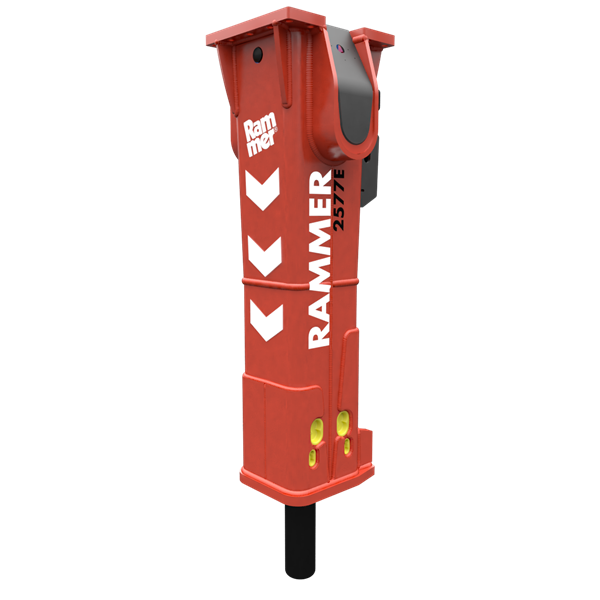

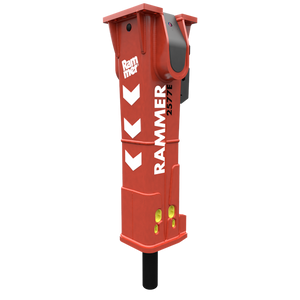

2577E

Rammer 2577E hydraulic hammer is suitable for carriers in the 21 to 32 tonne range. The 1,670 kg hammer with an impact rate of 450 to 750 blows per minute features Rammer’s Fixed Blow Energy operating principle which ensures optimum impact energy with every blow, regardless of hydraulic flow fluctuations.

The Rammer 2577E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

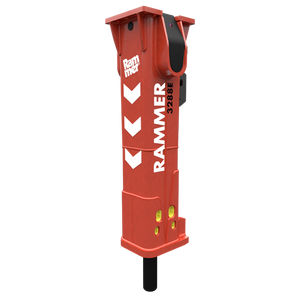

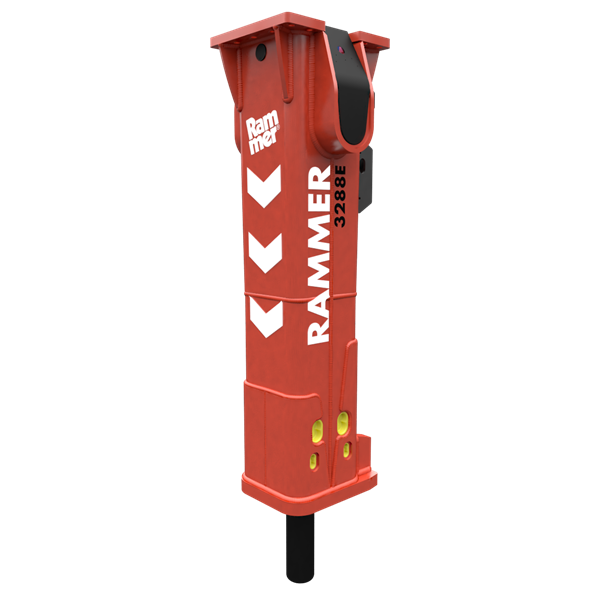

3288E

The 2,350 kg Rammer 3288E hydraulic hammer is suitable for carriers in the 26 to 42 tonne range. Designed by using a revolutionary new operating principle that combines stroke length, blow energy and Rammer’s idle blow protector, allowing the hammer to be adjusted to match individual carriers and applications, improving hydraulic efficiency and safety.

The Rammer 3288E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

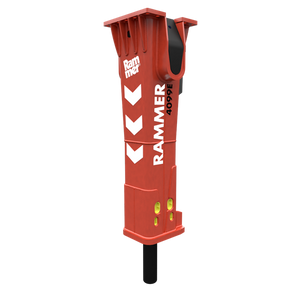

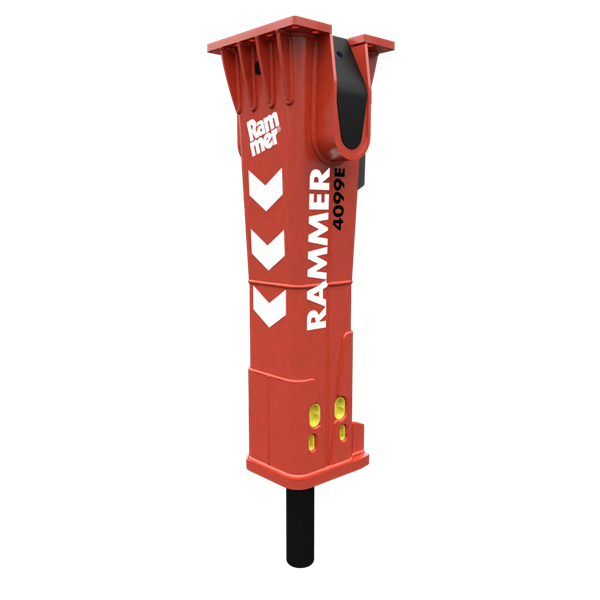

4099E

The 3,380 kg Rammer 4099E is suitable for carriers in the 36 to 55 tonne range. Designed by using a revolutionary new operating principle that combines stroke length, blow energy and Rammer’s idle blow protector, allowing the hammer to be adjusted to match individual carriers and applications, improving hydraulic efficiency and safety.

The Rammer 4099E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

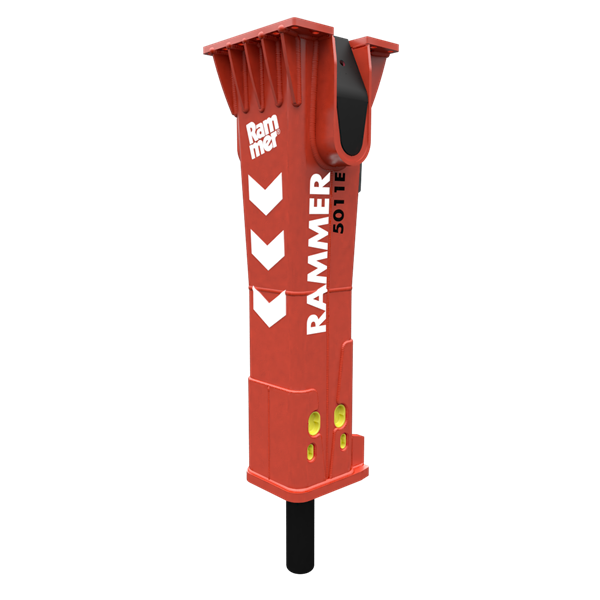

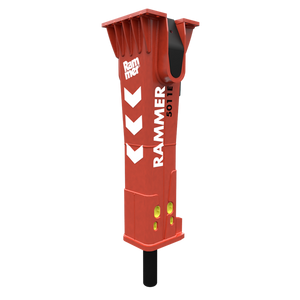

5011E

The 4,750 kg Rammer 5011E hammer is suitable for carriers between 43 and 80 tons. Designed by using a revolutionary new operating principle which combines stroke length, blow energy and Rammer’s idle blow protector, allowing the hammer to be adjusted to match individual carriers and applications, improving hydraulic efficiency and safety.

The Rammer 55011E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

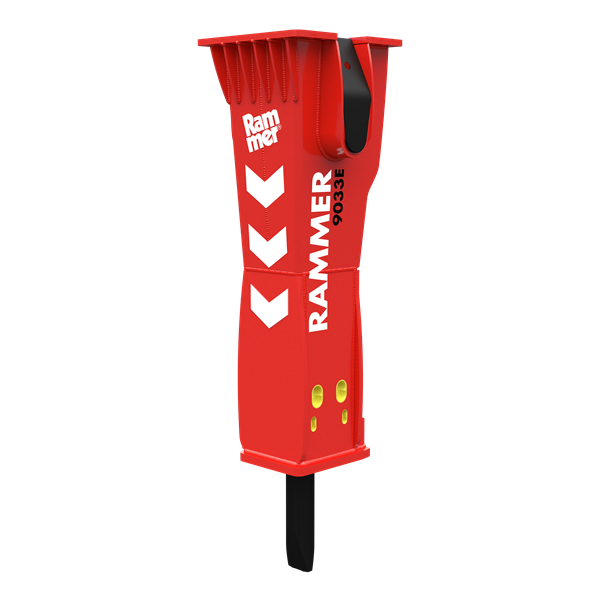

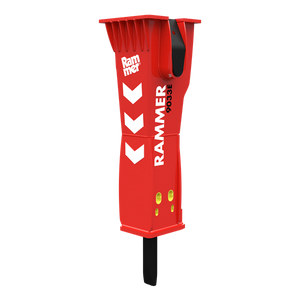

9033E

The 7,400 kg Rammer 9033E is suitable for carriers between 65 and 120 tons. Designed by using a revolutionary new operating principle that combines stroke length, blow energy and Rammer’s idle blow protector, allowing the hammer to be adjusted to match individual carriers and applications, improving hydraulic efficiency and safety.

Heavy duty housing and in-the-field rotatable and replaceable Lower Tool Bushing allows to minimize operating costs.

The Rammer 9033E comes with the remote monitoring hardware RD3 installed.

FEATURES

APPLICATIONS

RAMMER 1322E
Minimum working weight, flange mounted *1	850 kg	1870 lb
Weight	710 kg	1570 lb
Impact rate (frequency)	500 - 1000 bpm
Operating pressure	125 - 160 bar	1815 - 2320 psi
Oil flow range	60 - 120 l/min	15.9 - 31.7 gal/min
Pressure relief setting *2	175 - 210 bar	2540 - 3045 psi
Pressure relief max	220 bar	3190 psi
Pressure in LP-circuit	26 - 28 bar	375 - 405 psi
Back pressure max	20 bar	290 psi
Input power	32 kW	43 hp
Tool diameter	95 mm	3.74 in
Pressure line connection (IN)	BSPP-internal 1"
Return line connection (OUT)	BSPP-internal 1"
Pressure line size, min. inner diameter	26 mm	1.02 in
Return line size, min. inner diameter	26 mm	1.02 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 1/2"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, range *3	9 - 15 t	19800 - 33100 lb
Noise level, measured (2000/14/EC)	136 dB(A)
Noise level, guaranteed (2000/14/EC)	140 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Tuesday, June 6, 2023)

RAMMER 1533E
Minimum working weight, flange mounted *1	870 kg	1920 lb
Weight	710 kg	1570 lb
Working length	2004 mm	78.9 in
Impact rate (frequency)	550 - 950 bpm
Operating pressure	140 - 160 bar	2030 - 2320 psi
Oil flow range	80 - 140 l/min	21.1 - 37.0 gal/min
Pressure relief setting *2	220 bar	3190 psi
Pressure relief max	240 bar	3480 psi
Back pressure max	10 bar	145 psi
Input power	37 kW	50 hp
Tool diameter	105 mm	4.13 in
Pressure line connection (IN)	ORFS ( 1 7/16-12 UN )
Return line connection (OUT)	ORFS ( 1 7/16-12 UN )
Pressure line size, min. inner diameter	19 mm	0.75 in
Return line size, min. inner diameter	19 mm	0.75 in
Grease connection	Tema 2520
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	11 - 17 t	24300 - 37500 lb
Carrier weight, range *3	10 - 19 t	22000 - 41900 lb
Noise level, measured (2000/14/EC)	120 dB(A)
Noise level, guaranteed (2000/14/EC)	124 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, August 23, 2023)

RAMMER 1655E
Minimum working weight, flange mounted *1	1100 kg	2430 lb
Weight	890 kg	1960 lb
Impact rate (frequency)	540 - 920 bpm
Operating pressure	135 - 145 bar	1960 - 2105 psi
Oil flow range	90 - 130 l/min	23.8 - 34.3 gal/min
Pressure relief setting *2	190 bar	2755 psi
Pressure relief max	220 bar	3190 psi
Back pressure max	10 bar	145 psi
Input power	31 kW	42 hp
Tool diameter	115 mm	4.53 in
Pressure line connection (IN)	SAE 6000 psi 1"
Return line connection (OUT)	SAE 6000 psi 1"
Pressure line size, min. inner diameter	26 mm	1.02 in
Return line size, min. inner diameter	26 mm	1.02 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, range *3	12 - 20 t	26500 - 44100 lb
Noise level, measured (2000/14/EC)	123 dB(A)
Noise level, guaranteed (2000/14/EC)	127 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Tuesday, May 30, 2023)

RAMMER 2155E
Minimum working weight, flange mounted *1	1240 kg	2730 lb
Weight	1040 kg	2290 lb
Working length	2198 mm	86.5 in
Impact rate (frequency)	490 - 780 bpm
Operating pressure	140 - 160 bar	2030 - 2320 psi
Oil flow range	120 - 180 l/min	31.7 - 47.6 gal/min
Pressure relief setting *2	220 bar	3190 psi
Pressure relief max	240 bar	3480 psi
Back pressure max	10 bar	145 psi
Input power	48 kW	64 hp
Tool diameter	118 mm	4.65 in
Pressure line connection (IN)	ORFS ISO 8434-3 ( 1 11/16-12 UN )
Return line connection (OUT)	ORFS ISO 8434-3 ( 1 11/16-12 UN )
Pressure line size, min. inner diameter	26 mm	1.02 in
Return line size, min. inner diameter	26 mm	1.02 in
Grease connection	Tema 2520
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	19 - 22 t	41900 - 48500 lb
Carrier weight, range *3	14 - 26 t	30900 - 57300 lb
Noise level, measured (2000/14/EC)	124 dB(A)
Noise level, guaranteed (2000/14/EC)	128 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

RAMMER 2166E
Minimum working weight, flange mounted *1	1360 kg	3000 lb
Weight	1130 kg	2490 lb
Impact rate (frequency)	430 - 790 bpm
Operating pressure	140 - 160 bar	2030 - 2320 psi
Oil flow range	120 - 180 l/min	31.7 - 47.6 gal/min
Pressure relief setting *2	210 bar	3045 psi
Pressure relief max	230 bar	3335 psi
Back pressure max	10 bar	145 psi
Input power	48 kW	64 hp
Tool diameter	125 mm	4.92 in
Pressure line connection (IN)	SAE 6000 psi 1 1/4"
Return line connection (OUT)	SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter	26 mm	1.02 in
Return line size, min. inner diameter	26 mm	1.02 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, range *3	16 - 26 t	35300 - 57300 lb
Noise level, measured (2000/14/EC)	121 dB(A)
Noise level, guaranteed (2000/14/EC)	125 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

RAMMER 2577E
Minimum working weight, flange mounted *1	1670 kg	3680 lb
Weight	1410 kg	3110 lb
Working length	2299 mm	90.5 in
Impact rate (frequency)	450 - 750 bpm
Operating pressure	135 - 145 bar	1960 - 2105 psi
Oil flow range	140 - 200 l/min	37.0 - 52.8 gal/min
Pressure relief setting *2	190 bar	2755 psi
Pressure relief max	220 bar	3190 psi
Back pressure max	10 bar	145 psi
Input power	48 kW	64 hp
Tool diameter	135 mm	5.31 in
Pressure line connection (IN)	SAE 6000 psi 1 1/4"
Return line connection (OUT)	SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter	26 mm	1.02 in
Return line size, min. inner diameter	32 mm	1.26 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	23 - 30 t	50700 - 66100 lb
Carrier weight, range *3	21 - 32 t	46300 - 70500 lb
Noise level, measured (2000/14/EC)	120 dB(A)
Noise level, guaranteed (2000/14/EC)	124 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

RAMMER 3288E
Minimum working weight, flange mounted *1	2350 kg	5181 lb
Weight	2040 kg	4500 lb
Working length	2581 mm	101.6 in
Impact rate, Long stroke	370 - 630 bpm
Impact rate, Short stroke	460 - 740 bpm
Operating pressure	150 - 160 bar	2175 - 2320 psi
Oil flow range	160 - 250 l/min	42.3 - 66.0 gal/min
Pressure relief setting *2	220 bar	3190 psi
Pressure relief max	240 bar	3480 psi
Back pressure max	10 bar	145 psi
Input power	67 kW	90 hp
Tool diameter	142 mm	5.59 in
Pressure line connection (IN)	SAE 6000 psi 1 1/4"
Return line connection (OUT)	SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter	32 mm	1.26 in
Return line size, min. inner diameter	32 mm	1.26 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	28 - 38 t	61700 - 83800 lb
Carrier weight, range *3	26 - 42 t	57300 - 92600 lb
Noise level, measured (2000/14/EC)	124 dB(A)
Noise level, guaranteed (2000/14/EC)	128 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Monday, December 19, 2022)

RAMMER 4099E
Minimum working weight, flange mounted *1	3380 kg	7450 lb
Weight	2800 kg	6170 lb
Working length	2962 mm	116.6 in
Impact rate, Long stroke	400 - 560 bpm
Impact rate, Short stroke	520 - 700 bpm
Operating pressure	150 - 160 bar	2175 - 2320 psi
Oil flow range	250 - 350 l/min	66.0 - 92.5 gal/min
Pressure relief setting *2	210 bar	3045 psi
Pressure relief max	230 bar	3335 psi
Back pressure max	12 bar	175 psi
Input power	93 kW	125 hp
Tool diameter	166 mm	6.54 in
Pressure line connection (IN)	SAE 6000 psi 1 1/4"
Return line connection (OUT)	SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter	32 mm	1.26 in
Return line size, min. inner diameter	32 mm	1.26 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	37 - 50 t	81600 - 110200 lb
Carrier weight, range *3	36 - 55 t	79400 - 121300 lb
Noise level, measured (2000/14/EC)	126 dB(A)
Noise level, guaranteed (2000/14/EC)	130 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

RAMMER 5011E
Minimum working weight, flange mounted *1	4750 kg	10470 lb
Weight	3900 kg	8600 lb
Working length	3329 mm	131.1 in
Impact rate, Long stroke	370 - 530 bpm
Impact rate, Short stroke	450 - 620 bpm
Operating pressure	160 - 170 bar	2320 - 2465 psi
Oil flow range	280 - 380 l/min	74.0 - 100.4 gal/min
Pressure relief setting *2	220 bar	3190 psi
Pressure relief max	230 bar	3335 psi
Back pressure max	10 bar	145 psi
Input power	108 kW	145 hp
Tool diameter	190 mm	7.48 in
Pressure line connection (IN)	SAE 6000 psi 1 1/2"
Return line connection (OUT)	SAE 6000 psi 1 1/2"
Pressure line size, min. inner diameter	32 mm	1.26 in
Return line size, min. inner diameter	32 mm	1.26 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, optimum	45 - 69 t	99200 - 152100 lb
Carrier weight, range *3	43 - 80 t	94800 - 176400 lb
Noise level, measured (2000/14/EC)	122 dB(A)
Noise level, guaranteed (2000/14/EC)	126 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

RAMMER 9033E
Minimum working weight, flange mounted *1	7400 kg	16310 lb
Weight	6000 kg	13230 lb
Working length	3707 mm	145.94 in
Impact rate, Long stroke	300 - 520 bpm
Impact rate, Short stroke	355 - 645 bpm
Operating pressure	170 - 180 bar	2465 - 2610 psi
Oil flow range	360 - 460 l/min	95.1 - 121.5 gal/min
Pressure relief setting *2	230 bar	3335 psi
Pressure relief max	240 bar	3480 psi
Back pressure max	10 bar	145 psi
Input power	138 kW	185 hp
Tool diameter	215 mm	8.46 in
Pressure line connection (IN)	SAE 6000 psi 1 1/2"
Return line connection (OUT)	SAE 6000 psi 1 1/2"
Pressure line size, min. inner diameter	38 mm	1.50 in
Return line size, min. inner diameter	38 mm	1.50 in
Grease connection	BSPP-internal 3/8"
Air connection (A)	BSPP-internal 3/8"
Optimum oil temperature	40 - 60 °C	104 - 140 °F
Allowed oil temperature range	-20 - 80 °C	-4 - 176 °F
Optimum oil viscosity at operating temperature	30 - 60 cSt
Allowed viscosity range	20 - 1000 cSt
Carrier weight, range *3	65 - 120 t	143300 - 264600 lb
Noise level, measured (2000/14/EC)	127 dB(A)
Noise level, guaranteed (2000/14/EC)	131 dB(A)
1 Includes average mounting bracket and standard wear parts 2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

Chisel tool The Standard Chisel Tool is used for rock and reinforced concrete.
Long chisel tool The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a crusher.
Moil point tool Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunnels.
Pyramid tool The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration rate, especially concrete, are short work for the Pyramid tool.
Spade tool, parallel to boom "Parallel" tools have the cutting edge in line with the boom. Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.
Spade tool, transverse to boom "Transverse" tools have the cutting edge across the boom. Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.
Compacting plate tool The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized compacting attachments or machines at smaller job sites.
Long moil point tool The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block a crusher.

Language

RAMMER Excellence series hydraulic hammers for 19800 to 264600 lbs. excavators

2/25

Formally Allied Construction Products

HYDRAULIC HAMMERS

EXCELLENCE LINE

Rammer Excellence Hydraulic Hammers (Mid-Range)

Rammer Excellence Hydraulic Hammers (Large Range)

Recently viewed products

You may also like

Subscribe

Language
