RAMMER vibratory compactors for mini excavators (19000-40000 lbs machines)

RAMMER vibratory compactors for mini excavators (19000-40000 lbs machines)

$14,360.00

DESCRIPTION
SPECS

2/25

Formally Allied Construction Products

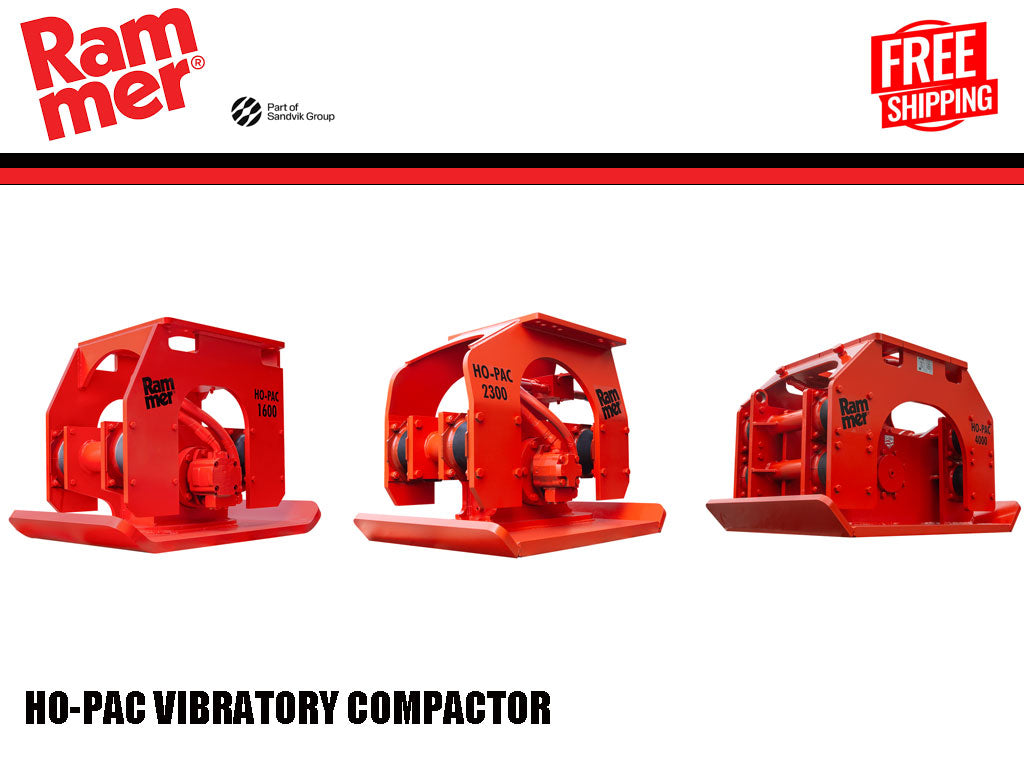

HO-PAC COMPACTOR DRIVERS

Available in North American market only

Ho-Pac compactor drivers save you time, money, and increase productivity by expanding versatility and eliminating the need for special purpose machines. The Ho-Pac models use an eccentric, rotating weight that creates vibrations and impulse energy for effective soil compaction. They are also efficient at driving wood, steel and aluminum sheeting, beams, posts, piling and seawalls.

Applications

Trench compaction
Slope compaction
Pile Driving
Waste Material Compaction

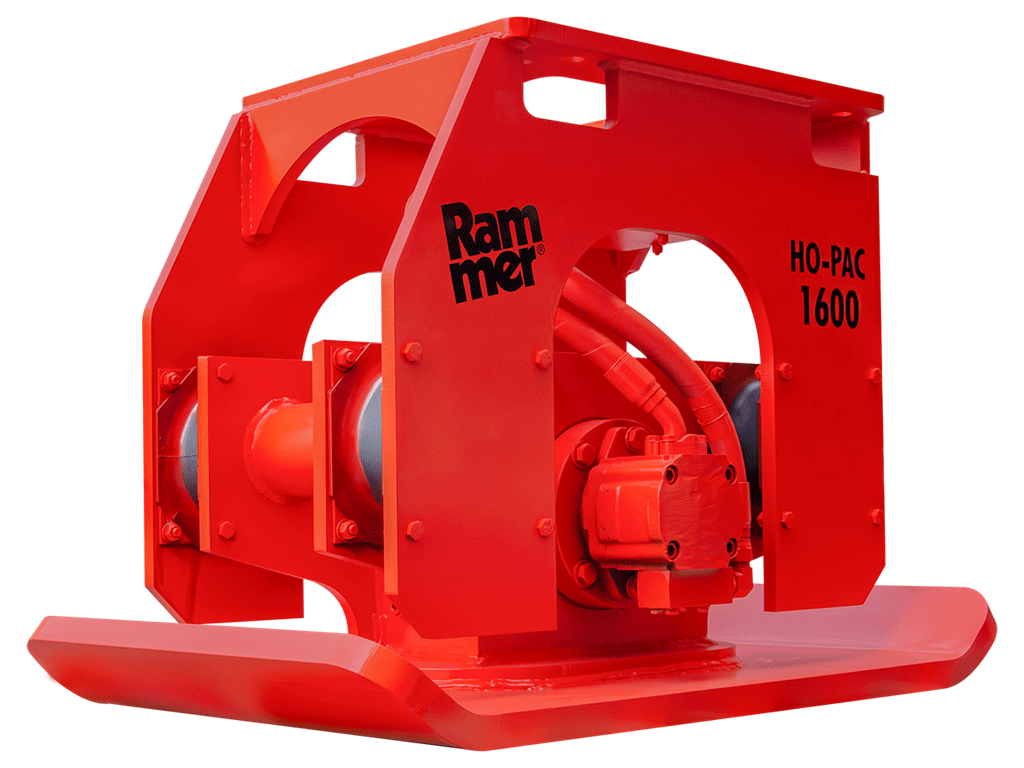

Ho-Pac 1600

The 1900lbs (862kg) Ho-Pac 1600 is ideal for trench, slope and excavation compaction, and provides effective forces for driving pilings, posts, pipes, beams and sea walls. Compatible with carriers in the 19,000 to 45,000 ton range, this attachment is designed for use in small to medium excavators as well as larger loaders and backhoes.

The Ho-Pac 1600 features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Oil Splash lubrication providing maintenance free (no greasing) bearing lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in the USA.

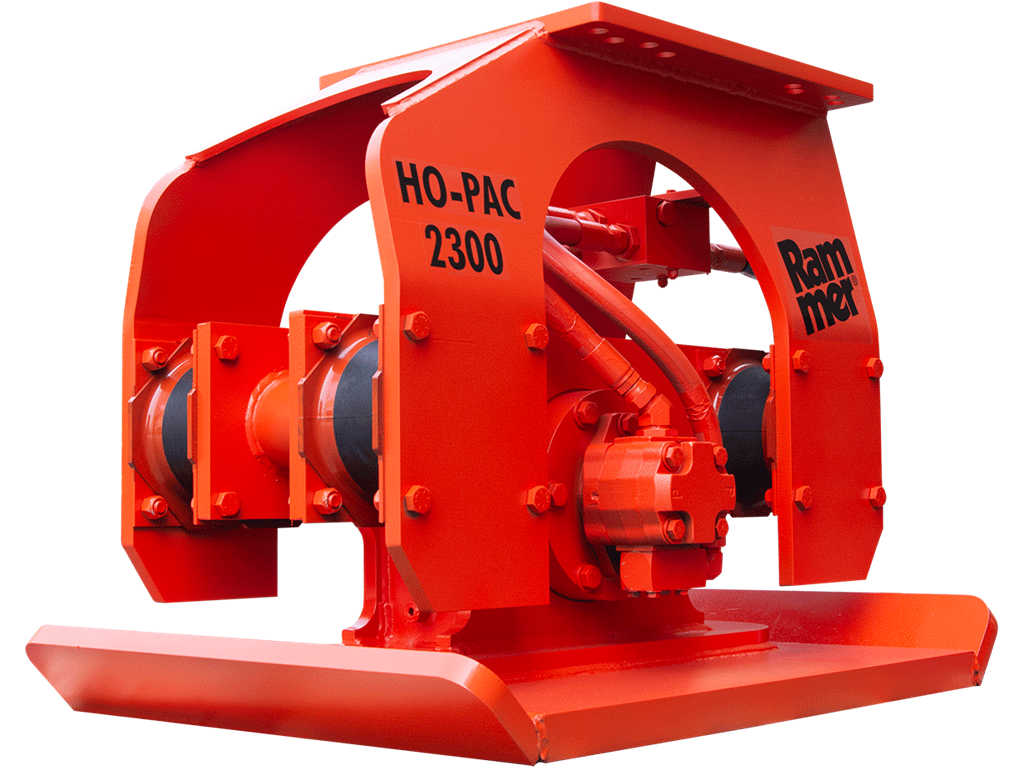

Ho-Pac 2300

The 2900lbs (1315kg) Ho-Pac 2300 is ideal for trench, slope and excavation compaction, and provides effective forces for driving pilings, posts, pipes, beams and sea walls. Compatible with carriers in the 35,000 to 120,000 ton range, this attachment is designed for use in large excavators, loaders and backhoes.

The Ho-Pac 2300 features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Oil Splash lubrication providing maintenance free (no greasing) bearing lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in the USA.

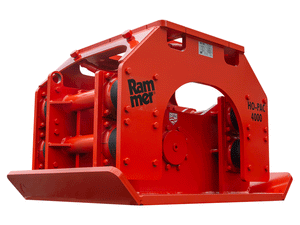

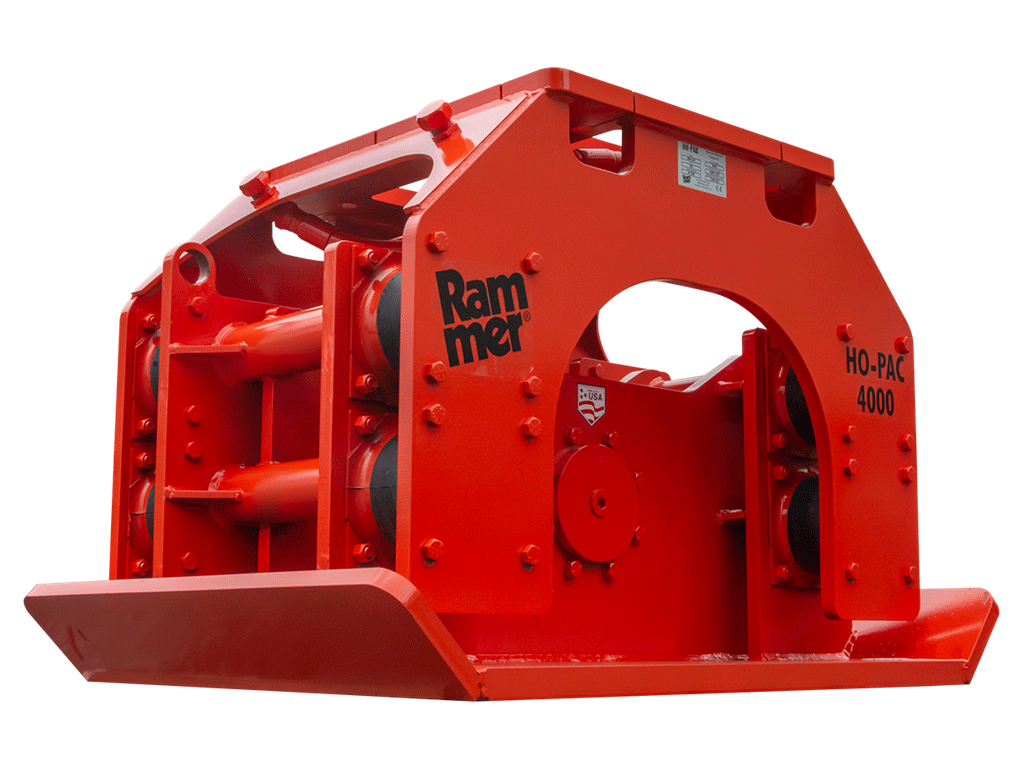

Ho-Pac 4000

The 4900lbs (2223kg) Ho-Pac 4000 is ideal for trench, slope and excavation compaction, and provides effective forces for driving pilings, posts, pipes, beams and sea walls. Compatible with carriers in the 77,000 to 150,000 ton range, this attachment is designed for use in large excavators, loaders and backhoes.

The Ho-Pac 4000 features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Oil Splash lubrication providing maintenance free (no greasing) bearing lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in the USA.

MODEL	CARRIER SIZE
1600	19000-45000 LBS.
2300	35000-120000 LBS.
4000	77000-150000 LBS

MODEL 1600
Minimum working weight, flange mounted *1	862 kg	1900 lb
Length	1163 mm	45.79 in
Width	737 mm	29.00 in
Height	809 mm	31.87 in
Pressure line size, min. inner diameter	25 mm	0.98 in
Return line size, min. inner diameter	25 mm	0.98 in
Miniexcavator, tractor backhoe weight, Range *2	8.6 - 11.4 t	19000 - 25000 lb
Carrier weight, range *2	9 - 20.5 t	2000 - 45000 lb
Impulse force	16000 lb
Operating frequency	2100 rpm
Hydraulic flow options	25/30/43 gal/min
Compaction plate dimensions	29 x 44 in
Mounting bracket type	SR/MR
1 Includes average mounting bracket and standard wear parts 2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

MODEL 2300
Minimum working weight, flange mounted *1	1315 kg	2900 lb
Length	1229 mm	48.38 in
Width	864 mm	34 in
Height	871 mm	34.28 in
Carrier weight, range *2	16 - 54 t	35000 - 120000 lb
Impulse force	24000 lb
Operating frequency	2100 rpm
Hydraulic flow options	47 gal/min
Compaction plate dimensions	34 x 44 in
Mounting bracket type	MR/LR8
1 Includes average mounting bracket and standard wear parts 2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

MODEL 4000
Minimum working weight, flange mounted *1	2222 kg	4899 lb
Length	1525 mm	60.03 in
Width	1067 mm	42 in
Height	972 mm	38.25 in
Carrier weight, range *2	35 - 70 t	77000 - 150000 lb
Impulse force	40000 lb
Operating frequency	2100 rpm
Hydraulic flow options	62/86 gal/min
Compaction plate dimensions	42 x 60 in
Mounting bracket type	LR9
1 Includes average mounting bracket and standard wear parts 2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
