ALLIED vibratory compactors for mini excavators (3000-30000 lbs machines) (Copy)
$5,450.00 - $10,328.00

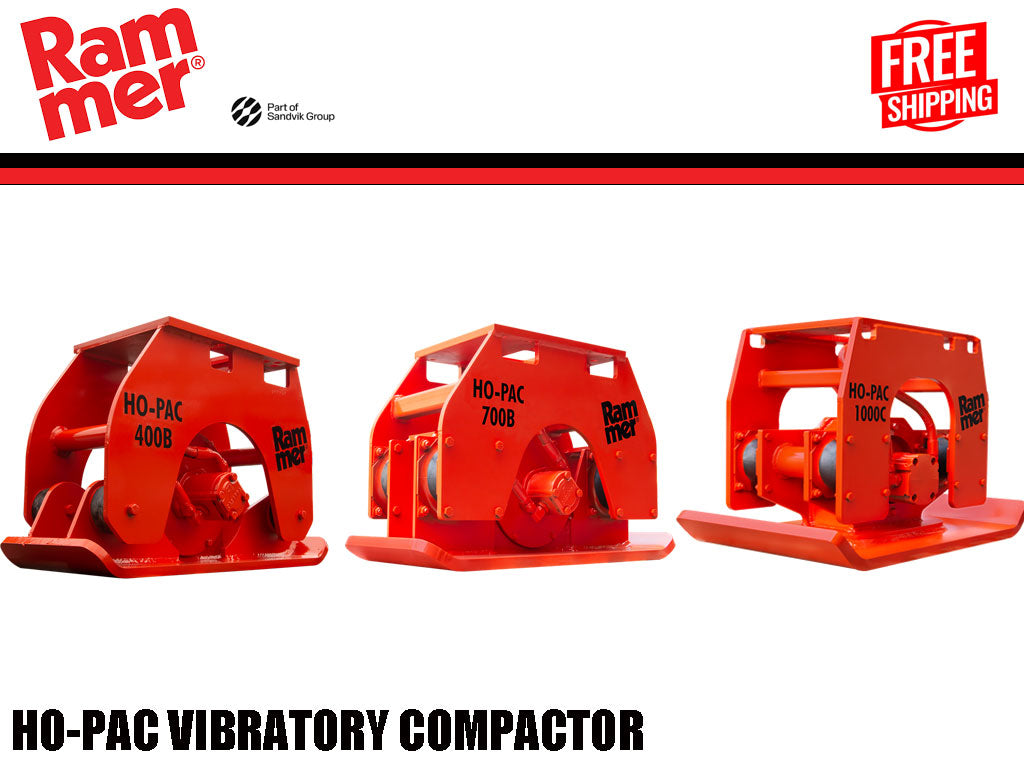

HO-PAC COMPACTOR DRIVERS
Available in North American market only
Ho-Pac compactor drivers save you time, money, and increase productivity by expanding versatility and eliminating the need for special purpose machines. The Ho-Pac models use an eccentric, rotating weight that creates vibrations and impulse energy for effective soil compaction. They are also efficient at driving wood, steel and aluminum sheeting, beams, posts, piling and seawalls.

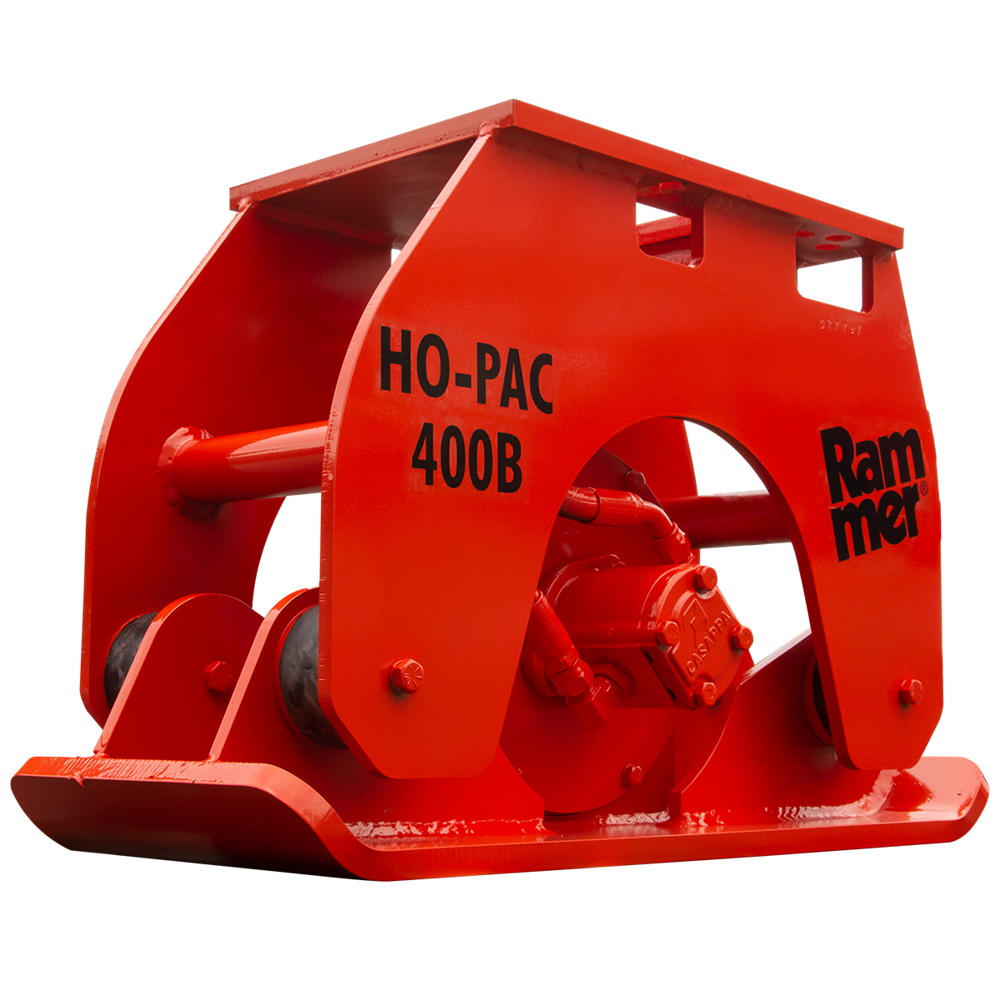

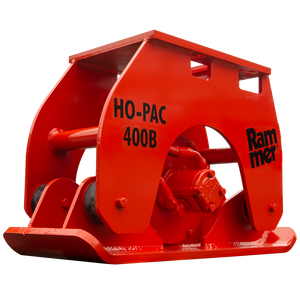

Ho-Pac 400B
The 500lbs (227kg) Ho-Pac 400B is ideal for trench, slope and excavation compaction. Compatible with carriers in the 3,000 to 12,000 ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.
The Ho-Pac 400B features Four Function Valve that controls flow, pressure, regeneration and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.
Manufactured in the USA

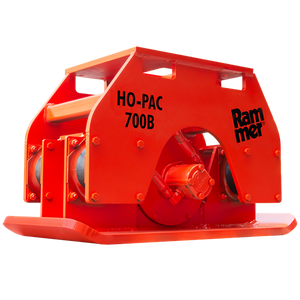

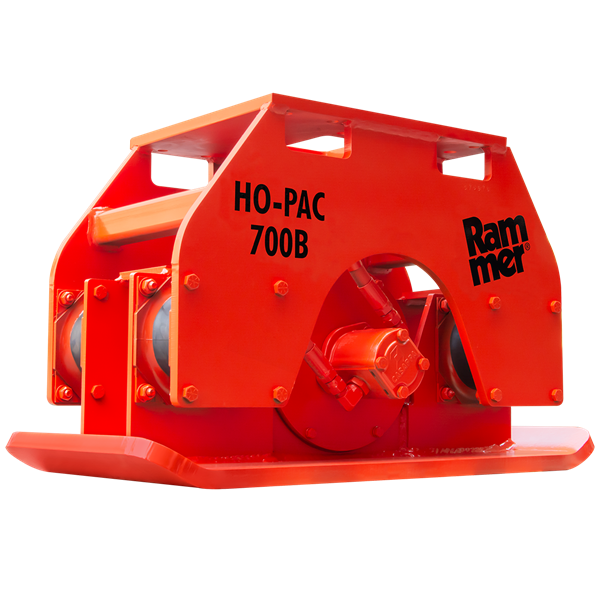

Ho-Pac 700B
The 750lbs (340kg) Ho-Pac 700B is ideal for trench, slope and excavation compaction. Compatible with carriers in the 8,000 to 20,000 ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.
The Ho-Pac 700B features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.
Manufactured in USA.

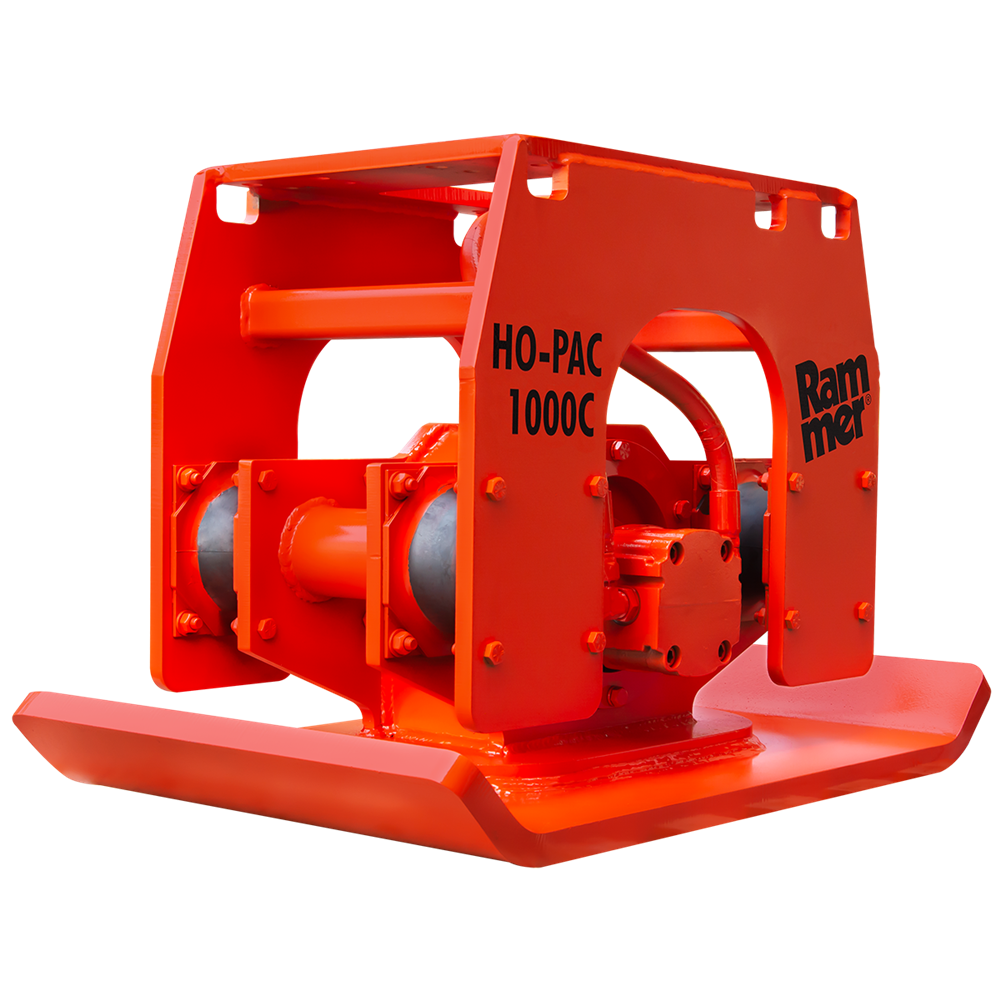

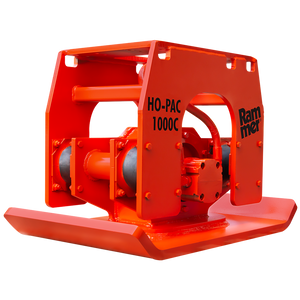

Ho-Pac 1000C
The 1120lbs (508kg) Ho-Pac 1000C is ideal for trench, slope and excavation compaction. Compatible with carriers in the 9,000 to 30,000 ton range, the attachment is designed for use in small to medium rubber-tired loader and backhoes.
The Ho-Pac 1000C features Four Function valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.
Manufactured in the USA.
| MODEL | CARRIER SIZE |
| 400B | 3000-12000 LBS. |
| 700B | 8000-20000 LBS. |
| 1000C | 9000-30000 LBS |
| MODEL | 400B | 700B | 1000C |
| IMPULSE FORCE (LBS) | 4000 | 6400 | 8000 |
| OPERATION FREQUENCY (RPM) | 2000 | 2000 | 2000 |
| HYDRAULIC FLOW (GPM) | 6/9/14/18 | 6/9/14/18 | 12/18/21 |
| OPERATION PREASURE (PSI) | 2800/2800/2500/2000 | 2800/2800/2500/2000 | 2800/2000/2000 |
| OVERALL HEIGHT | 21" | 22" | 26" |
| DIMENSIONS | 13X31 | 18X35 | 24X37 |
| COMPACTOIN AREA (SQ FT) | 2.3 | 3.4 | 4.7 |
| MOUNTING BRACKET | IN1/IN2/XR | XR/BR | BR/SR |
| WORKING WEIGHT | 500 LBS | 750 LBS | 1120 LBS |
| CARRIER CLASS | 3000-12000 LBS | 8000-20000 LBS | 9000-30000 LBS |
