FMM148-F2000

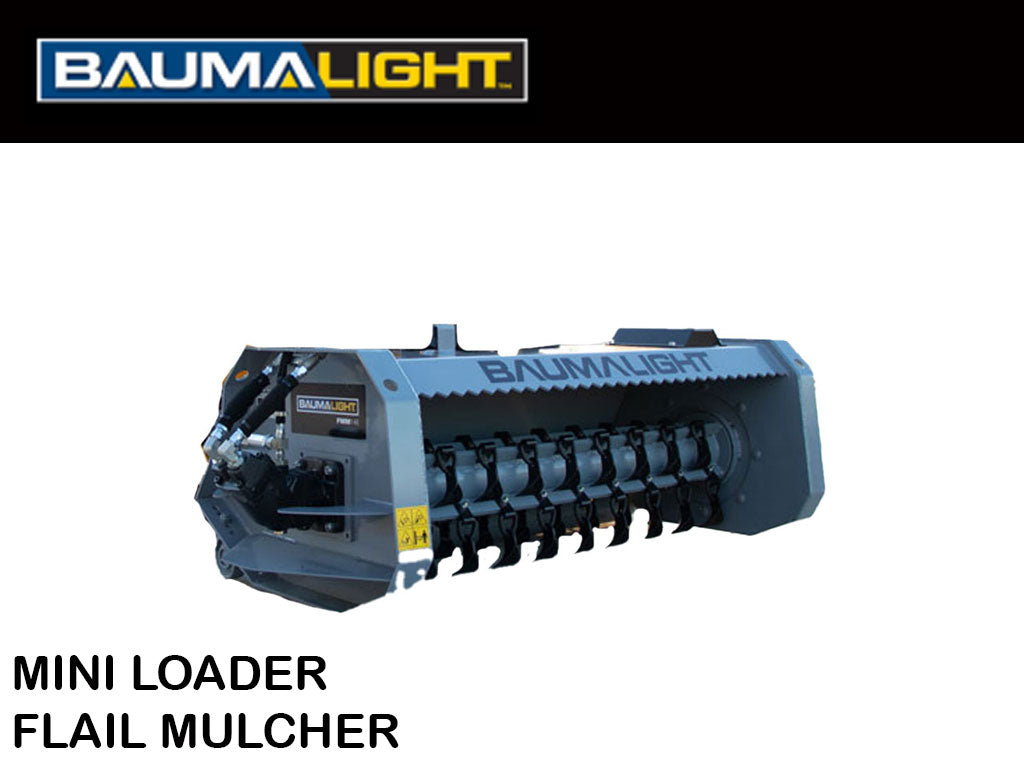

BAUMALIGHT FMM148 FLAIL MOWER FOR MINI LOADER

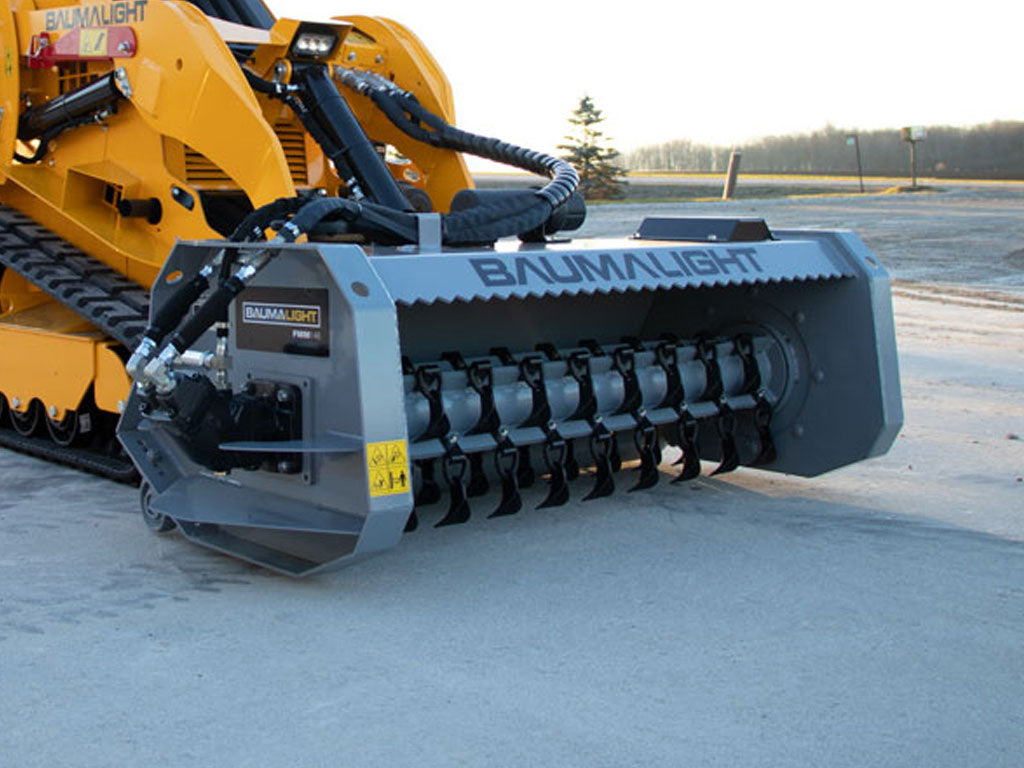

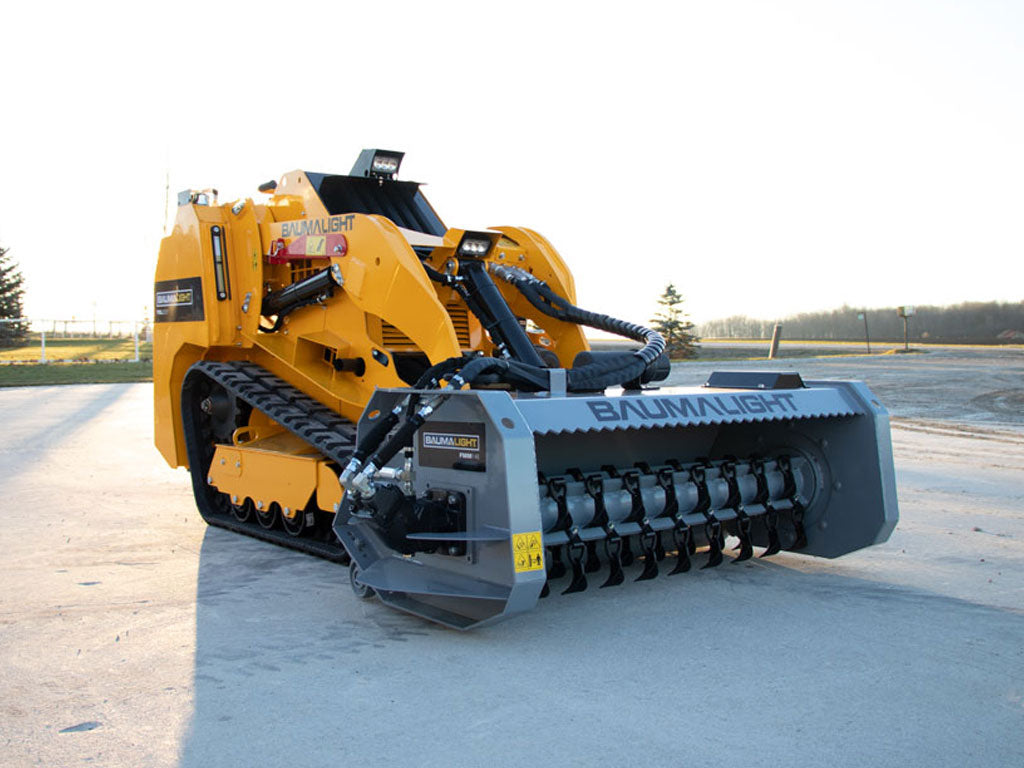

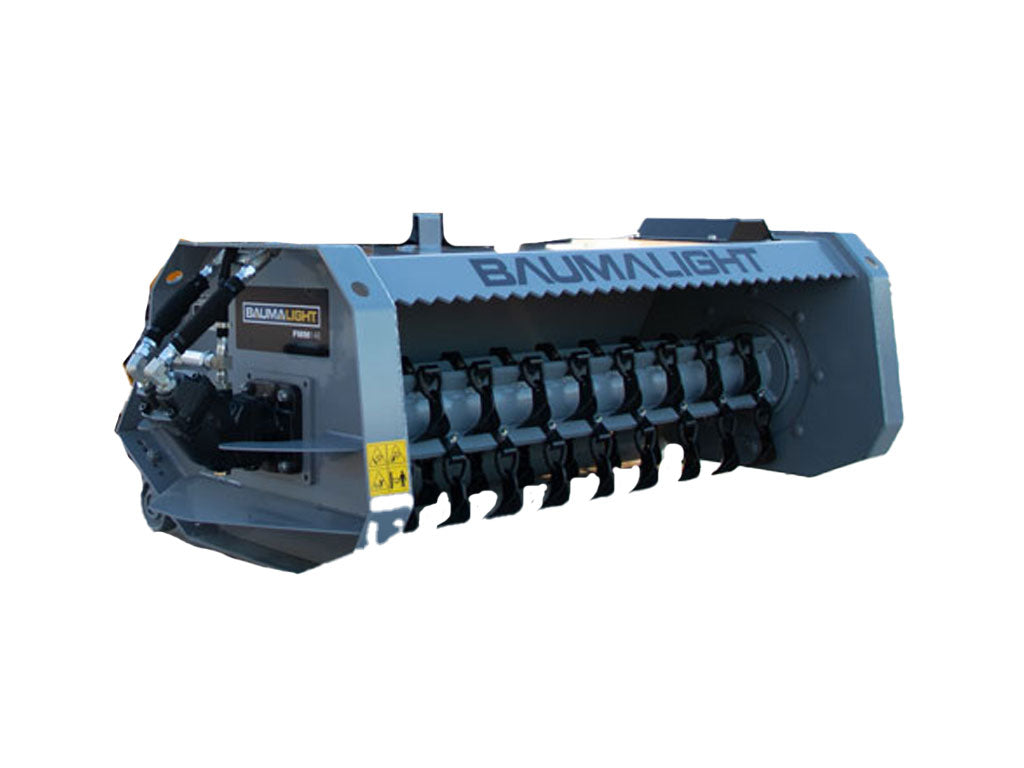

FMM148 Flail Mower for Mini Skid steer

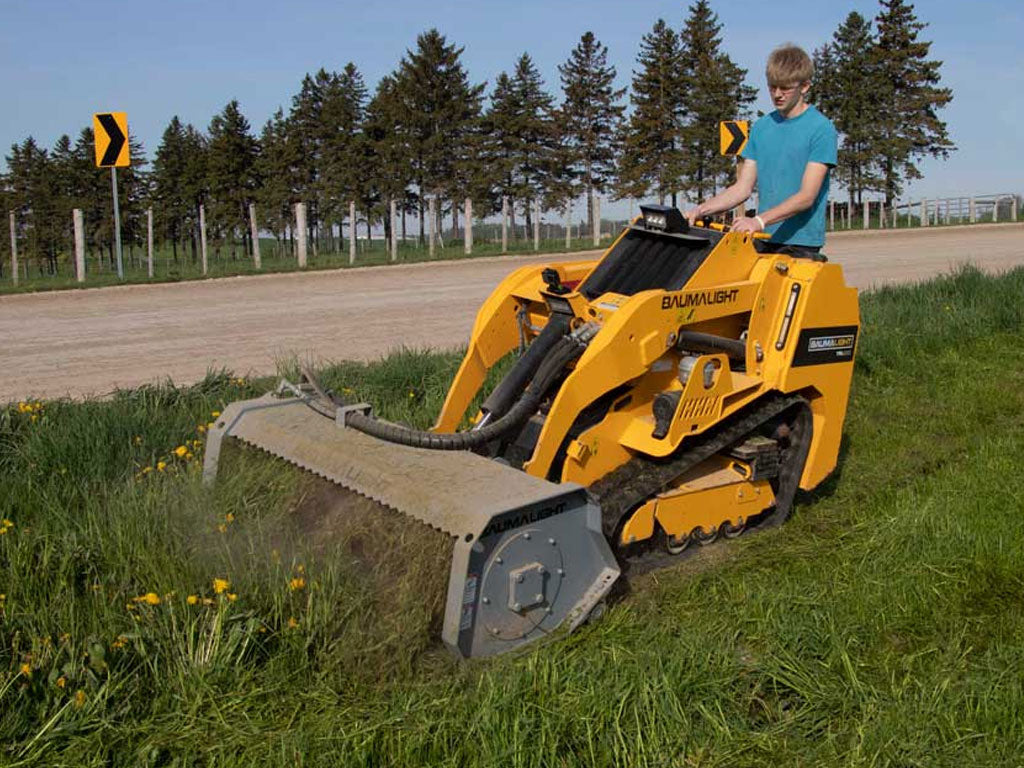

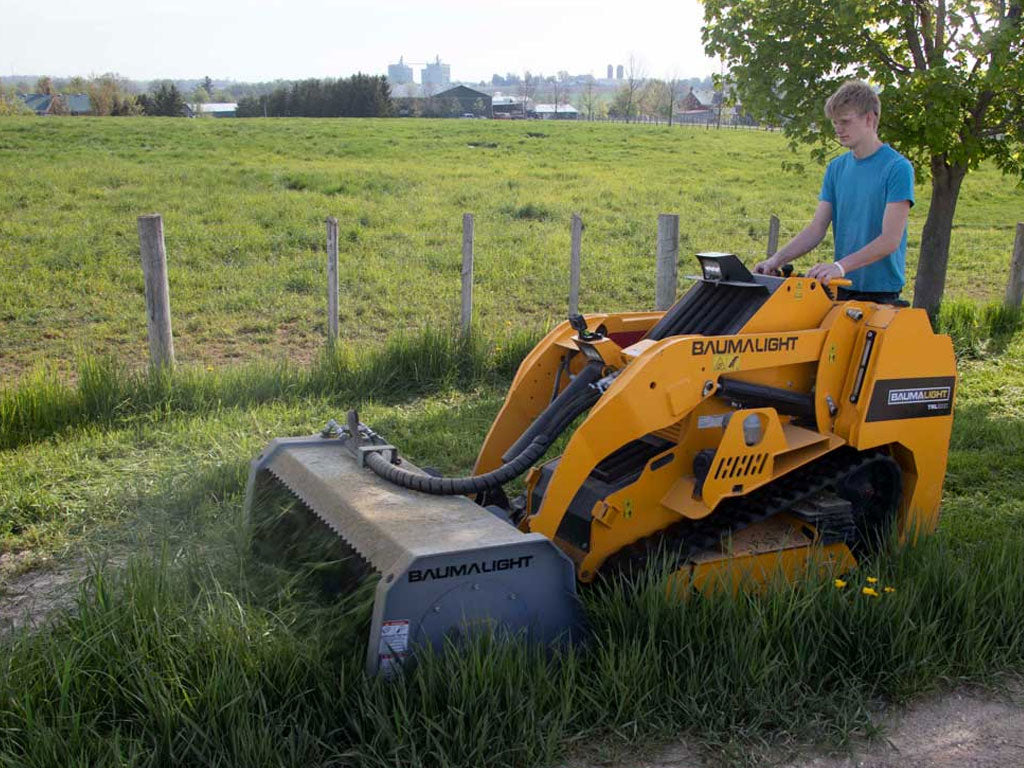

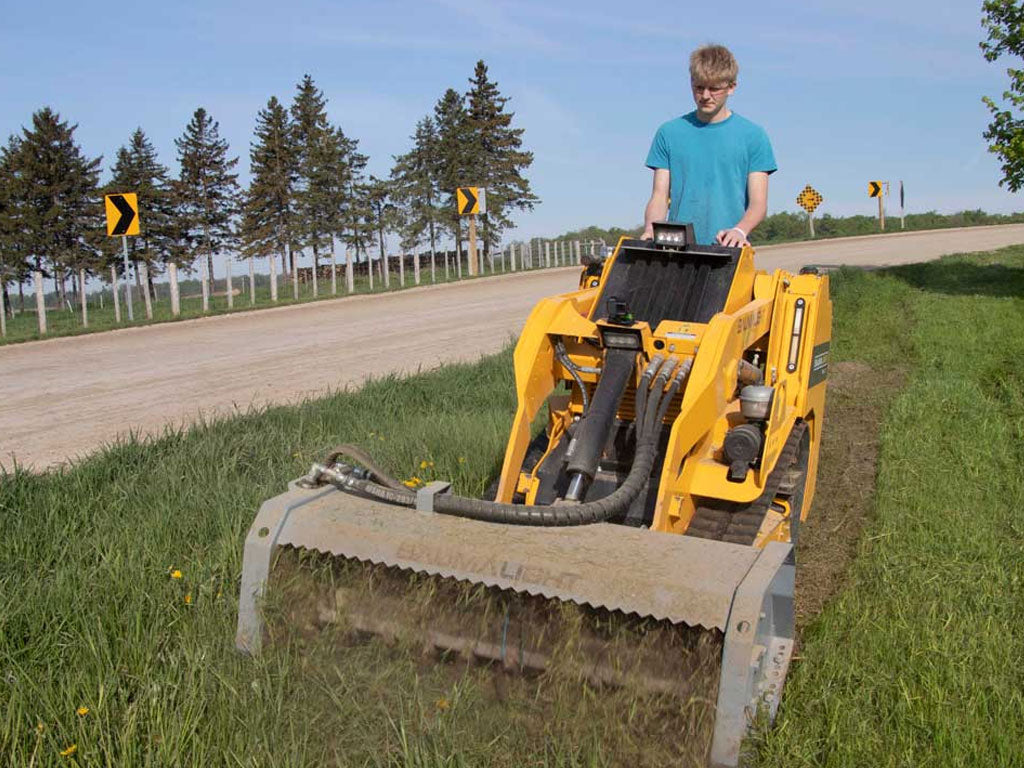

Conveniently designed for Mini Skid steers, the FMM148 will efficiently cut long, heavy grass or short diameter brush. The FMM148 is equipped with 30 F2000 flail style teeth which will swing back when hitting stones, so less damage is done to the teeth. Designed to easily maneuver around objects and access tight spaces, the FMM148 also packs some power using direct drive from the hydraulic motor. To maintain a steady, even mow height, the flail mower has an adjustable roller bar.

FEATURES

  • INTEGRATED SKID SHOES - These durable skid shoes help the mulcher to better float over the ground for optimal cutting action.
  • STANDARD F2000 FLAIL TEETH - Currently available on our 200 Series mulchers, these flail type cutters are an economic and efficient way to beat back heavy vegetation and light to moderate brush. Ideally suited for small carriers, these flails provide good cutting performance and great mulching. Bolt-on replaceable for quick and easy servicing, even in the field. Upgrade to our F3000 Heavy Blade Teeth and instantly increase your mulching capacity. These upgraded heavy duty blade teeth are 6mm thick and will allow you to double your brush size mulching capacity without any other equipment adjustments required.
  • 6 FREE TEETH - All FMM148 Flail mowers comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
  • ADJUSTABLE ROLLER BAR - Heavy duty adjustable roller bar allows you to set a mow height, and maintain that consistent height while mowing.

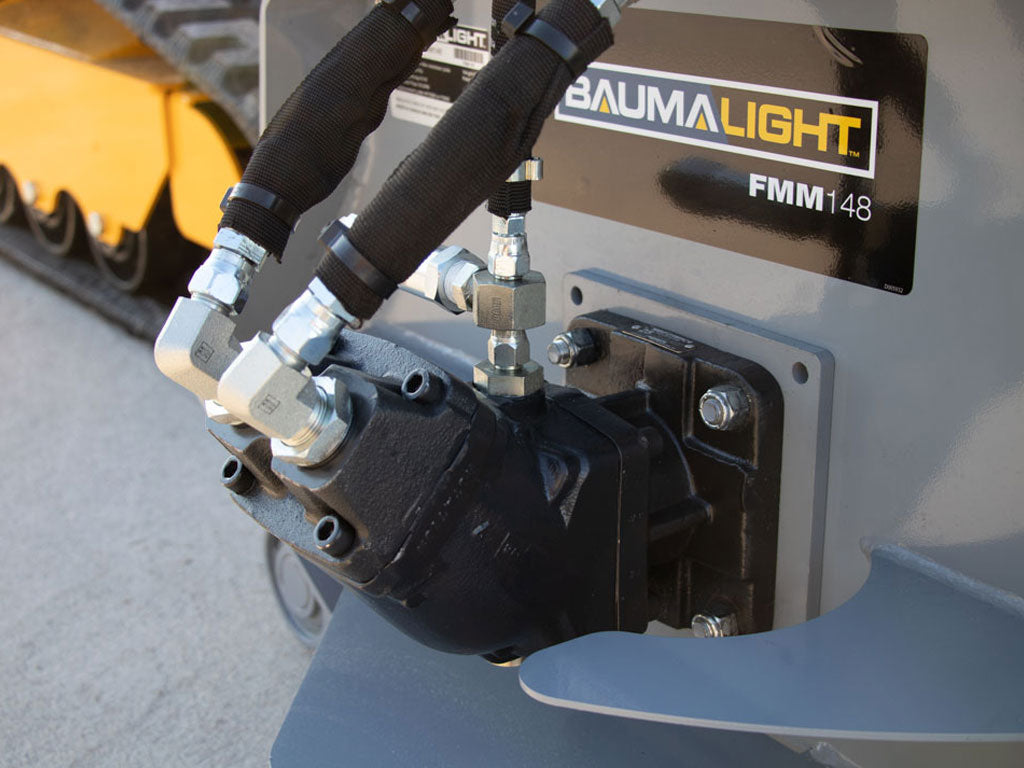

  • DIRECT DRIVE SYSTEM - Direct drive from the hydraulic motor to the flail mower means high efficiency and fewer moving parts.
  • ARMOURED AND SLEEVED HYDRAULIC HOSES - Baumalight hoses are sleeved for the operator and hose protection. A pivoting arm is also standard with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.
  • UNIVERSAL MINI SKIDSTEER MOUNT - Quickly and easily mount the Flail Mower to any mini skid steer with the universal mount plate.
  • POWDER COATED FINISH - Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

Model # FMM148
Path Width 61"
Rotor Width 48"
Cutting Depth Level
Cutter style Flail Blades
No. of blade clusters 38
Rotor shaft size 1.5
Rotor diameter (tips) 19"
Rotor weight (with tools) 185 lbs
Adaptor Universal mini skidsteer
Hoses supplied Yes
Couplers supplied Yes
Case drain required Yes
System Protection Built-in Relief system
GPM 8 - 15
PSI 2,000 - 4,000
Unit Weight 585 lbs



Manufacturer Model FlowType Weight Width PGM @ No Load PGM @ Full Load Max PSI Motor Type Note
Baumalight TRL620D LOW-FLOW 1.33 T 40 10.5 3000 Kubota Diesel Track
Baumalight TRL620Y LOW-FLOW 1.33 T 40 10.5 3000 Yanmar Diesel Track
BAUMALIght WRL58G LOW-FLOW .818 T 38 11 8.8 2800 Gas Powered Wheeled
Bobcat MT100 1 t 35.6 12 9.6 2900 Track Std flow
Bobcat MT52 1.17 T 12 9.6 2900 gear
Bobcat MT55 1.18 T 12 9.6 2900 gear
Bobcat MT85 1.5 T 12 9.6 2900 Track
Bobcat MT850 1.39 T 36 0 2900
Boxer 320 1850 8 6.4 3000
Boxer 322D 1900 9.4 7.52 3000
Boxer 425D 2450 12.6 10.08 3000
Boxer 427 2250 12.6 10.08 3000
Boxer 427W 1850 12.6 10.08 3000
Boxer 525DX .87 T 36 11.2 8.96 3000
Boxer 526DX 2410 14.5 11.6 3000
Boxer 530X 2200 14.5 11.6 3000
Boxer 532DX 2470 14.5 11.6 3000
Boxer 600HD 1.07 T 34.6 11.3 9.04 3000 Track Std. flow
Boxer 700HDX 1.2 T 35.5 11.3 9.04 3000 Track Std. flow
Ditch Witch SK1050 1.55 T 13.9 11.12 3625 Track Std. flow
Manufacturer Model FlowType Weight Width PGM @ No Load PGM @ Full Load Max PSI Motor Type Note
Ditch Witch SK350 .75 T 12 9.6 2300
Ditch Witch SK500 1 T 12 9.6 2500
Ditch Witch SK650 1.3 T 13.5 10.8 3000
Ditch Witch SK750 1.31 T 42 12 9.6 3000 Track
Ditch Witch SK752 1.31 T 42 12 9.6 3000 Track
Ditch Witch SK755 1.3 T 13.5 10.8 3000
Ditch Witch SK780 1.3 T 13.5 10.8 3000
Ditch Witch SK850 1.38 T 42 13.9 11.12 3625 Track
Ramrod 1150 2340 11 8.8 3000
Ramrod 1350 .7 T 14 11.2 3000 Track
Ramrod 500 .5 T 6.3 5.04 2100 Wheel
Ramrod 575 T .62 T 6.3 5.04 2100 Track
Ramrod 905 1775 11 8.8 3000
Ramrod 915 2075 11 8.8 3000
Ramrod 930 .68 T 11 8.8 3000 Wheel
Ramrod 950 1940 11 8.8 3000
Ramrod M3300 1.47 T 42 14 11.2 2900 Track Std. flow
Ramrod WB1500TX .7 T 11 8.8 3000 Track
Thomas 25G .79 T 8.5 6.8 3000
Thomas 25GT 1 T 8.5 6.8 3000
Manufacturer Model FlowType Weight Width PGM @ No Load PGM @ Full Load Max PSI Motor Type Note
Thomas 35DT .5 T 8.5 6.8 3000
Thomas 45DT 1.1T 14 11.2 3000
Thomas 45DTN 1.1 T 14 11.2 3000
Thomas 45DW .9 T 14 11.2 3000
Tiger SS16 1250 12 9.6 3000
Tiger SS20D 1350 12 9.6 3000
Toro 220 .7 T 10.8 8.64 3000 Wheel
Toro 320 D 10.8 8.64 3250 Wheel
Toro 323 .7 T 10.8 8.64 3000 Wheel
Toro TX1000 1.25 T 41 15.2 12.16 3000 Track
Toro TX1000 1.25 T 41 15.2 12.16 3000 Track
Toro TX413 1340 7 5.6 2650 Track
Toro TX420 1830 11.2 8.96 3000 Track
Toro TX425 1996 11.2 8.96 3000 Track
Toro TX427 11.4 9.12 3000 Track
Toro TX525N 1904 13.8 11.04 3000 Track
Toro TX525W 2001 13.8 11.04 3000 Track
Vermeer C TX50 .95 T 35.5 12.5 10 2950 Track
Vermeer CTX100 1.59 T 42 15.5 12.4 3045 Track Std. flow
Vermeer CTX100 1.5 T 36" 15.5 12.4 3045 Track Std. flow
Manufacturer Model FlowType Weight Width PGM @ No Load PGM @ Full Load Max PSI Motor Type Note
Vermeer S400TX 11.5 9.2 3000
Vermeer S450TX 1.04 T 42 12.5 10 2950
Vermeer S600TX 1.26 T 13.2 10.56 3000
Vermeer S650TX 1.16 T 42 13.8 11.04 3025
Vermeer S725TX 1.29 35.5 13.5 10.8 29501 Track
Vermeer S800TX 1.38 T 42 14 11.2 2950
