160220-HP-160400

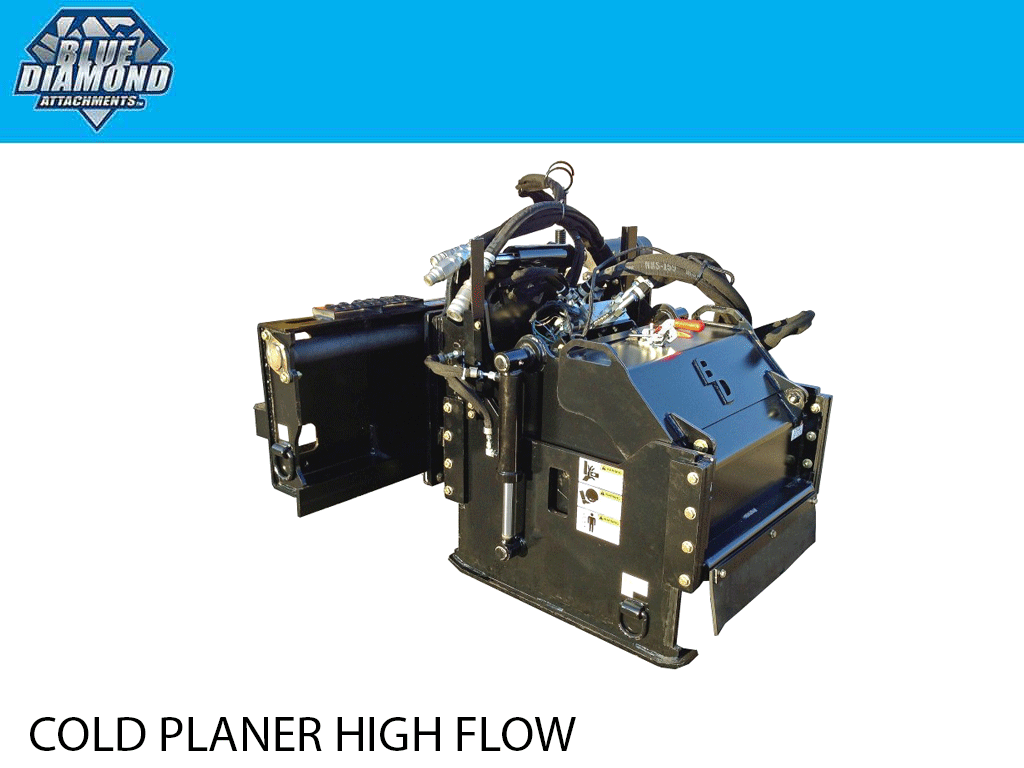

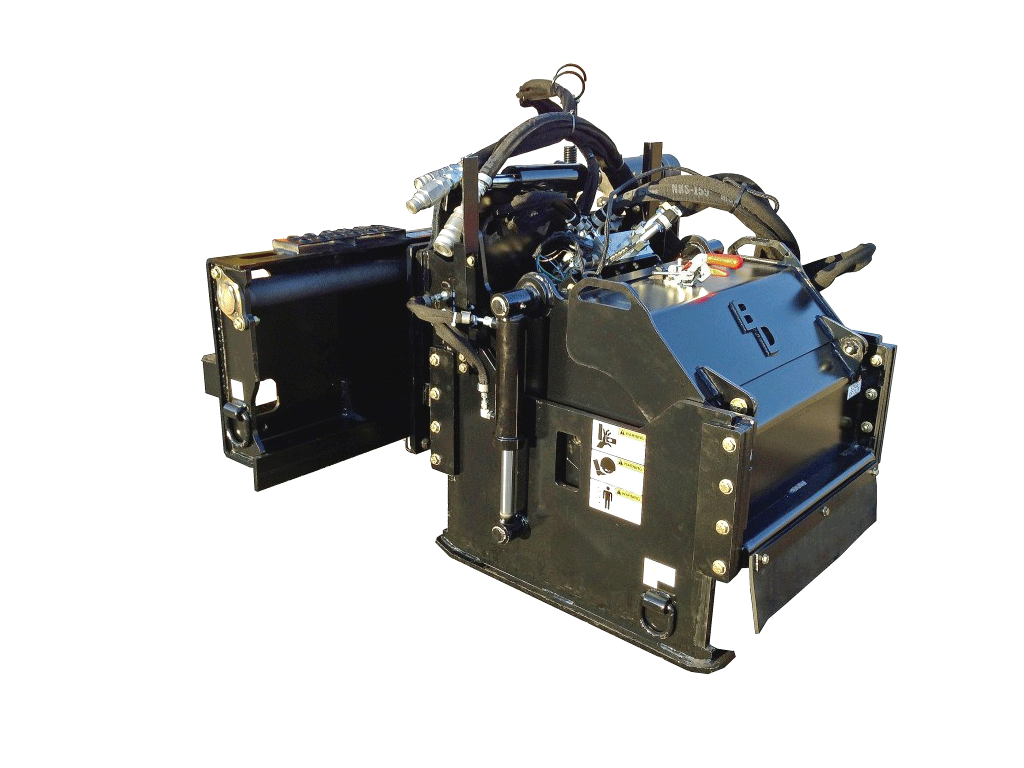

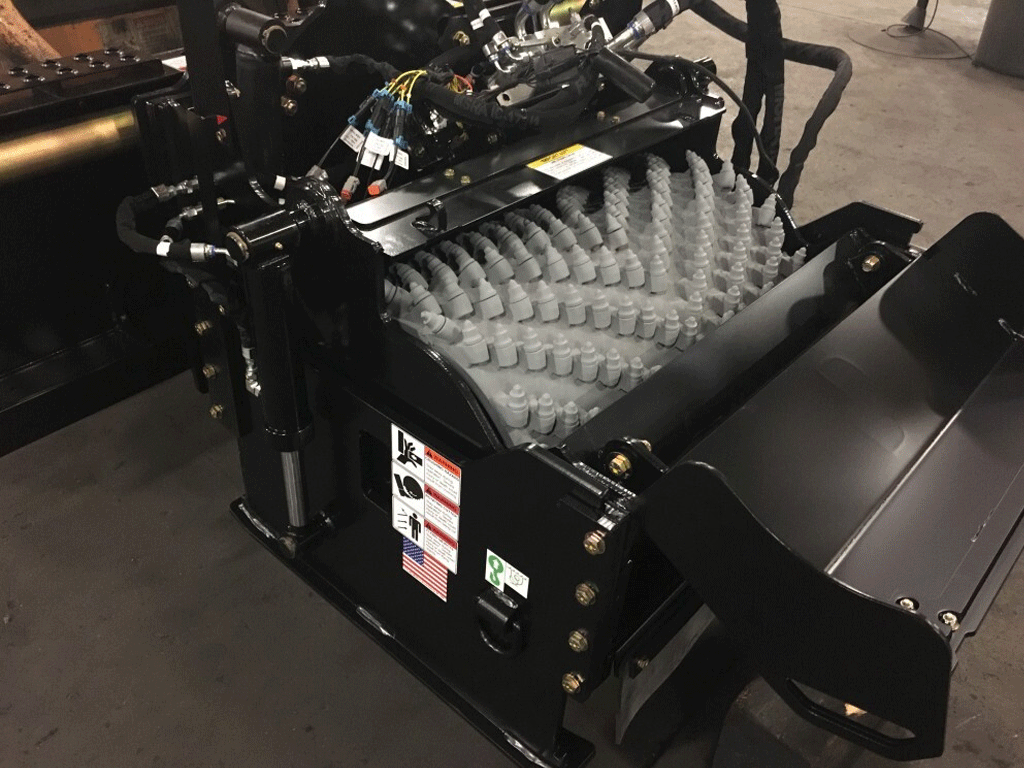

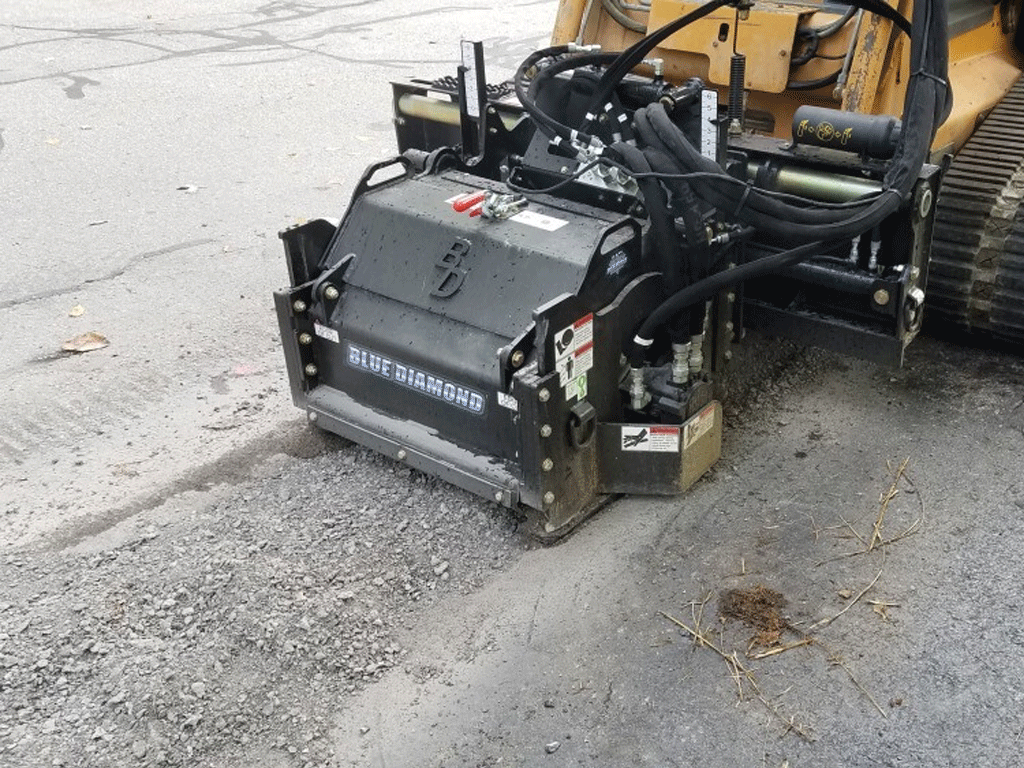

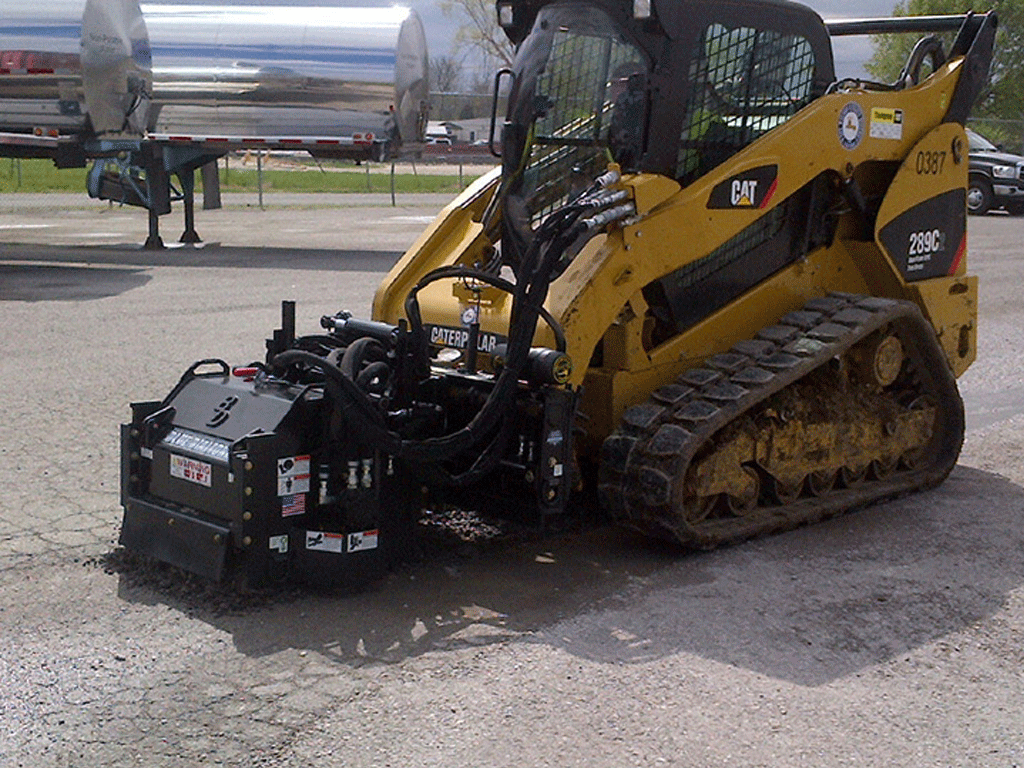

BLUE DIAMOND High Flow Cold Planer for Skid Steer 16" to 30" wide
$34,147.00 - $49,310.00
COLD PLANER – HIGH FLOW
The Blue Diamond® High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high flow models. These high end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer. Rental Recommended.
- Electronic adjustment controls
- High-torque, planetary drive
- High drum weight = less vibration
- 5/8″ thick drum tube

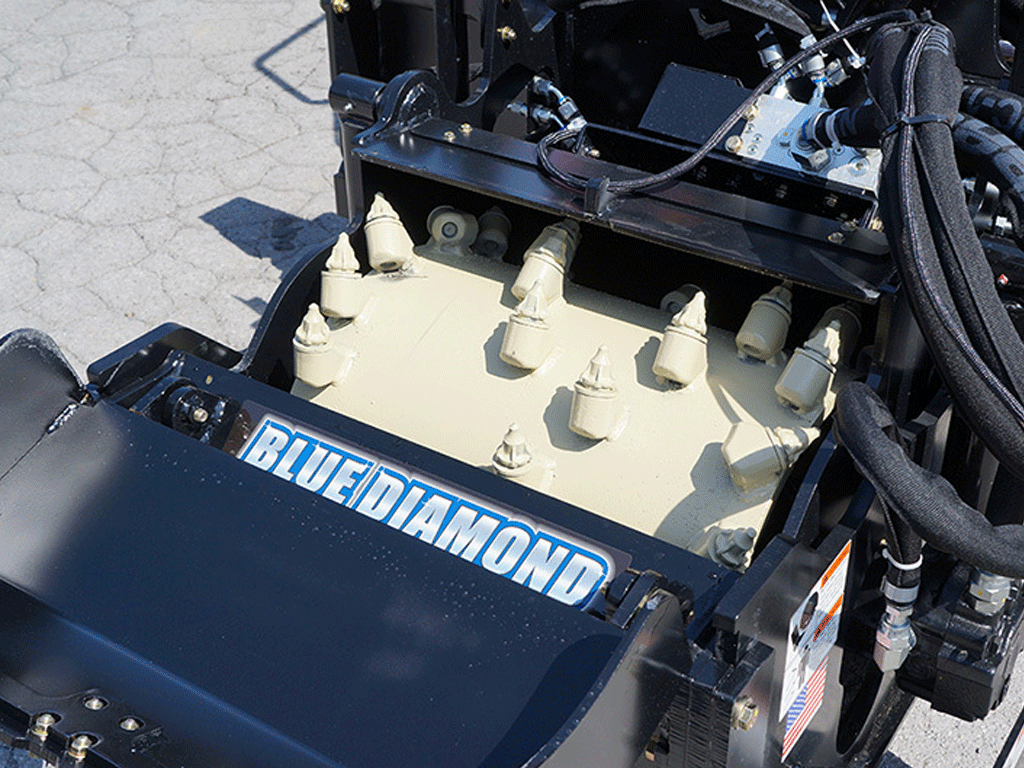

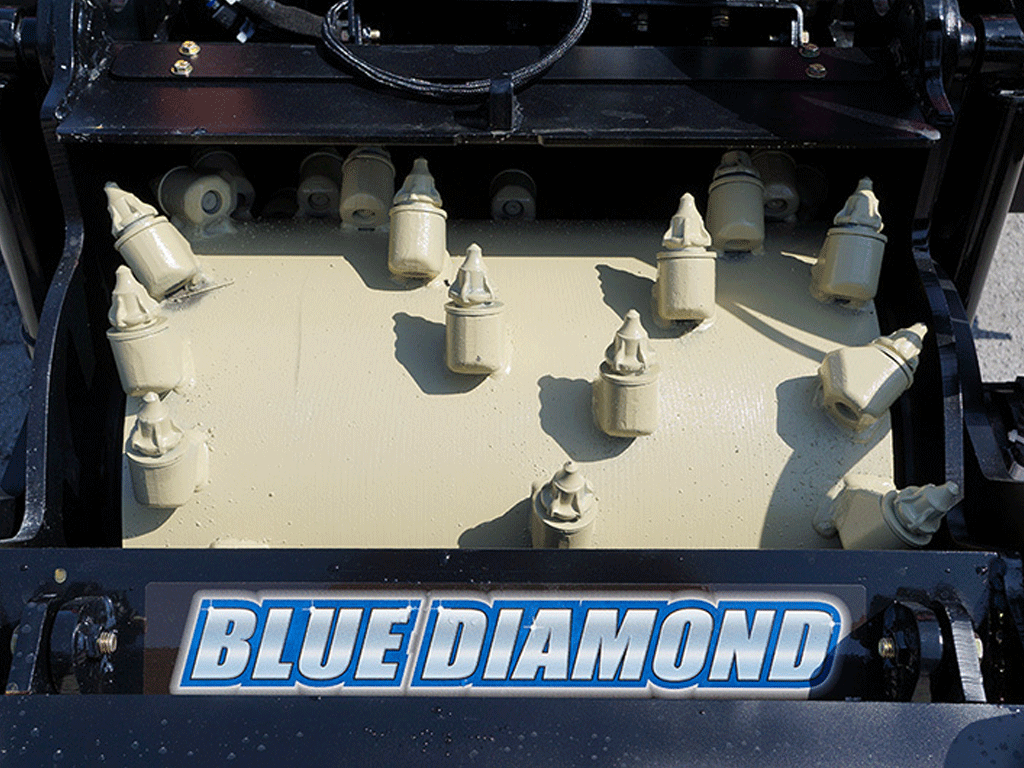

- Easy access tooth replacement
- Water kit available
- Fine-cut drum available
- 16″-30″ Grinding Widths
- Up to 6″ Cutting Depth
APPLICATIONS INCLUDE:

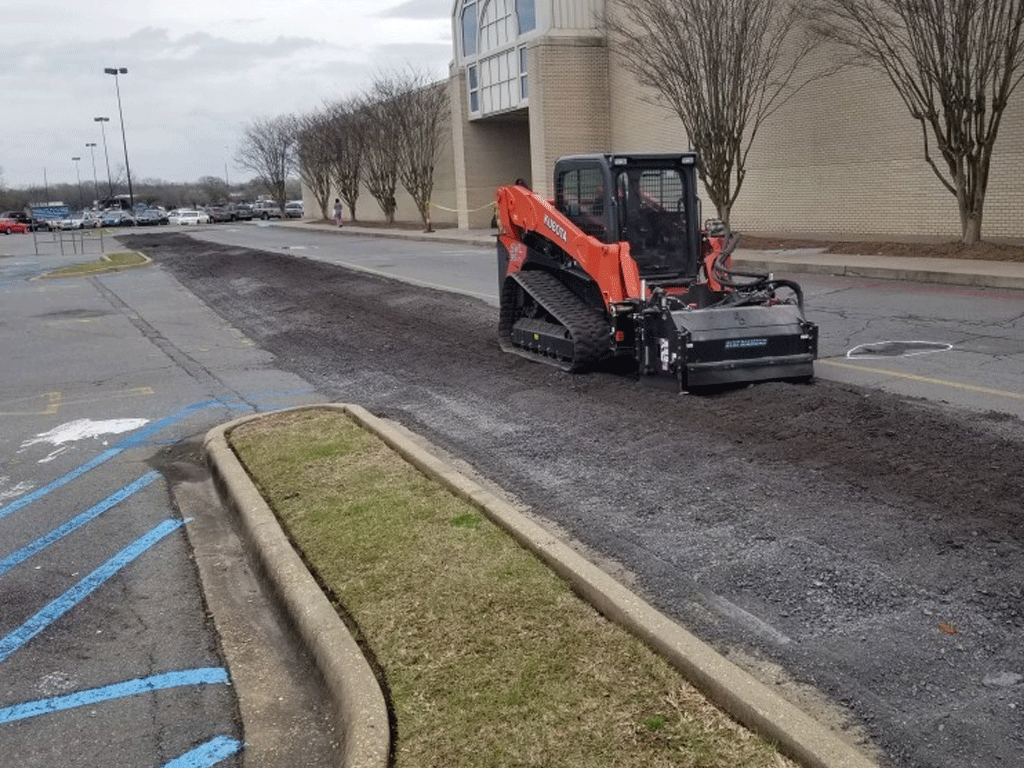

- Removing asphalt surfaces prior to overlay
- Widening shoulders
- Repairing potholes
- Restoring drainage lines
- Mixing stabilizing agents into base for a more durable repair
| Part Number | Model | Number of Teeth | Min-Max Flow | Min-Max Pressure | Weight | Tilt Capacity |
|---|---|---|---|---|---|---|
| 160220-HP | 16" High Flow | 38 | 27-45 GPM | 2450-5000 PSI | 1,710 lbs | +/-15 |
| 160225-HP | 18" High Flow | 40 | 27-45 GPM | 2450-5000 PSI | 1,810 lbs | +/-15 |
| 160230-HP | 24" High Flow | 50 | 27-45 GPM | 2450-5000 PSI | 1,970 lbs | +/-13 |
| 160235-HP | 30" High Flow | 60 | 30-45 GPM | 2500-5000 PSI | 2,160 lbs | +/-10 |
| 160240-HP | 40" High Flow | 76 | 30-45 GPM | 3000-5000 PSI | 2,455 lbs | +/-8 |
| 160245-HP | 48" High Flow | 90 | 30-45 GPM | 3250-5000 PSI | 3,210 lbs | +/-6 |
