BLUE DIAMOND class 3 pallet forks with skid steer mounting

314150

BLUE DIAMOND class 3 pallet forks with skid steer mounting

$2,985.00

DESCRIPTION
SPECIFICATIONS

Revised 2/24

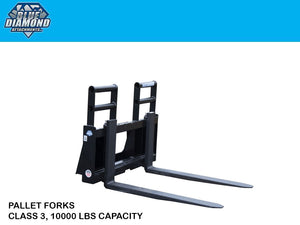

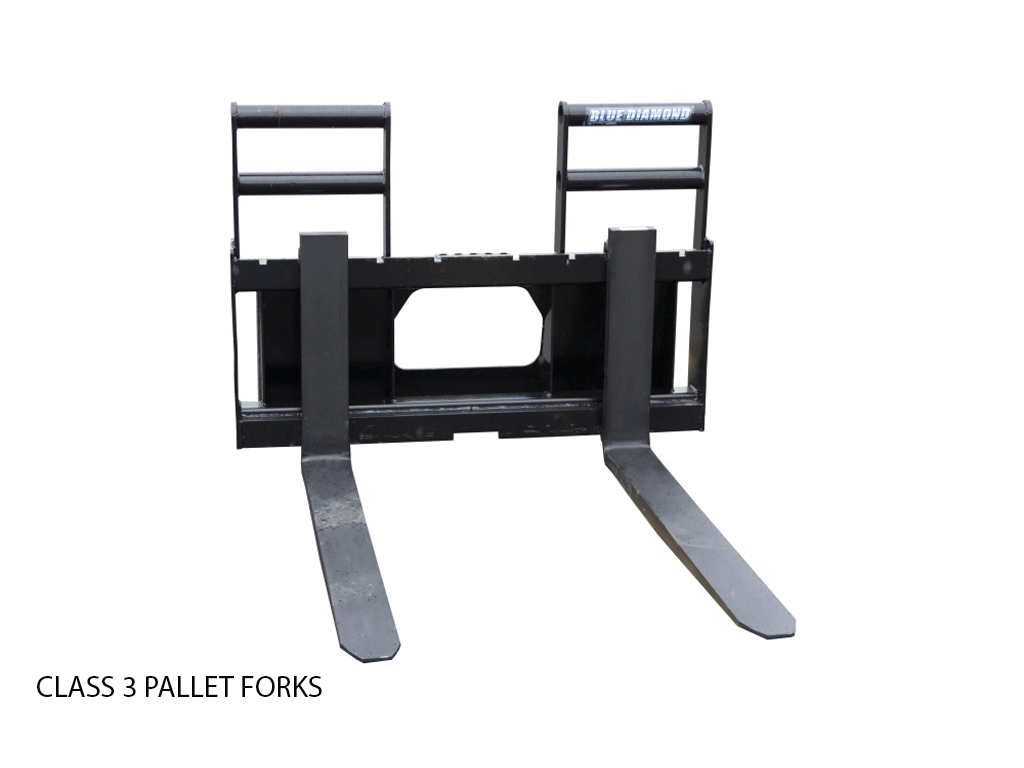

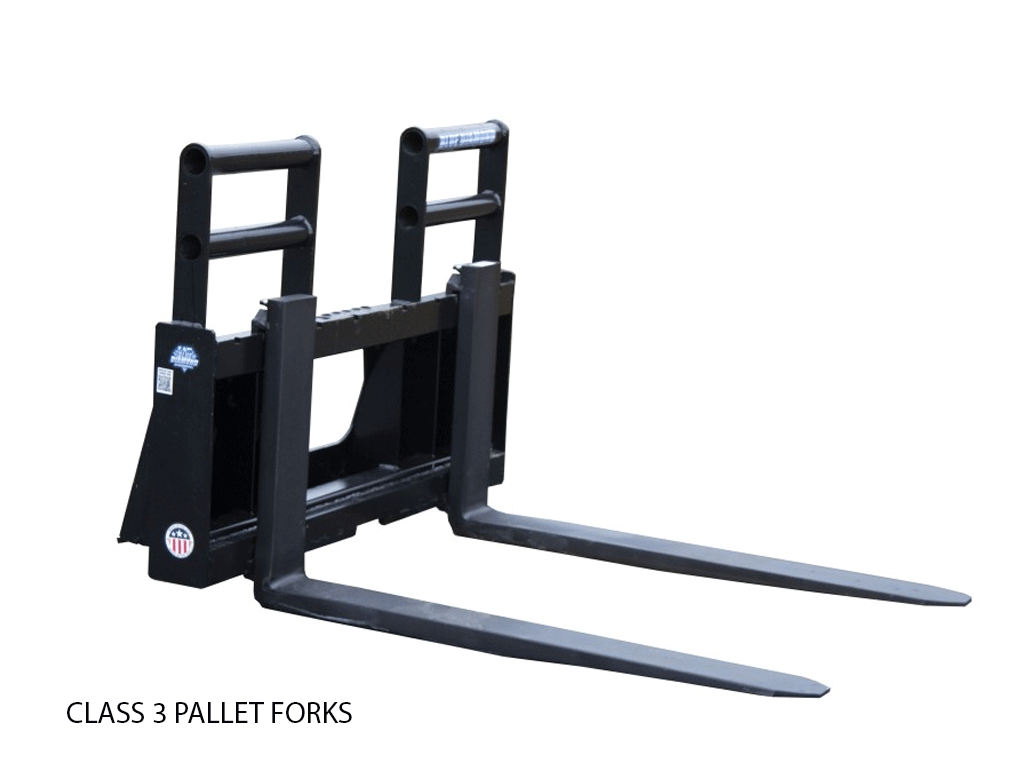

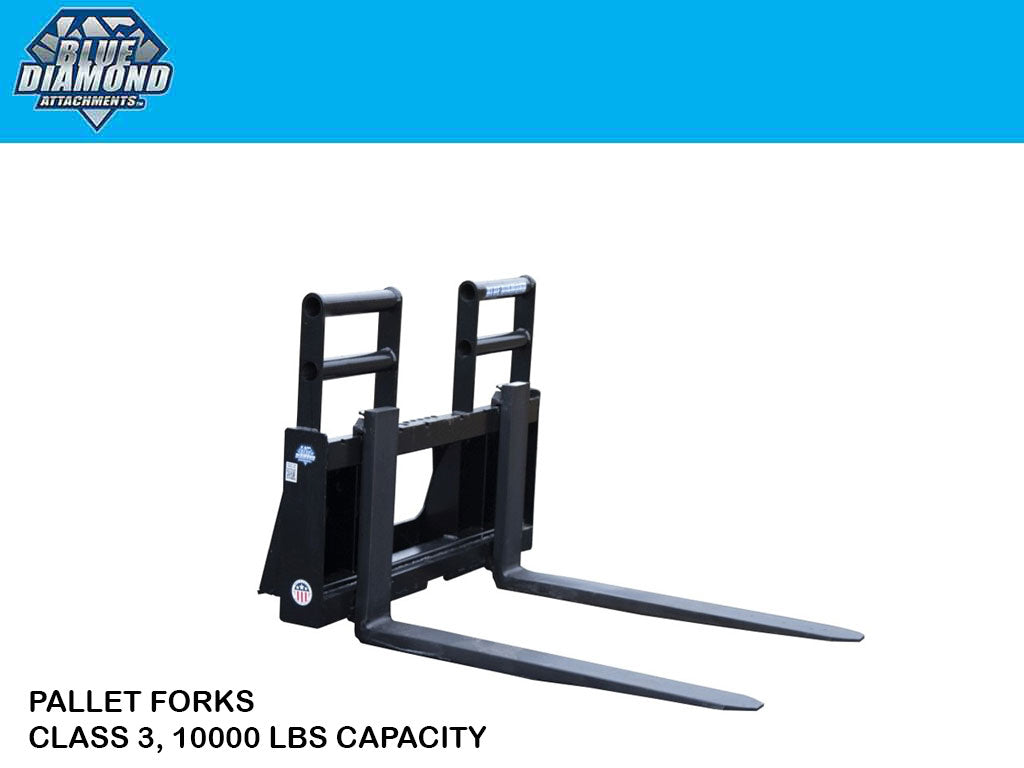

PALLET FORKS – CLASS 3 10,000 LBS. CAPACITY

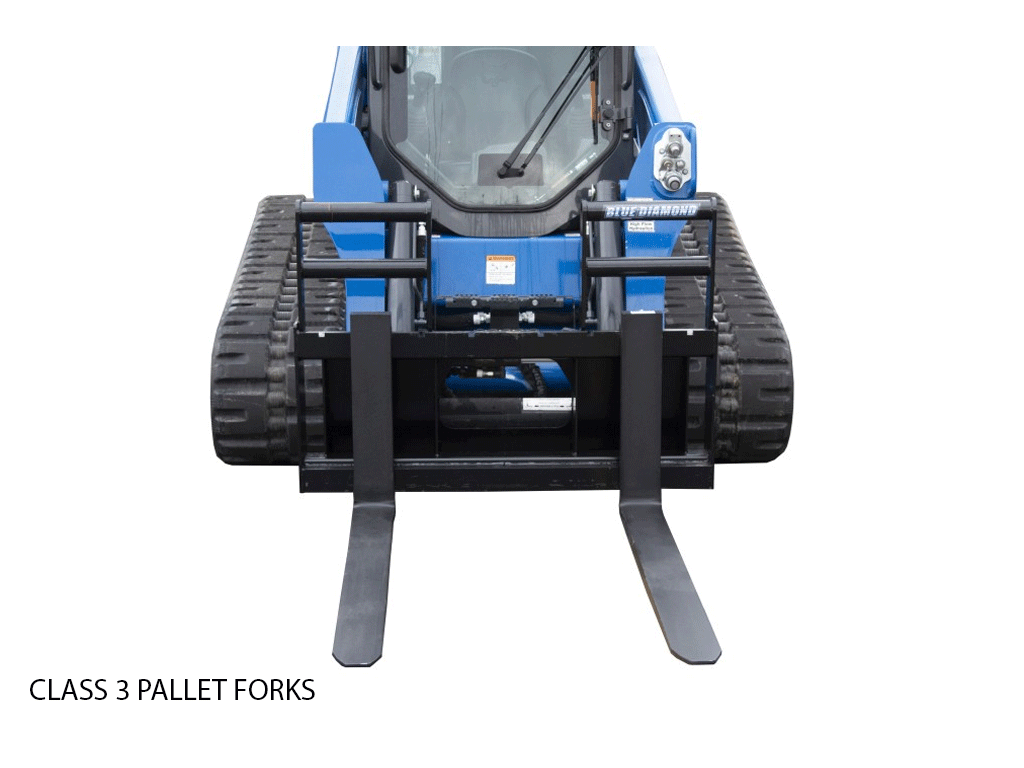

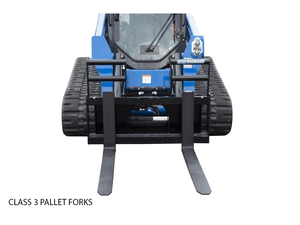

Our Blue Diamond® Heavy Duty Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach. The cutout in the backrest offers easy cab entry for skid steers and also is designed to clear center linkage on wheel loaders. The Class 3 frame can accommodate a number of fork lengths from 48” to 72”.

10,000 lb capacity
48”, 60”, and 72” length tines available
Back rest design fits multiple applications
50″ wide frame
Fork dimensions: 2” x 5

Part Number	Model	Tine Size	Lift Capacity	Weight
314150	Frame	48" X 1 3/4"	10,000 lbs	595 lbs
314152	Frame	60" X 1 3/4"	10,000 lbs	732 lbs
314155	Frame	60" X 2"	10,000 lbs	758 lbs
314160	Frame	72" X 2"	10,000 lbs	828 lbs
314165	Frame	84" X 2"	10,000 lbs	848 lbs
314167	Frame	96" X 2"	10,000 lbs	875 lbs
