PALADIN / BRADCO STUMP GRINDER (SSL)(CTL)

MODEL
HARNESS (REQUIRED)

Stump Grinder

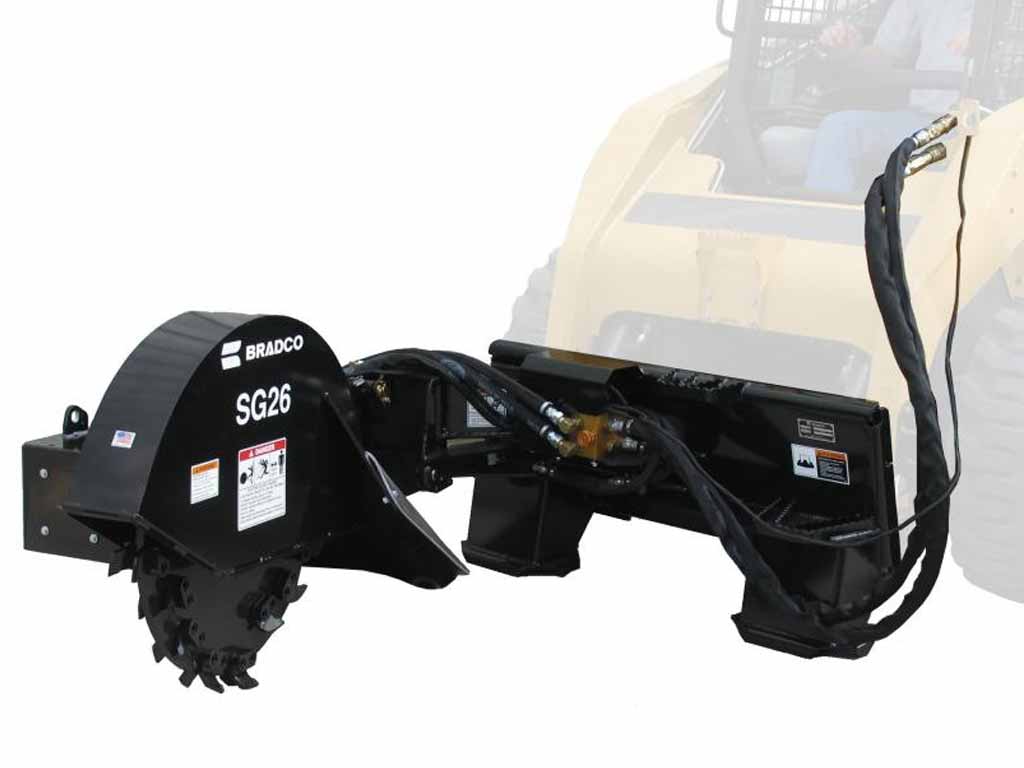

Designed specifically for skid steers, these units are available in both standard and high-flow applications, with grinding depths up to 13" below the surface. Adjustable swing speeds, multiple tooth configurations and numerous wire harness connections make this the perfect attachment for grinding stumps. This product is available CE certified.

  • Standard flow (SG26) and high-flow (SG30) available for skid steers
  • Wheel grinds stump down to 12" below grade with 28 teeth
  • Tooth bottom permits cutting from side-to-side and vertical directions
  • 60-degree range of motion will cover 45" in a single sweep
  • Grouser pad stabilization prevents plunge stalls
  • Dial adjust swing speed
  • Heavy-duty gearbox drives with torque arm motor support for longer motor and drive system life
  • Easy access to all drive components allows for quick maintenance
  • Operates with the multi-function control inside the loader
  • Excellent operating visibility & exceptional swing arc geometry
  • Adjustable speed control has been designed into the unit to allow the operator to adjust speed of the swing and lift functions to accommodate maximum performance
  • Built-in grouser pads provide exceptional stability during cutting & grip for your uneven ground and hillsides
  • Optional items include square teeth with single lock nut or shard style teeth with universal bolt pattern
 MODEL SG26 SG30
HYDRAULICS STANDARD HI FLOW
WIDTH 58" 58"
HEIGHT 37" 37"
LENGTH 73" 73"
BELOW GROUND DEPTH 10" 12"
SWING ARC 60 DEG 60 DEG
MAX LIFT 25 DEG 25 DEG
TEETH 28 28
WHEEL DIAMETER 26" 30"
HYDRAULIC FLOW 16-22 25-40
WEIGHT 720 795

USUALLY SHIPS IN (2) TO (4) WEEKS



Defiantly one of the more affordable stump grinders. Good name, product has been out on the market for awhile.
