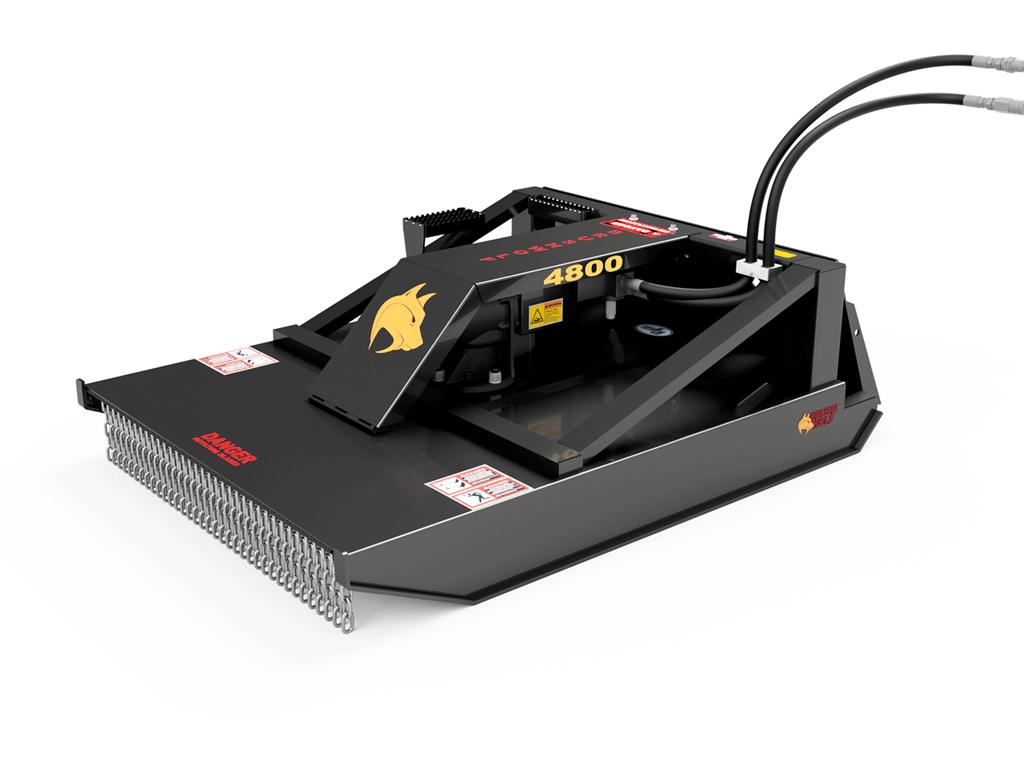

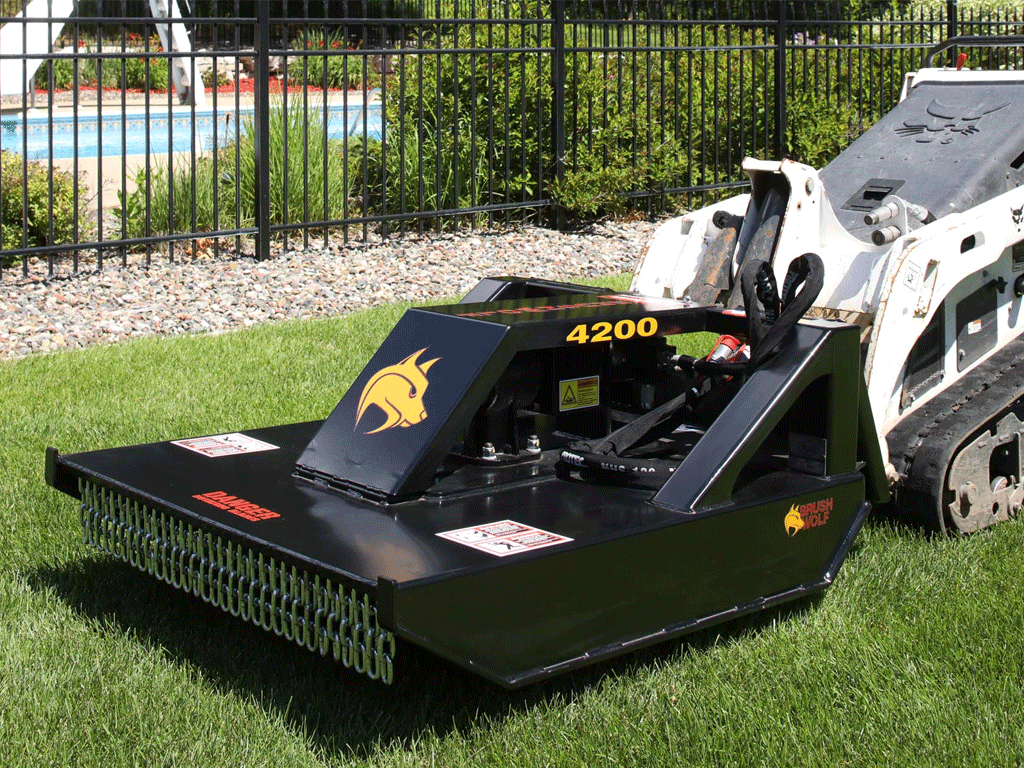

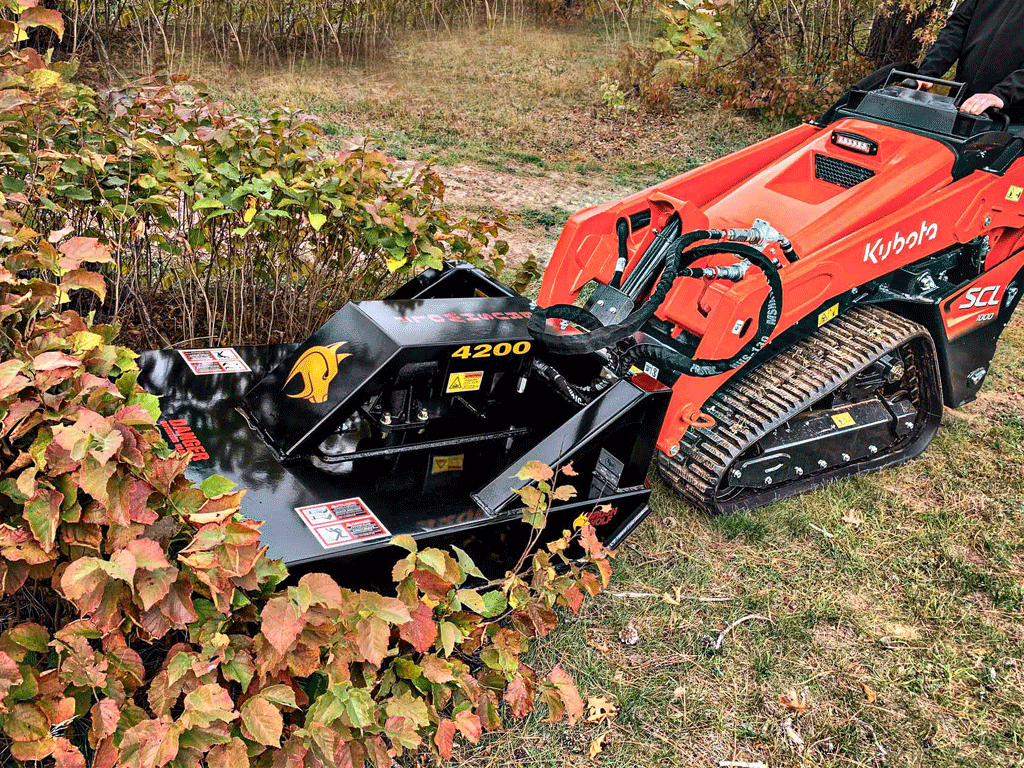

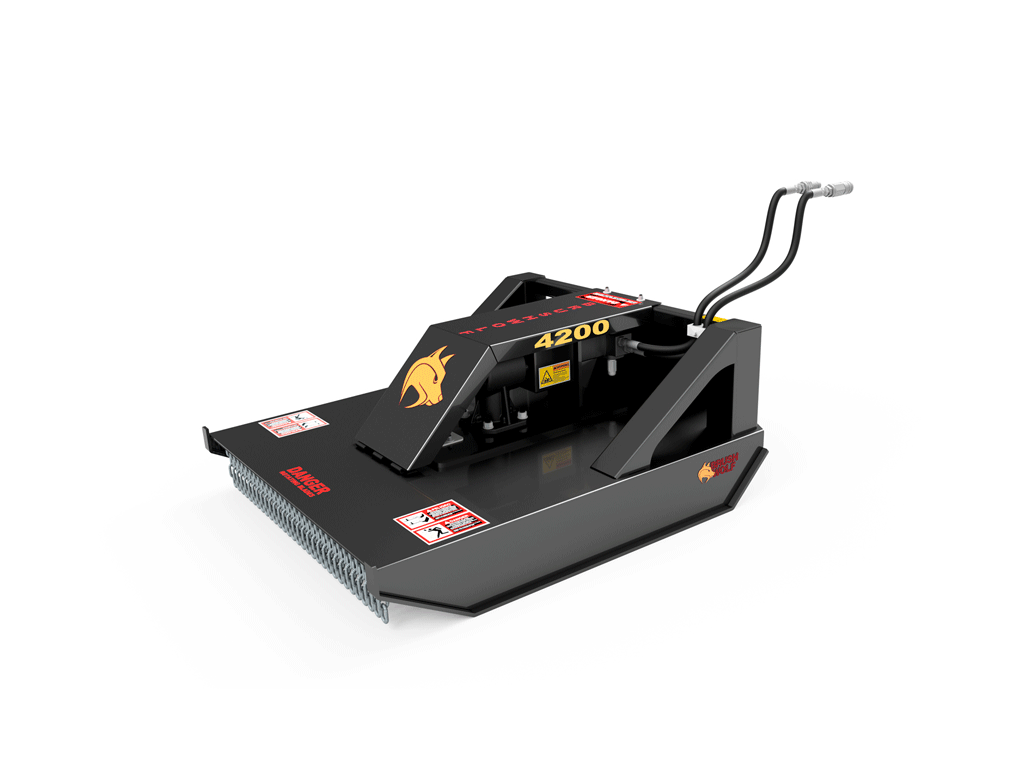

4200B
* Always use a safety door with this attachment. This attachment when in operation will through debris that could seriously hurt someone. Use all safety precautions when operating or being around this attachment while it is running.
DUTY RATING | Compact |
---|---|
CUTTING WIDTH | 42", 48" |
HYDRAULIC FLOW RANGE | 8-25 GPM |
MAX CUTTING DIAMETER | up to 2", up to 3", up to 4" |
MOTOR STYLE | Geroler-style hydraulic motor; right-angle gearbox |
The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Super tuff coated to stand the test of time.
We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.
Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.
Grade-2 Shear Bolt: protects the gearbox and driveline from damage.
A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Our one-piece deck frame construction creates a “clean deck” design that allows material to glide off, preventing unwanted debris buildup. (Think less mess and easier to clean.)
Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

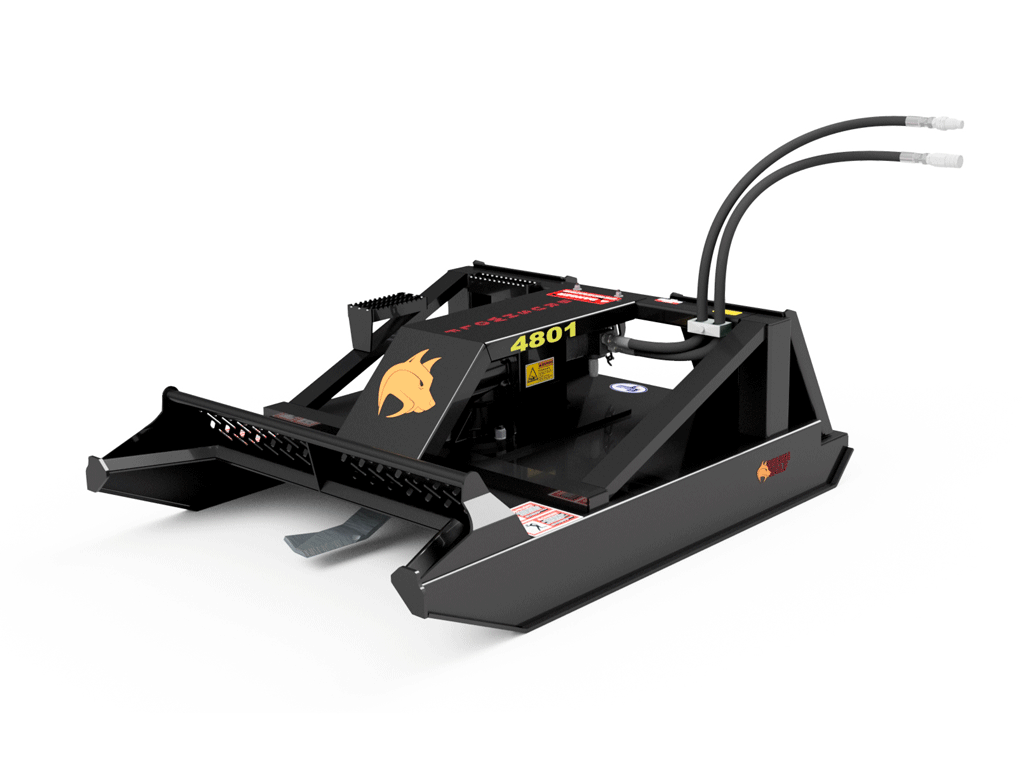

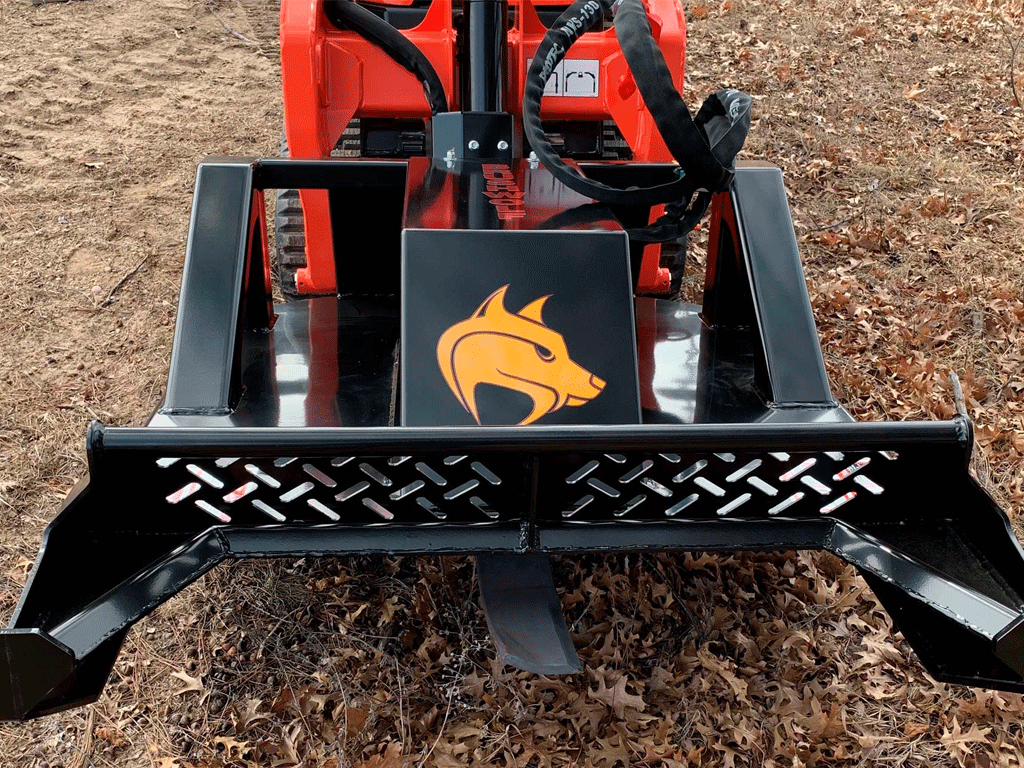

Let’s help “feed” the cutter with a welded push bar to knock down taller vegetation and enhance the mowing capabilities.

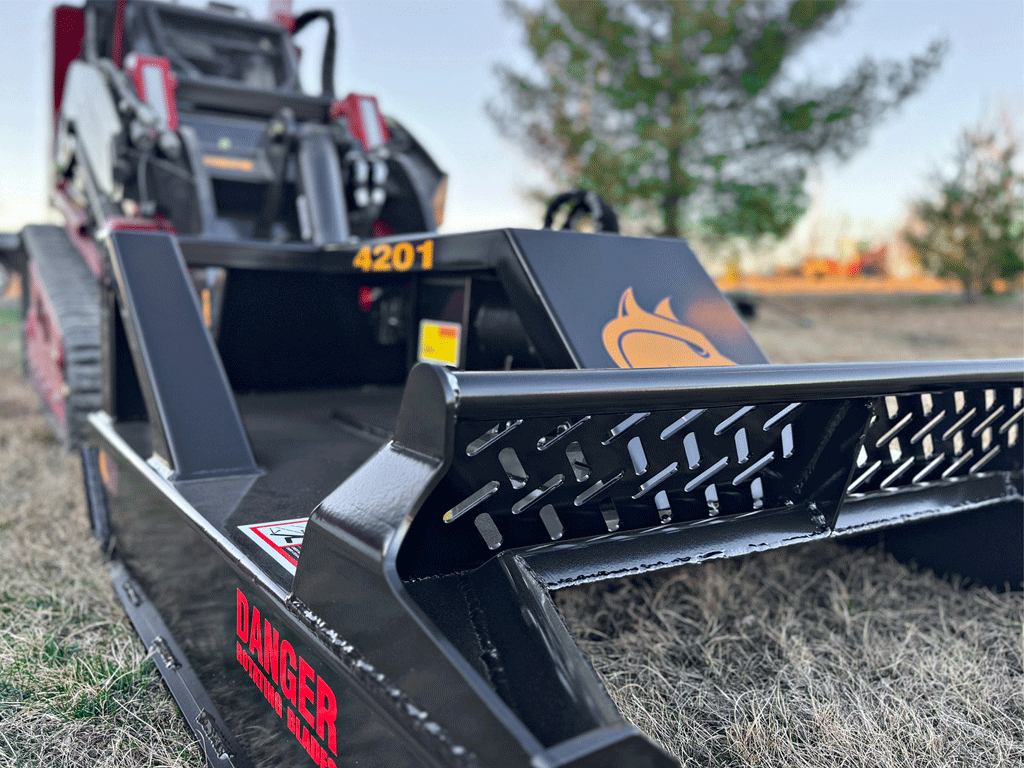

Slotted front shield provides increased visibility while protecting the operator from debris.
Easy access to the blade bolts for quick blade replacement.
Everything is ready to go upon delivery with the included quick-connect couplers, hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

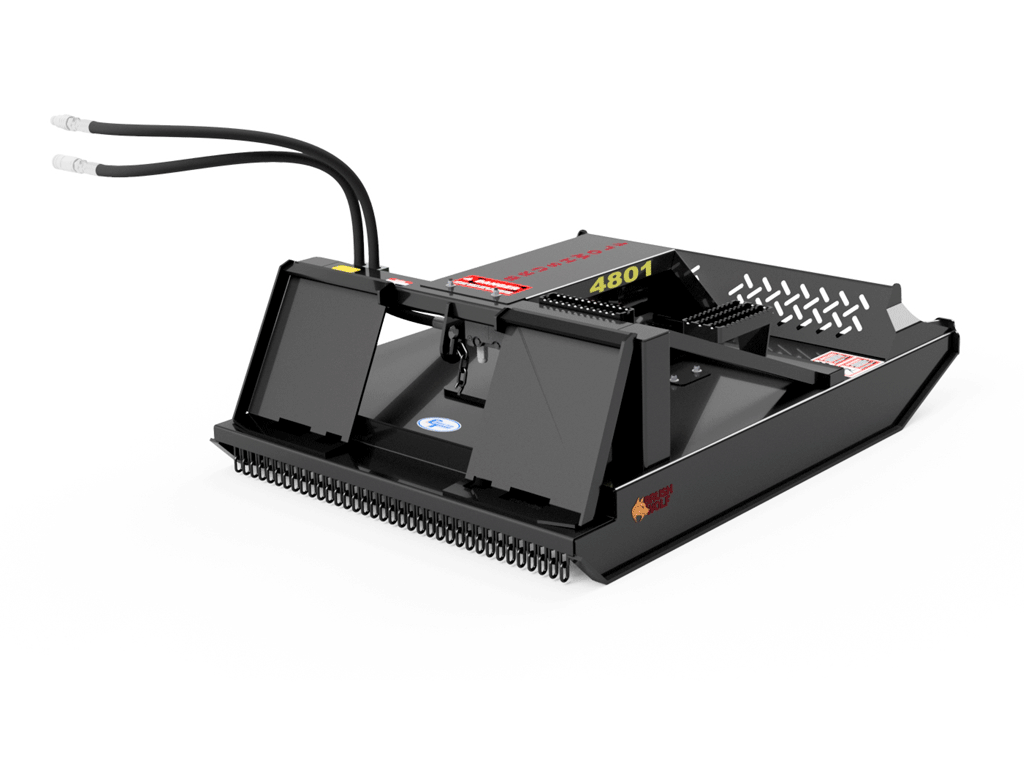

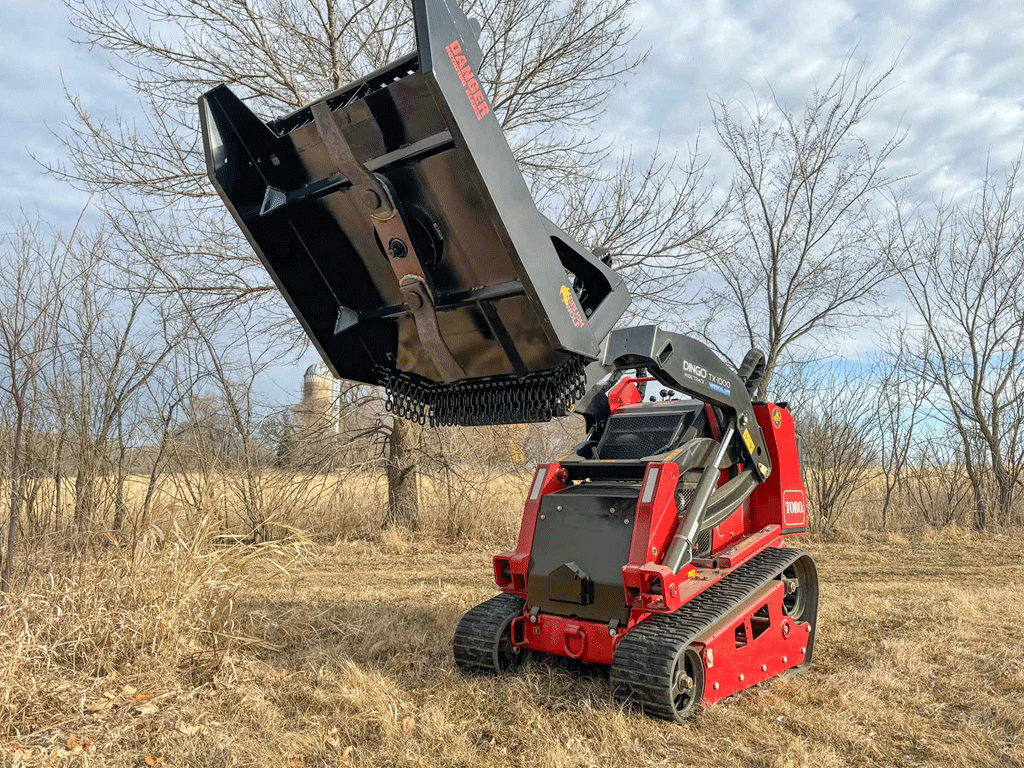

Chains hanging from the rear of the cutter prevent debris from being discharged.
12-gauge steel motor guard protects from damaging impacts. Hinged for easy motor access.
A lift limit chain has been added to the 4801 for your safety, which prevents the cutter from being lifting too high.
Enhancing safety is our thing, so we added a non-slip, serrated metal step to the 4801 for easy in and out.
We carry all pickup plates so your cutter will be equipped with the exact pickup plate needed for your machine.
Black, yellow, or make it your own custom color.

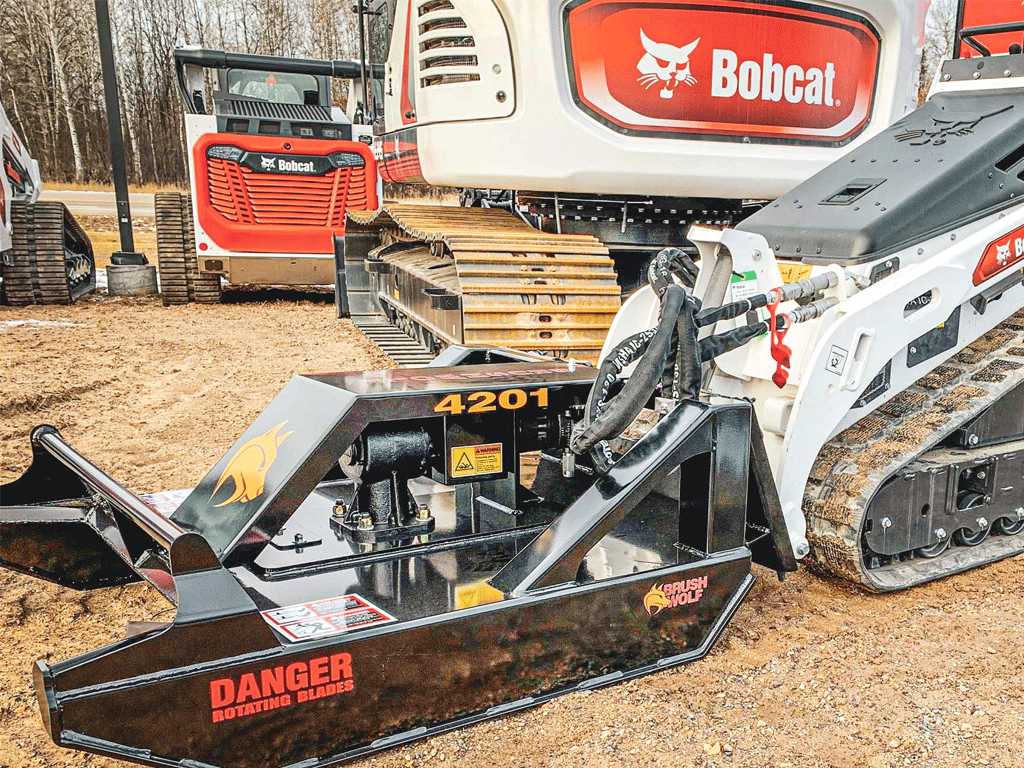

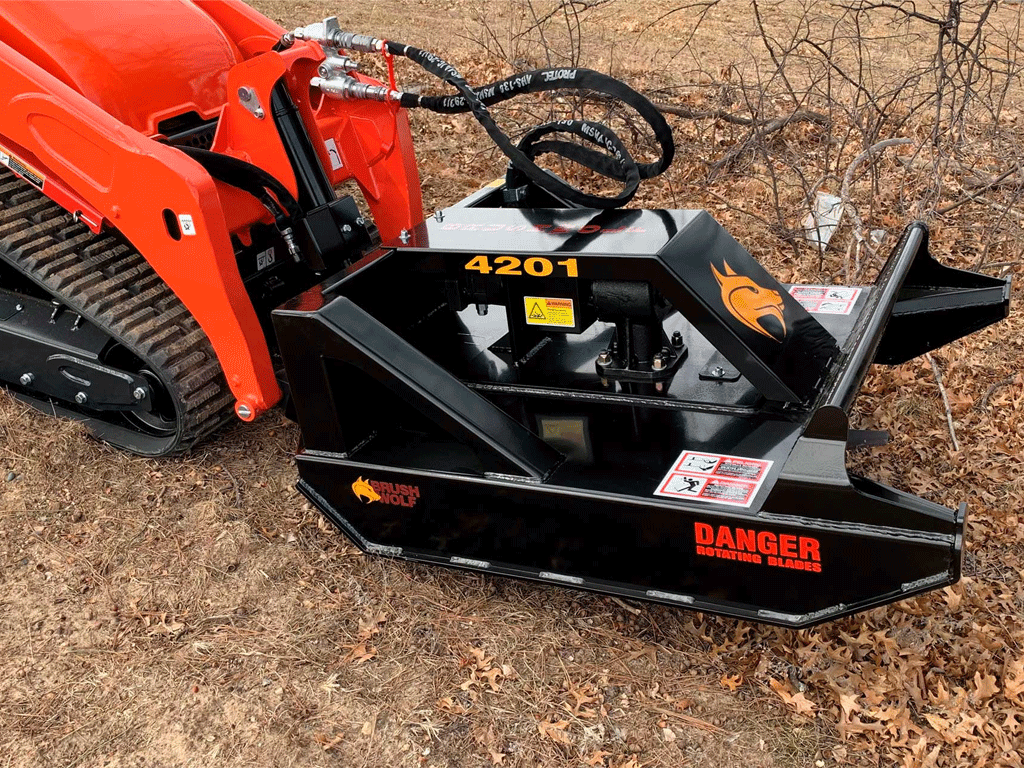

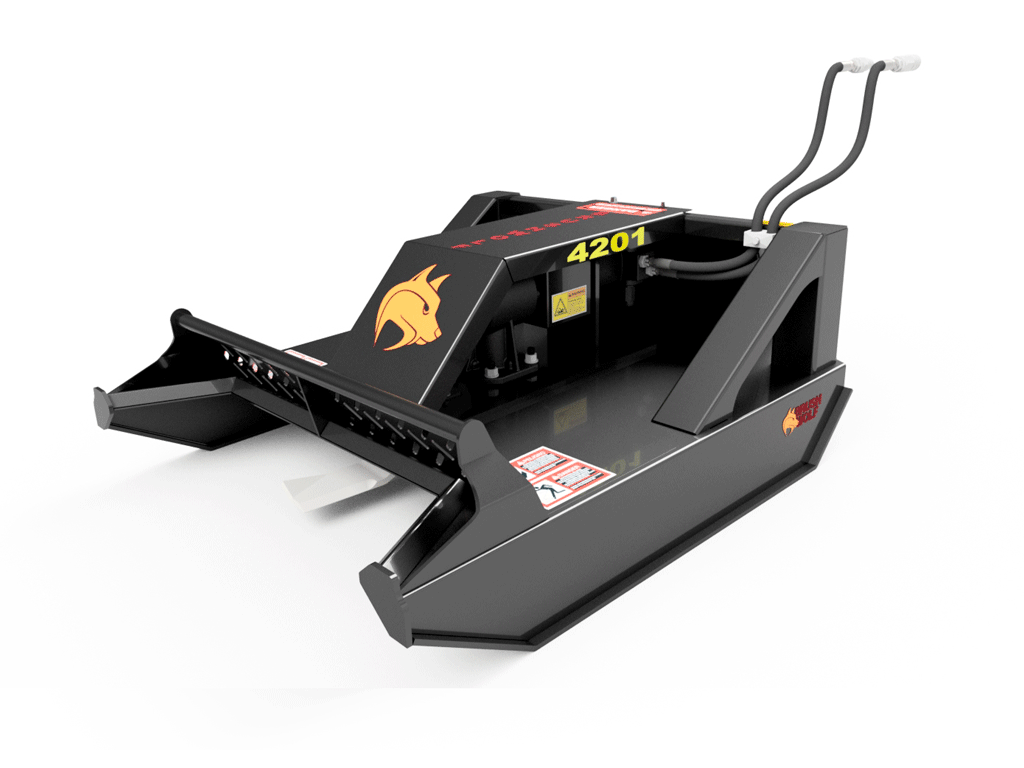

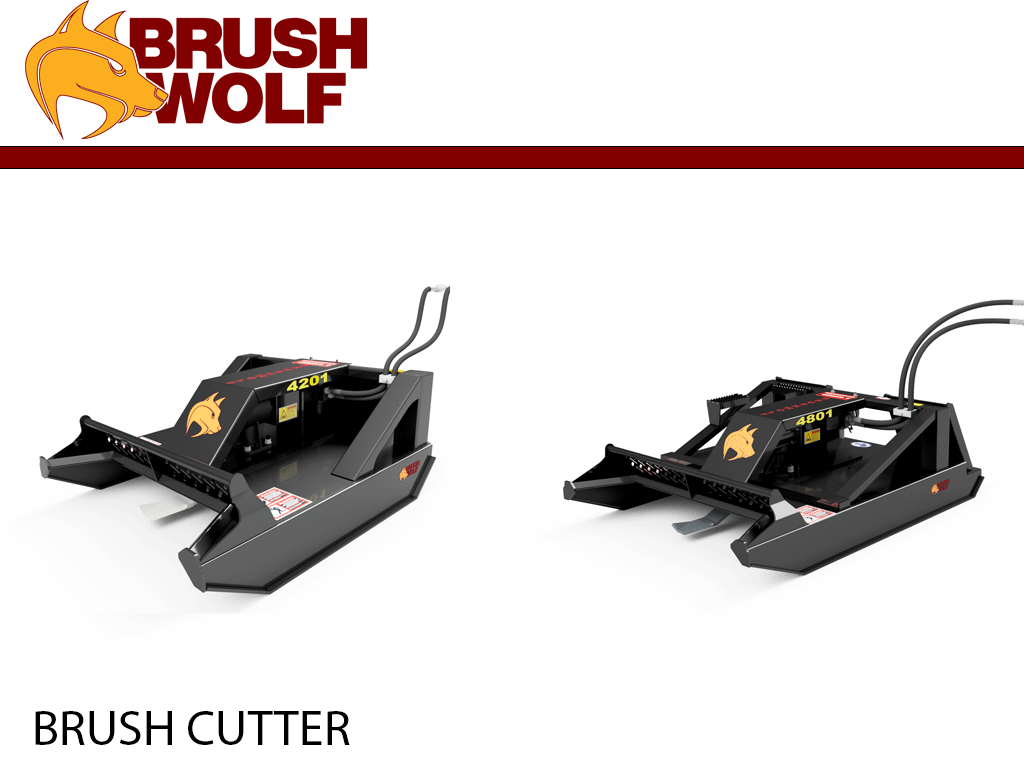

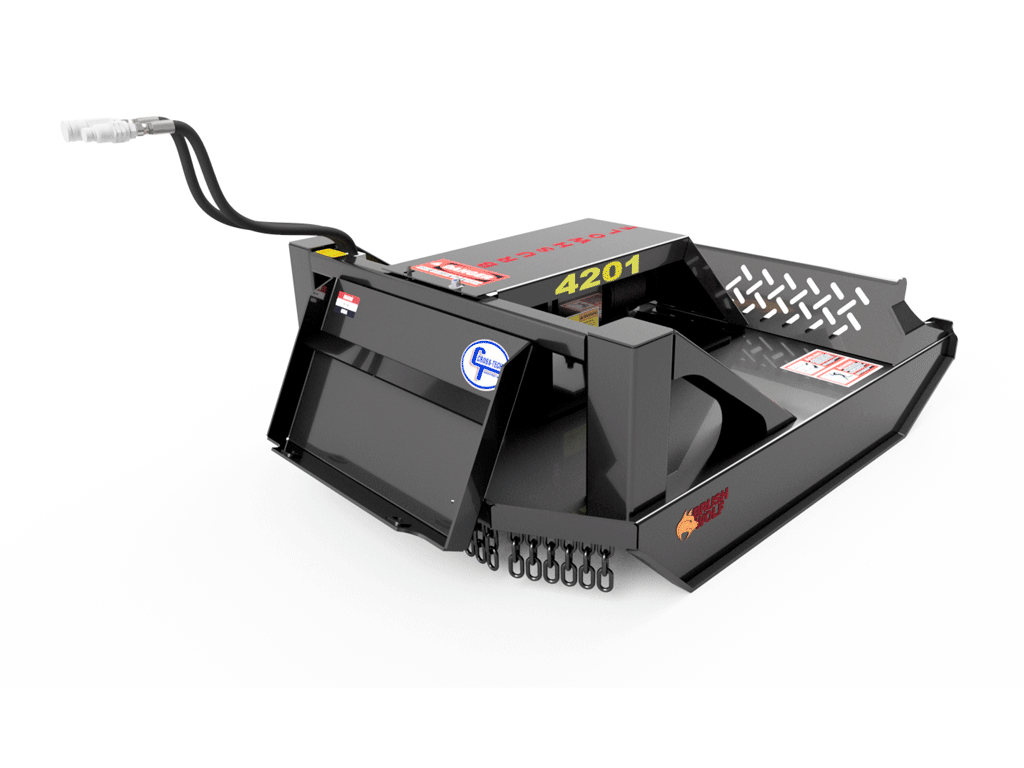

MODELS | 4201 | 4801 LF | 4801 SF |
---|---|---|---|
Low Flow | Low Flow | Standard Flow | |
STARTING MSRP* | $5,464 | $6,688 | $6,688 |
CUTTING WIDTH | 42 in | 48 in | 48 in |
HYDRAULIC FLOW RANGE | 8-20 GPM | 8-15 GPM | 16-25 GPM |
MAX CUTTING DIAMETER | 2 in | 3 in | 4 in |
TIP SPEED | 6,500-16,200 ft/min | 7,500-14,000 ft/min | 11,750-18,400 ft/min |
OVERALL WIDTH | 43.75 in | 49.75 in | 49.75 in |
OVERALL LENGTH | 58.25 in | 60 in | 60 in |
WEIGHT | 470 lbs | 672 lbs | 690 lbs |
PSI cont./int. | 3,000/3,500 |
---|---|
Deck Thickness | 4201: 10-ga (.135 in); 4801: 7-ga (.188 in) |
Motor/Gearbox Coupler | Machined steel |
Motor Protection | Pressure relief valves, GRD-2 shear bolt |
Blade Carrier Type | 1” GRD-50 plate |
Blade Rotation | Counterclockwise |
Blades | (2) 0.5 x 4 in; updraft |
Hood | 12-ga hinged, motor guard |
Number of Blades
(2) 0.5 x 4 in; updraft
Blade Type
Long-lasting, high-tempered updraft steel blades for lift and mulching action.
Blade Carrier
1” GRD-50 bar.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.
