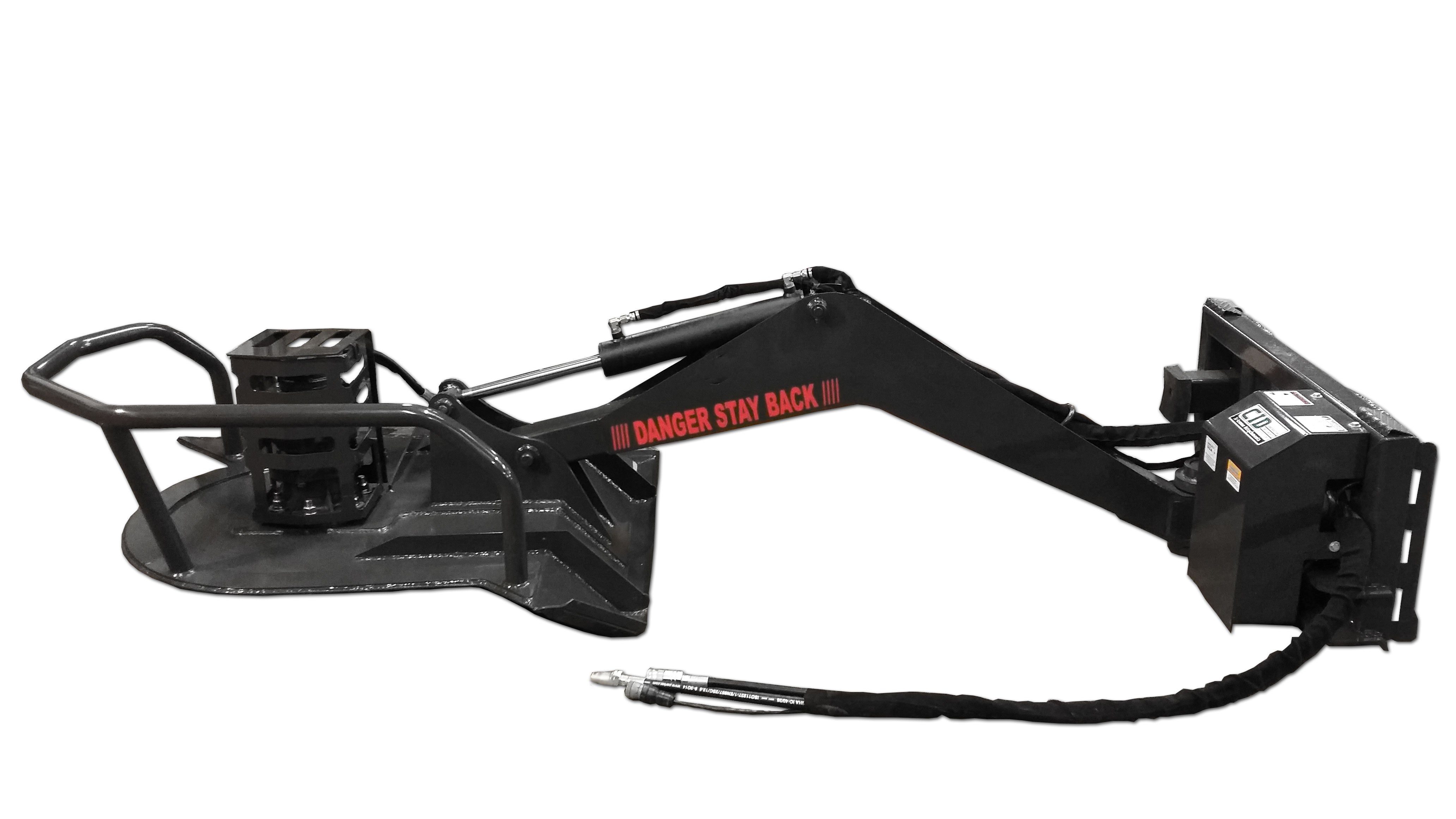

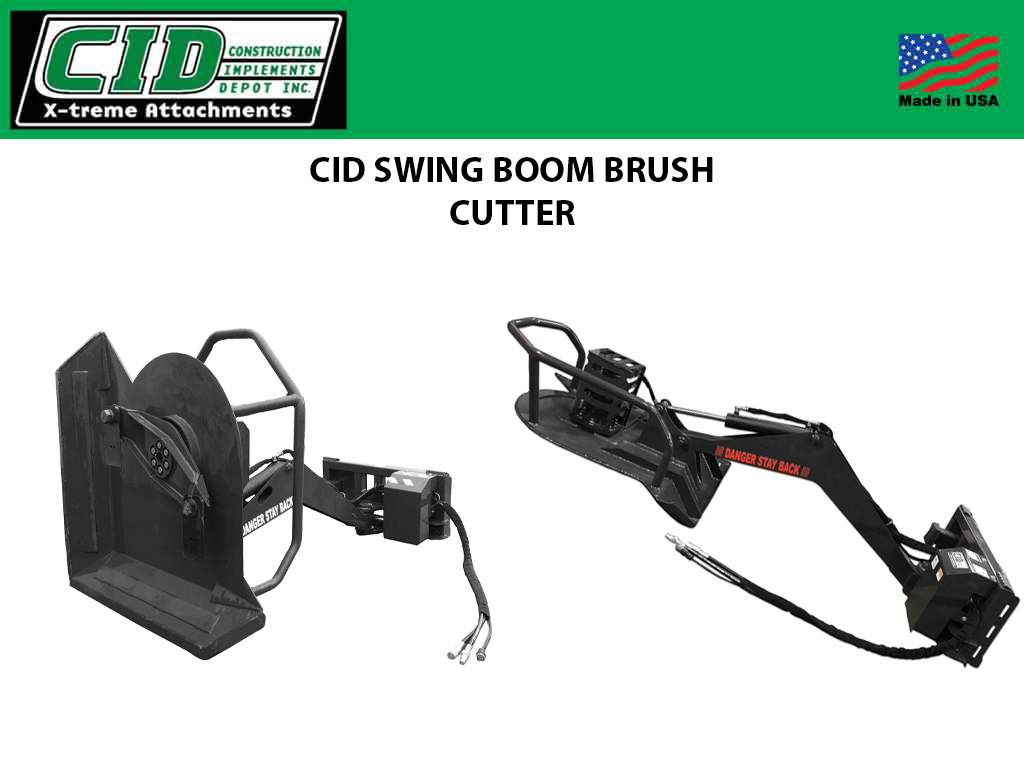

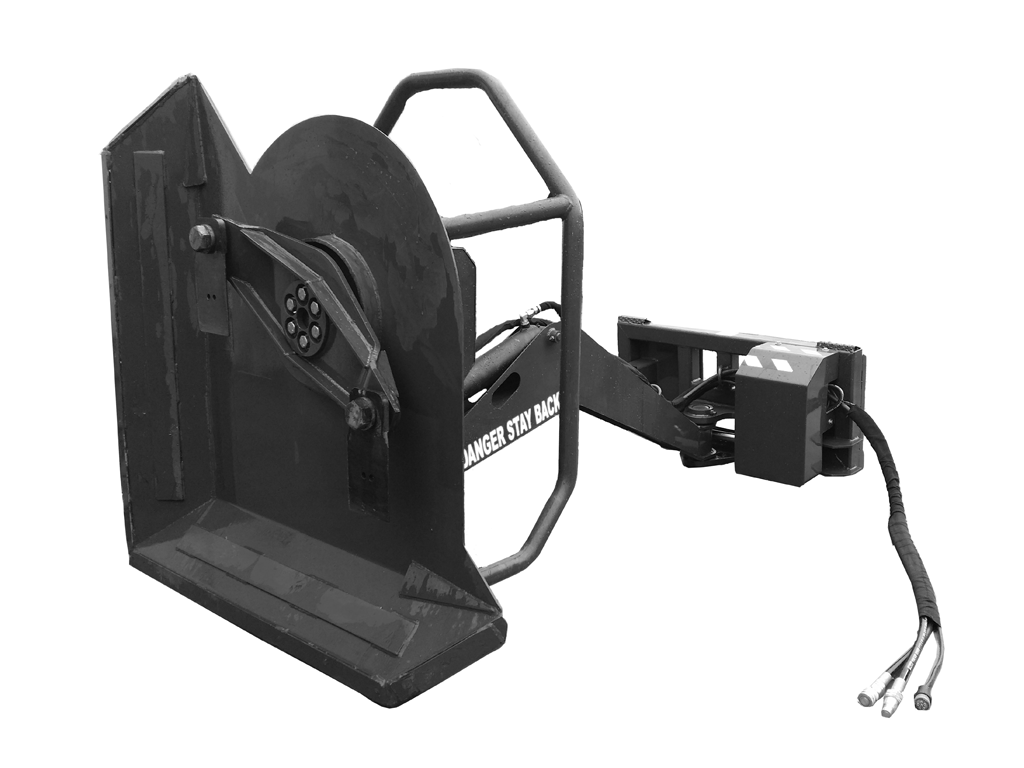

Swing Boom Cutter / Gear Motor

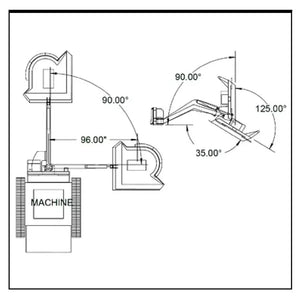

The CID swing boom cutter has a reach of 96” when extended horizontally and a vertical reach of sixteen feet, it makes clearing unwanted tree limbs less of a hassle. The cutter will also swing to the right and can be used as a side cutter. It is powered by a high torque motor with built in relief valve with a maximum supply pressure of 4,000 PSI. A flow of 14-20 GPM is required.

Our swing cutter is a unique attachment to have in your collection. It is designed for cutting banks, fence lines, and right of ways. It also works great for clearing pond banks and cutting trails. This cutter has a significant reach advantage over our typical cutter.

Swing Boom Cutter Specs

• Reach advantage over our typical brush cutter.
• Can be used as a side cutter.
• high torque motor with built in relief valve.
• Maxmium supply pressure of 4,000 PSI.
• 3″ x 16″ tilt cylinders.
• 5/8″ AR400 Blades.
• 44″ cut.
• 3″ cutting capacity.
• Does not requires case drain.
• Optional universal, 8 pin or 14 pin wiring harness are available.
• Optional motor upgrade 16-26 gpm

 Swing Boom Cutter Attachment Extra Protection

Our swing boom cutter attachment also comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.
