SKLGR-72

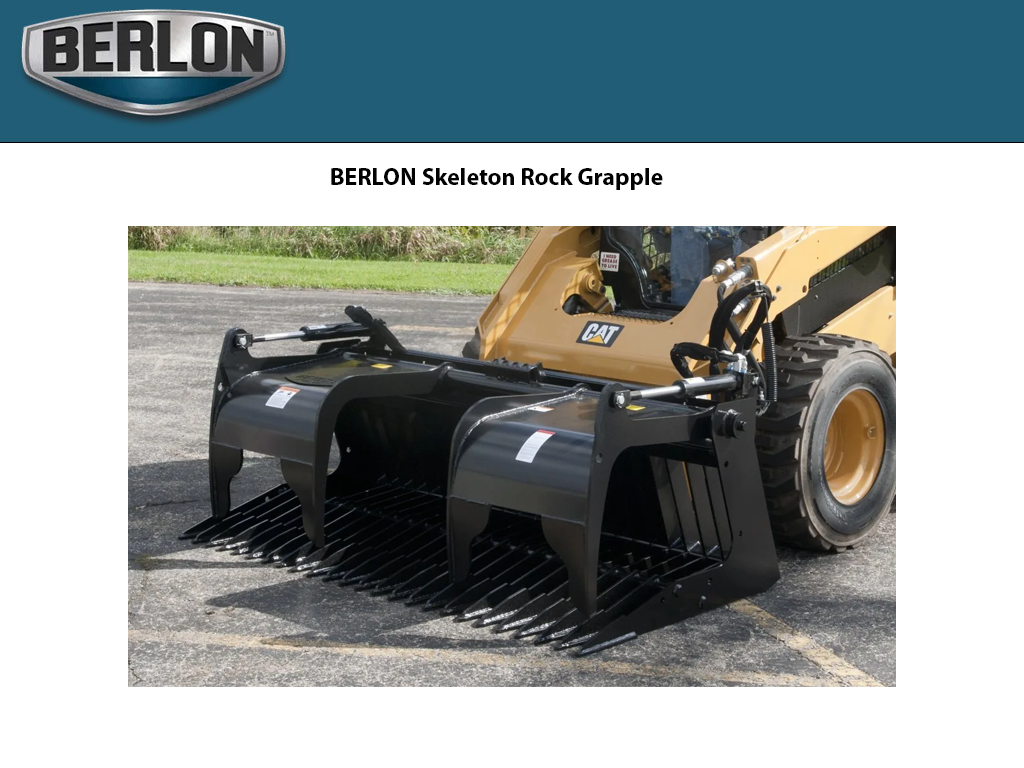

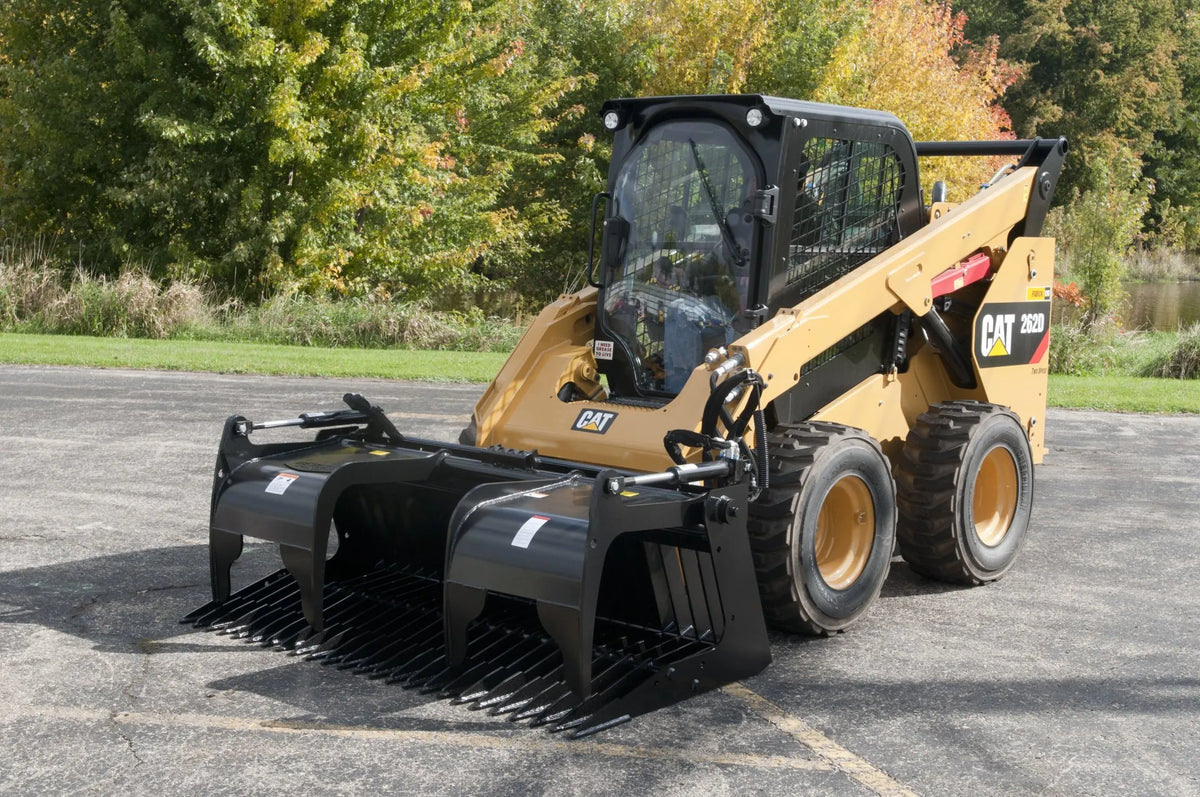

BERLON Skeleton Rock Grapple for skid steers
$5,300.00 - $5,600.00
Revised 1/24

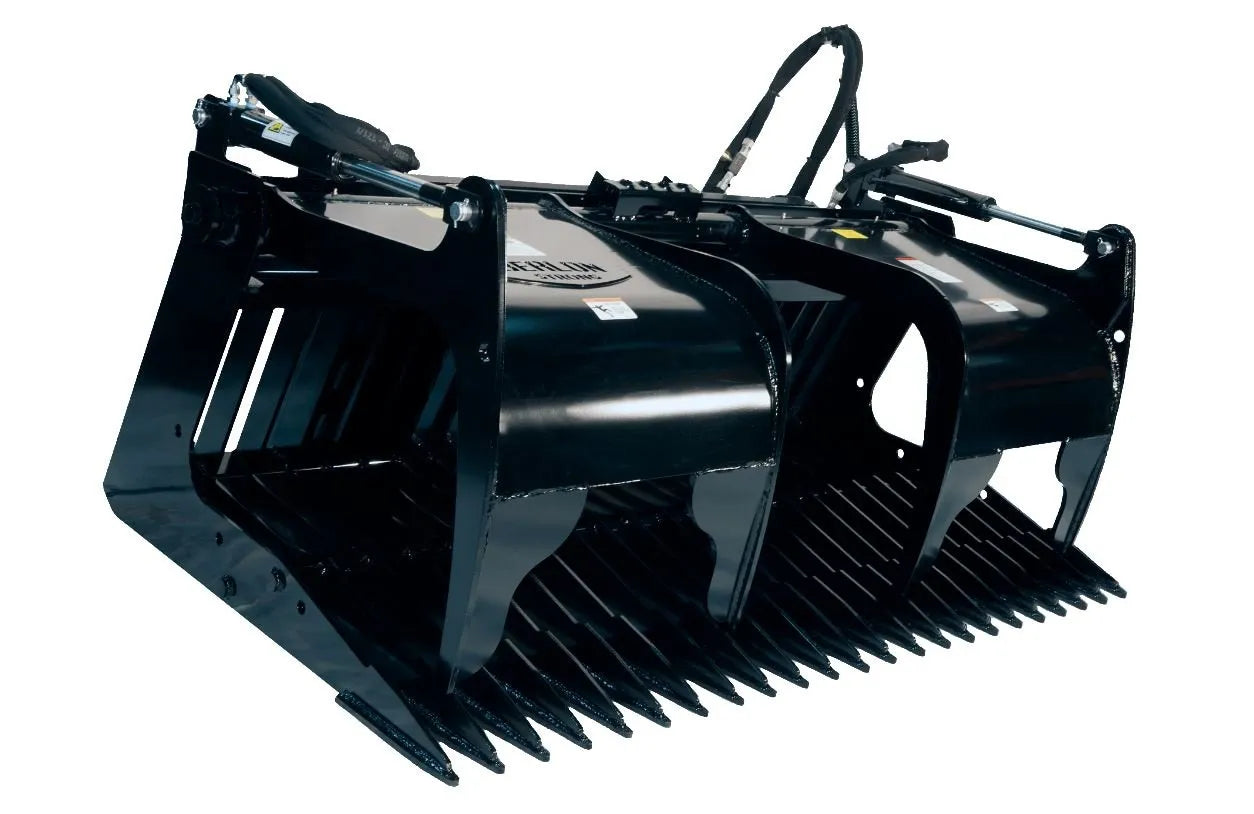

Skeleton Rock Grapple
Berlon’s Skeleton Rock Grapple has dual independent claws for complete clamping down on awkward loads. This bucket will take years of extreme use.
Common uses include: Bucket is ideal for rock picking, clearing fence lines, construction, scrap metal and other clean-up applications.
- 3/8” thick ribs spaced 3” apart, are fully welded on both sides
- Fully welded leading edge
- (2) 1-1/4” solid steel rods run through the ribs and are welded for greater structural integrity
- Dual, independent claws
- Cylinders - 3,000 lb., 2.5” bore
- Scrap ends, hose & couplers, hose saver and needle valve included
- Deep-well rock dam keeps material in place while your are transporting or picking up more material
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | "A" HEIGHT | "B" DEPTH | "C" ANGLE | "D" GRAPPLE OPENING | LBS |
| SKLGR-72 |
72.0" |
73.5" | 21.0" | 42.0" | 70° | 34.5" |
1221 |
|
SKLGR-78 |
78.0" | 79.5" |
21.0" | 42.0" | 70° |
34.5" | 1452 |
| SKLGR-84 | 84.0" | 85.5" |
21.0" | 42.0" | 70° | 34.5" | 1530 |
