SCSB-78

BERLON HCSB Super Capacity Snow Buckets for skid steers

Size
Edge
Options
Revised 1/24

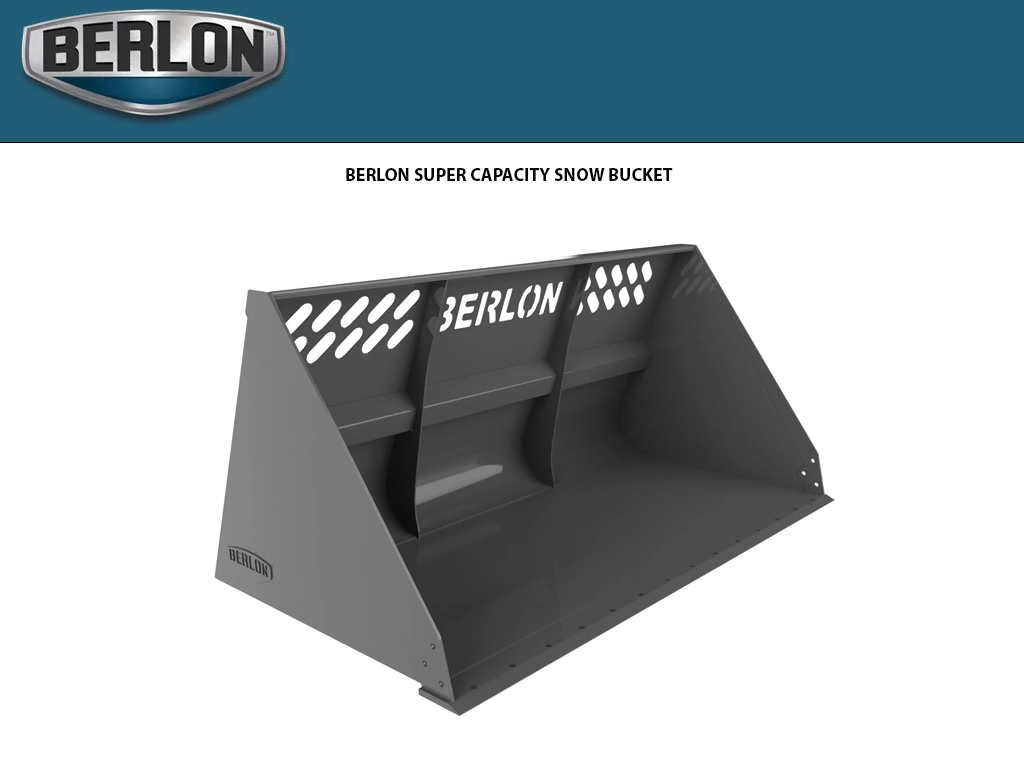

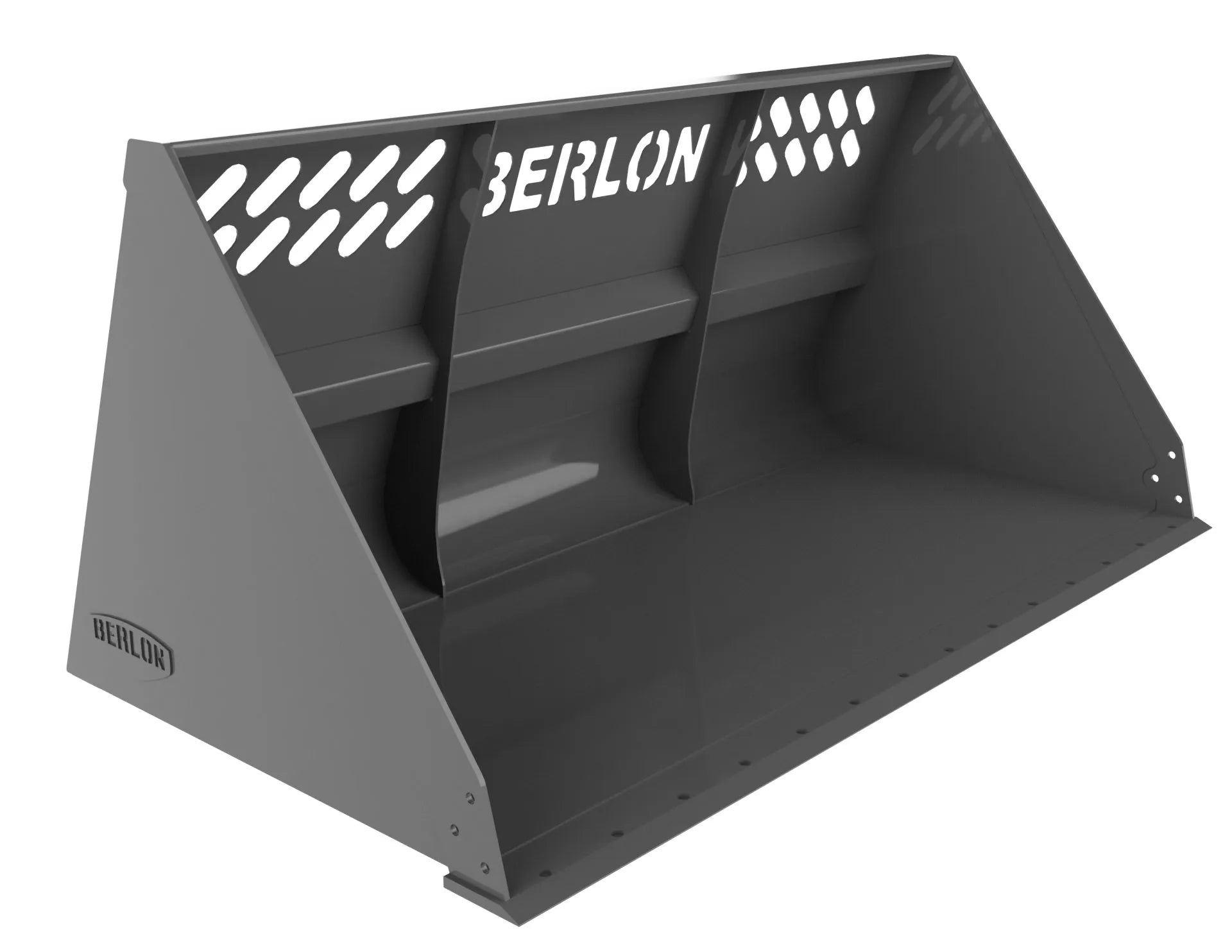

Super Capacity Snow Bucket

Berlon’s Super Capacity Snow Bucket is ideal for loading and handling large volumes of snow and other materials. Viewing slots for greater visibility.

 Common uses include: Snow and other Material

  • Fully welded body
  • Radius kick-out plate for added strength & easy clean out
  • 1/2" x 3" wearbars
  • Reinforcement tube in line with the top of the mounting plate
  • 3/4" x 6" cutting edge with holes
  • Additional reinforcement tube above standard rein

    B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
    SCSB-78
    78.0"
    79.5"
    41.0" 46.0" 70° 854
    SCSB-84
    84.0"
    85.5" 41.0" 46.0" 70° 976
    SCSB-96
    96.0"
    97.5"
    41.0" 46.0" 70° 1037



    How to Determine Bucket Capacity

    The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


    To calculate cubic feet of a bucket:

    1: Measure from the top of the bucket straight down to the bottom in inches = Height

    2: Measure from the front of the floor to the back in inches = Depth

    3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


    To calculate heaped capacity of a bucket:

    For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

    For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
