MDGR-66

BERLON Medium Duty Grapple for skid steers

Size
Revised 1/24

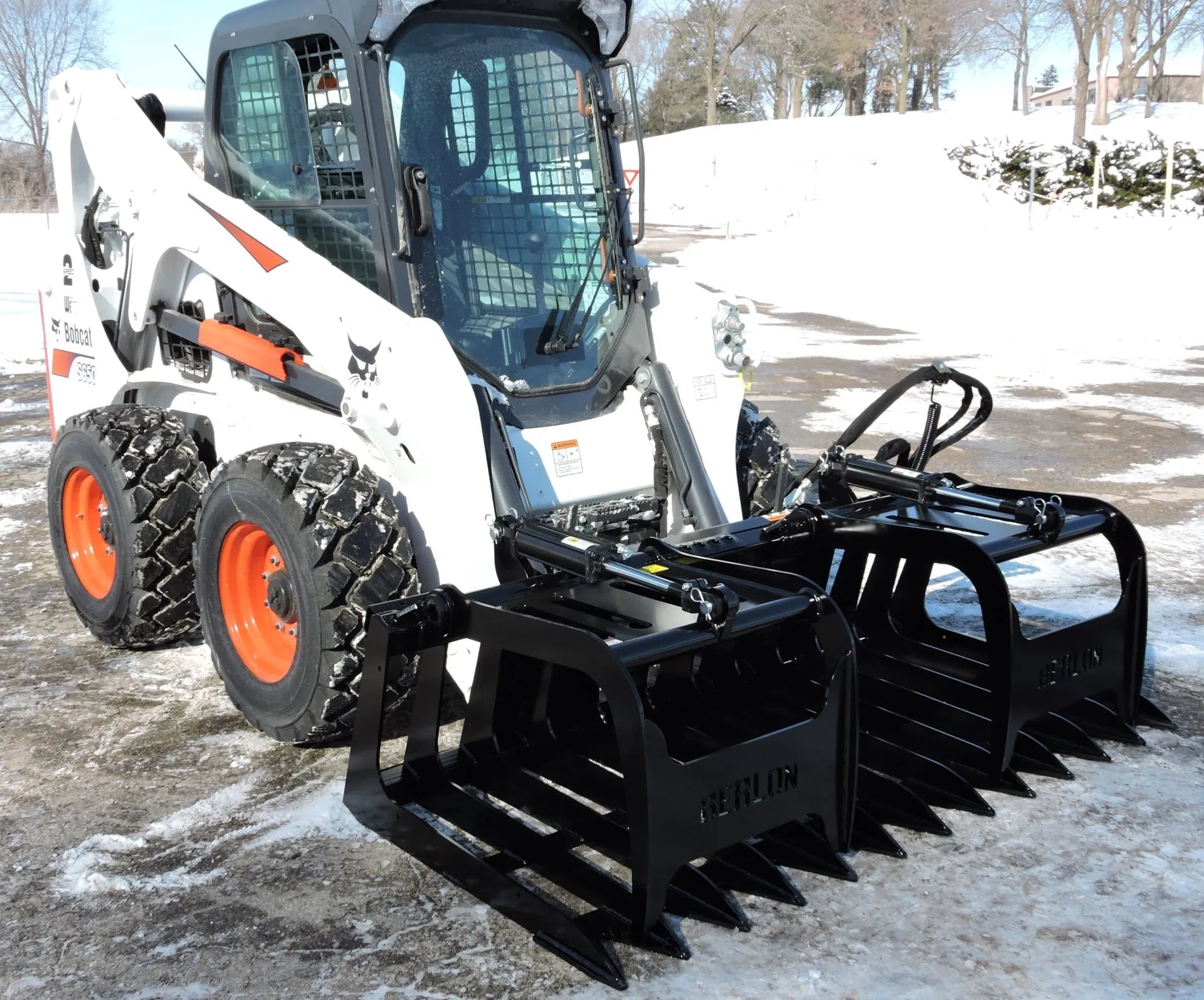

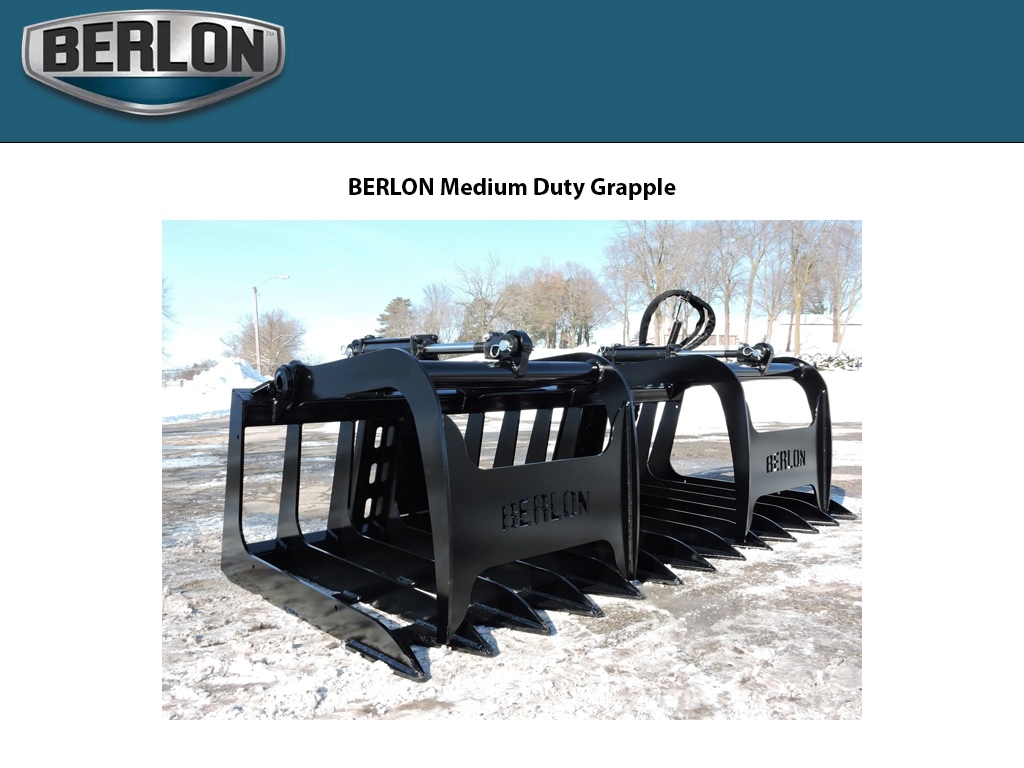

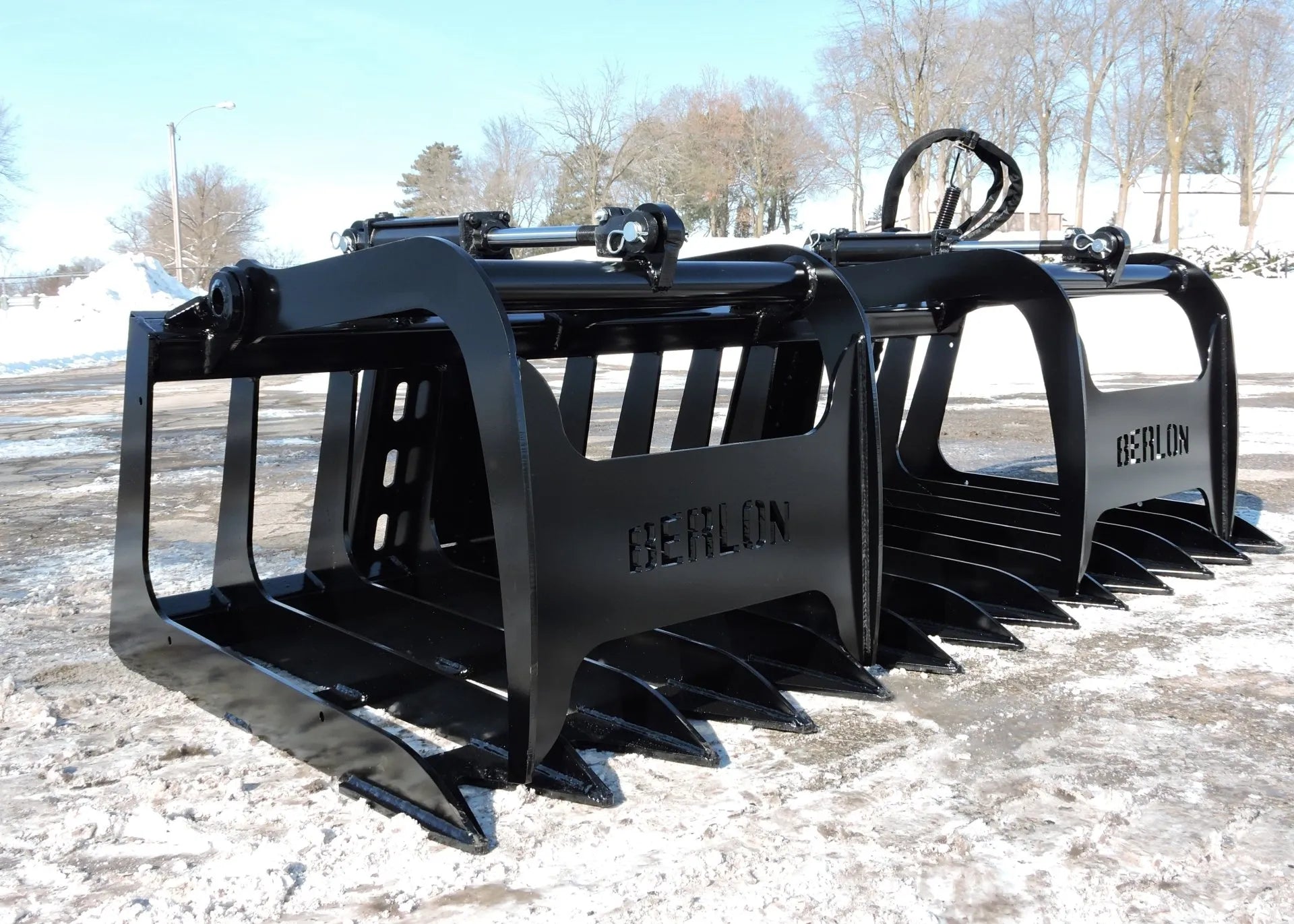

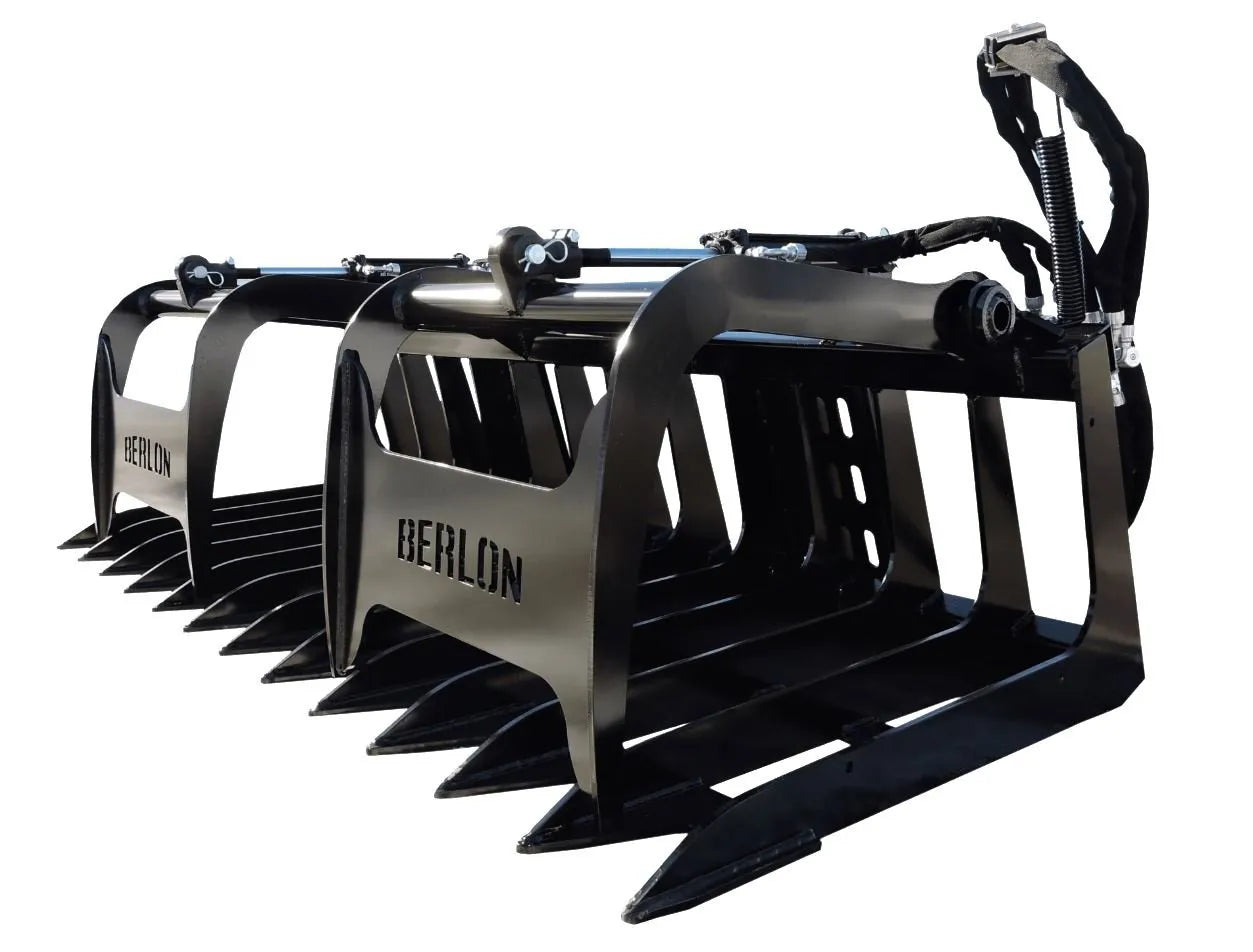

Medium Duty Grapple

Berlon’s Medium Duty Grapple is designed for moving brush, logs, rocks, and clearing fence lines. It is the ideal attachment for machines between 50-75HP

Common uses include: Brush clean up

  • Cylinder - 3,000 lb., 2.5” bore
  • Fully welded leading edge
  • Dual, independent claws
  • Scrap ends, hose & couplers, hose saver and needle valve included

B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE "D" GRAPPLE OPENING LBS
MDGR-66
66.0"
67.5" 21.5" 40.0" 70° 41.0"
735
MDGR-72
72.0" 73.5"
21.5" 40.0" 70°
41.0" 770
MDGR-78 78.0" 79.5"
21.5" 40.0" 70° 41.0" 810
