BELGR-72

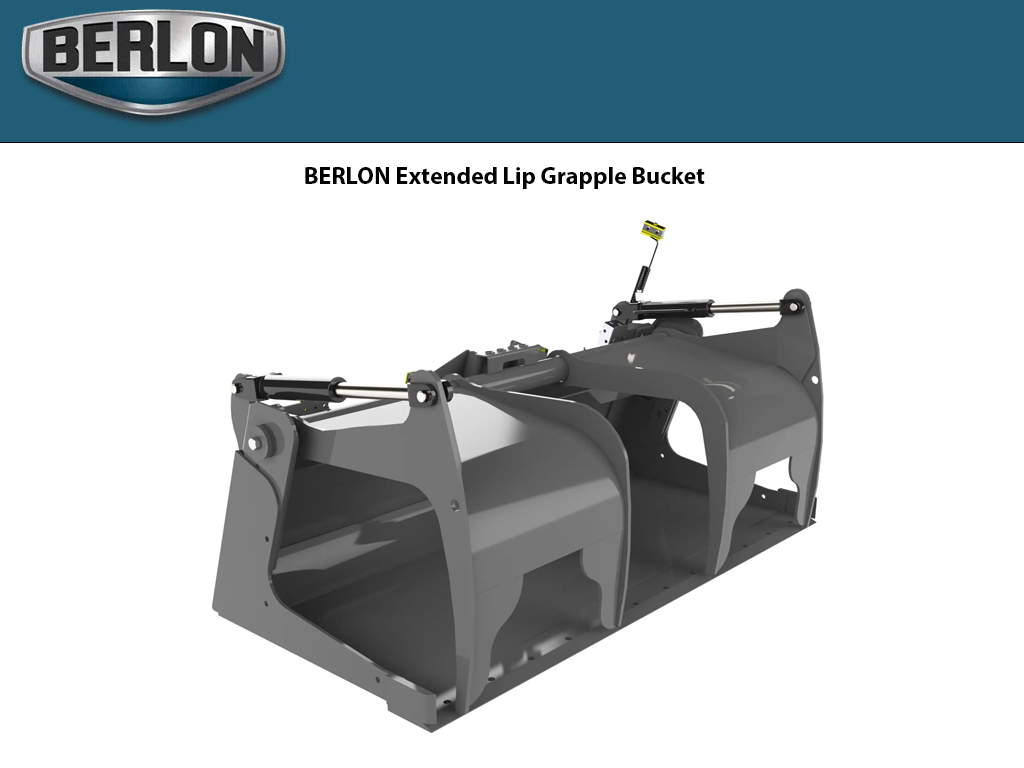

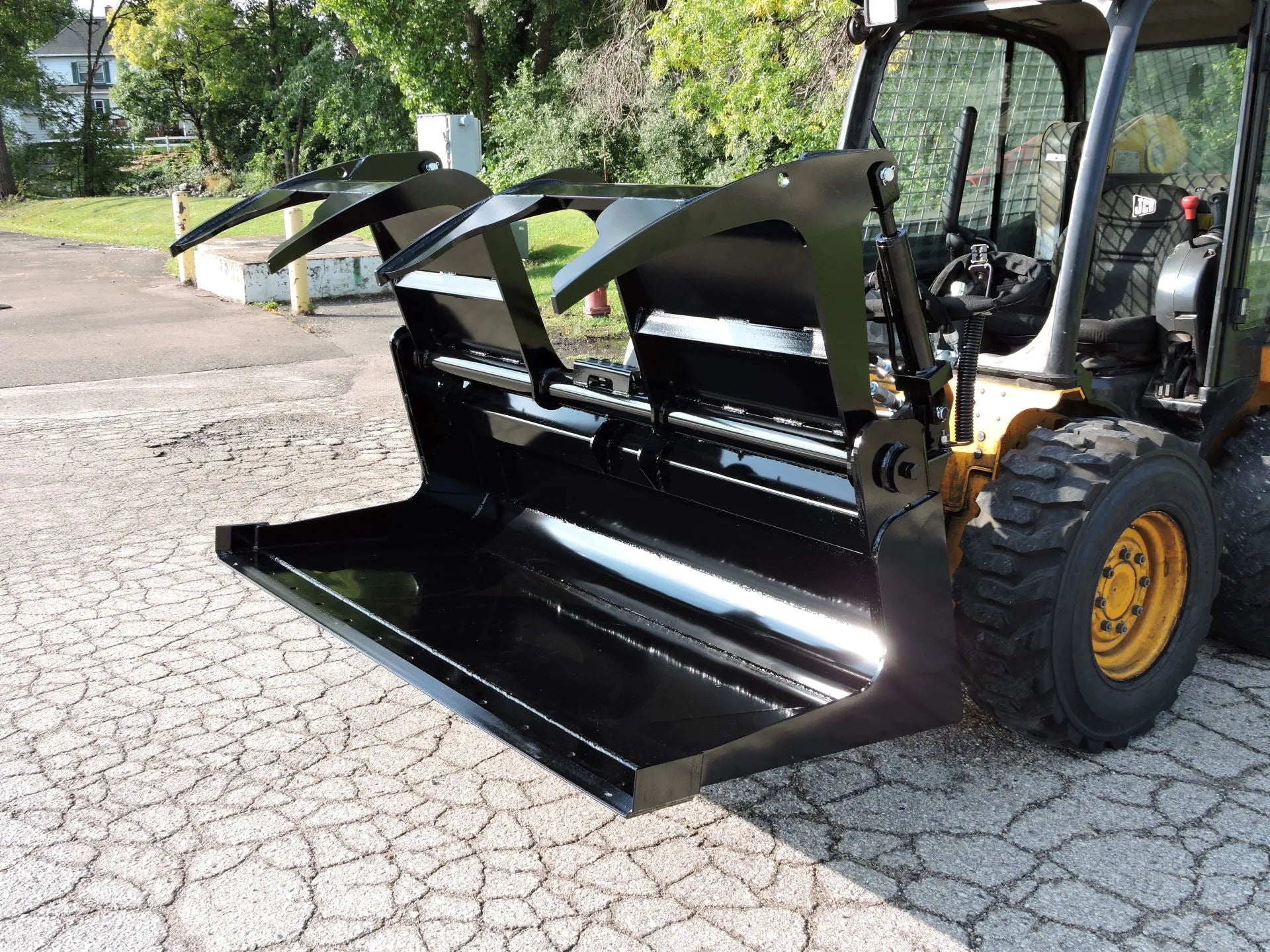

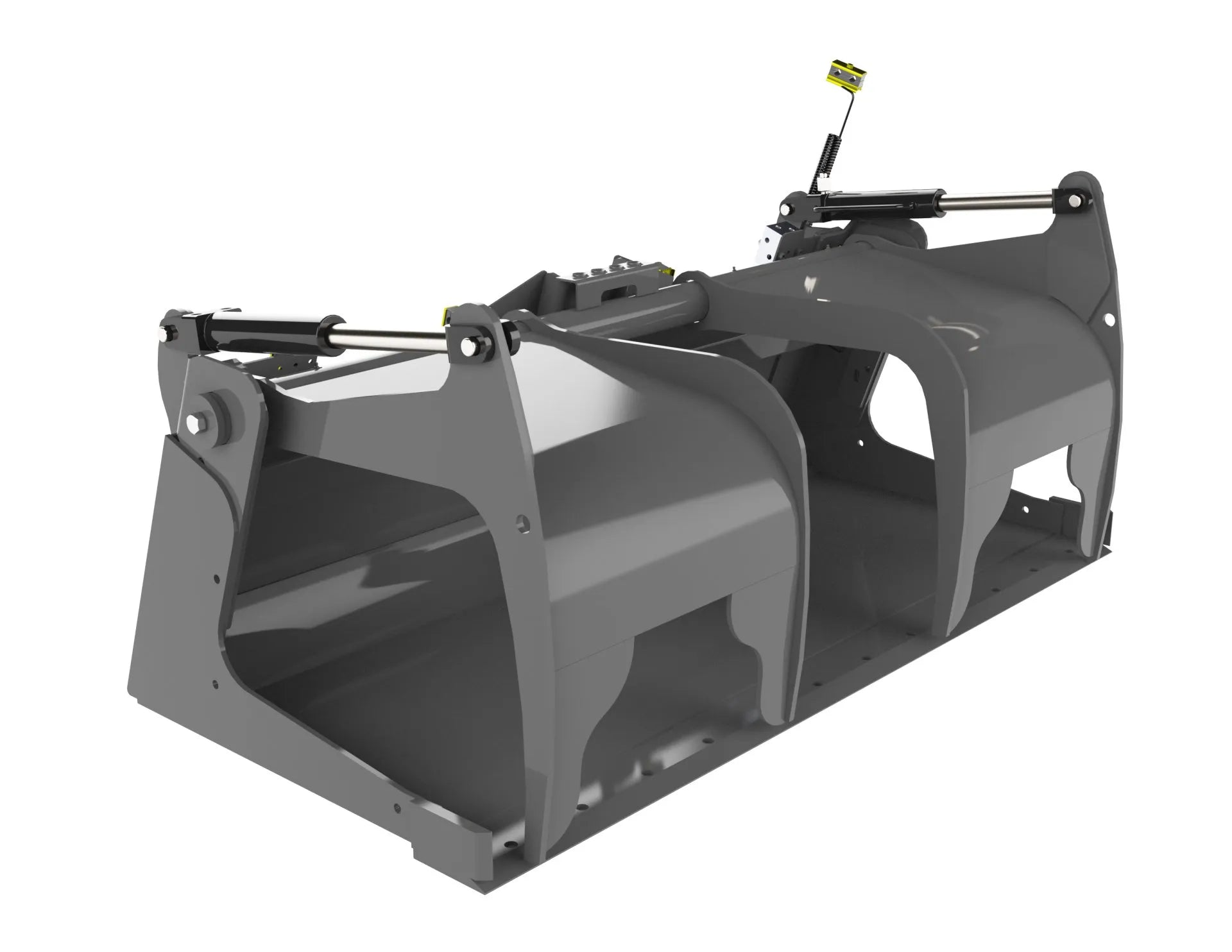

BERLON Extended Lip Grapple Bucket for skid steers

Size
Edge
Revised 1/24

Extended Lip Grapple

Berlon’s Extended Lip Grapple bucket has claws that operate independently to accommodate a variety of material shapes and sizes.


Common uses include: Demolition, scrap yard,  and other general clean-up applications.

  • 3/16” thick steel body
  • Reinforcement tube across back of bucket
  • 3/4” x 6” weld-on cutting edge with holes
  • Dual, independent claws
  • Cylinders - 3,000 lb., 2.5” bore
  • Scrap ends, hose & couplers, hose saver and needle valve included
  • Extended floor for greater cutting edge visibility
  • Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
  • Radius kick-out plate for added strength & easy  clean-out

    B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE "D" GRAPPLE OPENING LBS
    BELGR-72
    72.0" 73.5" 21.0" 36.0" 70°
    34.25" 1027
    BELGR-78 78.0" 79.5" 21.0" 36.0" 70° 34.25" 1057
