BLUE DIAMOND Grinder ROCK & CONCRETE
$25,545.00 - $66,900.00
7/24
SKID STEER ATTACHMENTS
ROCK & CONCRETE GRINDERS

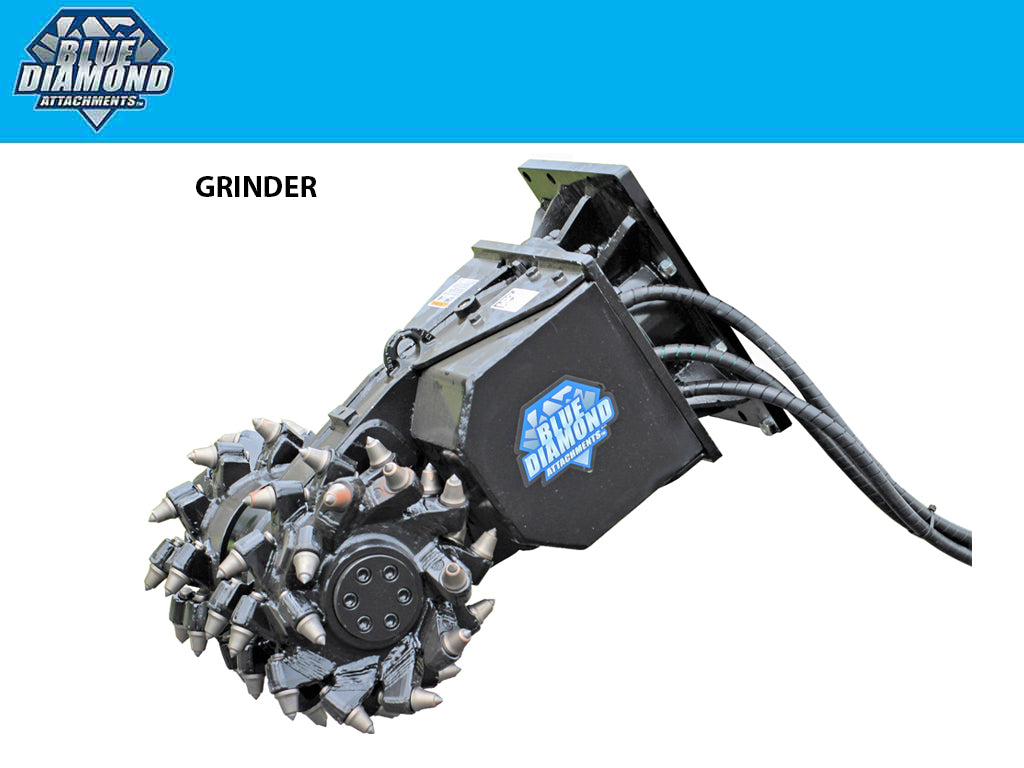

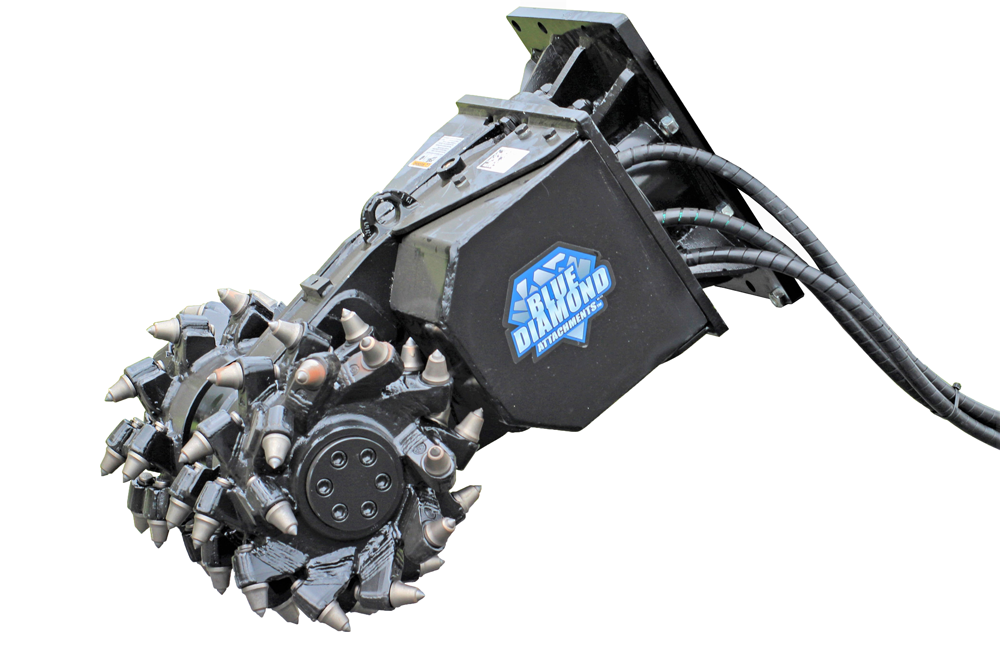

The Blue Diamond Rock & Concrete Grinders are a must-have tool for any application where rock, concrete, and asphalt need to be removed. They allow for a clean trench to be made with vertical walls. Four different models are available, and mounts to fit most excavators and skid steers.
FEATURES INCLUDE :
- All American-made parts & components
- Powerful high torque hydraulic motors
- Robust cutting drums to ensure maximum production & prolonged life
- Customizable drums to accommodate performance maximized applications
- Durable spur gears & housing
- Bolt-on mount for excavator or skid steer
| G1S | G1 | G2 | G3 | G3XL | G4 | |
| Part Number | 159010 | 159015 | 159020 | 159025 | 159030 | 159035 |
| Flow Range Gpm | 5-12 | 8-20 | 12-26 | 30-45 | 34-65 | 50-85 |
| Carrier Weight Lbs. | 1,300-5,000 | 6,900-17,000 | 17,000-30,000 | 22,000-39,000 | 33,000-66,000 | 50,000-90,000 |
| Max Pressure Psi | 5,076 | 5,800 | 7,300 | 9,400 | 11,600 | 14,500 |
| Head Diameter | 9″ | 11″ | 16.5″ | 22″ | 23" | 29" |
| Cutting Width | 19″ | 21″ | 25″ | 31″ | 32" | 40" |
| Max Torque Output Ft/Lbs | 1,196 | 2,625 | 4,370 | 8,740 | ||
| Max Cutting Force Lbs. | 3,348 | 5,717 | 7,028 | 9,545 | ||
| Weight Lbs. | 265 | 635 | 1,035 | 2,045 | 2,290 | 4,125 |
