BLUE DIAMOND severe duty buckets for skid steers

108260

BLUE DIAMOND severe duty buckets for skid steers

Name: BLUE DIAMOND severe duty buckets for skid steers
Brand: Blue Diamond
SKU: 108260
Price: 2402.0 USD
Availability: InStock

$2,402.00

Style

Size

Edge

Style

Low profile

Long bottom sold out

Size

66"

72"

78"

84"

90"

Edge

WELD ON SMOOTH EDGE sold out

WELD ON TEETH sold out

Qty

DESCRIPTION
SPECIFICATIONS

3/24

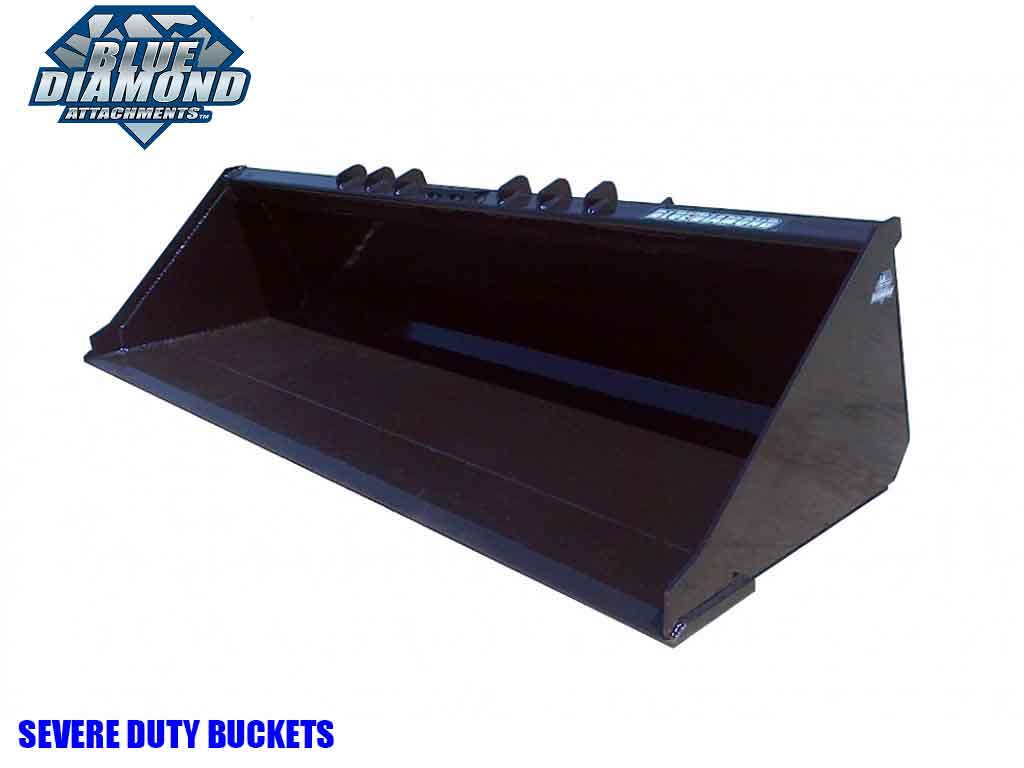

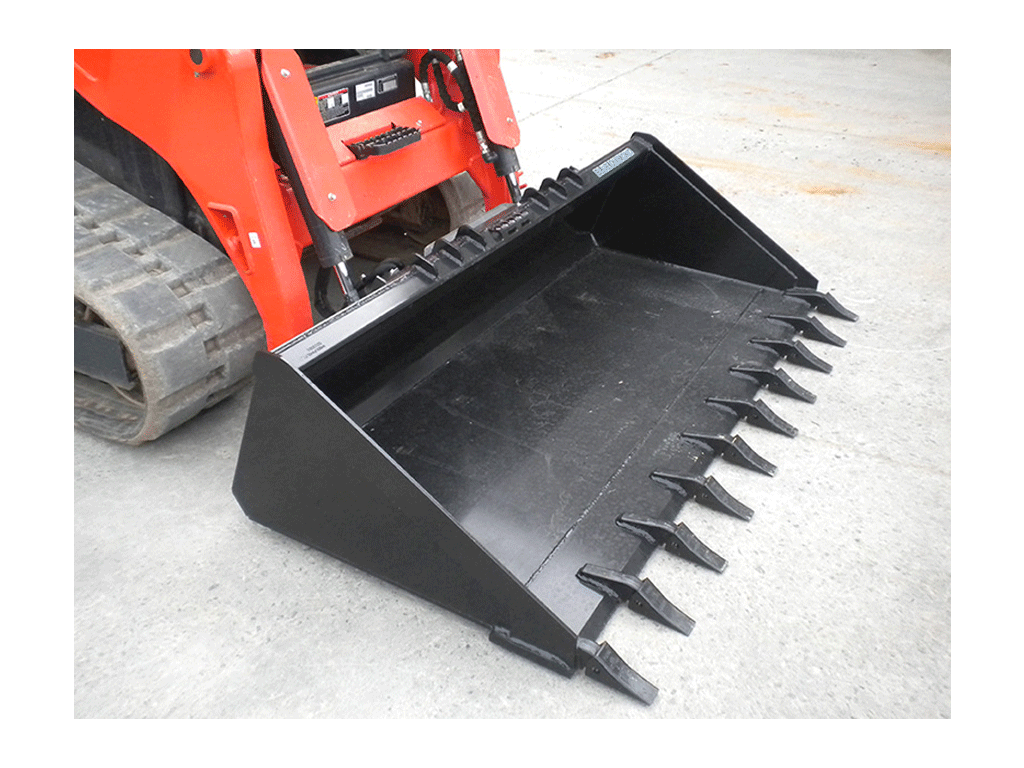

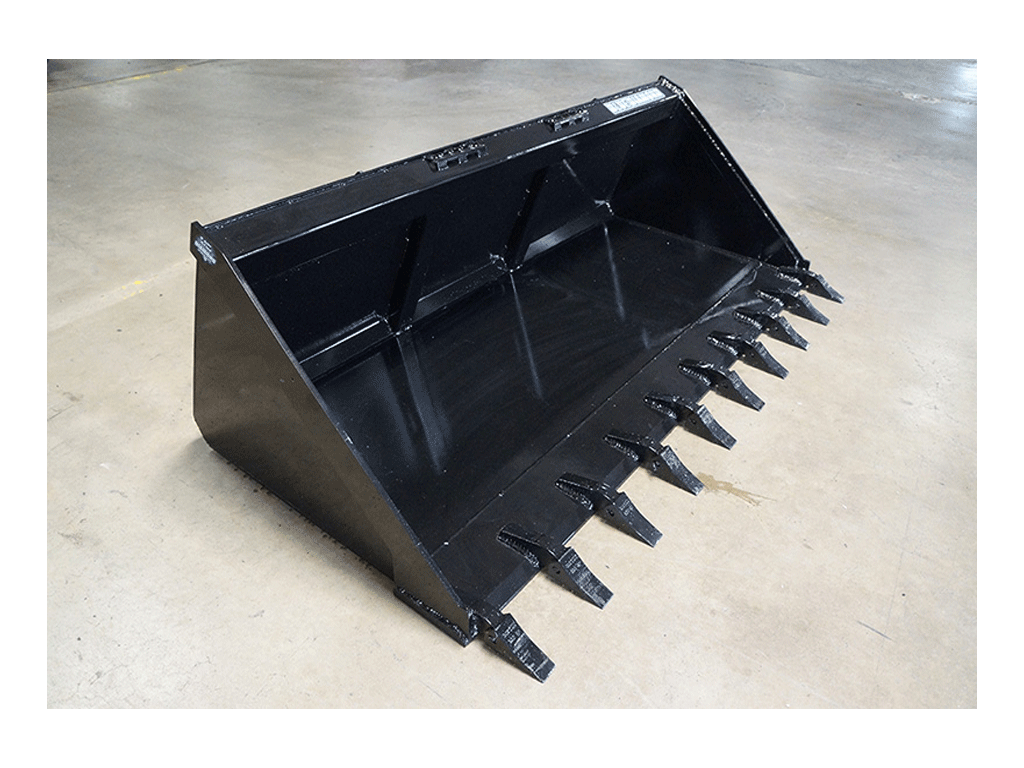

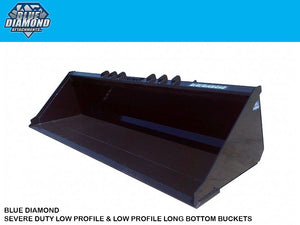

LOW PROFILE – SEVERE DUTY BUCKET

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market. It is available in 60”, 72”, 78”, 84”, or 90” widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2” bottom, double-layer 1/4” back, and a 1” x 8” cutting blade.

FEATURES INCLUDE :

1/2″ floor
Double layer 1/4″ back

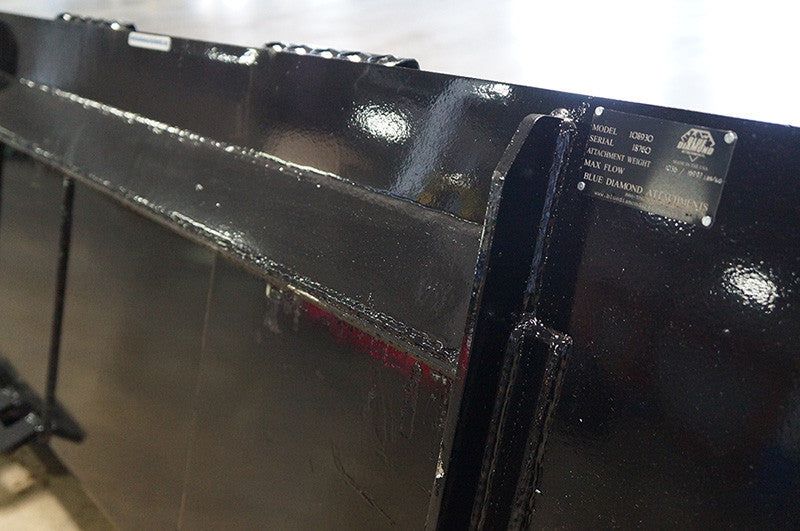

Heavily gusseted quick attach

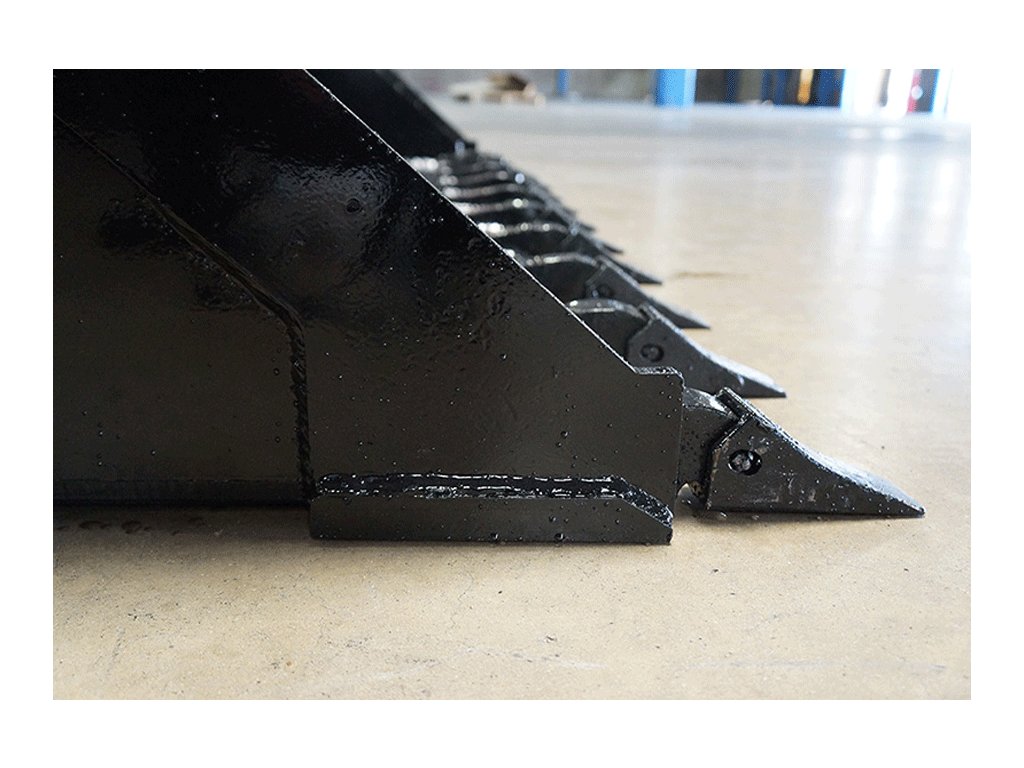

Tooth buckets use a 1″ x 8″ cutting edge

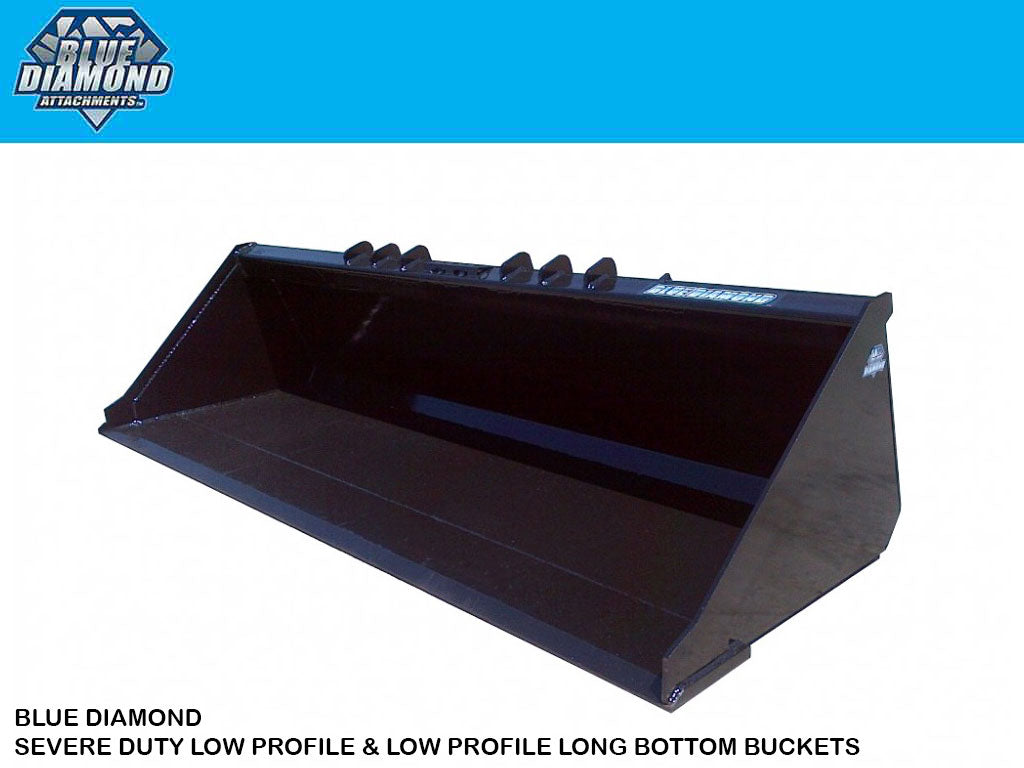

Available in low profile, long bottom, and high capacity
Low proﬁle: 19” tall, 29” deep
Long bottom: 19” tall, 35” deep

Part Number	Model	Struck Capacity	Weight
108260	66" Low Profile, Severe Duty, Smooth	11.4 cu ft	650 lbs
108263	66" Low Profile, Severe Duty, Tooth	11.4 cu ft	675 lbs
108270	72" Low Profile, Severe Duty, Smooth	11 cu ft	710 lbs
108273	72" Low Profile, Severe Duty, Tooth	11 cu ft	724 lbs
108275	78" Low Profile, Severe Duty, Smooth	12 cu ft	690 lbs
108277	78" Low Profile, Severe Duty, Tooth	12 cu ft	757 lbs
108280	84" Low Profile, Severe Duty, Smooth	12.9 cu ft	738 lbs
108282	84" Low Profile, Severe Duty, Tooth	12.9 cu ft	813 lbs
108283	90" Low Profile, Severe Duty, Tooth	18.8 cu ft	925 lbs
108284	72" Low Profile, Severe Duty, Smooth-Long Bottom	23 cu ft	732 lbs
108285	72" Low Profile, Severe Duty, Tooth-Long Bottom	23 cu ft	774 lbs
108286	78" Low Profile, Severe Duty, Smooth-Long Bottom	25 cu ft	759 lbs
108287	78" Low Profile, Severe Duty, Tooth-Long Bottom	25 cu ft	826 lbs
108290	84" Low Profile, Severe Duty, Smooth-Long Bottom	27 cu ft	848 lbs
108293	84" Low Profile, Severe Duty, Tooth-Long Bottom	27 cu ft	965 lbs
108296	90" Low Profile, Severe Duty, Tooth-Long Bottom	18.8 cu ft	875 lbs
