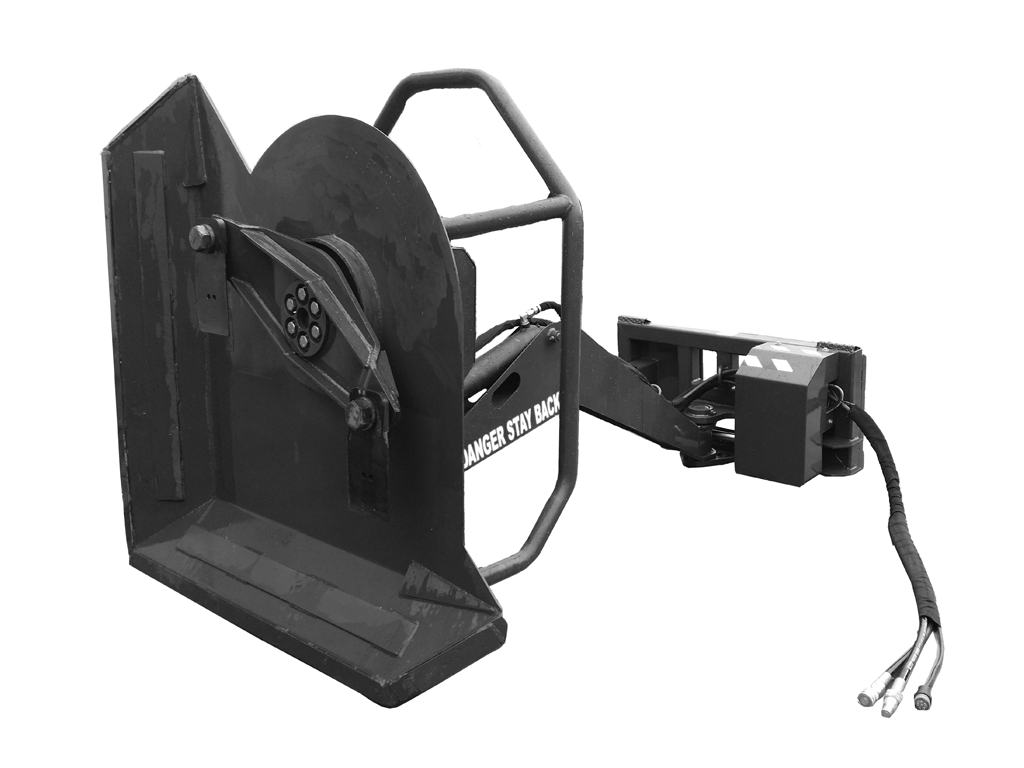

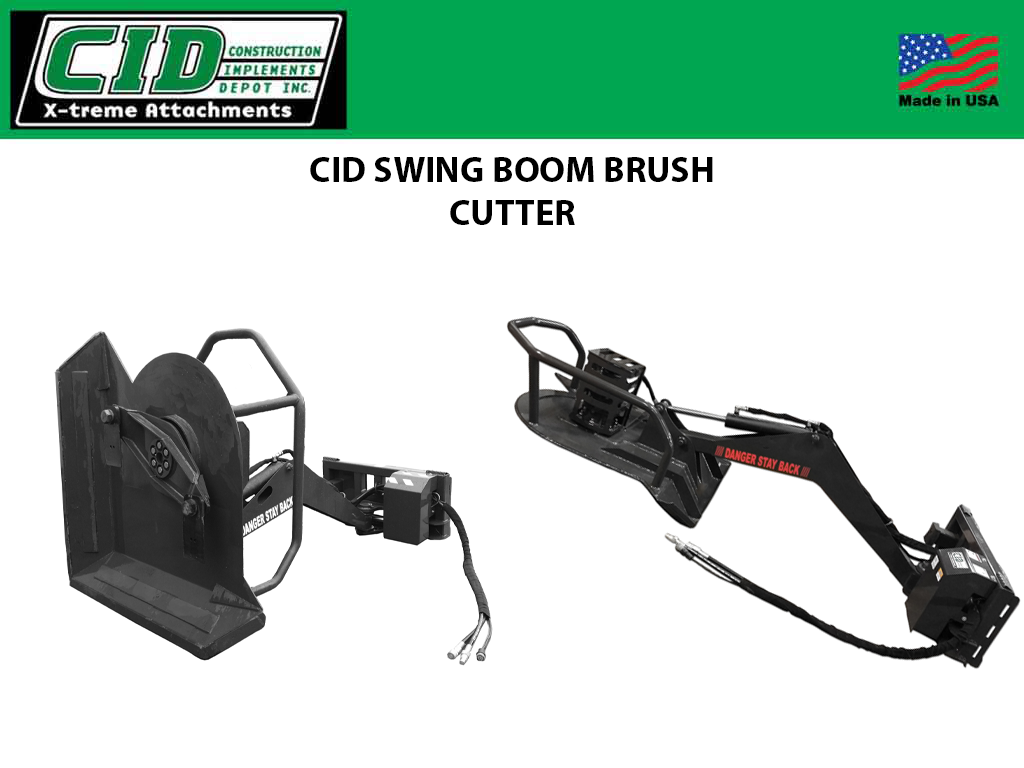

Piston Motor Swing Boom Cutter

Our Piston Motor Swing Boom Cutter is a great implement to add to your collection. It is designed for cutting banks, right of ways, and fence lines. The cutter also works great for clearing pond banks and cutting trails. This cutter has a significant reach advantage over our typical cutter.
With a reach of 96” when extended horizontally and a vertical reach of sixteen feet, it makes clearing unwanted tree limbs less of a hassle. The cutter will also swing to the right and can be used as a side cutter. It is powered by a direct drive piston motor with a bearing housing with a 4000 Max PSI. A flow of 17-27 gpm is required.

Piston Motor Swing Boom Cutter Specs

• Reach advantage over our typical cutter.
• Can be used as a side cutter.
• Direct drive piston motor with Max 4000 PSI.
• 3″ x 16″ tilt cylinders.
• 5/8″ AR400 Blades.
• 44″ cut.
• 4″ cutting capacity.
• Requires case drain.
• Optional universal, 8 pin or 14 pin wiring harness are available.

  Piston Motor Swing Boom Cutter Attachment Extra Protection

Our piston motor swing boom cutter attachment also comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.

Piston motor swing boom cutter
