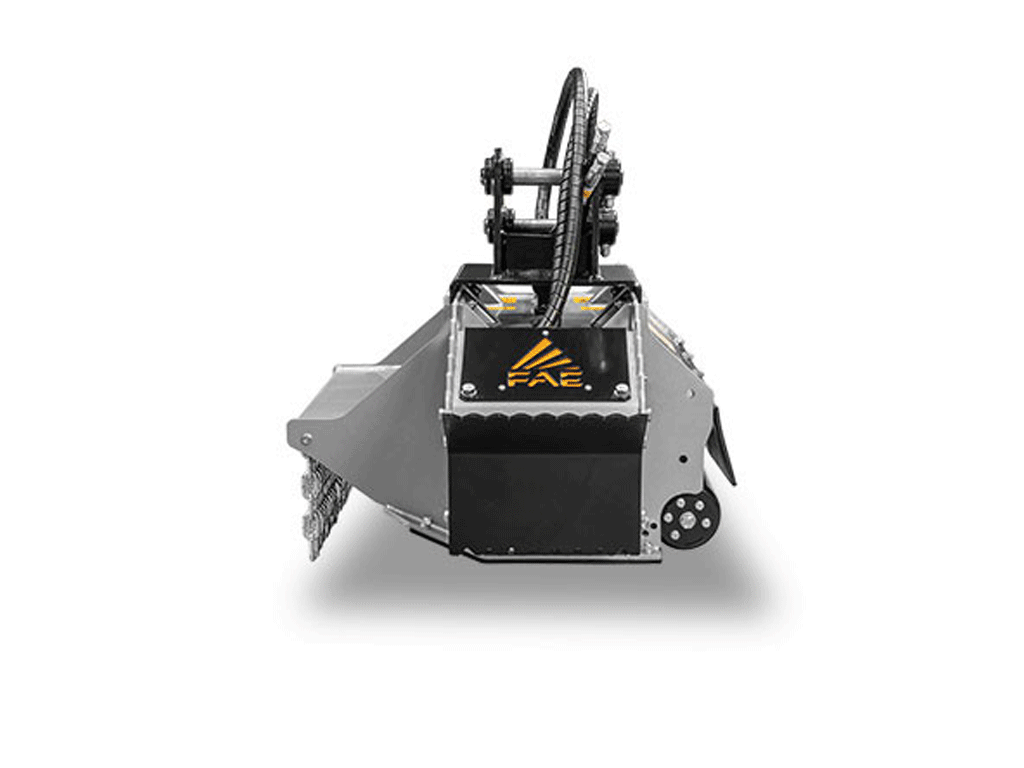

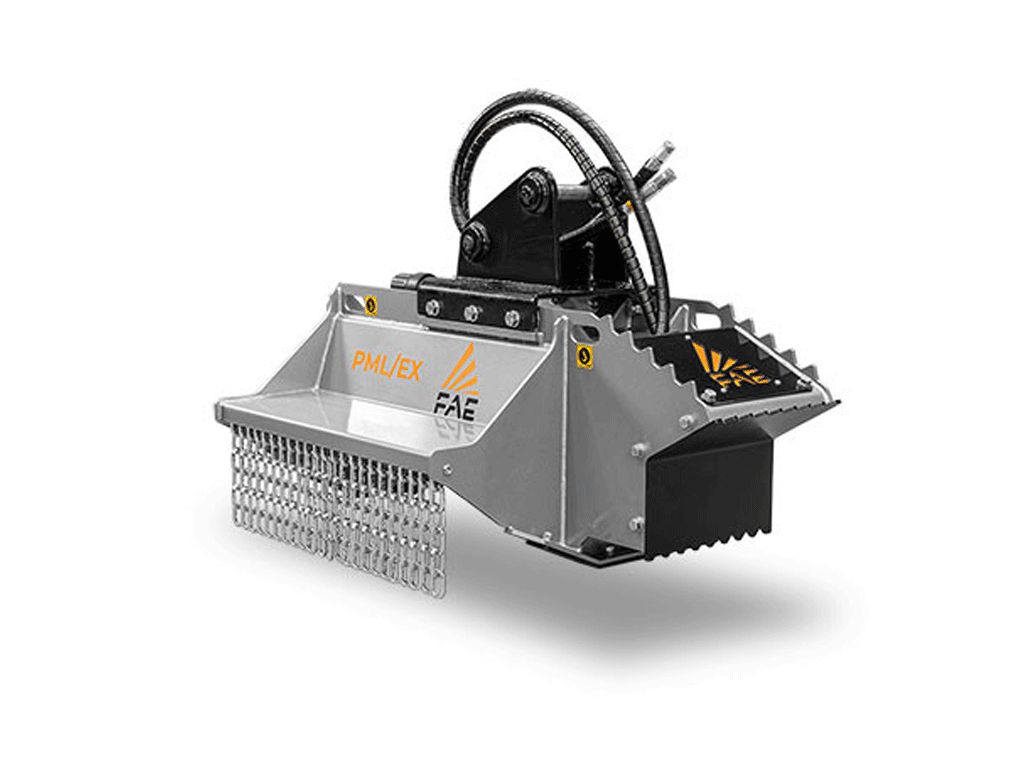

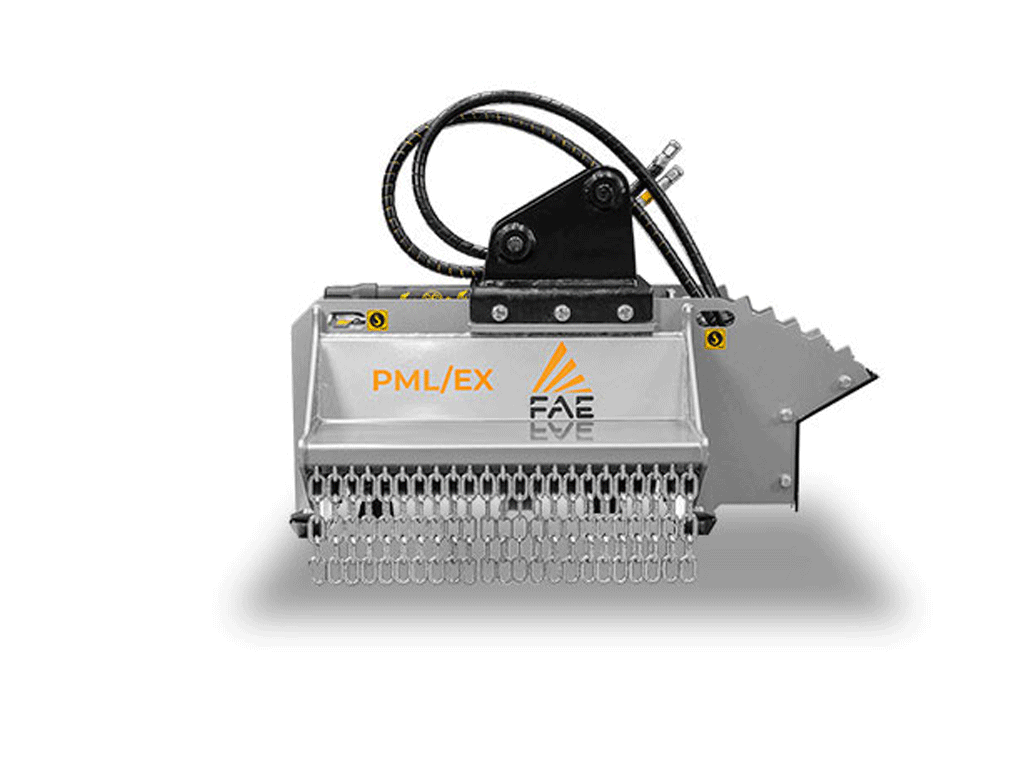

FAE PML/EX forestry mulcher for mini-excavators, 11000 - 15000 lbs. machines

MODEL
TEETH
Revised  6/24

MULCHERS FOR EXCAVATORS

PML/EX

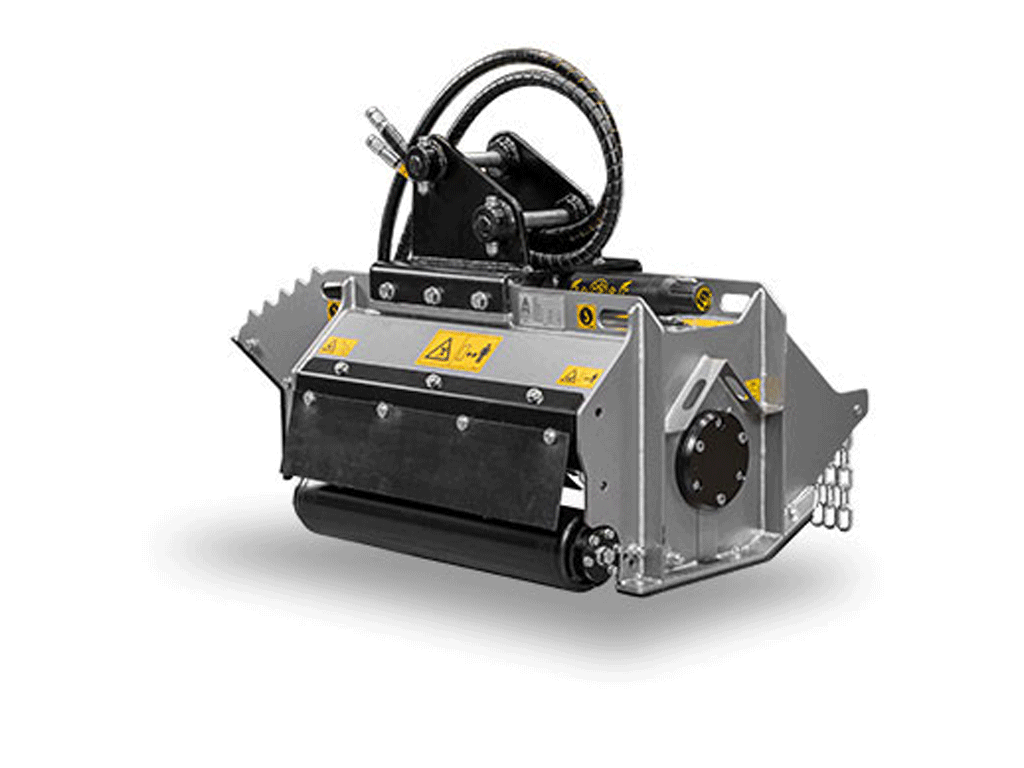

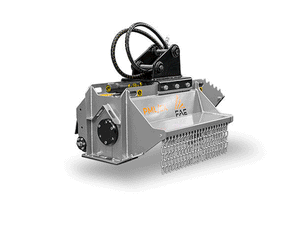

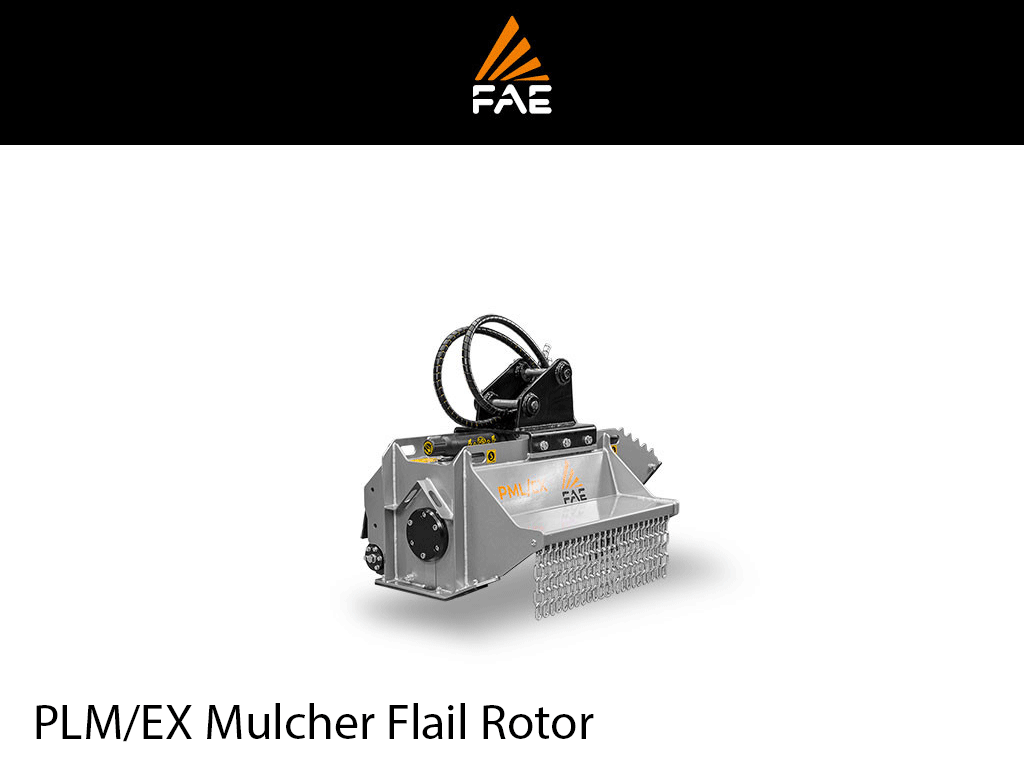

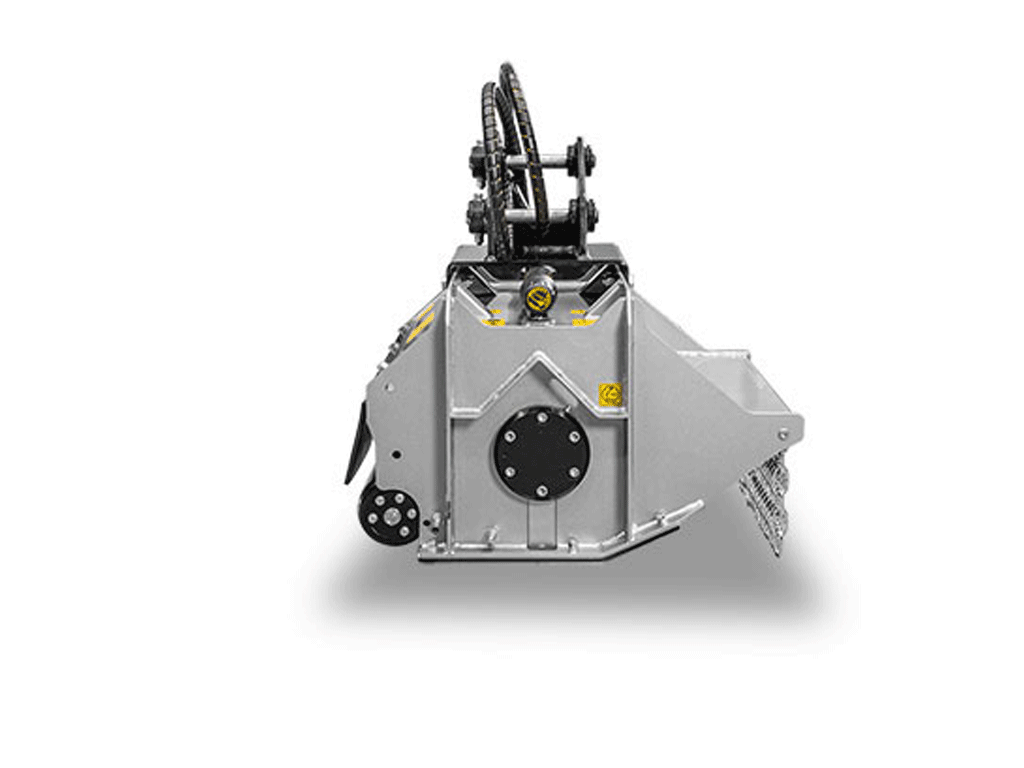

Mulcher with hammer/flail rotor for excavators.

The PML/EX flail mulcher for 2–7.5 ton excavators can shred light vegetation, shrubs and trees up to 5 cm in diameter. The head is designed for high productivity, durability, and easy installation and maintenance. The PML/EX’s Direct Drive motor minimizes maintenance and makes it possible to have an extremely compact machine body. The hydraulic motor’s compatibility with excavators that do not have a drainage line makes the head easier to install. This feature makes the head a plug and play piece of equipment. The PML/EX can be equipped with PML hammers or Y-flail.

  • Direct Drive Motor
    for less maintenance and greater compactness
  • Different hydraulic motors
    for different excavator models

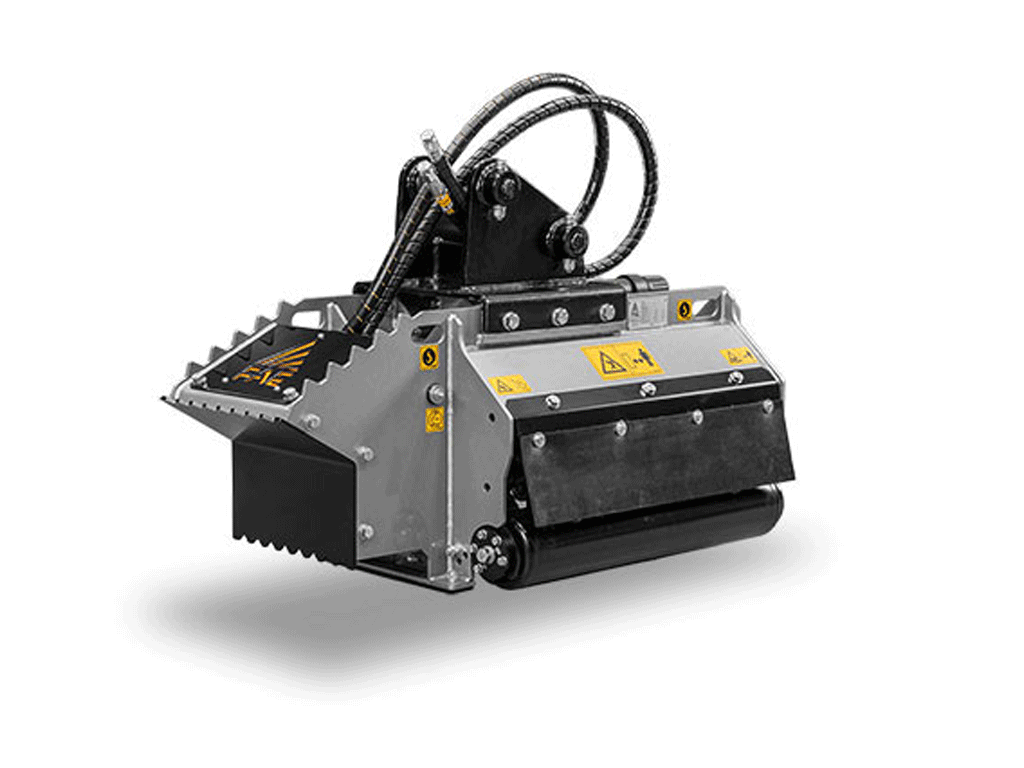

  • Fixed thumb bracket built into the frame
    useful for moving material that needs to be mulched

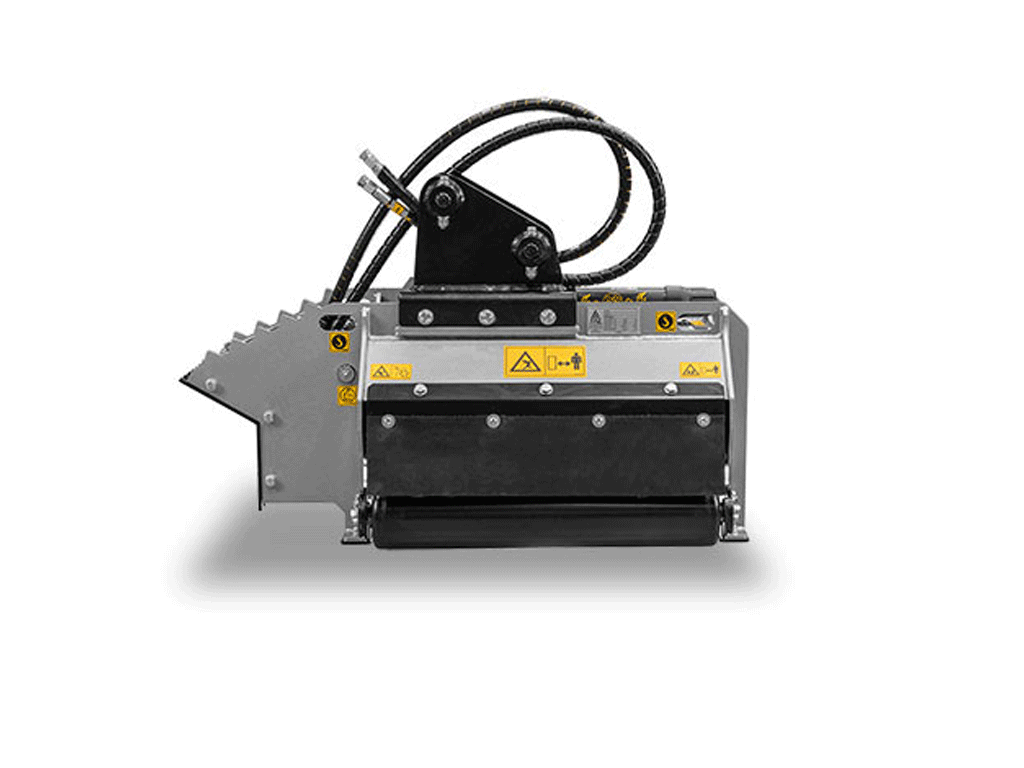

  • Adjustable support roller

APPLICATIONS:

STANDARD EQUIPMENT

  • 11 cc-gear hydraulic motor (PML/EX 75)
  • 16 cc-gear hydraulic motor (PML/EX 100)
  • 25 cc-gear hydraulic motor (PML/EX 125-150)
  • Flow Control valve with integrated safety and anti-cavitation valves
  • Direct-drive transmission
  • Interchangeable protection chains
  • Support roller
  • Motor enclosed in the frame
  • Enclosed, dust-resistant machine body
  • Wear-resistant interchangeable Hardox® soles
  • Hydraulic hoses
  • Thumb bracket
  • Pressed steel counter blades (welded)
  • Deflector (PML/EX 125-150)
                  TOOLS Hammer PML Blade Y/2
                  EQUIPPED STANDARD OPTIONAL
                  APPLICATION Bushes and branches Bushes and branches
                  PHOTO Hammer PML | FAE Blade Y/2 | FAE



                  ** WE WILL CONTACT YOU ABOUT YOUR MACHINE AND MOUNTING

                  OPTIONS

                  • 25 cc-gear hydraulic motor (PML/EX 75-100)
                  • 16 cc-gear hydraulic motor (PML/EX 75-125-150)
                  • 11 cc-gear hydraulic motor (PML/EX 100-125-150

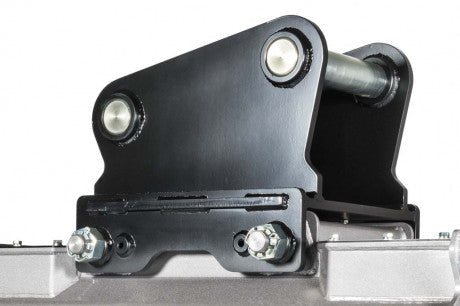

                  • Customized attachment bracket kit with customized pins

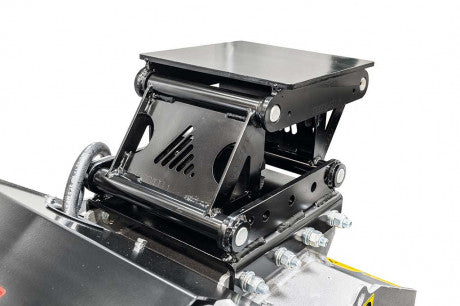

                  • Attachment plate with self-leveling device
                  • Multiple tooth options



                  MODEL PML/EX75 PML/EX 100 PML/EX 125 PML/EX 150
                  Flow rate (gal/min) 7-24 7-24 7-24 7-24
                  Pressure (PSI)  2600-3600 2600-3600 2600-3600 2600-3600
                  Excavator weight (t) 2-4 3.5-5.5 5-7.5 5-7.5
                  Working width (in) 28 40 49 59
                  Weight (lbs) 463 595 661 750
                  Rotor diameter (in) 14.2 14.2 14.2 14.2
                  Max shredding diameter (in) 2 2 2 2
                  No. hammers type PML 10 16 20 24
                  No. flails type Y/2 10 16 20 24
