HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators

HT1672

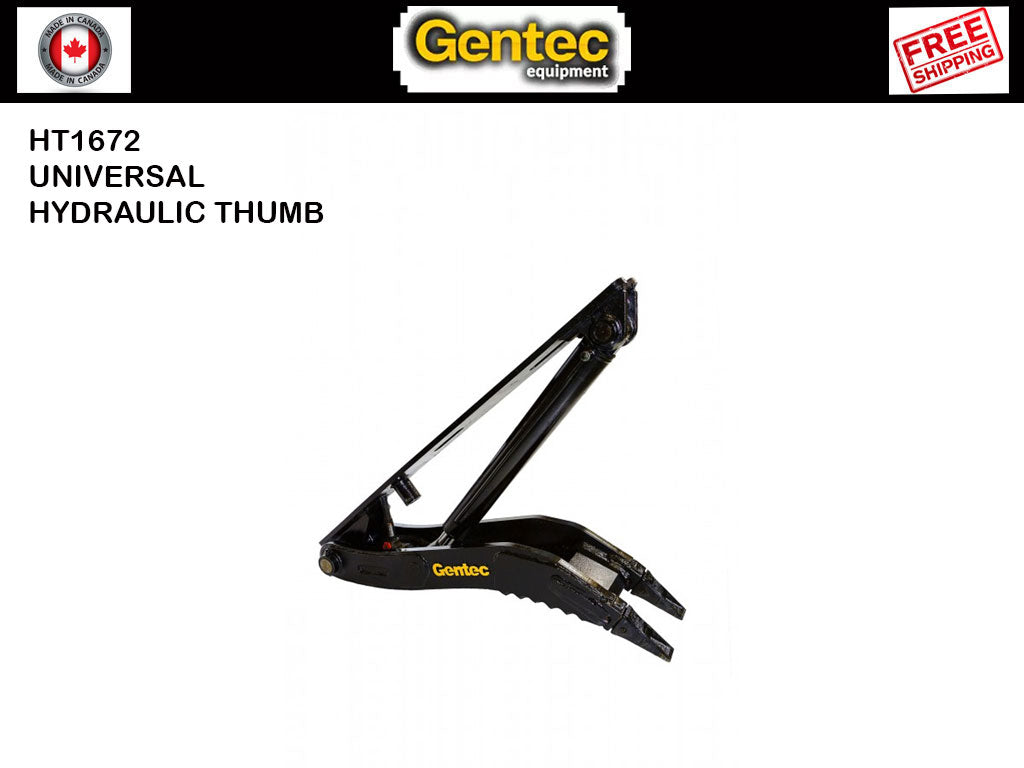

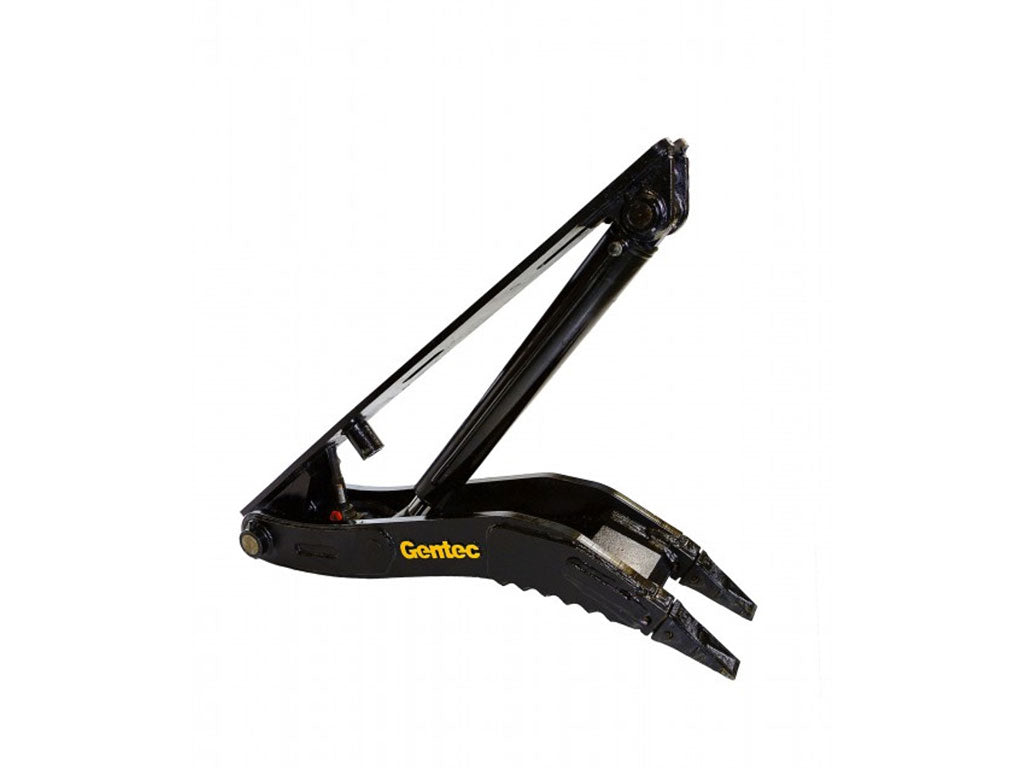

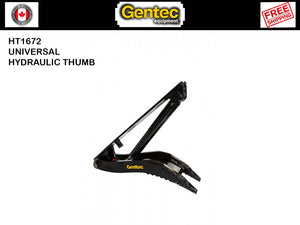

HT1672 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators

$7,400.00

Business Financing Available

2/24

Gentec Equipment

This heavy duty thumb makes it easier to pick, hold and move all types of material such as rocks, concrete, branches, and debris, increasing handling performance and versatility.

  • Fits most machines that weigh between 65,000 and 100,000 lbs
  • 16"x72"
  • Heavy-Duty hydraulic cylinder (included)
  • Weighs 1100 lbs
  • 2 fingers made of 2" AR 400 steel plate
  • Serrated edges
  • High-precision CNC laser cutting production process
  • Fully gusseted for exceptional strength
  • Heavy duty frame
  • Welds on
  • Hydraulic fittings size: 1-1/16 JIC X 12 SAE-ORB
  • Hoses NOT included, must be sourced locally.
  • 1 year warranty

                                    ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

                                    ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

                                    Mounting Weld-On
                                    Operation Hydraulic
                                    Width 16"
                                    Length 72"
                                    Net Weight 1100lbs
                                    Tine Thickness 2"
                                    Tine Material Hardox 400
                                    Min. Operating Weight 65,000lbs
                                    Max. Operating Weight 100,000lbs
                                    Excavator Weight Class 55,000lbs to 100,000lbs


                                     SAMPLE LIST ONLY



                                    65000-80000 LBS.
                                    BRAND MODELS
                                    CASE CX330, 9050B
                                    CAT 330CL, E300
                                    DAEWOO S340LCV, 330LCV
                                    DEERE

                                    350G, 380G, 892

                                    350D, 330CLC, 370CLC
                                    DOOSAN DX300, DX340
                                    HITACHI ZX350, ZX380, ZX330, ZX370
                                    HYUNDAI
                                    		 R320LC7, R360LC7
                                    JCB JS330
                                    KOBELCO

                                    SK290LC-DA, SK330LC-DA

                                    SK350LC
                                    KOMATSU PC300LC-7
                                    LINK BELT 330LX, 4300Q
                                    NEW HOLLAND
                                    		 EC350-LC
                                    SANY SY335
                                    TEREX TXC300, TXC340
                                    VOLVO EC330B, EC360B





                                    80000-120000 LBS
                                    BRAND MODELS
                                    CASE CX450, CX460, 9060B
                                    CAT 345BL, 345CL, 350F/G, 235/B/C/D
                                    DAEWOO S450-III, S470LCV
                                    DEERE
                                    		 470G, 450D, 450CLC, 992E
                                    DOOSAN DX420, DX480
                                    HITACHI ZX470, EX450-V, Z450LC
                                    HYUNDAI
                                    		 4500-7, R450LC-7, R450LC-3
                                    JCB JS450, JS460
                                    KOBELCO
                                    		 SK480LC-DA, SK400LC
                                    KOMATSU PC400-7, PC450-6
                                    LINK BELT 460LX, 5800Q
                                    NEW HOLLAND
                                    		 EX450LC
                                    TEREX TXC420, TXC470, TXC480
                                    VOLVO EC460B







                                    Thumbs usually ship out within (3) days

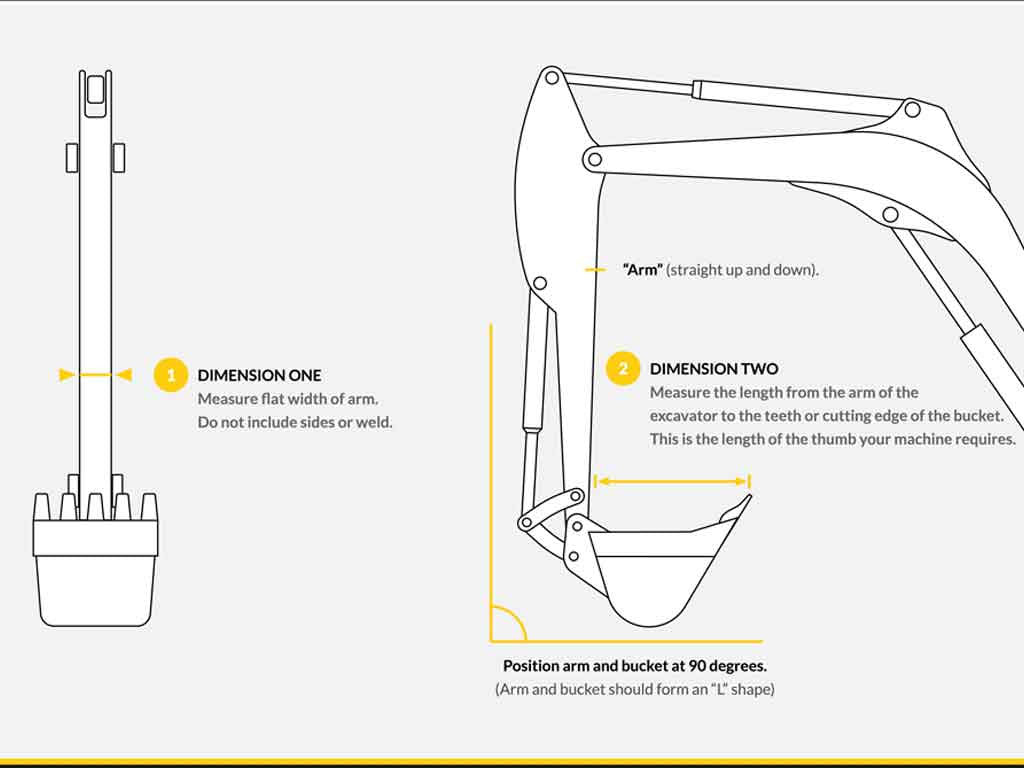

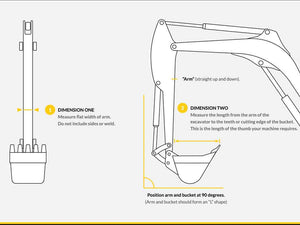

                                    MEASUREMENTS

                                    Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

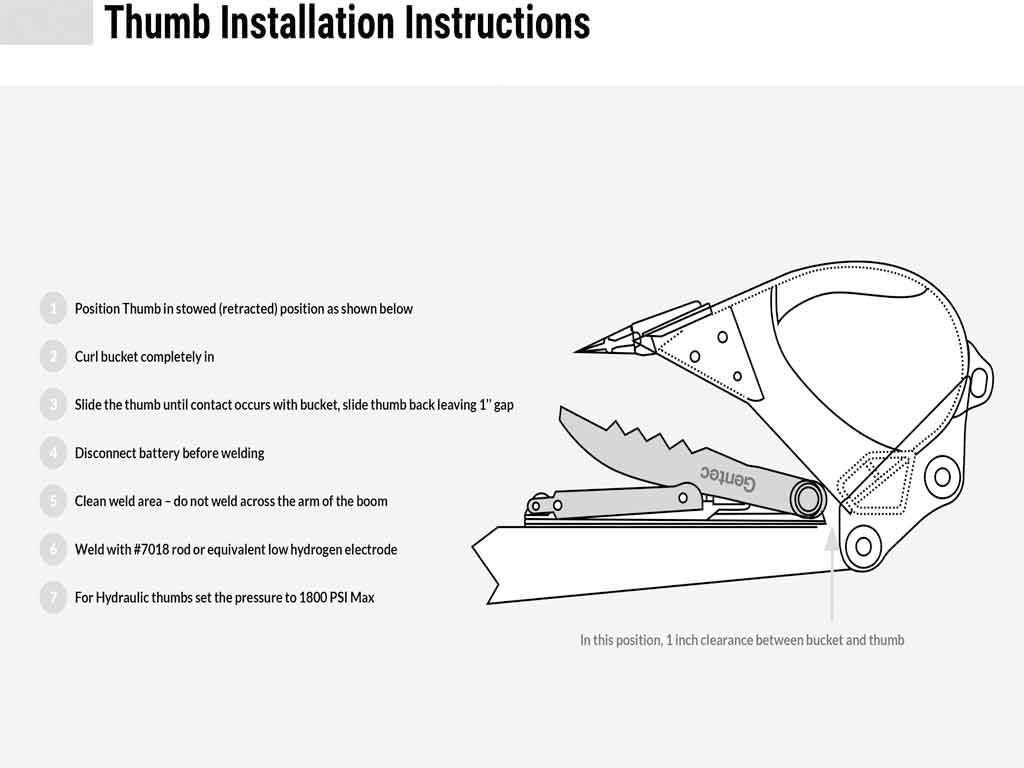

                                    INSTALLATION

                                    Please follow these instructions when installing your thumb.
