• LOWE® grapples bring new elements of productivity and durability to the grapple attachment marketplace. Yet the cost of a LOWE® grapple is several hundred to over a thousand dollars less than anything comparable. Just look at all the features. There is no better value:

  • Grab a load sideways, or use the clamp’s special design to grab by the end
  • Premium hydraulic cylinders, hoses, and fittings
  • More useful load than anything comparable
  • Extensive protection of cylinders and hoses
  • Fully enclosed back plate
  • Fully enclosed clamps
  • Side mounted hydraulic auxiliary connections
  • Eight tine grapple bucket
  • Four point reinforcement
  • Serial number identification and detailed operator’s manual
  • Industry leading safety labeling

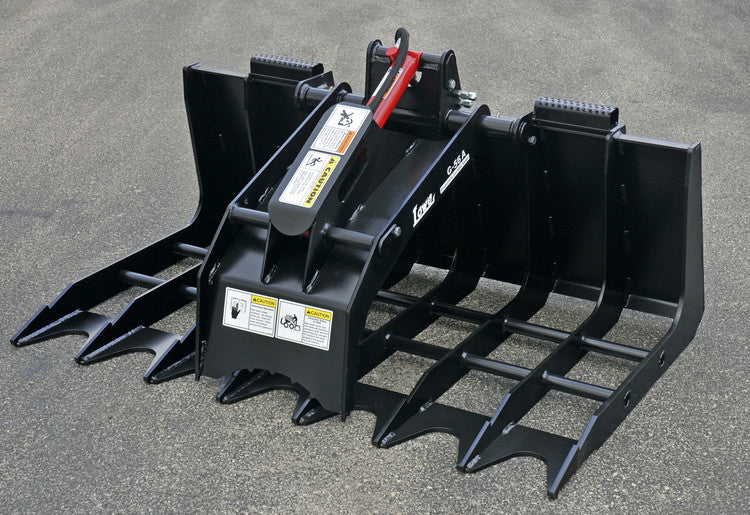

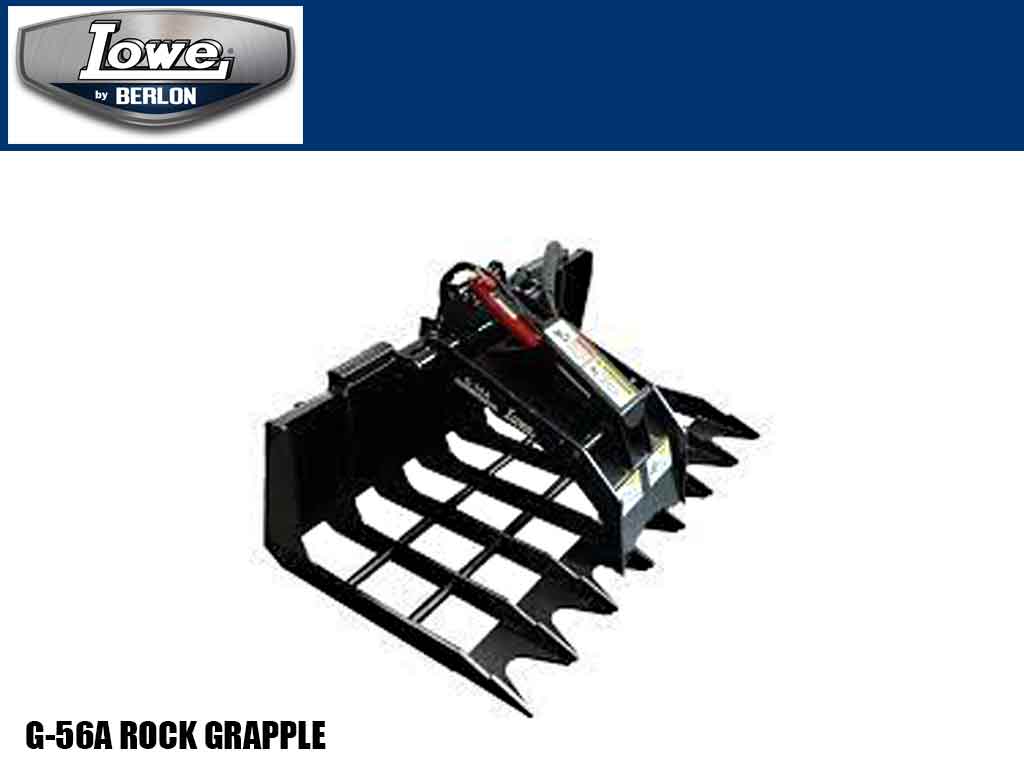

  The LOWE® G-56A does the same kinds of jobs as the larger G-72A. It has all the features but is designed for smaller machinery. The G-56A saves considerable weight and cost by using only one hydraulic clamp. The compactness and maneuverability of the G-56A allow it to be operated where larger equipment cannot be used.

   

  Grapple Buckets from Lowe Manufacturing Co Inc on Vimeo.

Weight – 483 lbs. (219 Kg)
Width – 56 inches (1,422 mm)
Depth – 41 inches (1,041 mm)
Max height (closed) – 30 inches (762 mm)
Max height (open) – 41.75 inches (1,060 mm)
Max opening gap – 40 inches (1,016 mm)

• SPECIFICATIONS:

  • Weight – 483 lbs. (219 Kg)
  • Width – 56 inches (1,422 mm)
  • Depth – 41 inches (1,041 mm)
  • Max height (closed) – 30 inches (762 mm)
  • Max height (open) – 41.75 inches (1,060 mm)
  • Max opening gap – 40 inches (1,016 mm)

•

  This grapple was made for small and medium frame machines. Low cut out sides, cylinder guards like I have never seen and a straight tine that works great when cleaning up the pile. The price is very attractive for what you get.

  QUALITY:

  PERFORMANCE:
