MS-CL150

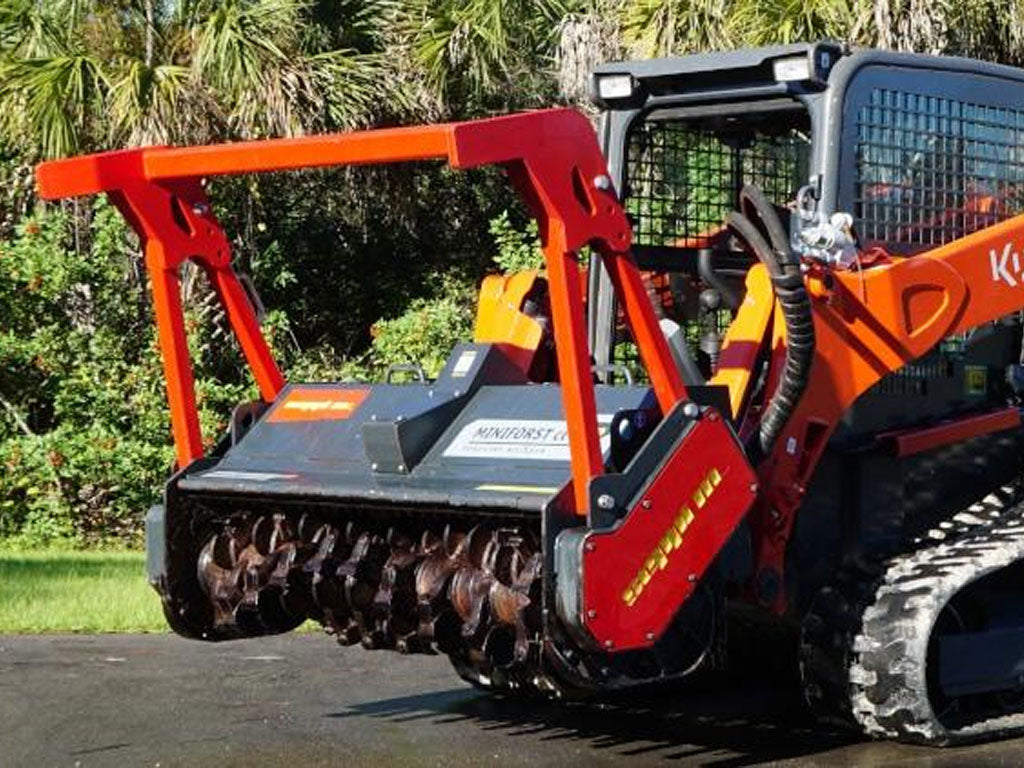

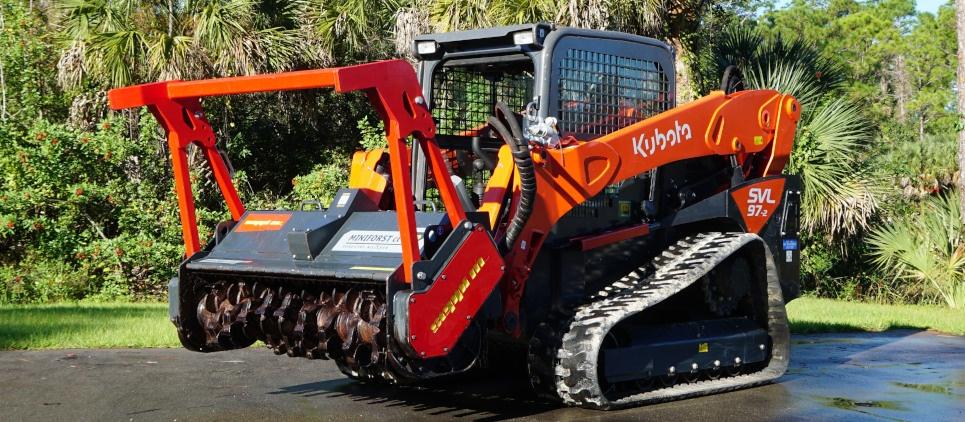

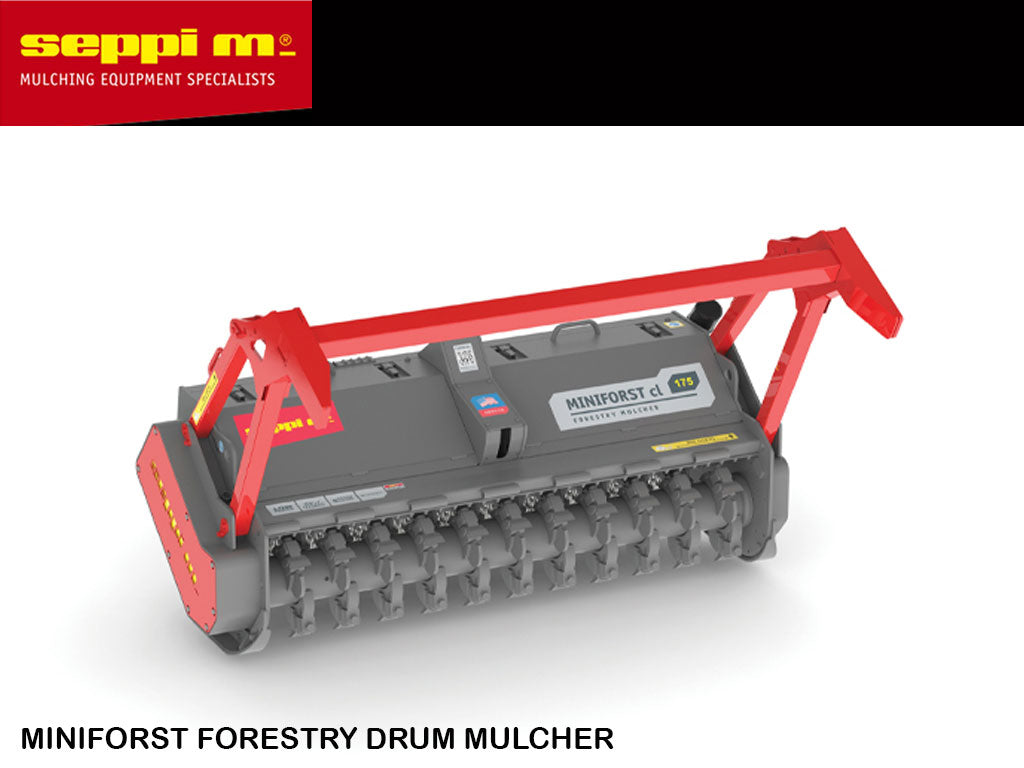

The SEPPI forestry mulcher for skid steer loaders for ROW and utility work taking the best qualities from the successful Miniforst and Midiforst skid steer mulchers, the new SEPPI MINIFORST cl sets a new standard. With a low, compact design, CL designates “compact loader.” The SEPPI MINIFORST cl mulcher is equipped with a standard SAE interface, and is suitable for any skid steer with available hydraulic flow between 50 and 150 l/min [13-40 gpm].
SEPPI M. releases Miniforst CL with revolutionary CUT CONTROL rotor.
The MINIFORST cl mulcher is the most advanced hydraulic machine in the industry for compact loaders! It is adaptable to most any skid steer, compact track loader or wheel loader and it can be customized to the kind of work you do; it is reliable and durable and provides operator safety.
ADAPTABILITY: the SAE interface makes mounting the MINIFORST cl on your loader simple. And after mounting, it is simple to tune (we’ll show you how) to whatever loader you have. The MINIFORST cl mulcher can operate efficiently on any loader with as little as 50 l/min (13 GPM) and up to 150 l/min (40 GPM). Obviously, high flow is best but even the owner of a low flow loader will be happy with the performance of the MINIFORST cl because regardless of GPM, the variable displacement M-BOOST™ motor, which offers 40% more torque than standard motors, is easily adjusted to produce the RPM necessary for efficient mulching. The SEPPI MINIFORST cl mulcher can mulch wood and brush to 20 cm (8”) diameter, at working speeds up to 5 km/h (3 MPH). Patented rotor designs allow an unprecedented recovery rate of speed of the rotor, so you spend more time cutting and less time waiting. The MINIFORST cl will get the most from your loader!
CUSTOMIZE: if your work is primarily mulching wood, use our proven, sharpenable MINI-BLADE hammers with our revolutionary new CUT CONTROL rotor with built in depth gauge. You won’t believe the speed with which you can produce a fine mulch! If your work is primarily land maintenance along roadways, fence lines, etc., choose our best-in-class tungsten carbide MINI-DUO hammers for durability. The patented CUT CONTROL rotor works in concert with five rows of tempered counter cutters providing perfect mulching results. Whether you are working with CUT CONTROLS or CARBIDE HAMMERS, our rotors maintain RPM for the highest productivity rate AND a great mulch!
DURABILITY: A strong frame, made of S-420 high tensile steel, heavy duty belt cover, well protected hydraulic cylinder and protection chains all assure a long working life.
MINIFORST cl mulcher is suitable for most skid steer loader and compact track loaders from CAT, CASE, NEW HOLLAND, DEERE, BOBCAT, ASV, JCB, VOLVO
Available working width: 150, 175, 200 [59", 69", 79"].
APPLICATIONS
MINIFORST cl - STANDARD VERSION
OPTIONS
MINIFORST | CL150 | CL175 | CL200 |
WORKING WIDTH | 59" | 69" | 79" |
OVERALL WIDTH | 69" | 79" | 89" |
DEPTH | 39" | 39" | 39" |
HEIGHT | 86" | 86" | 86" |
WEIGHT | 2326 LBS | 2513 LBS | 2789 LBS |
FIXED HAMMERS | 30 | 33 | 36 |
CUT DIAMETER | 8" | 8" | 8" |
HYDRAULIC RANGE | 13-40 GPM | 13-40 GPM | 13-40 GPM |
PRESSURE RANGE | 2175-5075 PSI | 2175-5075 PSI | 2175-5075 PSI |
* CASE DRAIN REQUIRED |
