ALPHA10.0A-MT100

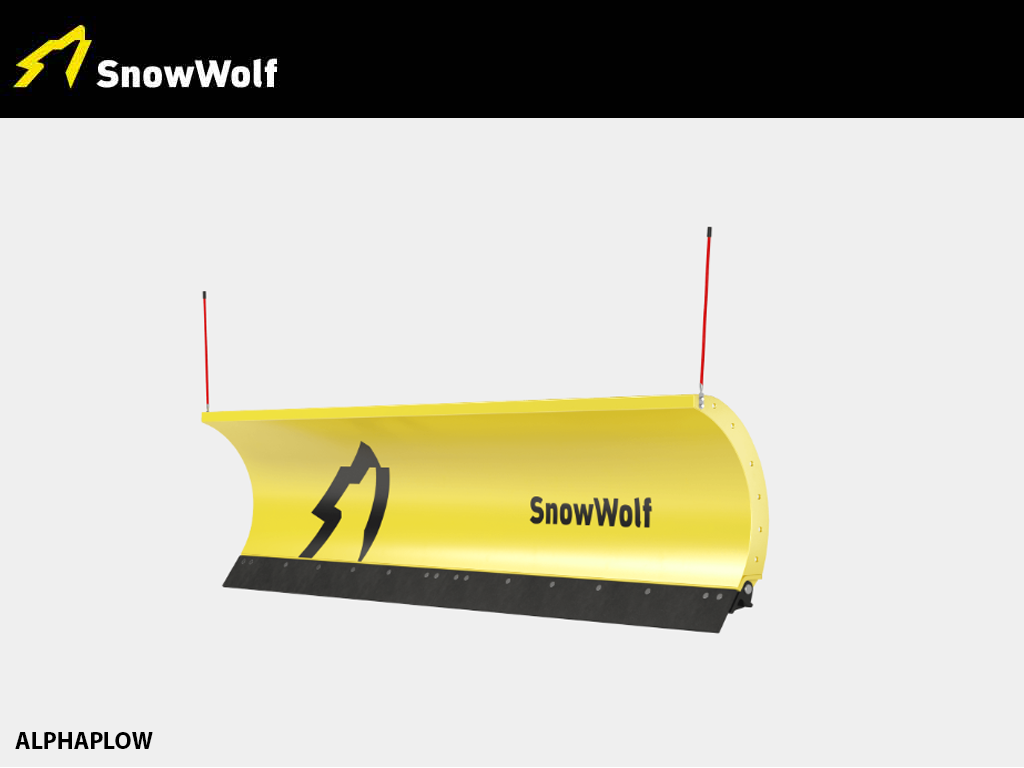

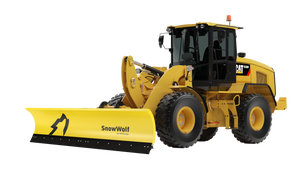

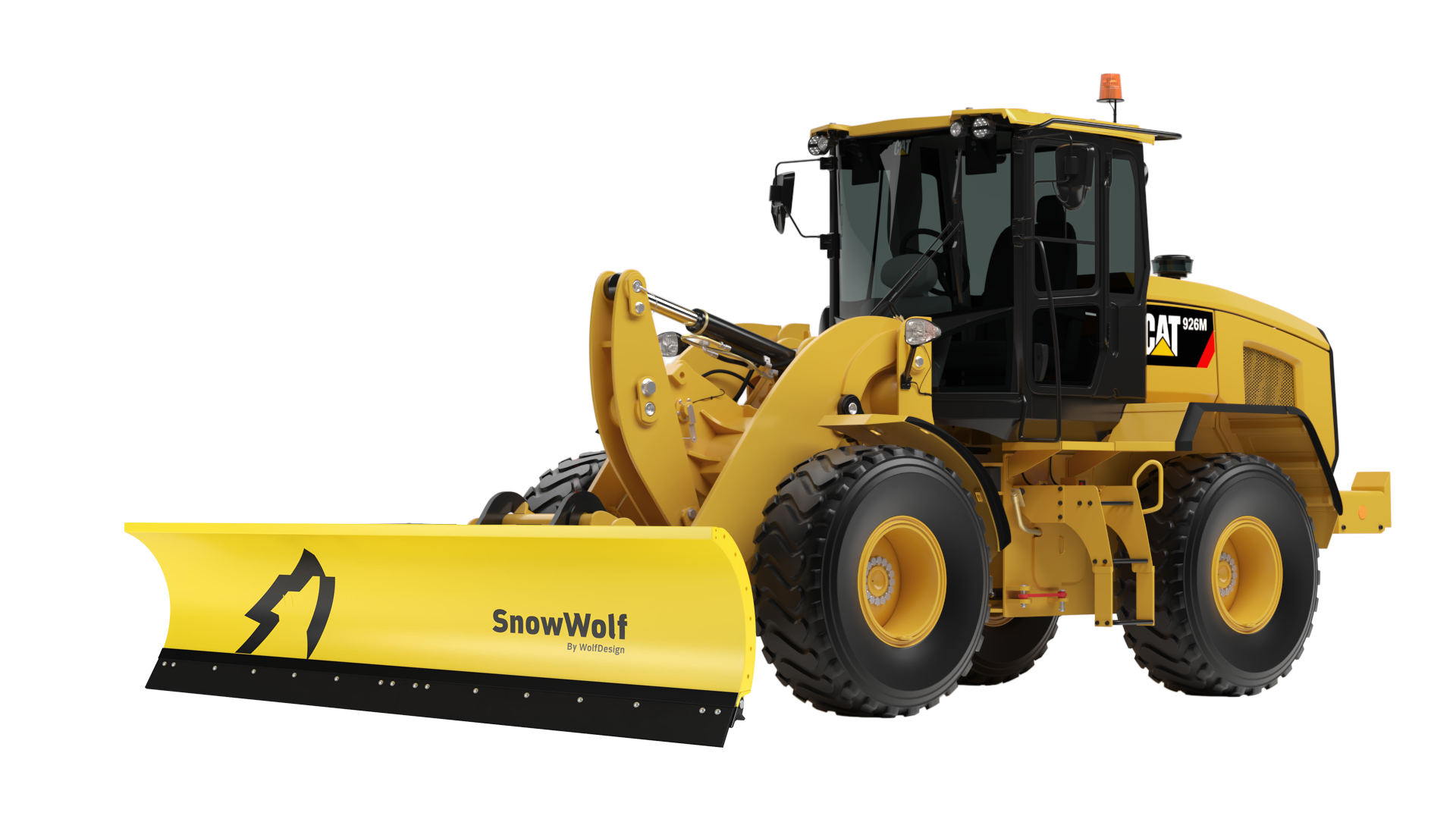

SNOW WOLF ALPHAPLOW FOR WHEEL LOADERS
$19,079.00 - $31,136.00
AlphaPlow
The big boss
For Wheel loaders
15,000 – 30,000 lb. Machinery

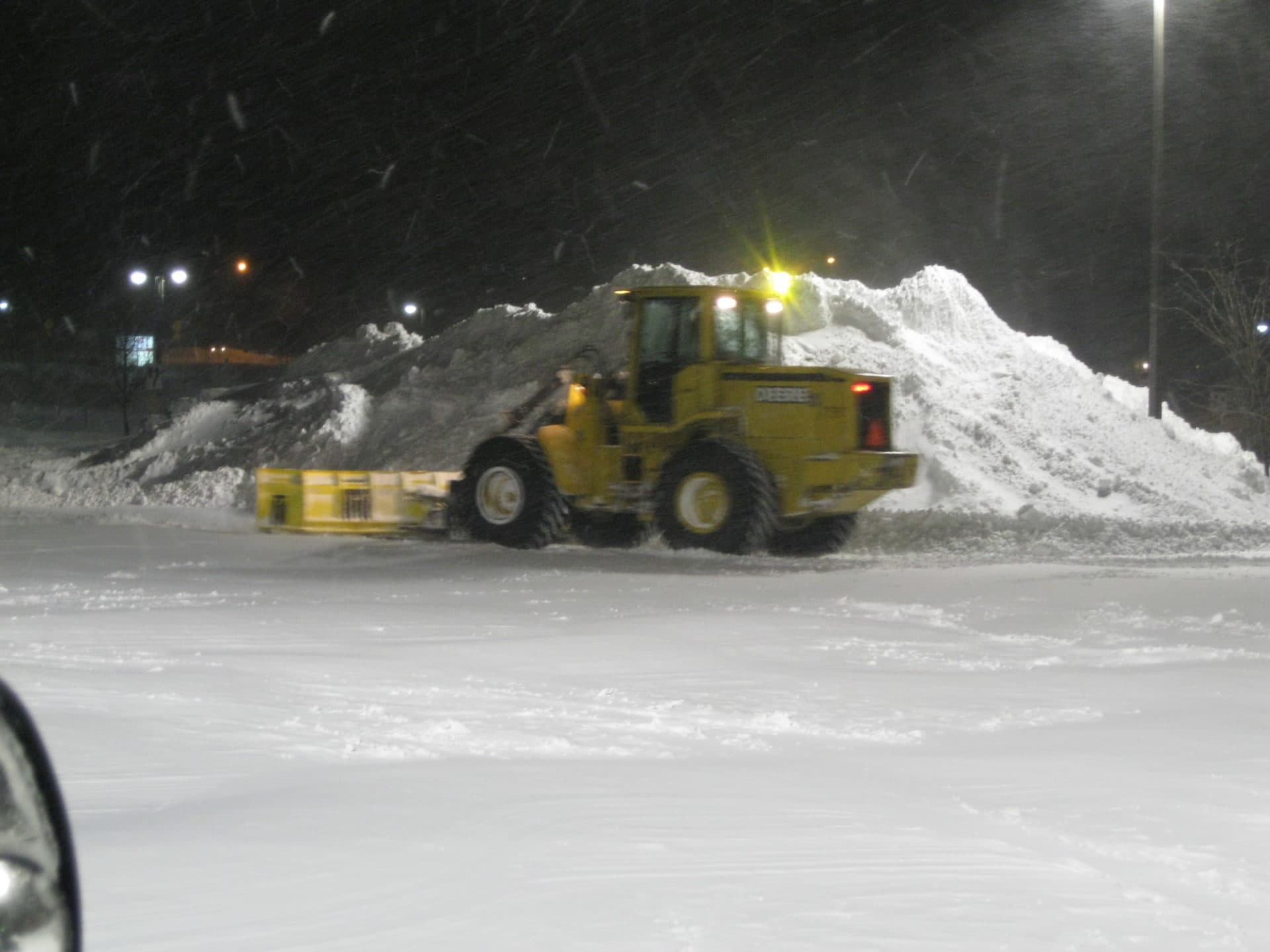

TAKE ON ANY SNOW EMERGENCY
Our Biggest, Meanest Plow Yet
When you’re doing heavy-duty snow removal all season long, the AlphaPlow has your back. Its massive construction is designed to take any abuse, and the dual-pivot a-frame gives it twice the strength.
Completely Control Snow
The Beefy dual-pivot A-frame, 35-Degree Angling and full side-to-side oscillation puts you in complete command of the snow.
Built For Big Jobs
The Dual-Pivot A-Frame fortifies this plow for even the toughest jobs.
Maximum Durability
The massive construction features continuous welding and weighs in at 185 lbs. per foot.

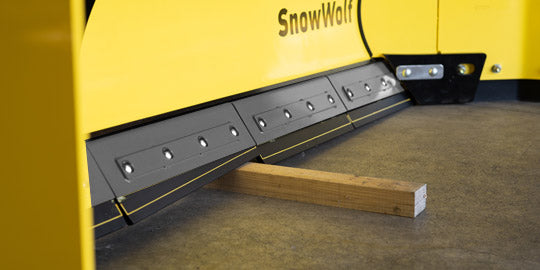

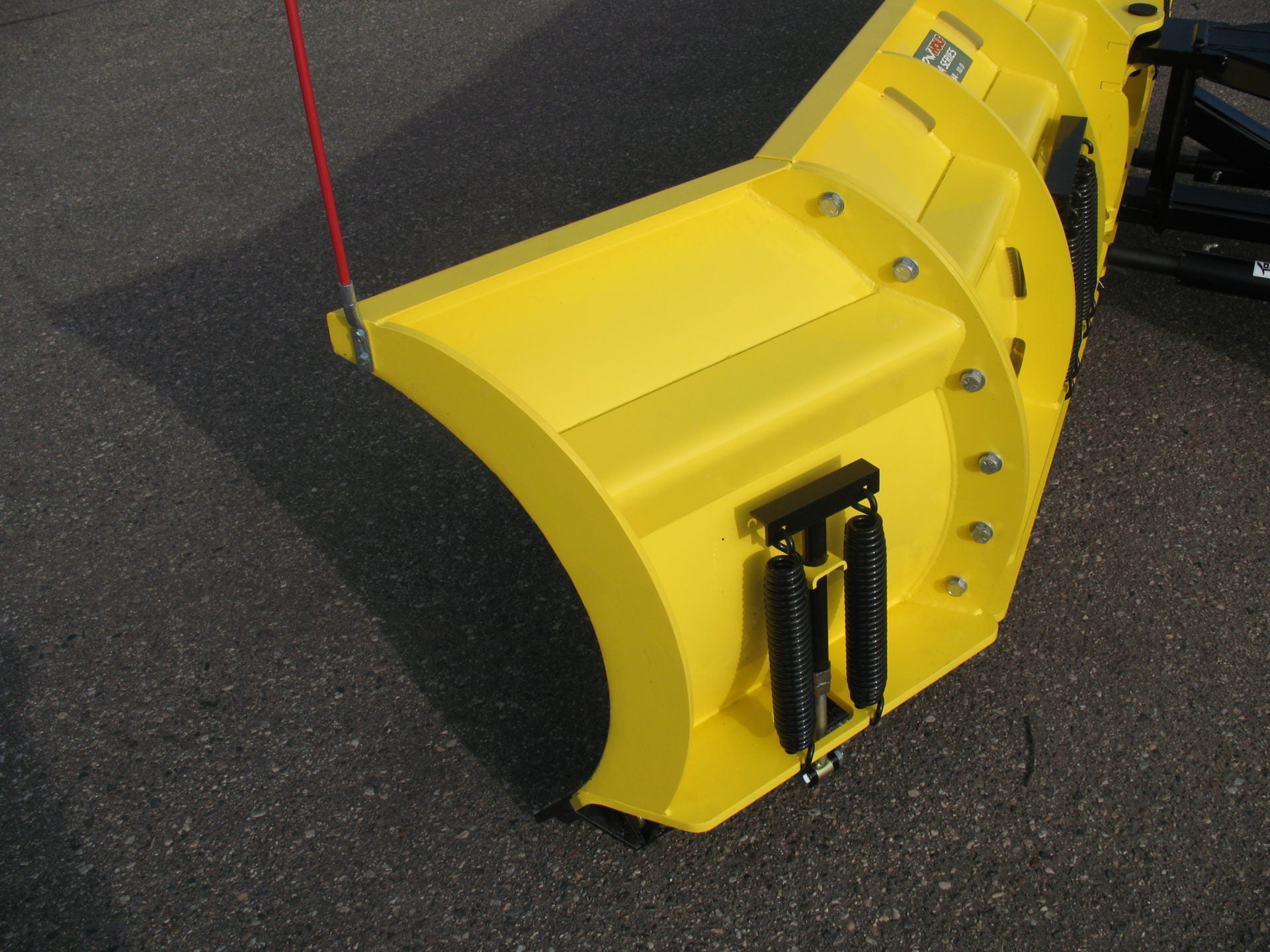

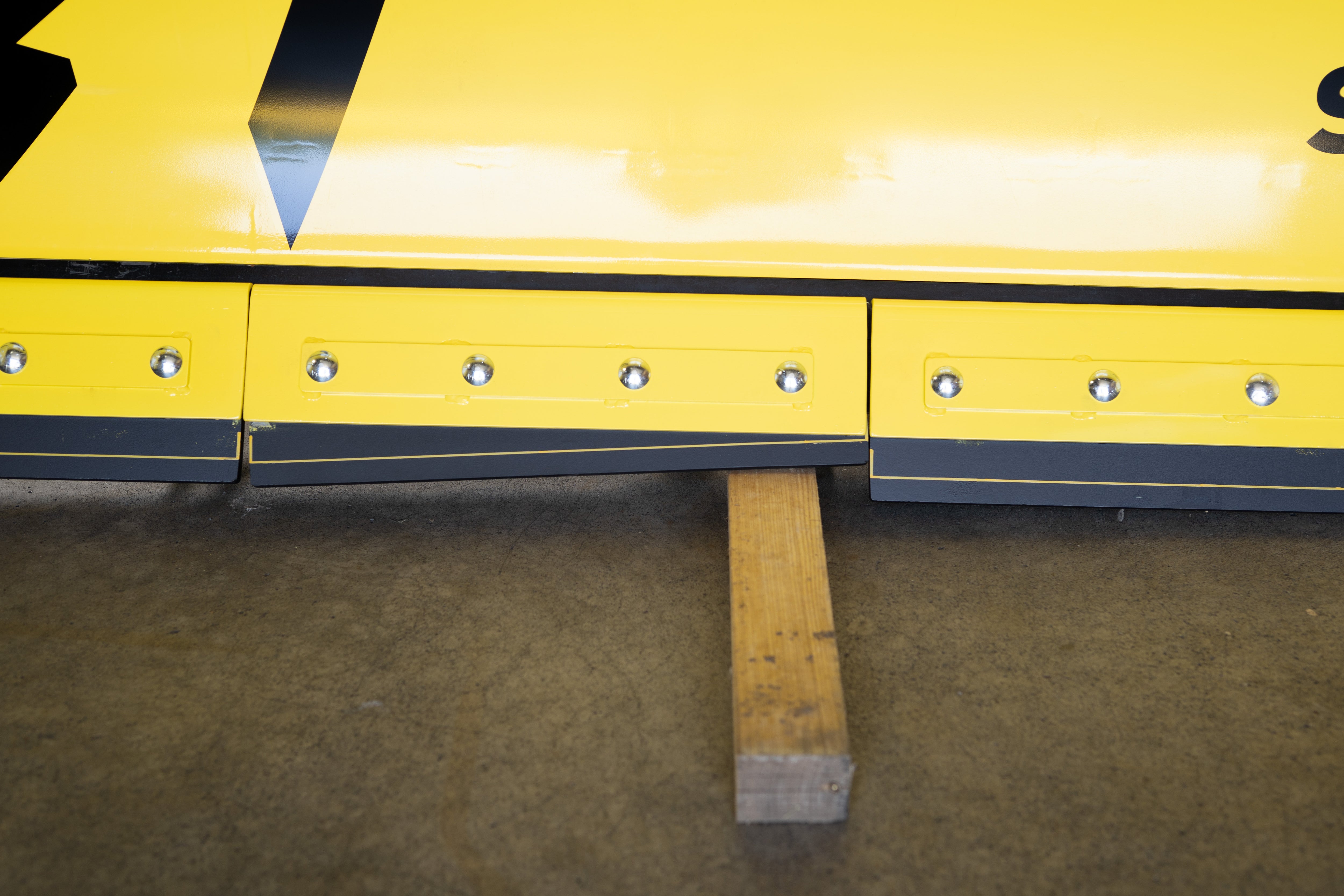

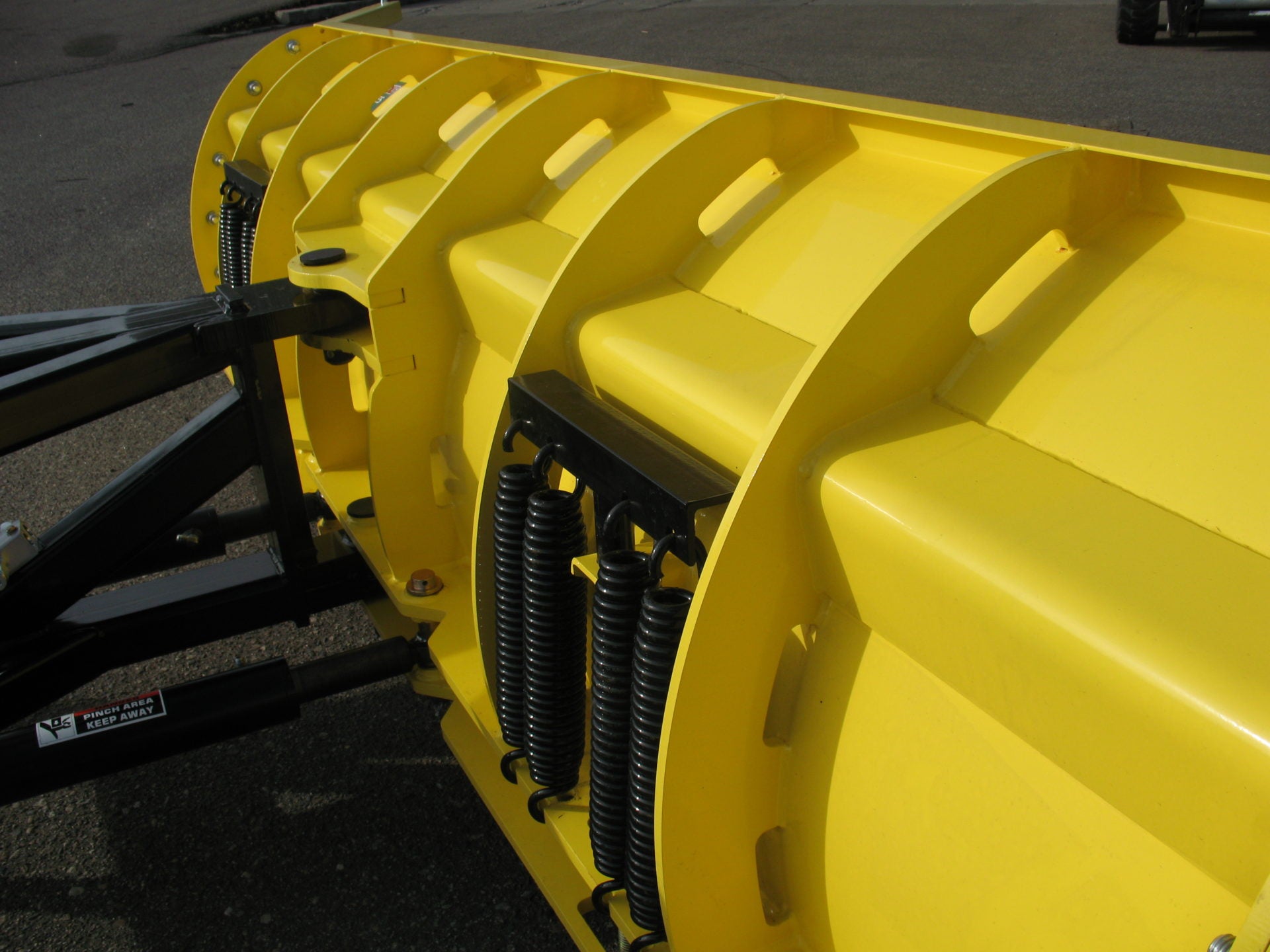

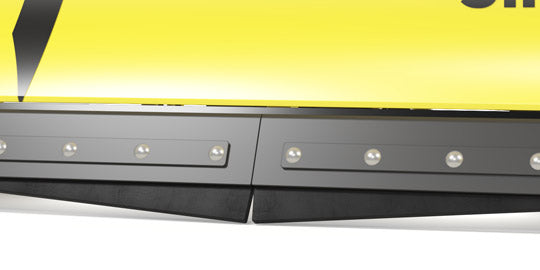

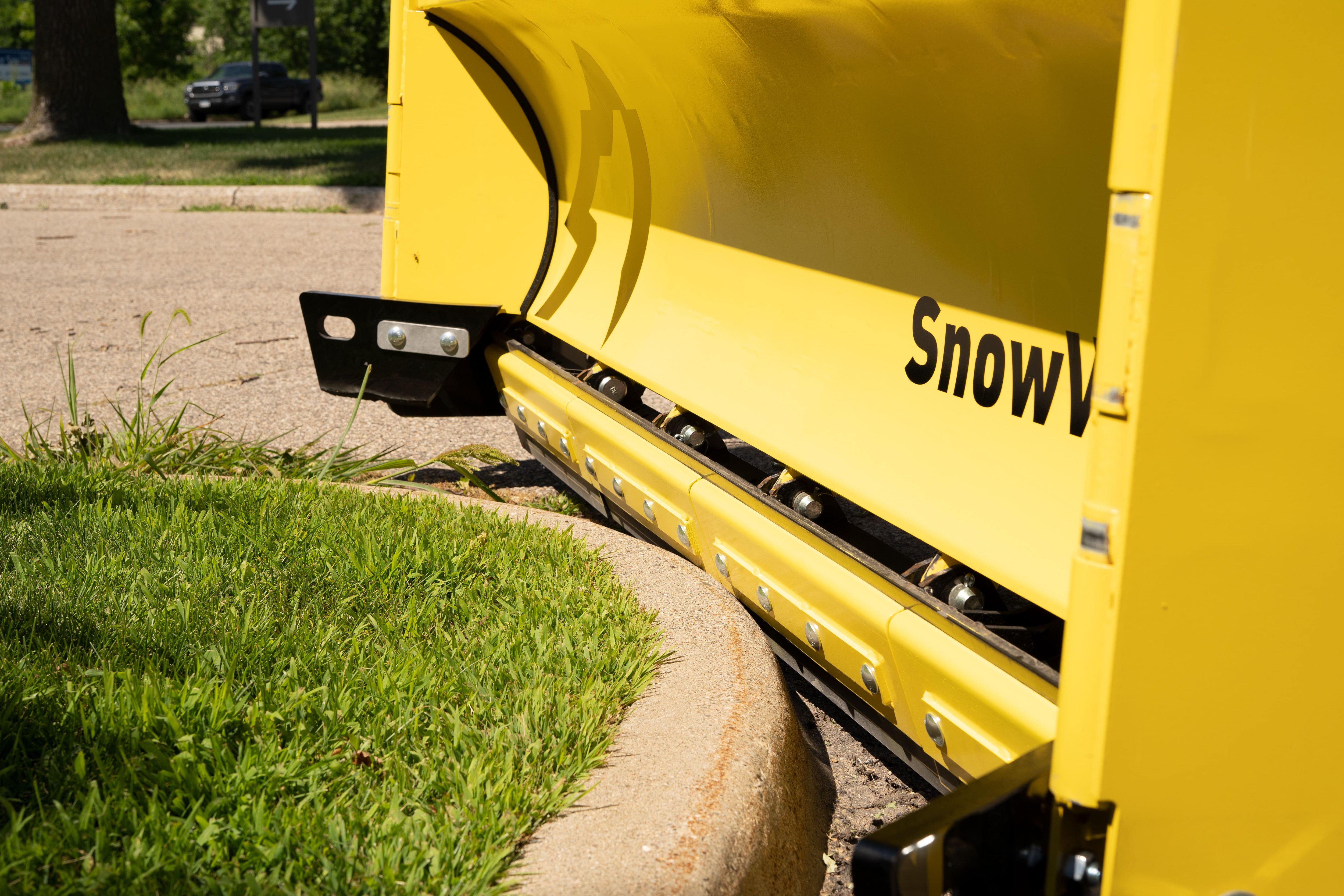

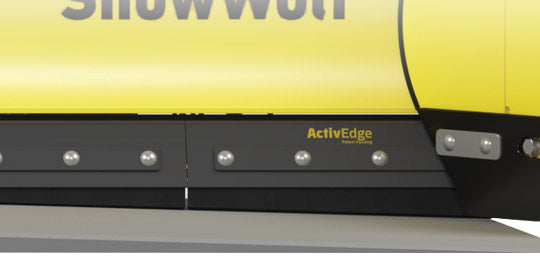

Sectional Trip Edge
When you strike an obstacle, only one section will trip rather than the full width of the moldboard. This reduces stress on the moldboard and improves responsiveness of the trip action.

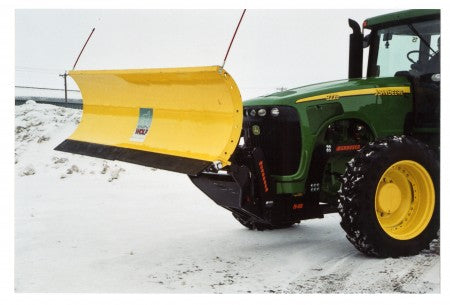

Floating loader mount
Allows the plow to float over contours while maintain scraping ability and traction.
*** CALL FOR OPTIONAL SPILL GUARD
| Model Number | Alpha-10.0 |
Alpha-12.0 |
|
| Blade Width | 10' | 12' |
|
| Blade Width at Full Angle | 98.3" | 118" |
|
| Blade Height | 38" |
38" |
|
| Weight (lbs.) (actual-not ship weight) | 1,920 |
2,217 |
|
| Moldboard Gauge | 10 Ga. | 10 Ga. | |
| Trip Springs | 8 Ext | 8 Ext | |
| Wear Shoes | N/A |
N/A |
|
| Cutting Edge | 3/4" x 8" top punch |
||
| Angle Rams | 3" x 13" Nitro Steel double acting | ||
| Vertical Ribs | 8 | 10 |
|
| Moldboard Radius | 19" | 19" | |
| Full Down Pressure | floating / full | floating / full |
|
| Spring assist down pressure | N/A | N/A | |
| Cross Over Relief Valve | std. |
std. |
|
| SoftTouch™ Cutting Edge | Opt. | Opt. | |
| High Carbon Curb Guards | N/A | N/A |
|
