CF120X350-18

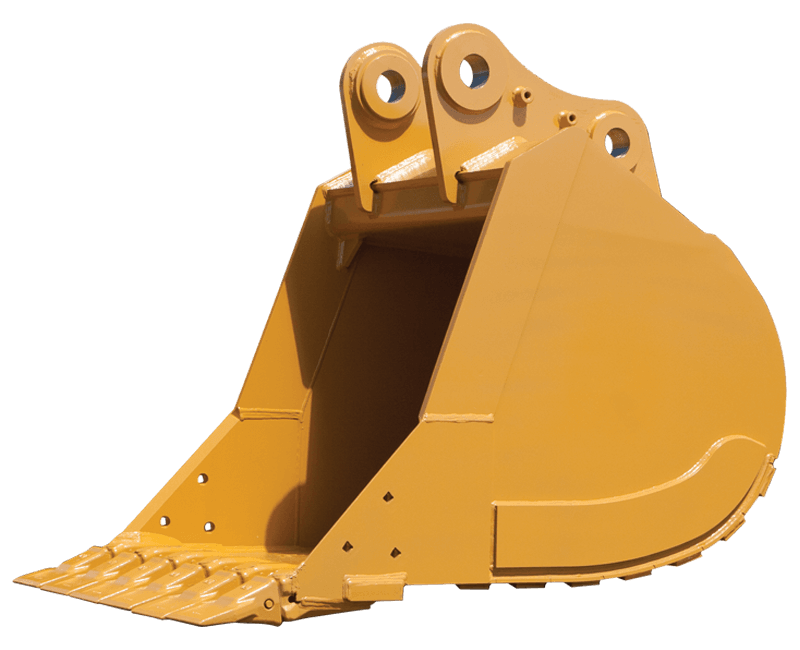

WAIN ROY severe-duty rock buckets for excavators 20,000-30,000 lbs.

Style
Mounting
Size

4/24

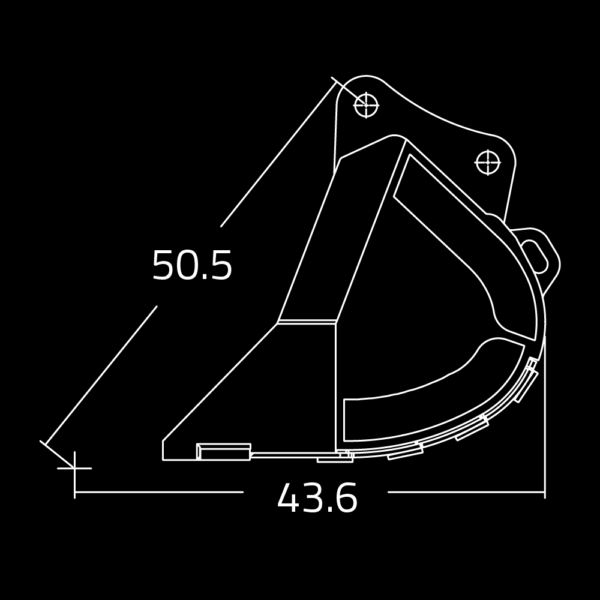

CF120X350

SEVERE DUTY PIN-ON EXCAVATOR BUCKET

  • Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.

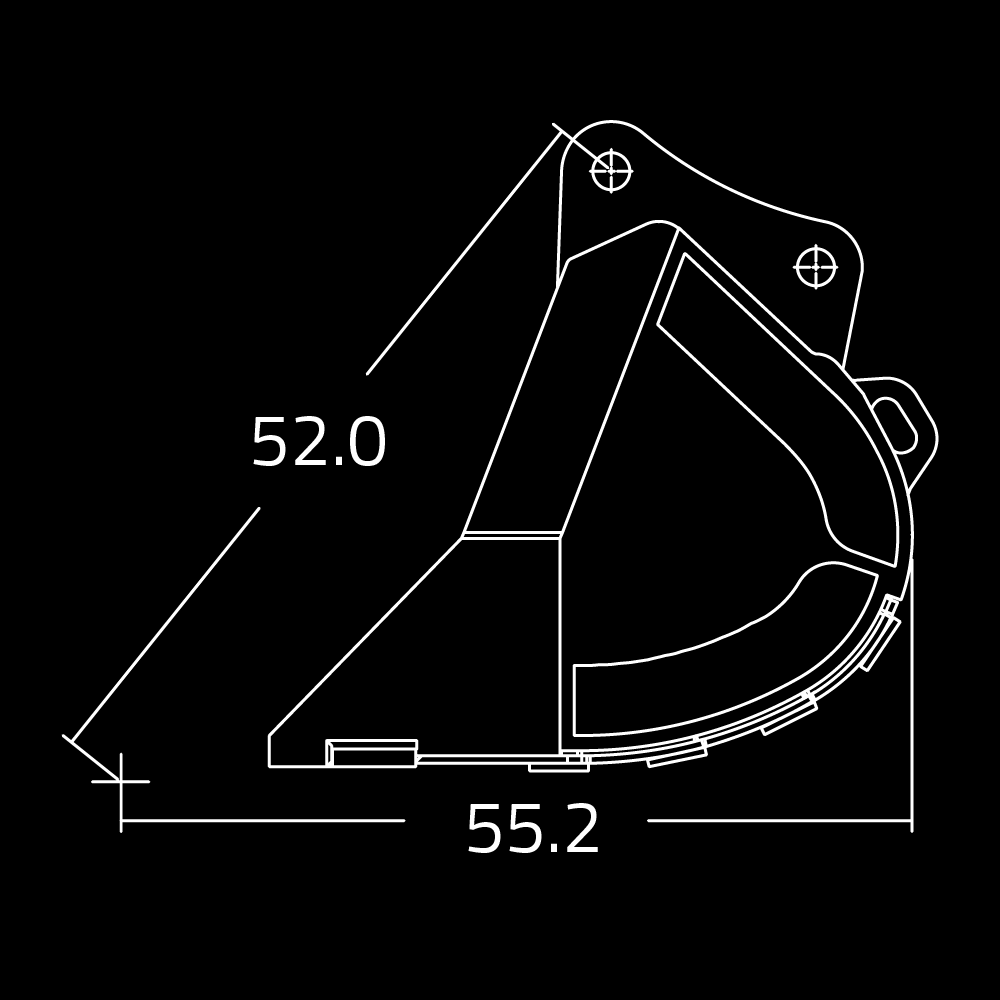

CF125X350

HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

  • Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.

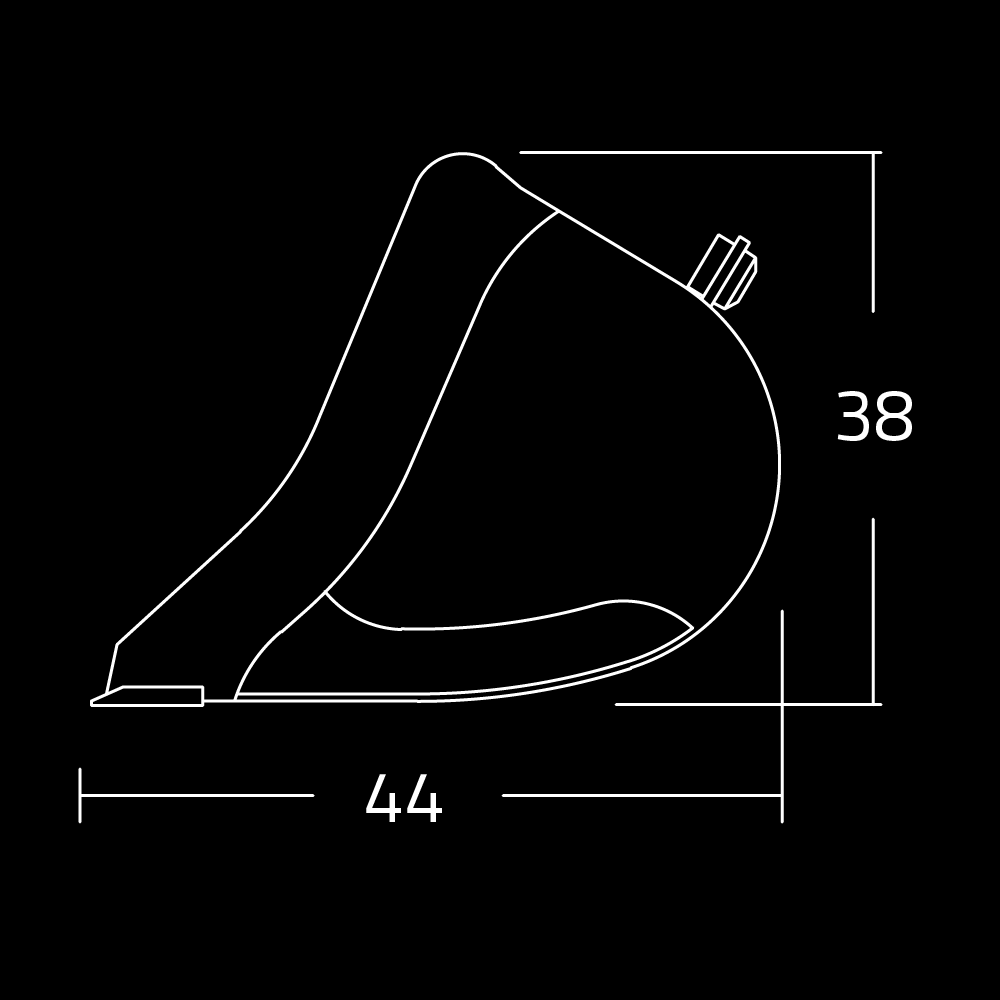

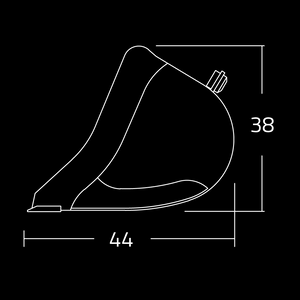

SD3

WAIN-ROY® QUICK CHANGE XLS AND ORIGINAL SEVERE DUTY EXCAVATOR BUCKET

  • Our Severe-Duty Buckets are specially designed for durability in severe abrasion applications and high impact conditions. SD buckets incorporate high strength materials and heavier material thickness for extended bucket life, structural strength and durability. SD buckets are also available in high capacity versions.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
18" 0.29 1179 3
20" 0.33 1205 3
24" 0.42 1295 3
30" 0.57 1411 4
36" 0.73 1481 5
42" 0.88 1727 5
48" 1.04 1959 6
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.33 1509
3
20" 0.38 1554 3
24" 0.49 1645
3
30" 0.66 1761
4
36" 0.83 1790
5
42" 1.00 1830
5
48" 1.19 2309
6
WAIN ROY QC SEVERE DUTY

WAIN ROY ORIGINAL

WAIN ROY XLS

CAPACITY LBS NO. TEETH
18" 0.33 715 3
24" 0.49 834 4
30" 0.66 926 4
36" 0.83 1040 5
42" 1.00 1156 6
48" 1.18 1249 6





MAKE MODELS: 12 TON 20,000 - 30,000 LBS
CASE
  • 9010B, CX130B, CX130D, CX135 MSR, CX145
CAT
  • 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C
DOOSAN
  • 1202, DX140, S140LCV
HITACHI
  • ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3
HYUNDIA
  • HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A
JCB
  • HYDRADIG 110W, JS130LC, JS131, JS145, JZ141
JOHN DEERE
  • 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E
KOBELCO
  • 115SRDZ, 135SRLCOSB, 140SR
KOMATSU
  • PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6
LIEBHERR
  • A309, A311, A312
LINK BELT
  • 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF
MECALAC
  • 11MWR
NEW HOLLAND
  • E135B, EH130LC
SANY
  • SY135C-Tier 2
TEREX
  • TC125 (hr42), TC140LC-1, TW110, TW130
VERMEER
  • CX224, CX229, CX234
VOLVO
  • EC140B-LC, EC140C, EC140E, ECR145C, ECR145E
WACKER NEUSON
  • GE1202, ME12002
