HDP4-24

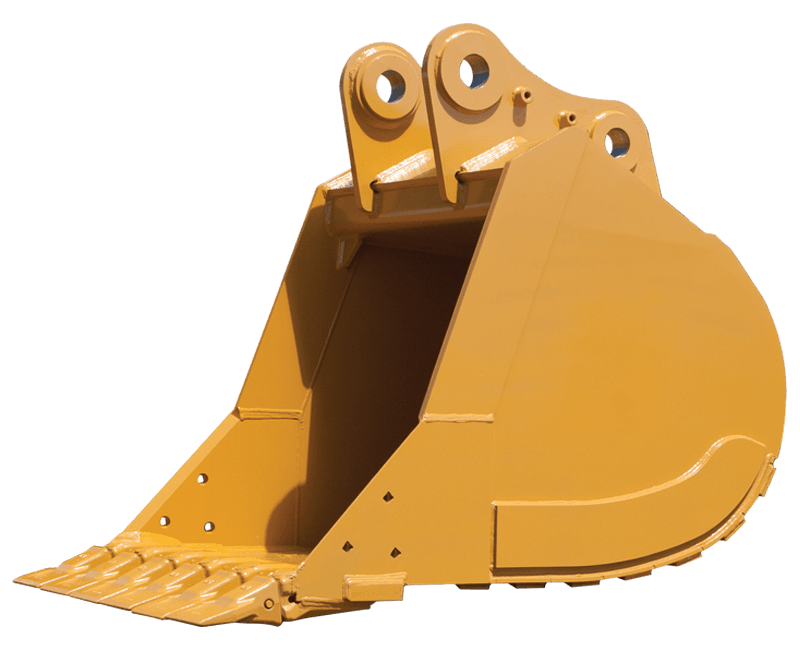

WAIN ROY dirt buckets for excavators 41,000 - 52,000 lbs.
$6,715.00 - $11,811.00
4/24

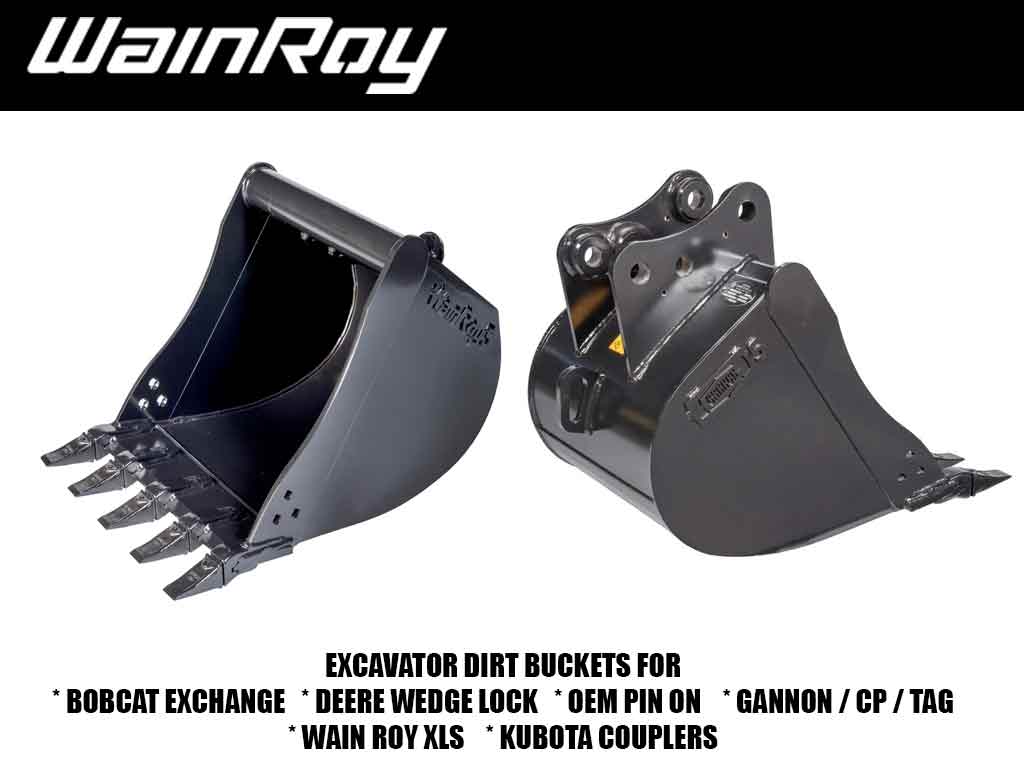

WAIN ROY DIRT BUCKETS
20MT HDP4/HD4
Heavy-Duty Buckets are designed to handle clay, gravel, compacted soils and loose rock applications. Each HD bucket is designed to meet or exceed OEM specifications while improving machine efficiency and productivity. They are designed to improve bucket life when used in a more abrasive material application. HD buckets contain additional material to increase bucket durability while maintaining productivity.
CF200X150 / CF205X150
Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Heavier design than most OEM standard buckets. For use in soils containing low percentages of rock, loam and sand.
CF200X250 / CF205X250
For use in more demanding excavating conditions in clay, gravel, compacted soils and loose rock.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
| GENERAL PURPOSE HDP4 | |||
|
OEM PIN ON
|
CAPACITY CU. YARD |
LBS | NO. TEETH |
| 30" | 0.79 | 1325 | 4 |
| 36" | 1.00 | 1435 |
5 |
| 42" | 1.21 | 1630 |
5 |
| 48" | 1.41 | 1805 |
6 |
| GENERAL PURPOSE HD4 | |||
|
WAIN ROY XLS WAIN ROY QC ORIGINAL |
CAPACITY | LBS | NO. TEETH |
| 24" | 0.55 | 1139 | 3 |
| 30" | 0.75 | 1315 | 4 |
| 36" | 0.95 | 1435 | 5 |
| 42" | 1.16 | 1629 | 5 |
| 48" | 1.34 | 1805 | 6 |
|
STD. CAPACITY HD |
|||
|
OEM PIN ON |
CAPACITY | LBS | NO. TEETH |
| 24" | 0.54 |
1112 | 4 |
| 30" | 0.73 | 1227 | 4 |
| 36" | 0.92 | 1350 | 5 |
| 42" | 1.12 | 1490 | 5 |
| 48" | 1.31 | 1586 |
6 |
| 54" | 1.51 | 1720 | 6 |
| 60" | 1.70 | 1980 | 7 |
| HIGH CAPACITY HD | |||
| OEM PIN ON | CAPACITY | LBS | NO. TEETH |
| 24" | 0.60 | 1289 |
4 |
| 30" | 0.81 |
1391 |
4 |
| 36" | 1.02 |
1451 |
5 |
| 42" | 1.23 |
1596 |
5 |
| 48" | 1.45 |
1785 |
6 |
| 54" | 1.66 | 2045 | 6 |
| 60" | 1.88 | 2305 | 7 |
|
STD. CAPACITY EXTRA HD |
|||
|
OEM PIN ON |
CAPACITY | LBS | NO. TEETH |
| 24" | 0.54 |
1373 |
4 |
| 30" | 0.73 | 1481 |
4 |
| 36" | 0.92 | 1573 |
5 |
| 42" | 1.12 | 1699 |
5 |
| 48" | 1.31 | 1793 |
6 |
| 54" | 1.51 | 1903 | 6 |
| 60" | 1.70 | 2018 | 7 |
| HIGH CAPACITY EXTRA HD | |||
| OEM PIN ON | CAPACITY | LBS | NO. TEETH |
| 24" | 0.60 |
1425 |
4 |
| 30" | 0.81 |
1531 |
4 |
| 36" | 1.02 |
1651 |
5 |
| 42" | 1.23 |
1728 |
5 |
| 48" | 1.45 |
1853 |
6 |
| 54" | 1.66 | 1965 | 6 |
| 60" | 1.88 | 2075 | 7 |
| MAKE | MODELS: 20 TON 41,000 - 52,000 LBS |
| CASE |
|
| CAT |
|
| DOOSAN |
|
| HITACHI |
|
| HYUNDIA |
|
| JCB |
|
| JOHN DEERE |
|
| KOBELCO |
|
| KOMATSU |
|
| LIEBHERR |
|
| LINK BELT |
|
| LIUGONG |
|
| NEW HOLLAND |
|
| SANY |
|
| TEREX |
|
| VOLVO |
|
