CF300X150-24

WAIN ROY dirt buckets for excavators 65,000 - 95,000 lbs.

$8,053.00 - $16,302.00

Business Financing Available

Style
Size

4/24

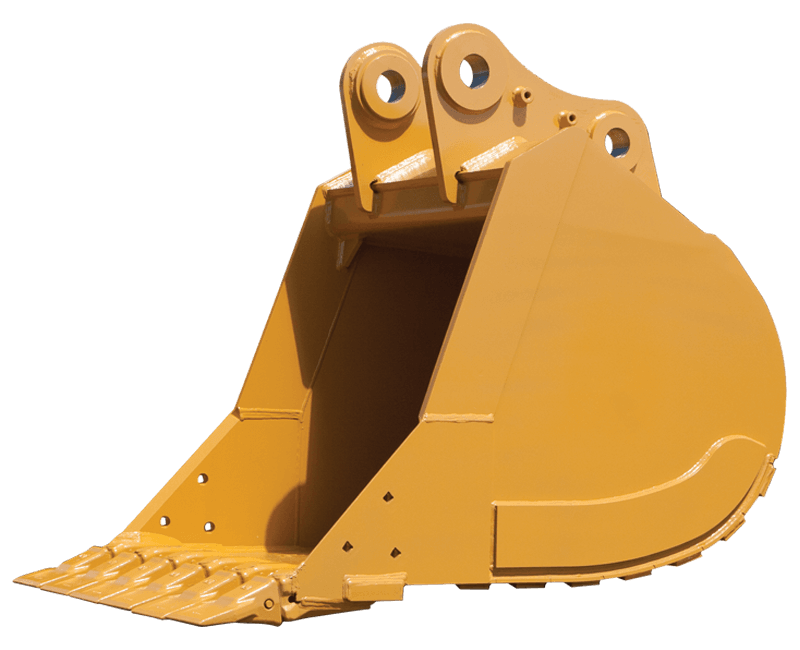

WAIN ROY DIRT BUCKETS

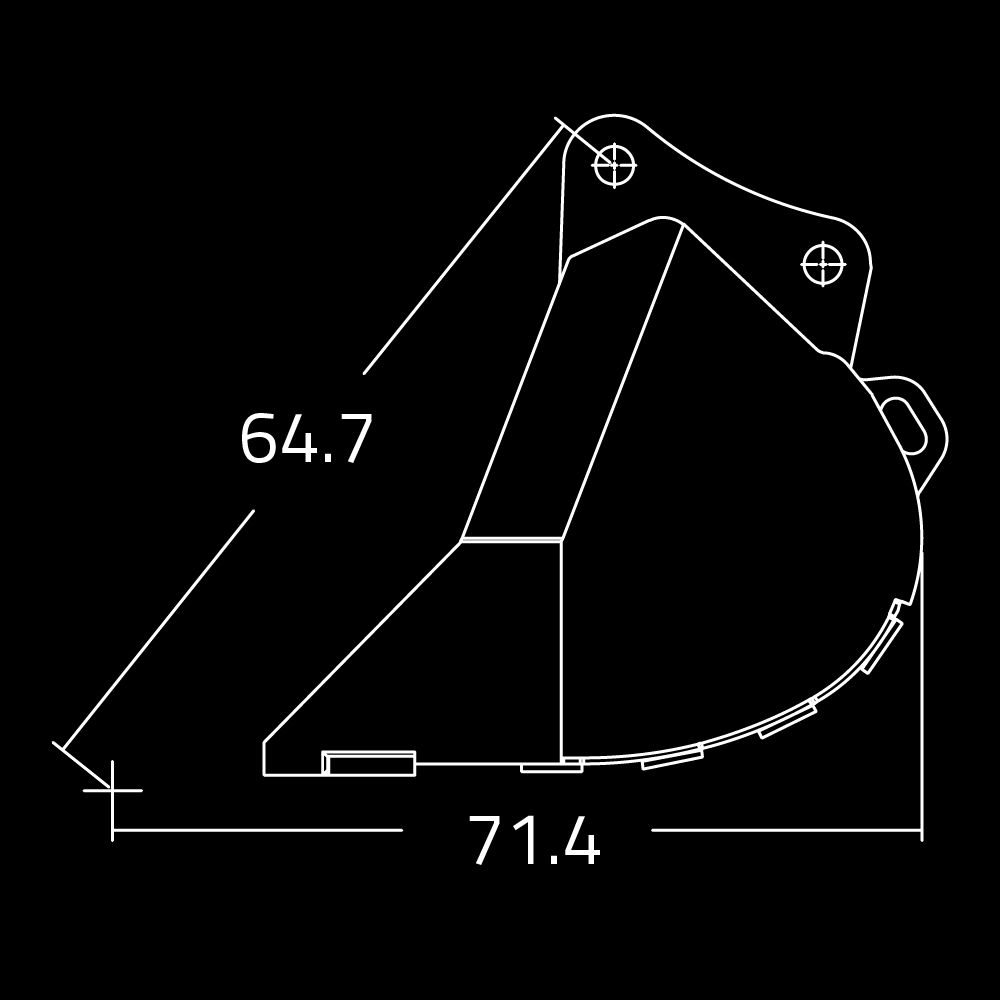

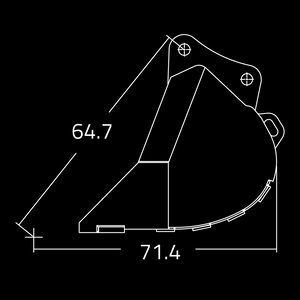

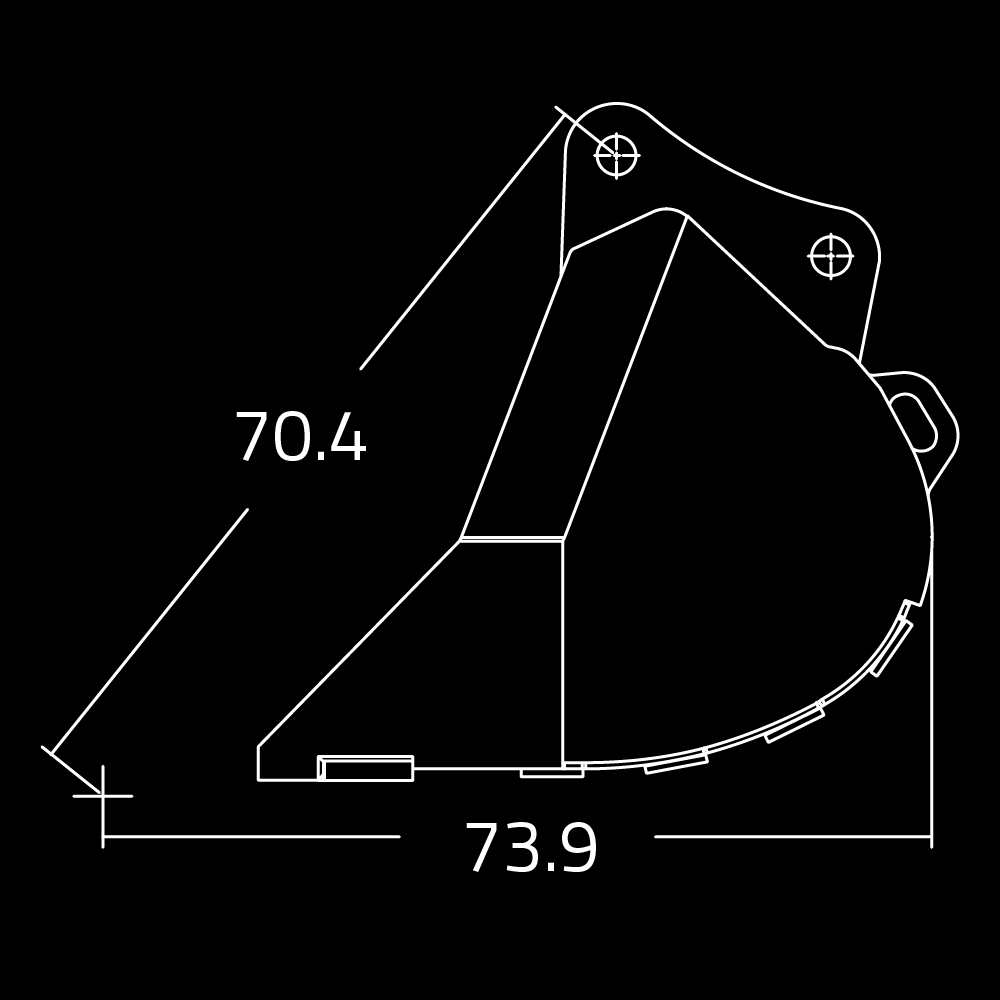

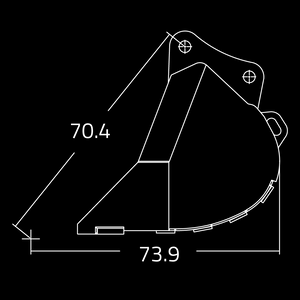

CF300X150 / CF305X150

STANDARD / HIGH CAPACITY HEAVY DUTY PIN-ON EXCAVATOR BUCKET

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Heavier design than most OEM standard buckets. For use in soils containing low percentages of rock, loam and sand.

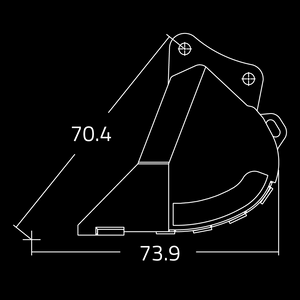

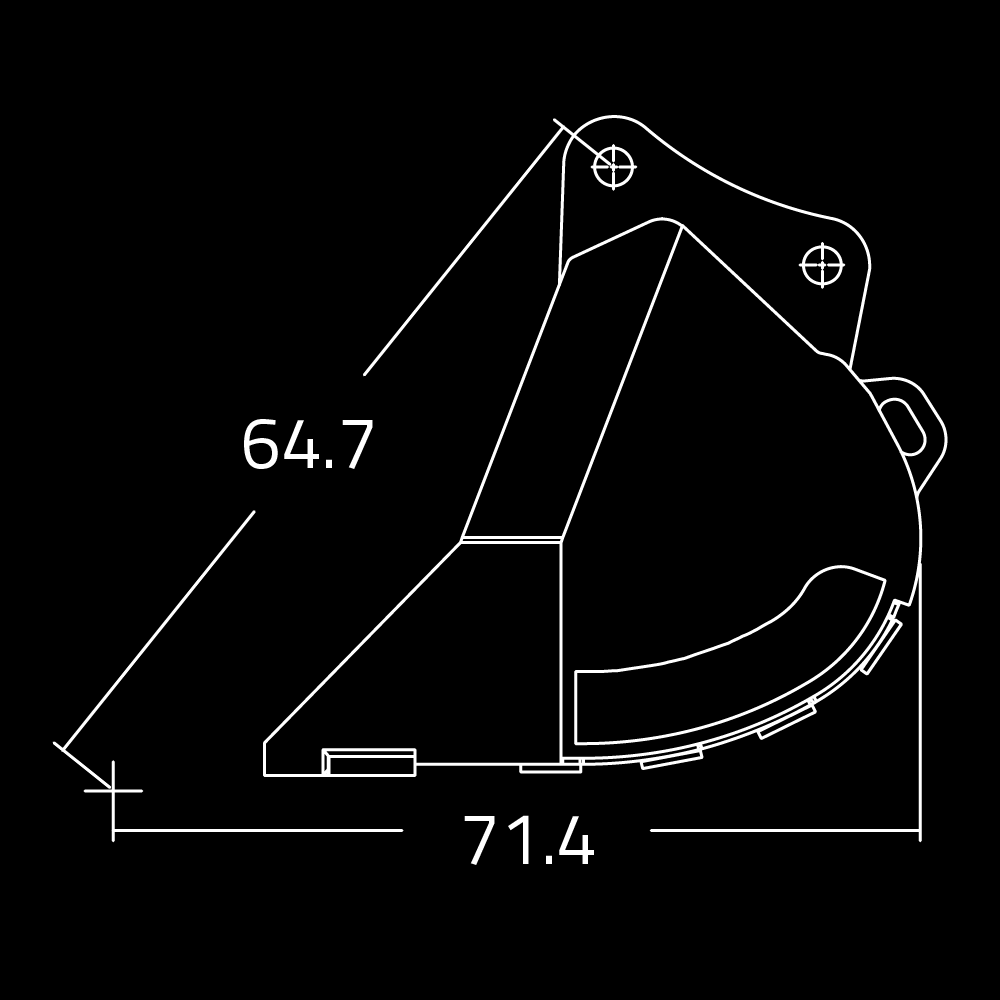

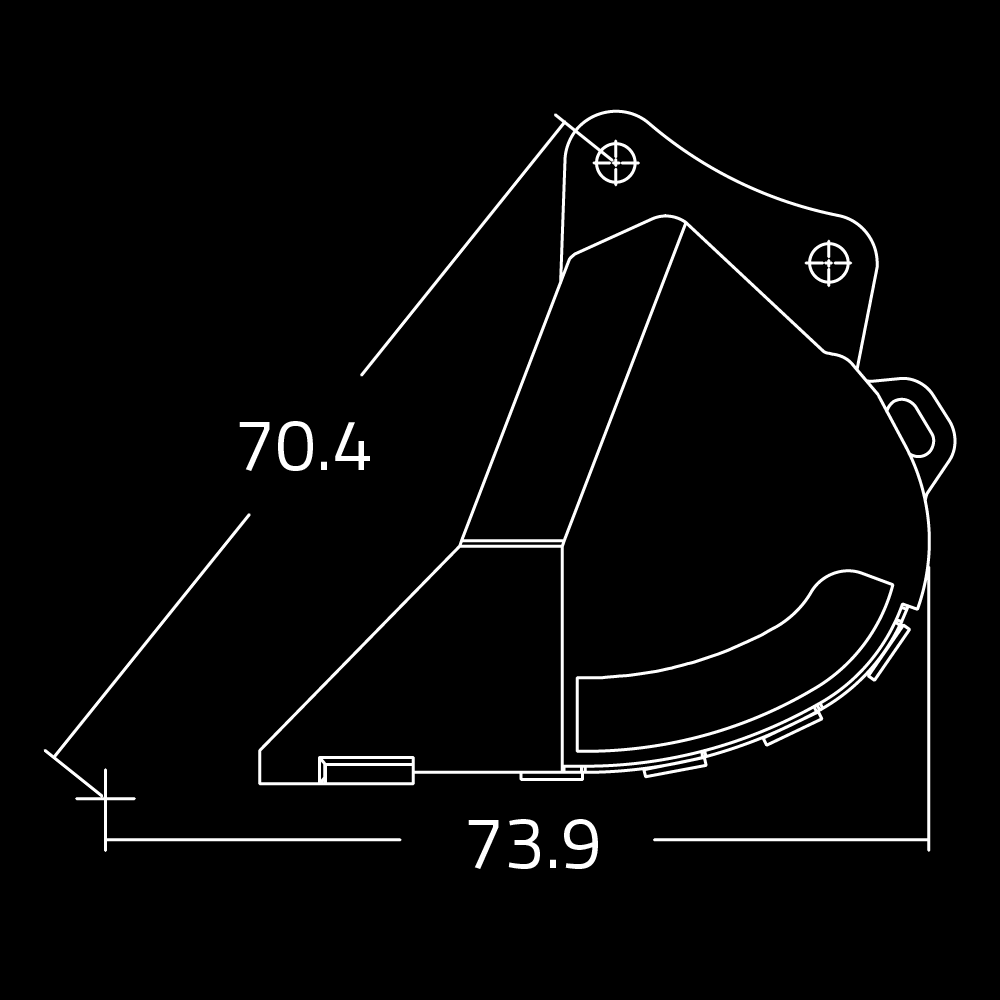

CF300X250 / CF305X250

STANDARD / HIGH CAPACITY EXTRA HEAVY DUTY PIN-ON EXCAVATOR BUCKET

For use in more demanding excavating conditions with high levels of clay, gravel, compacted soils and loose rock.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY HD



OEM PIN ON  		CAPACITY LBS NO. TEETH
24" 0.81
 1600
 3
30" 1.08 1770
 4
36" 1.36
 1872
 4
42" 1.64
 1998
 5
48" 1.93
 2115
 6
54" 2.23
 2215
 6
60" 2.52
 2338
 7
66" 2.81 2451 7
72" 3.10 2573 7
HIGH CAPACITY HD
OEM PIN ON  CAPACITY LBS NO. TEETH
24" 0.87 1900
 3
30" 1.18
 2420
 4
36" 1.49
 2550
 4
42" 1.82
 2710
 5
48" 2.15
 2815
 6
54" 2.49
 2982
 6
60" 2.83
 3089
 7
66" 3.17 3200 7
72" 3.51 3141 7



STD. CAPACITY EXTRA HD



OEM PIN ON  		CAPACITY LBS NO. TEETH
24" 0.81
 1836
 3
30" 1.08
 1942
 4
36" 1.36
 2057
 4
42" 1.64
 2210
 5
48" 1.93
 2324
 5
54" 2.23
 2557
 6
60" 2.52
 2700
 6
66" 2.81
 2910
 6
72" 3.10 3140 7
HIGH CAPACITY EXTRA HD
OEM PIN ON  CAPACITY LBS NO. TEETH
24" 0.87
 2400
 3
30" 1.18
 2516
 4
36" 1.49
 2781
 4
42" 1.82
 3020
 5
48" 2.15
 3218
 5
54" 2.49
 3562
 6
60" 2.83
 3660
 6
66" 3.17 3800 6
72" 3.51 4028 7
MAKE MODELS: 30 TON 65,000 - 95,000 LBS
CASE
  • 9050B, CX330, CX330LR, CX350B, CX350D
CAT
  • 326F L (2017), 328D LCR, 330C, 330C L ME, 330D L, 330F I (2017), 335F L (2017), 336 GC, 336D L, 336F L (2017), 336F L XE (2017), 340F, DB-link
DOOSAN
  • DX300, DX300LC, DX300LC SLR, DX300LC-5, DX300LL, DX300SLR, DX340, DX350LC, DX350LC-5, S300LCV, S340LCV
HITACHI
  • ZX2330LC, ZX330, ZX350LC-6, ZX370, ZX380LC-6
HYUNDIA
  • HX330L, HX380L, R320LC-7, R320LC-7A, R330LC-9A, R360LC-7, R360LC-7A, R380LC-9, R380LC9A
JCB
  • JS290, JS300, JS330, JS330L, JS330NL, JS330XD, JX360
JOHN DEERE
  • 330C LC, 330C LCSF, 350D LC, 350G LC, 370C, 380G LC, 892D, 892E
KOBELCO
  • SK260LC-10, SK290LC-DA, SK290LC-LR, SK295LC, SK300LC-10, SK330LC-ME, SK350LC, SK350LC-10, SK350LC-9E, SL330LC-DA
KOMATSU
  • HB365LC-3, PC290LC-10 SLF, PC290LC-11, PC3000HD-8, PC300HD-7 MH, PC300LC-7, PC300LC-8, PC30LC-11, PC350HD-8, PC350LC-7, PC350LC-8, PC360LC-10 SLF, PC360LCi-11, PC380LC-10 SLF, PC380LCi-11, PC390LC-11
LIEBHERR
  • A934C, R924 Compact Tunnel Litronic, R934B, R934C, R936 Compact Litronic, R936 Litronic, R944B, R944C
LINK-BELT
  • 300 X3, 300 X4, 330LX, 350 X2, 350 X3, 350 X4, 350 XF Long Front
LIUGONG
  • CLG930E, CLG936D, CLG936E
SANY
  • SY365C
TEREX
  • TXC300LC, TXC300LC-2, TXC340LC, TXC340LC-2, TXC400LC, TXC400LC-2, TXC420LC-2
VOLVO
  • EC300E, EC330B-icme, EC330B-LC, EC350E, EC360B-icme, EC360B-LC, EC380E, ECR305C, ECR355E
