CFX300DB42

WAIN ROY ditching & grading buckets for excavators 65,000-95,000 lbs.

Style
Size

4/24

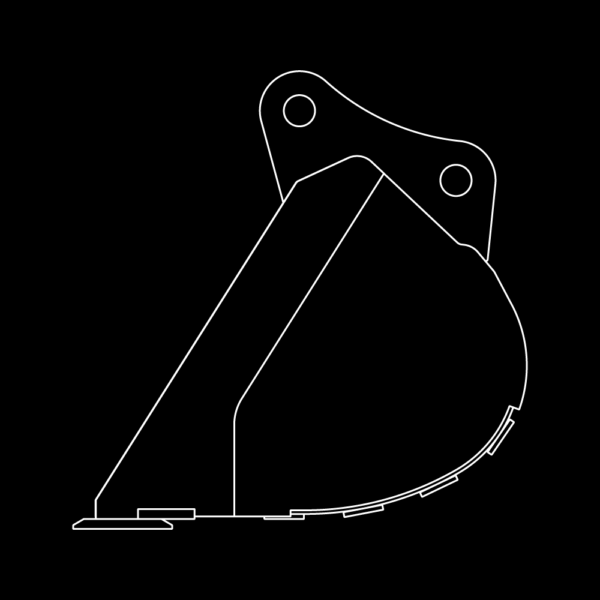

CFX300DB / CFX305DB

STANDARD/HIGH CAPACITY DITCH CLEANING PIN-ON EXCAVATOR BUCKET

Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.







AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



 DITCH CLEANING STD. CAPACITY CFX300DB
OEM PIN ON  CAPACITY (CU. YARD) LBS
42" 0.98
1464
48" 1.14
1598
54" 1.31
1733
60" 1.47
1868
66" 1.63
2003
72" 1.80
2134
78" 1.96 2272
84" 2.01
2506
DITCH CLEANING HIGH CAPACITY CFX305DB
OEM PIN ON  CAPACITY
LBS
48" 1.28
1742
54" 1.47
1893
60" 1.65
2042
66" 1.84
2192
72" 2.02
2341
78" 2.21
2491
84" 2.39
2758
96" 2.57 3067
MAKE MODELS: 30 TON 65,000 - 95,000 LBS
CASE
  • 9050B, CX330, CX330LR, CX350B, CX350D
CAT
  • 326F L (2017), 328D LCR, 330C, 330C L ME, 330D L, 330F I (2017), 335F L (2017), 336 GC, 336D L, 336F L (2017), 336F L XE (2017), 340F, DB-link
DOOSAN
  • DX300, DX300LC, DX300LC SLR, DX300LC-5, DX300LL, DX300SLR, DX340, DX350LC, DX350LC-5, S300LCV, S340LCV
HITACHI
  • ZX2330LC, ZX330, ZX350LC-6, ZX370, ZX380LC-6
HYUNDIA
  • HX330L, HX380L, R320LC-7, R320LC-7A, R330LC-9A, R360LC-7, R360LC-7A, R380LC-9, R380LC9A
JCB
  • JS290, JS300, JS330, JS330L, JS330NL, JS330XD, JX360
JOHN DEERE
  • 330C LC, 330C LCSF, 350D LC, 350G LC, 370C, 380G LC, 892D, 892E
KOBELCO
  • SK260LC-10, SK290LC-DA, SK290LC-LR, SK295LC, SK300LC-10, SK330LC-ME, SK350LC, SK350LC-10, SK350LC-9E, SL330LC-DA
KOMATSU
  • HB365LC-3, PC290LC-10 SLF, PC290LC-11, PC3000HD-8, PC300HD-7 MH, PC300LC-7, PC300LC-8, PC30LC-11, PC350HD-8, PC350LC-7, PC350LC-8, PC360LC-10 SLF, PC360LCi-11, PC380LC-10 SLF, PC380LCi-11, PC390LC-11
LIEBHERR
  • A934C, R924 Compact Tunnel Litronic, R934B, R934C, R936 Compact Litronic, R936 Litronic, R944B, R944C
LINK-BELT
  • 300 X3, 300 X4, 330LX, 350 X2, 350 X3, 350 X4, 350 XF Long Front
LIUGONG
  • CLG930E, CLG936D, CLG936E
SANY
  • SY365C
TEREX
  • TXC300LC, TXC300LC-2, TXC340LC, TXC340LC-2, TXC400LC, TXC400LC-2, TXC420LC-2
VOLVO
  • EC300E, EC330B-icme, EC330B-LC, EC350E, EC360B-icme, EC360B-LC, EC380E, ECR305C, ECR355E
