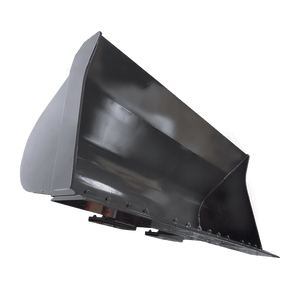

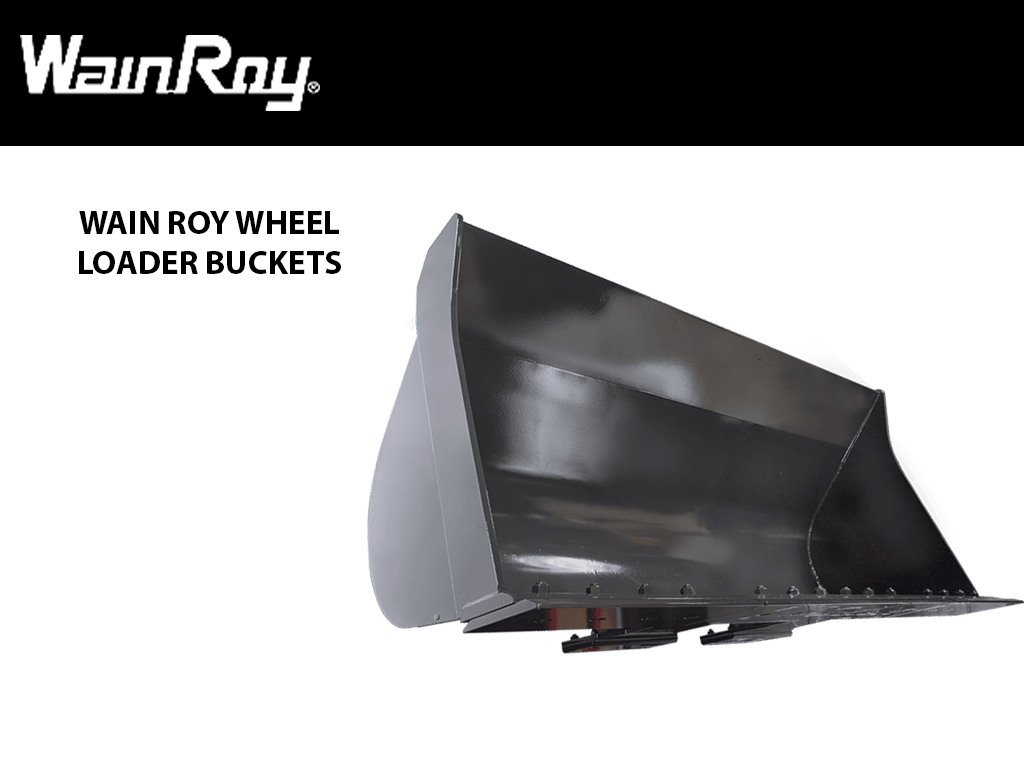

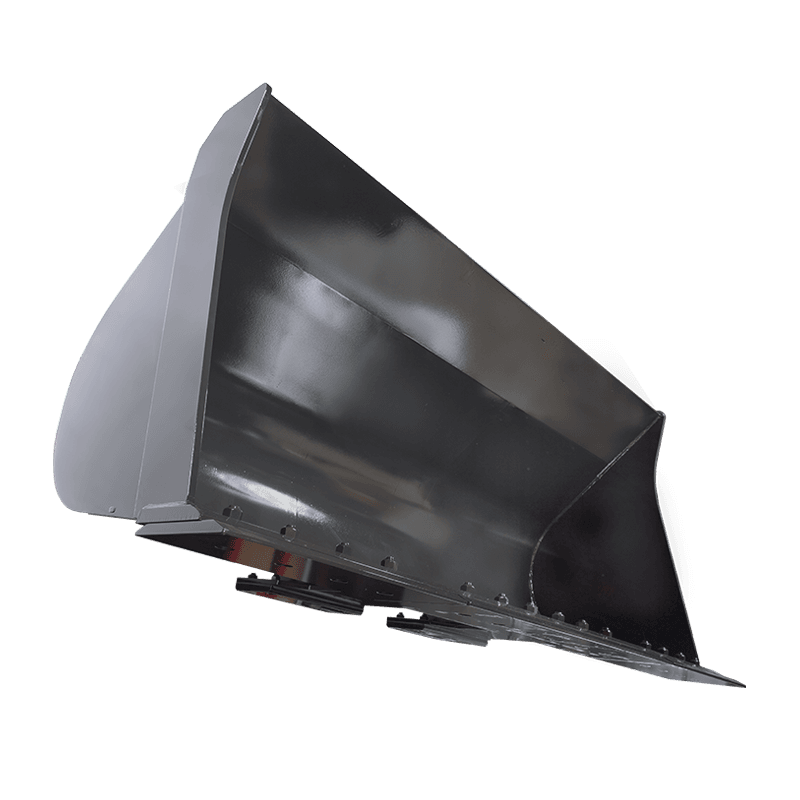

WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)
WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)

3HD200P

WAIN ROY Wheel Loader bucket, class 3 (2.50 - 3.25 cu. yd.)

$0.00

Business Financing Available

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

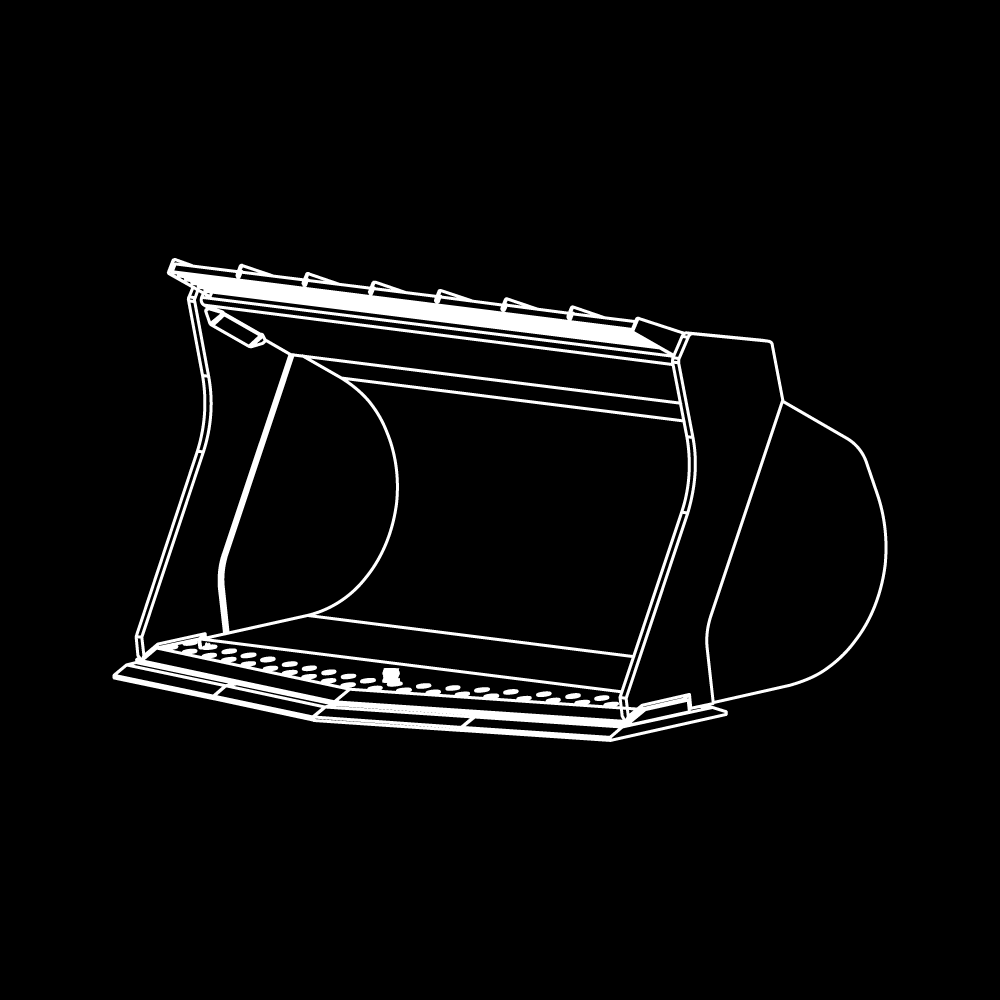

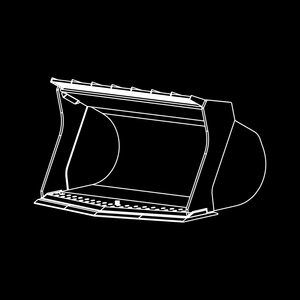

3HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

3LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.

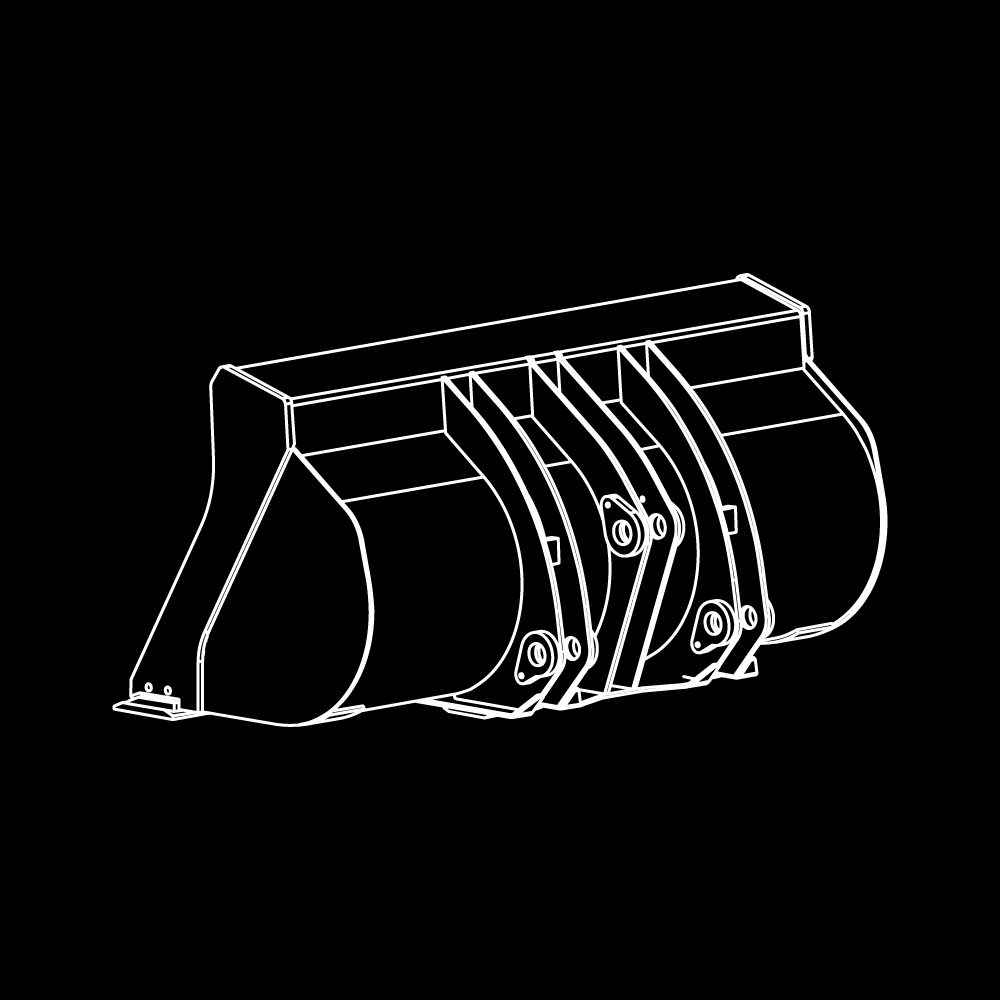

3SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

Pin-on and quick change buckets are available at same pricing.

3SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

Pin-on and quick change buckets are available at same pricing.

 CLASS 3 (2.50-3.25 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 2.00
 2140
heavy duty 2.25
 2280
heavy duty 2.50
 2320
heavy duty 2.75
 2420
heavy duty 3.00
 2560
heavy duty 3.25 2965
STYLE CAPACITY (CU. YD.) LBS
light material 3.50
 2410
light material 4.00
 2620
light material 4.50 3080
light material 5.00
 3480
light material 5.50
 4025
STYLE CAPACITY (CU. YD) LBS
Straight edge rock bucket 2.50 3180
straight edge rock bucket 2.75 3360
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 2.50 3295
spade nose rock bucket 2.75 3630

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 3 (2.50 - 3.25 CU. YD)

MAKE MODEL
CASE
  • 621DXT, 621E, 621E XR, 621F, 621G
CATERPILLAR
  • 628Hx, 926M, 928H, 930H, 930M, 938H, IT38H
DAEWOO / DOOSAN
  • DL200, DL200-5, DL200TC-5, DL220-5, DL250, DL250-5
DRESSTA
  • 520E, 520EH, 520EH HL
GEHL
  • 750
HYUNDAI
  • HL540-9, HL757-9, HL760-9, HL940, HL955, HL955 XT, HL960
JCB
  • 426HT, 427HT, 427ZX
JOHN DEERE
  • 524K HL, 524K HL WH, 524K WH, 524K Z-Bar, 524K-II, 524K-II HL, 524K-II Z-Bar, 544K HL, 544K HL Powerllel, 544K HL WH, 544K WH, 544K Z-Bar, 544K-II HL, 544K-II Powerllel, 544K-II Z-Bar
KAWASAKI
  • 62Z7, 65TMV-2, 65VZ-2, 67TM7
KOMATSU
  • WA180-3, WA200-5, WA200-7, WA200-8, WA200PZ-6, WA270-7, WA270-8
LIEBHERR
  • L514, L524 2plus1, L526, L528 2plus1
NEW HOLLAD
  • W130, W130B, W130C, W130TC
TEREX
  • SKL260H, SKL863, TXL200-2
VOLVO
  • L60D, L60E, L60F, L60H, L70E, L70F, L70H
