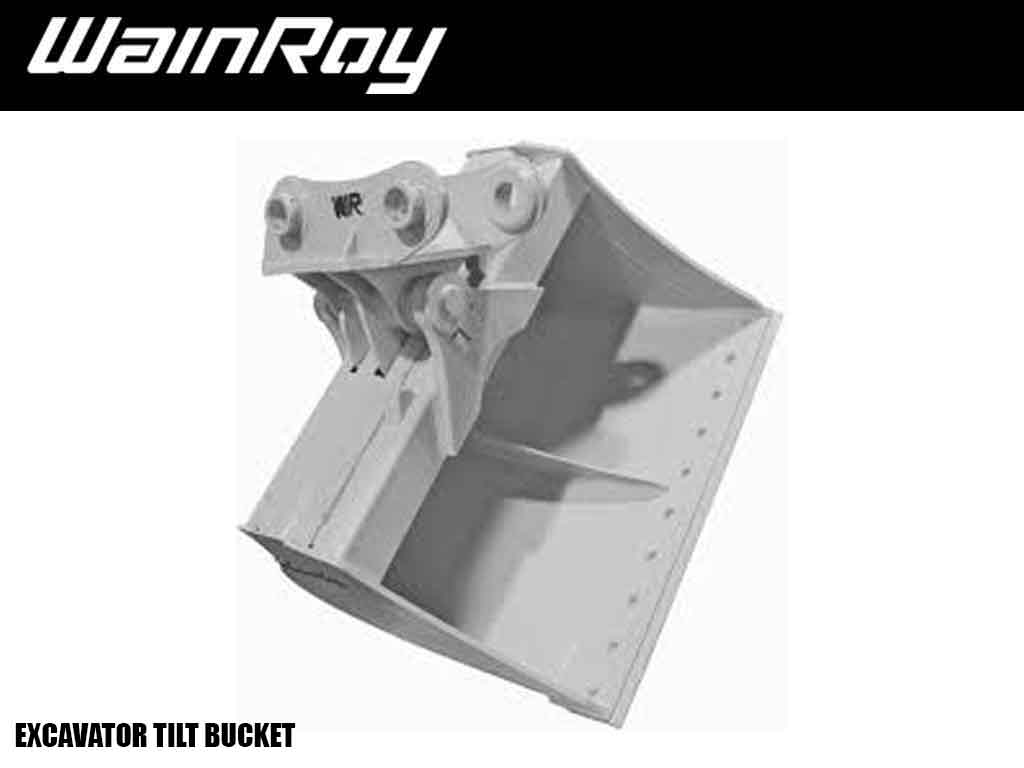

WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.
WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.
WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.
WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.
WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.
WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.

TLT2PO-48

WAIN ROY Tilt Bucket for 12MT Excavators 20,000 - 30,000 lbs.

$12,238.00 - $14,256.00

Business Financing Available

MOUNTING
SIZE

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

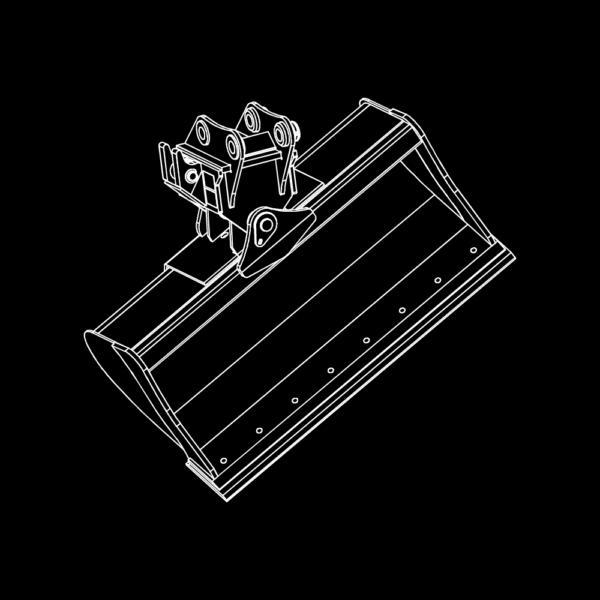

TILT BUCKET

OEM PIN ON

 WIDTH
 CAPACITY (CU. YD.)
 LBS
TLT2PO-48 48" 0.70 1180
TLT2PO-60 60" 0.90
 1367
TLT2PO-66 66"
 1.00
 1445
TLT2PO-72 72" 1.10 1513

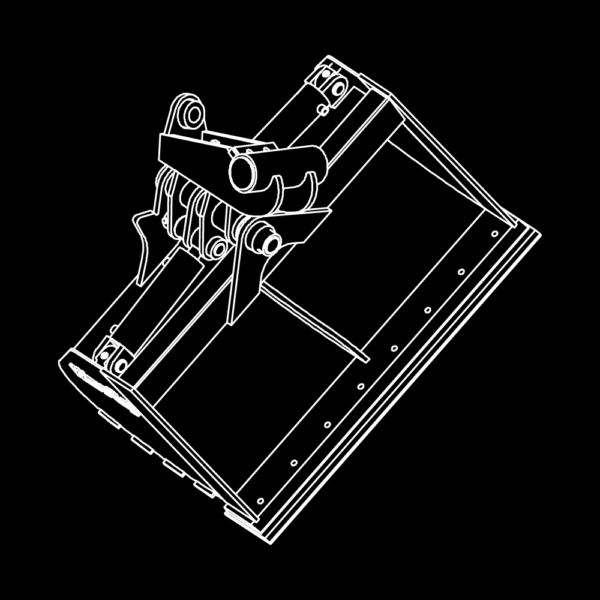

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

 WIDTH CAPACITY (CU. YD.) LBS

TLT2QC-48

 48" 0.70 1135

TLT2QC-60

 60"
 0.90
 1322

TLT2QC-66

 66"
 1.00
 1400
TLT2QC-72 72" 1.10 1468
MAKE MODELS: 12 TON 20,000 - 30,000 LBS
CASE
  • 9010B, CX130B, CX130D, CX135 MSR, CX145
CAT
  • 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C
DOOSAN
  • 1202, DX140, S140LCV
HITACHI
  • ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3
HYUNDIA
  • HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A
JCB
  • HYDRADIG 110W, JS130LC, JS131, JS145, JZ141
JOHN DEERE
  • 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E
KOBELCO
  • 115SRDZ, 135SRLCOSB, 140SR
KOMATSU
  • PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6
LIEBHERR
  • A309, A311, A312
LINK BELT
  • 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF
MECALAC
  • 11MWR
NEW HOLLAND
  • E135B, EH130LC
SANY
  • SY135C-Tier 2
TEREX
  • TC125 (hr42), TC140LC-1, TW110, TW130
VERMEER
  • CX224, CX229, CX234
VOLVO
  • EC140B-LC, EC140C, EC140E, ECR145C, ECR145E
WACKER NEUSON
  • GE1202, ME12002
