JB2PO-24

WAINROY Jaw Bucket for 12MT Excavators 20,000 -30,000 LBS

Mounting
Size

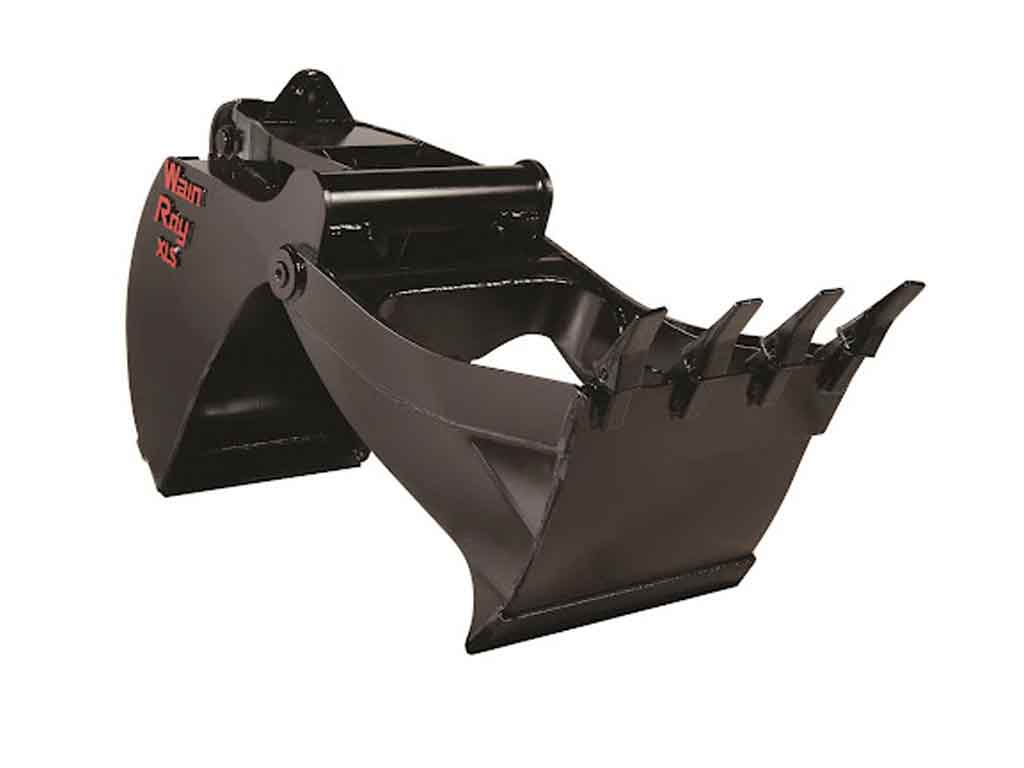

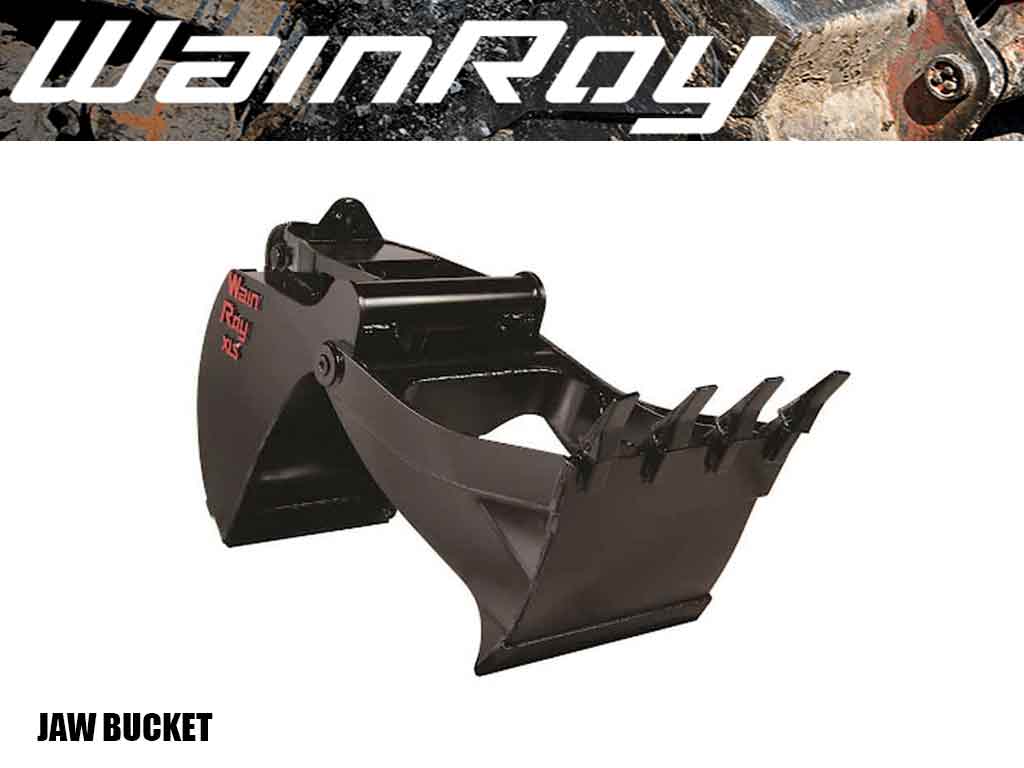

WAIN ROY JAW BUCKETS

Jaw Buckets provide the versatility of a trenching bucket and a thumb in one unit without having to weld thumb brackets onto the boom. Jaw Buckets are effective jobsite trenchers and haulers of cumbersome materials. Remove, load, and backfill material with the front jaw in the closed position and then use the hydraulically actuated jaw to pick and place large objects such as boulders, stumps, pipe, logs, concrete slabs and other debris. Jaw Buckets are an effective multi-use tool for construction applications.

20000 - 30000 lbs. excavators

 JAW BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. YD.) LBS OPENING TEETH
JB2PO-24 24" 0.39 920
51"
4
JB2PO-30 30"
0.52
1010
51"
4
JB2PO-36 36"
0.65
1160
51"
5

JAW BUCKET

WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP

WIDTH CAPACITY (CU. YD.) LBS OPENING  TEETH
JB2QC-24 24" 0.39 875
51"
4
JB2QC-30 30" 0.52
975
51"
4



MAKE MODELS: 12 TON 20,000 - 30,000 LBS
CASE
  • 9010B, CX130B, CX130D, CX135 MSR, CX145
CAT
  • 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C
DOOSAN
  • 1202, DX140, S140LCV
HITACHI
  • ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3
HYUNDIA
  • HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A
JCB
  • HYDRADIG 110W, JS130LC, JS131, JS145, JZ141
JOHN DEERE
  • 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E
KOBELCO
  • 115SRDZ, 135SRLCOSB, 140SR
KOMATSU
  • PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6
LIEBHERR
  • A309, A311, A312
LINK BELT
  • 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF
MECALAC
  • 11MWR
NEW HOLLAND
  • E135B, EH130LC
SANY
  • SY135C-Tier 2
TEREX
  • TC125 (hr42), TC140LC-1, TW110, TW130
VERMEER
  • CX224, CX229, CX234
VOLVO
  • EC140B-LC, EC140C, EC140E, ECR145C, ECR145E
WACKER NEUSON
  • GE1202, ME12002
