WBC218-2
WERK-BRAU Wheel Compactors for 24,000 - 59,000 lbs. (12, 15, 20 & 25MT)
$15,380.00 - $19,580.00
10/24

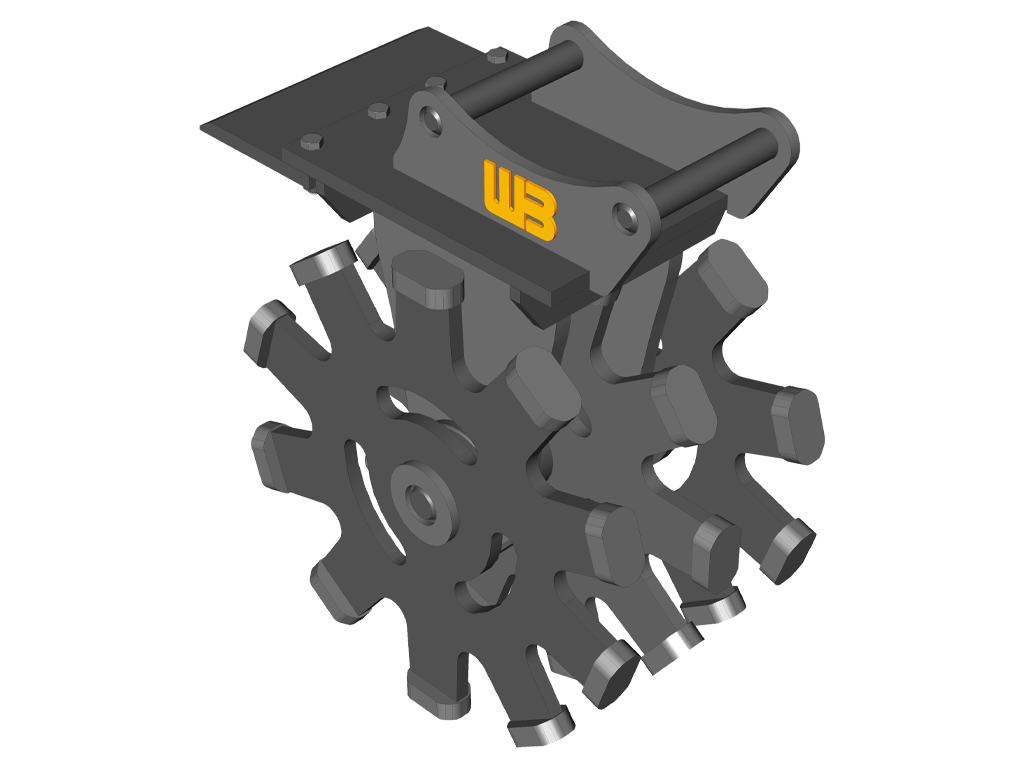

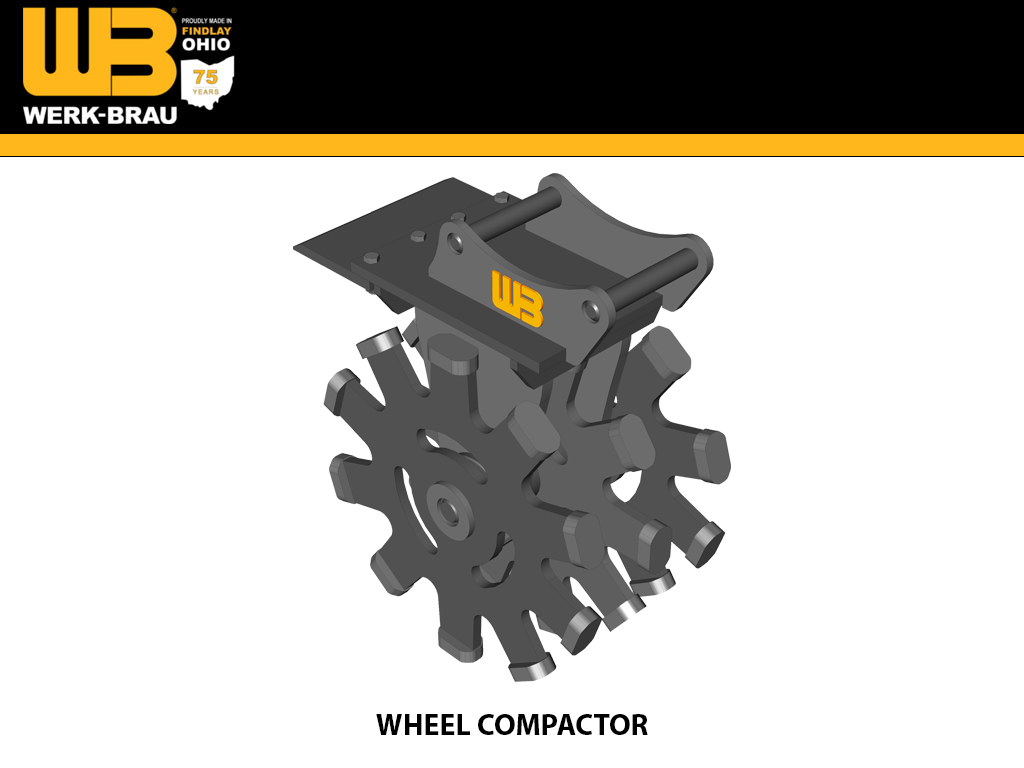

Wheel Compactor
Recommended Applications
Werk-Brau's Wheel Compactor for Excavators is specifically designed to compact fill material in a trench as it is being back-filled. Each wheel compactor is designed with staggered pads for even compacting. Werk-Brau's Wheel Compactor also eliminates unsafe compacting in trenches.
Quality Construction
High strength steel is used throughout the assembly. Replaceable heavy duty, durable sealed bearings ensure a long operating life in tough conditions. Each wheel is replaceable.
Standard Sizes
Various models are available, each having numerous widths for most excavators.
Additional Features
Hardened bushings are standard in the pivots. Cleaner bars are incorporated into the design to prevent buildup between the wheels. Easily adaptable to quick-coupling attachments.
Additional Options
Different widths are optional. Additional wheels can be added. Special designs and options are available, please request a quote from your local dealer.
| PART NUMBER | WIDTH | # OF WHEELS | WHEEL DIAMETER | WEIGHT |
| WBC218-2 | 18" | 3 | 42" | 2250 |
| WBC224-2 | 24" | 3 | 42" | 2500 |
| WBC236-2 | 36" | 3 | 42" | 3750 |
12MT
| MAKE / WEIGHT CLASS | 12MT (24,000 - 33,000 LBS.) |
| CASE | CX130, CX145D, CX140E |
| CAT | 311, 313, 314F, 315F (A-Linkage) |
| DOOSAN | DX140LC-5, DX140LCR-5, DX140W-5 |
| HITACHI | ZX130 |
| HYUNDAI | HX140, HX145, HX220 LR |
| JOHN DEERE | 130G, 135G, 130P |
| KOBELCO | SK140, ED160 |
| KOMATSU | PC138 |
| LIEBHERR | |
| LINK BELT | 130X4, 145X4, 210X4 LR |
| SANY | SY135, SY235 LR, SY265 LR |
| TAKEUCHI | TB1140, TB2150 |
| VOLVO | EW140, EC140, ECR145 |
15MT
| MAKE / WEIGHT CLASS | 15MT (33,000 - 42,000 LBS.) |
| CASE | CX160, CX170E, CX190E |
| CAT | 315D, 316F, 318F, M318F |
| DOOSAN | DX180LC-5, DX190W-5 |
| HITACHI | ZX160 |
| HYUNDAI | HX160, HX180 |
| JOHN DEERE | 160G, 160P |
| KOBELCO | ED195, SK170 |
| KOMATSU | PC170 |
| LIEBHERR | |
| LINK BELT | 160X4 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EW160, EW180, EC160, EC180 |
20MT
| MAKE / WEIGHT CLASS | 20MT (42,000 - 50,000 LBS.) |
| CASE | CX210, CX220E, CX235, CX245 |
| CAT | 320, 321, M322F, 323 (B-Linkage) |
| DOOSAN | DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5 |
| HITACHI | ZX180, ZX200, ZX210, ZX245 |
| HYUNDAI | HX220, HX235 |
| JOHN DEERE | 210G, 245G, 180P, 210P, 190GW, 230GW |
| KOBELCO | SK210, SK230SR, SK260, SK270SR |
| KOMATSU | PC210-11, PC228, PC238 |
| LIEBHERR | R 920 L, 922 L |
| LINK BELT | 210X4, 234X4, 245X4 |
| SANY | SY215 |
| TAKEUCHI | |
| VOLVO | EC200, EW210, EC210, EC220, ECR235 |
25MT
| MAKE / WEIGHT CLASS | 25MT (50,000 - 59,000 LBS.) |
| CASE | CX250, CX260E |
| CAT | 325, 326F |
| DOOSAN | DX255LC-5 |
| HITACHI | ZX240, ZX250 |
| HYUNDAI | HX260 |
| JOHN DEERE | 250G, 250P |
| KOBELCO | SK260LC |
| KOMATSU | PC240 |
| LIEBHERR | R 916 L, R 924 L, R 934 CD |
| LINK BELT | 250X3, 250X4 |
| SANY | SY235, SY265 |
| TAKEUCHI | |
| VOLVO | EC240, EC250 |
