1JD1FCA3

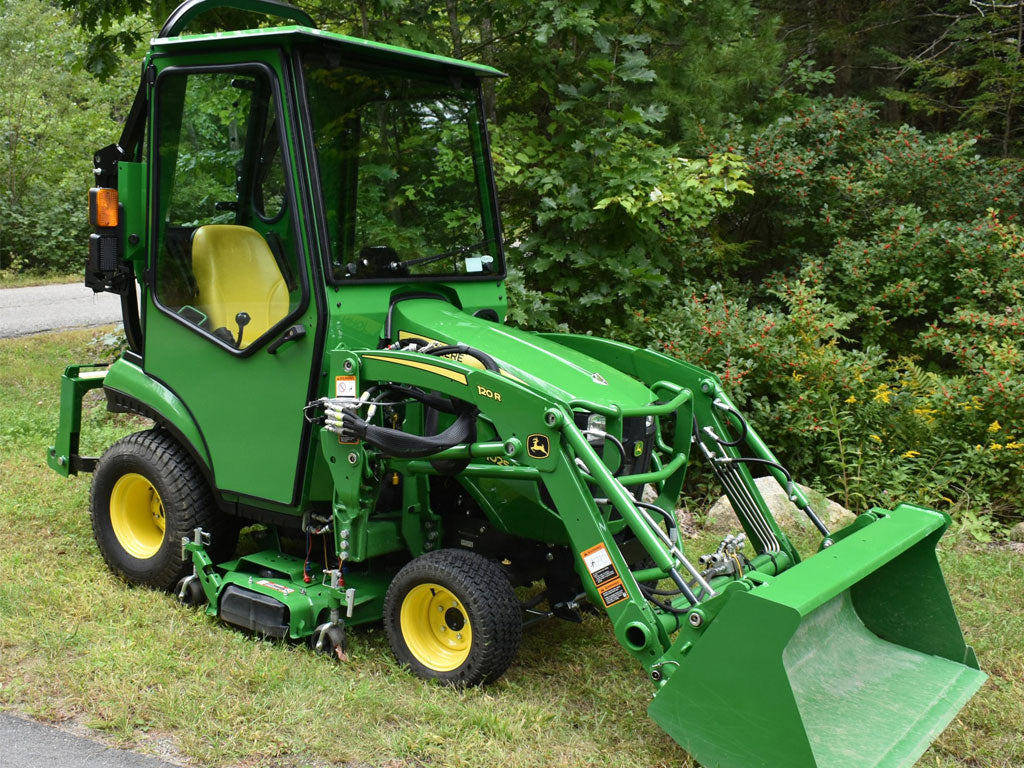

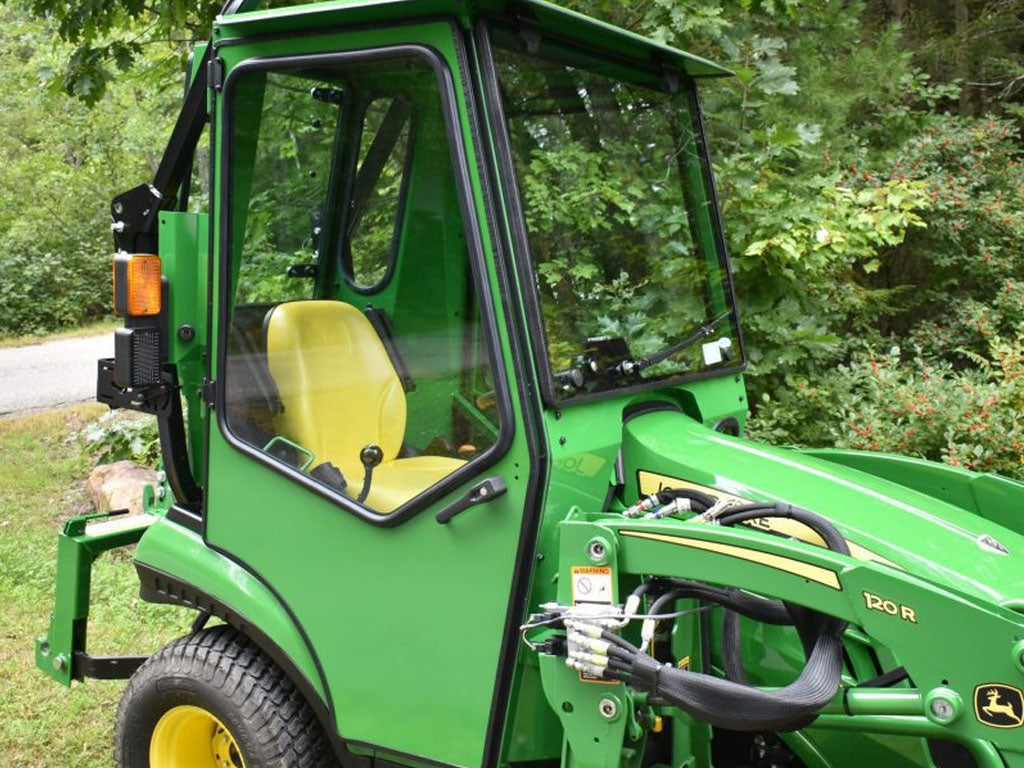

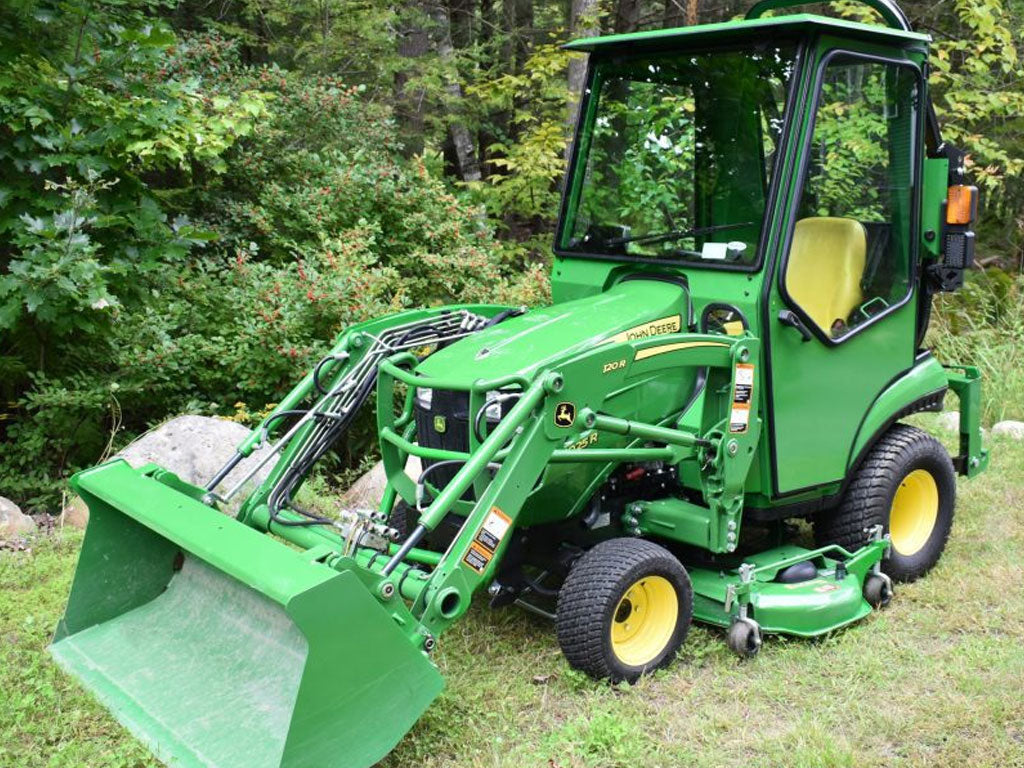

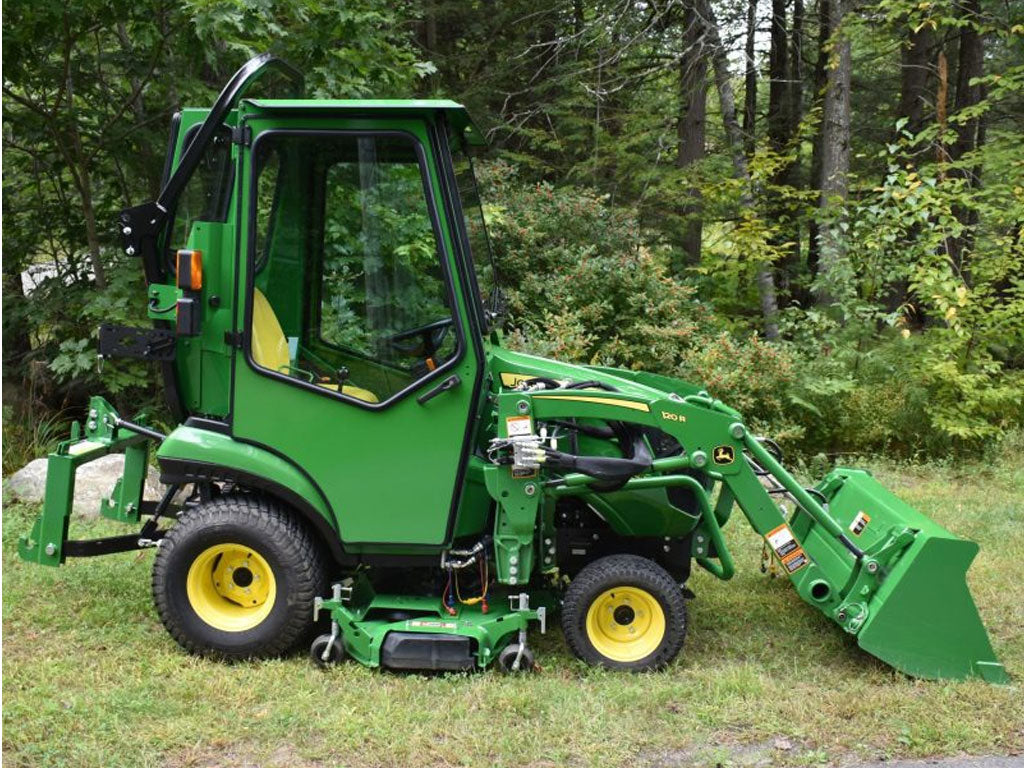

Curtis enclosed advantage cab for John Deere 1023E / 1025R tractor

TRACTOR

Advantage Cab for John Deere 1023E | 1025R (Mid 2017+)

Includes cab heater and front windshield wiper.

**Cab may be shown with optional accessories

Curtis Advantage Cabs offers maximum protection from winter weather and features lockable steel doors with large glass windows, and a glass rear panel window. Both the doors and rear panel window feature easy toolless removal. Fully enclosed with an additional seal kit for full protection from the winter weather, vent the front windshield and rear panel for comfort in the spring and fall seasons, and remove the doors and rear window during the heat of summer, for full four-season comfort.

Curtis Advantage Series Logo

John Deere 1023E | 1025R Advantage Cab compatible with mid-2017 vehicle Forward Leaning ROPS with 120R NSL & MSL Loaders.

FEATURES

  • Corrosion-resistant powder-coat finish
  • John Deere green color match doors
  • Steel roof with acoustical headliner and tapered drip edge
  • Venting glass windshield
  • Venting/removable rear glass panel; locks open to vent or lifts out
  • Doors and rear panel are pin-hinged for easy removal
  • Large, clear glass windows and rear panel provide distortion-free visibility
  • Locking doors

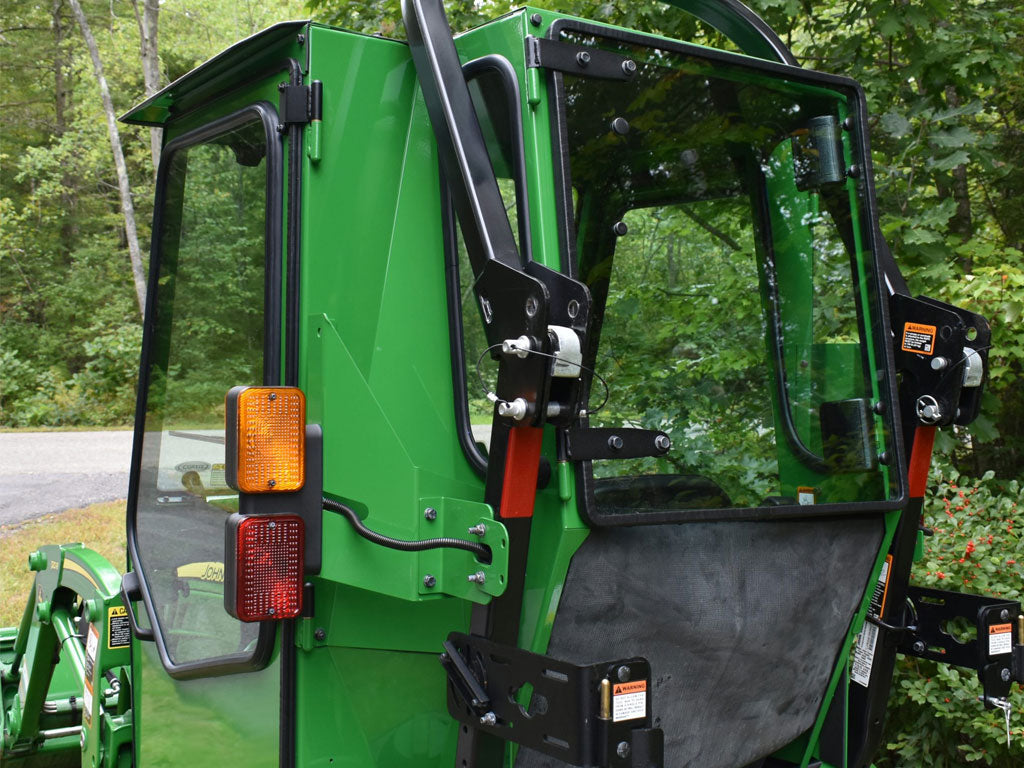

  • Factory fender lights are easily relocated to the cab side frame for front or rear illumination
  • Backhoe compatible
  • Shipping dimensions: 76 x 16 x 70 inches
  • Shipping weight: 459 lbs.
  • Cab width: 49.5 inches
  • Cab weight: 334 lbs.
  • Height above floorboard: 62.5 inches floorboard to roof
  • Heater: 20,000 BTU hot water
  • Backhoe compatible: Yes
  • Windshield: Glass
  • Door windows: Glass
  • Rear panel: Glass
  • Roof: Steel with acoustical headliner
  • Wiper: 12-volt heavy-duty, 110-degree sweep
  • Pre-drilled holes for optional side mirrors
  • Installation manual

Please use caution and we recommend the windshield be completely closed during MSL loader operation.

          •

        • Rear wiper (9PWK8512F9-11a)
        • 3-inch round work lights (9LEDW3)
        • 2 x 6-inch low-profile work lights (9LEDW4)
        • Strobe light (9LEDS2)
        • Dome light (9LEDD14)
        • Side mirrors: (9PM5)
        • Rearview mirror: (9PM3)
        • Seal kit (9SK1)*
        • Sure Step Kit (9CST)

        *We recommend the optional seal kit (9SK1) for improved draft and dust protection.
