DANIEL MFG roto fork and demolition carts

ROTO FORK and DEMO CART

SKID STEER

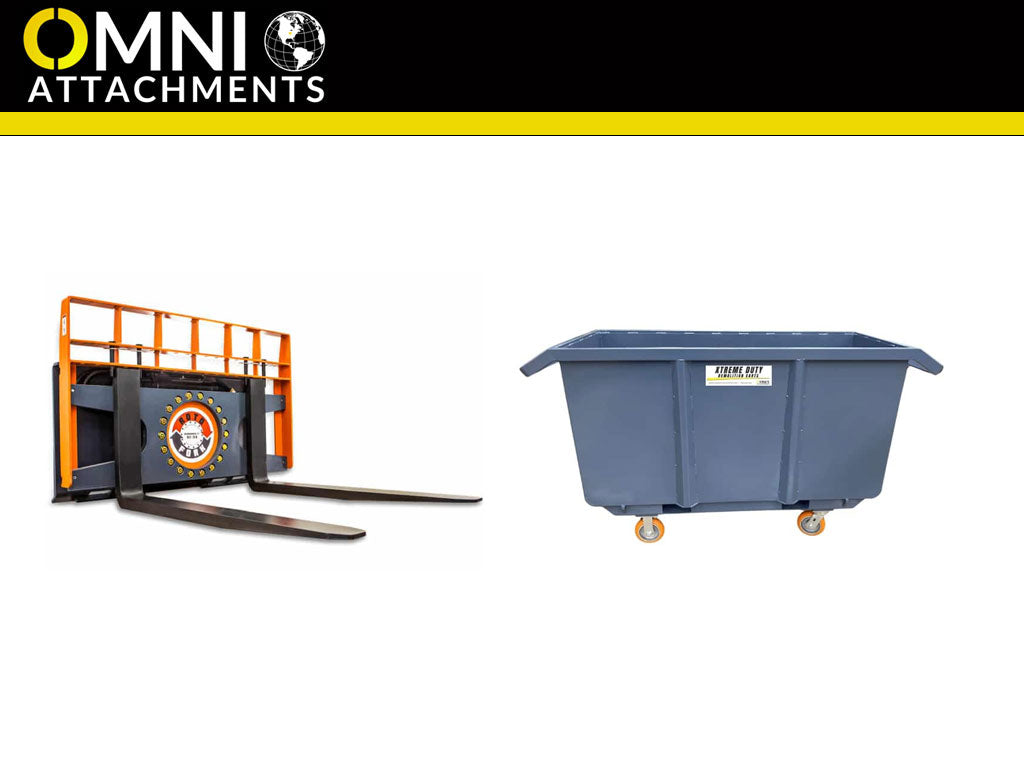

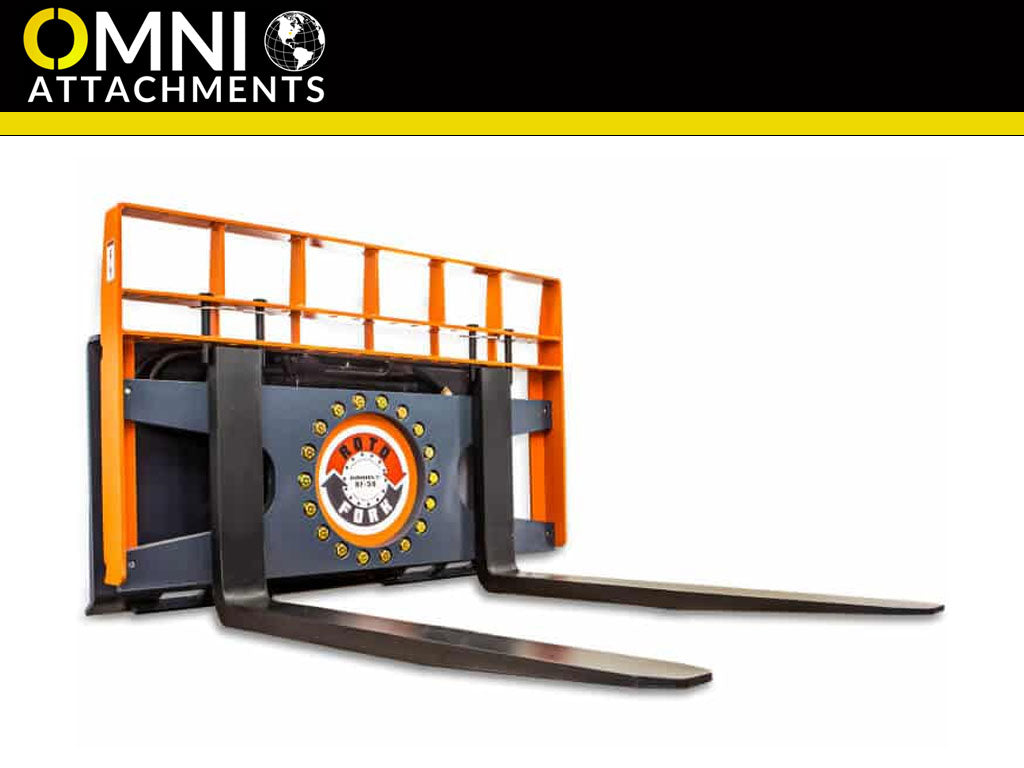

The Roto Fork RF-50 is a heavy duty rotating fork system that offers continuous bi-directional rotation with a 5,000 pound load capacity. The hydraulic worm drive slewing ring provides precision control and self locking positioning as well as a slim profile to maintain the load center close to the machine. Robust fork positioners allow multiple location choices with easy to use pin retainers. The low profile carriage rack grants high visibility and ease of access for the operator. Pair this with our Xtreme Duty Demolition Carts for efficient material handling. Great for demolition and landscaping applications!

DEMO CARTS

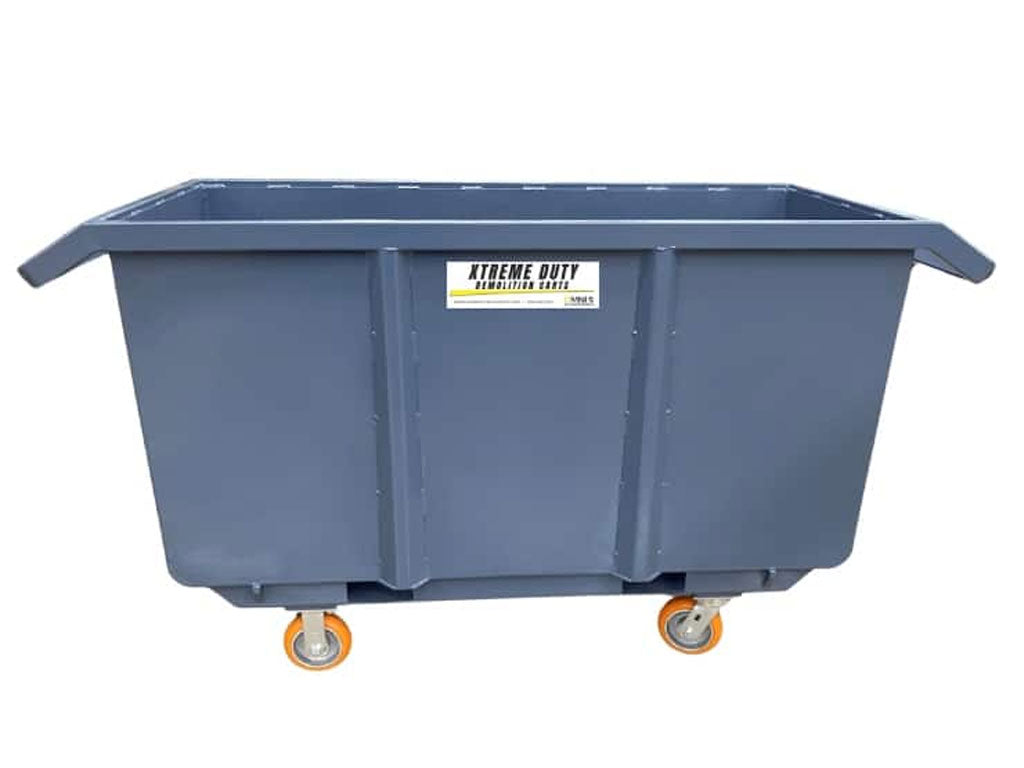

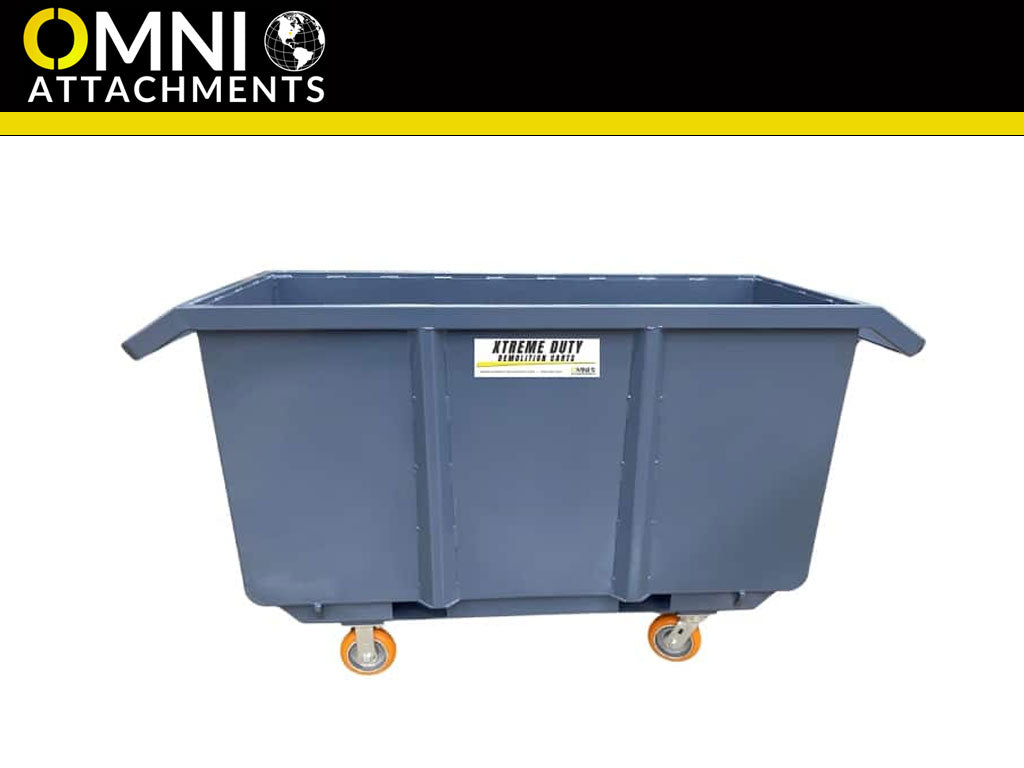

The Xtreme Duty Demolition Cart features a 1 cu. yard capacity struck weighing in at 300 lb with a load capacity of 3,200 lb. Each cart is stackable for efficient transportation and feature full length fork pockets. The urethane enamel finish is available in customer's choice of color.

• Heavy Duty Steel Welded Construction

• Stackable for efficient transportation

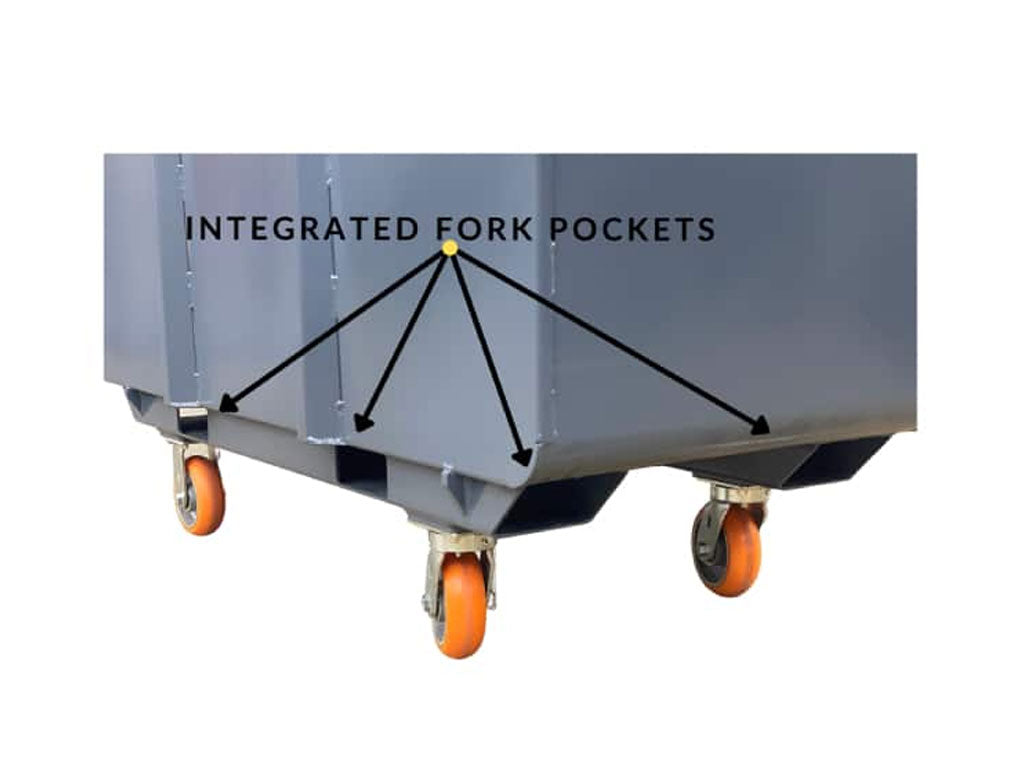

• Full length fork pockets

ROTO FORK

• Fork Load Capacity @24" Load Center - 5,000 lbs
• Overall Height – 32 in
• Overall Width - 48 in
• Overall Fork Width (Maximum) – 48 in
• Overall Fork Width (Minimum) – 8-1/4 in
• Forks – 1-1/4” X 4” X 42” ITA Class 2
• Maximum Hydraulic Pressure - 4000 psi
• Material – GR50/T1 Alloy Steels
• Weight – 800 lb

DEMO CART

• Overall Length – 59 1/8 in
• Overall Height – 39 3/4 in
• Overall Width – 29 in
• Material – High Strength, Steel Plate
• Weight – 300 lb
• Capacity – 1 cu. yard
• Load Capacity – 3,200 lb
