3DSS-3 / HI-000628

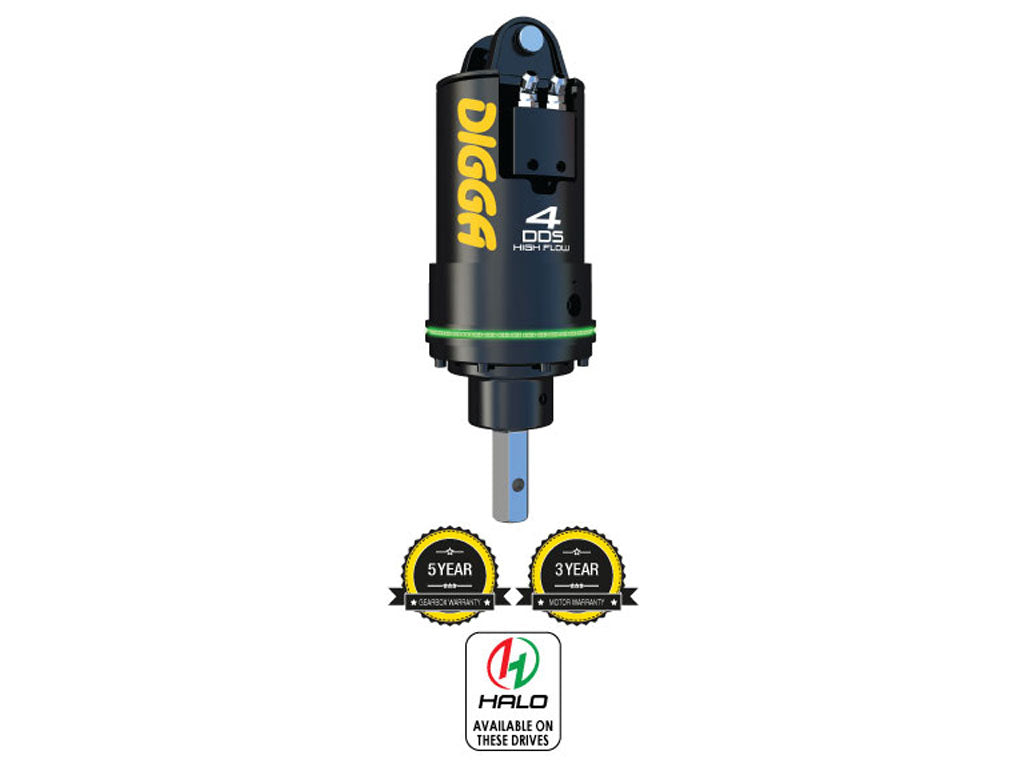

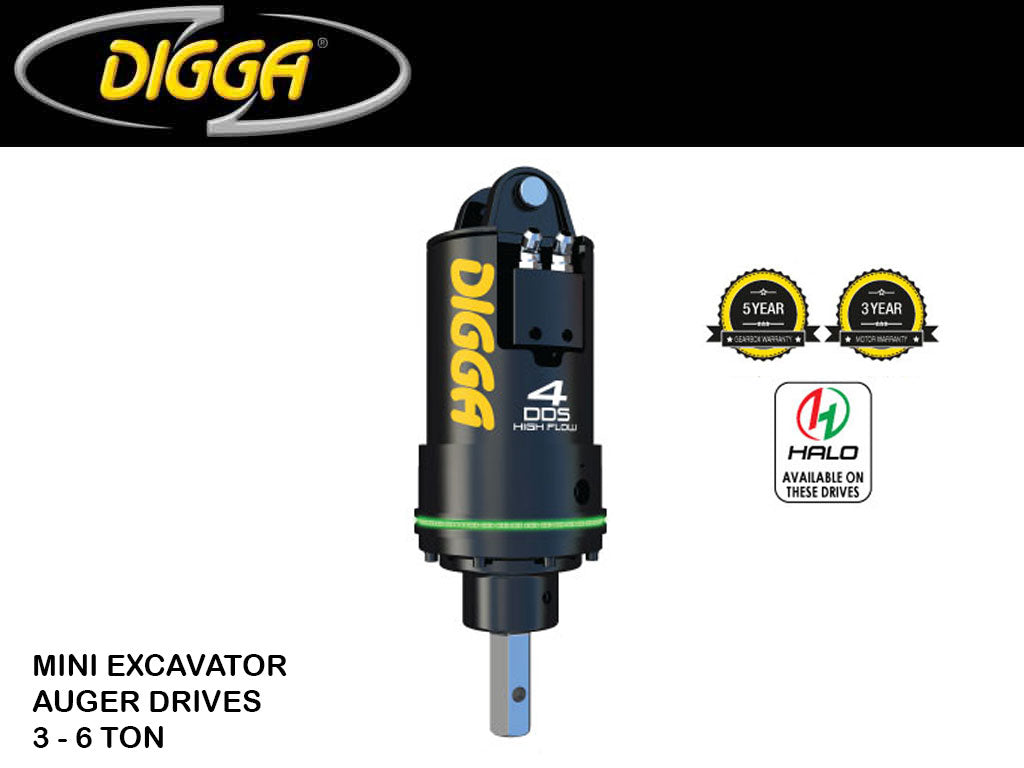

DIGGA auger drives for mini excavators, 6600 - 11000 lbs. machines (3-5 ton)

MODEL
MOUNTING
OPTIONS

5/24

AUGERS FOR MINI EXCAVATORS 3-5 TON

Digga's range of drilling augers for 3 ton to 5 ton Excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions, eliminating downtime and minimizes maintenance, optimizing your returns.

Digga drilling augers are backed by industry leading warranty and local factory support.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Digga planetary augers are specially designed for Excavators for drilling and augering in most ground conditions. The addition of our patented "Energy Control Valve" turns the drilling drive into a screw anchor drive.

**** 4DDS AUGERS DOES NOT INCLUDED HOSES

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with optional integrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • Halo Alignment System available
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

    SPECS 3DSS 4DSS 4DDS
    TORQUE (FT-LBS
    @ 3000 PSI
    2,829 3,275 3,583
    MAX TORQUE FT-LBS
    @ 3500 PSI
    3,300 3,821 4,180
    RECOMMENDED FLOW (GPM) 10-30 10-30 10-36
    MOTOR TYPE EATON EATON EATON
    MAX PRESSURE -
    DO NOT EXCEED
    3500 PSI @ 16 GPM 3500 PSI
    @ 27 GPM
    MAX FLOW -
    DO NOT EXCEED
    30 GPM @ 1800 PSI 42 GPM
    @ 3100 PSI
    MAX HORSE POWER 34 34 55
    PRESSURE RELIEF VALVE OPTIONAL OPTIONAL INCLUDED
    STANDARD OUTPUT SHAFT 2" HEX 2" HEX 2" HEX
    HALO OPTIONAL OPTIONAL OPTIONAL

    RECOMMENDED AUGER A4 / RC4 A4 / RC4 A4 / RC4
    MAX DRILLING DIAMETER
    (CLAY / SHALE)*
    24" 24" 24"
    MAX DRILLING DIAMETER
    (EARTH)*
    30" 30" 40"
    WEIGHT (LBS) 123 125 180
    OVERALL LENGTH (IN) 25.9" 25.9" 29"
    DIAMETER (IN) 9.4" 9.4" 9.4"

    (*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.


    3DSS
    SPEED SPEED TORQUE TORQUE
    GPM RPM PSI FT-LBS
    10 33 1500 1414
    12 39 1700 1603
    14 46 1900 1792
    16 52 2100 1980
    18 59 2300 2169
    20 65 2500 2357
    22
    72 2700 2546
    24 78 2900 2735
    26 85 3100 2923
    28 91 3300 3112
    30 98 3500 3300
    4DSS
    SPEED SPEED TORQUE TORQUE
    GPM RPM PSI FT-LBS
    10 28 1500 1638
    12 34 1700 1856
    14 39 1900 2074
    16 45 2100 2293
    18 51 2300 2511
    20 56 2500 2730
    22 62 2700 2948
    24 67 2900 3166
    26 73 3100 3385
    28 79 3300 3603
    30 84 3500 3821
    4DDS
    SPEED SPEED TORQUE TORQUE
    GPM RPM PSI FT-LBS
    8 22 1500 1791
    13 32 1700 2030
    17 43 1900 2269
    21 54 2100 2508
    25 65 2300 2747
    29 75 2500 2986
    34 86 2700 3225
    38 97 2900 3463
    42 108 3100 3702
    3300 3941
    3500 4180
