5DDS-11-MF

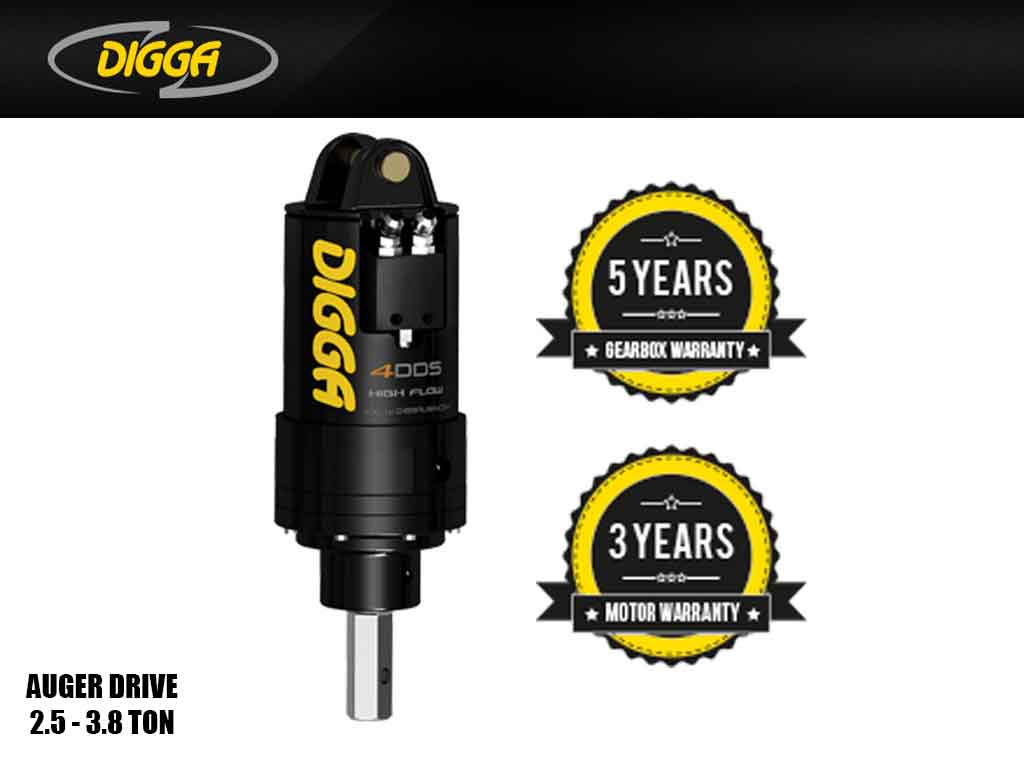

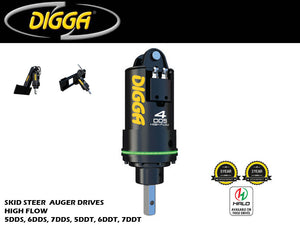

DIGGA DDS Series auger drive for skid steer high flow only

Size
MOUNTING
Options

5/24

Digga Archives - RAM Equipment

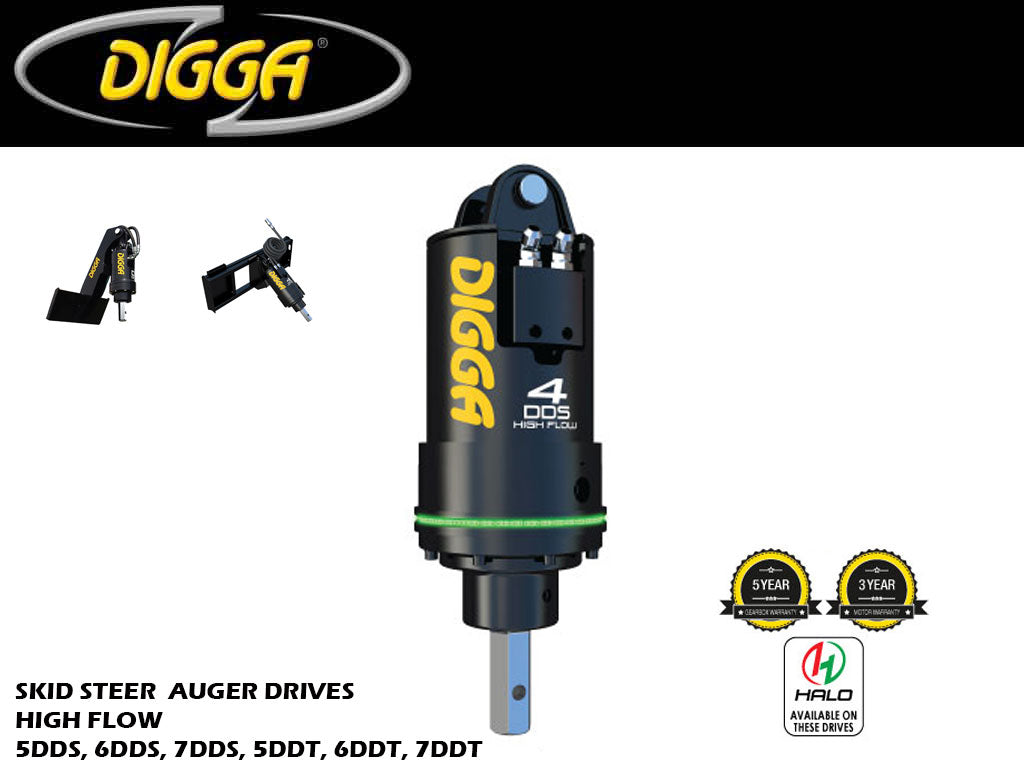

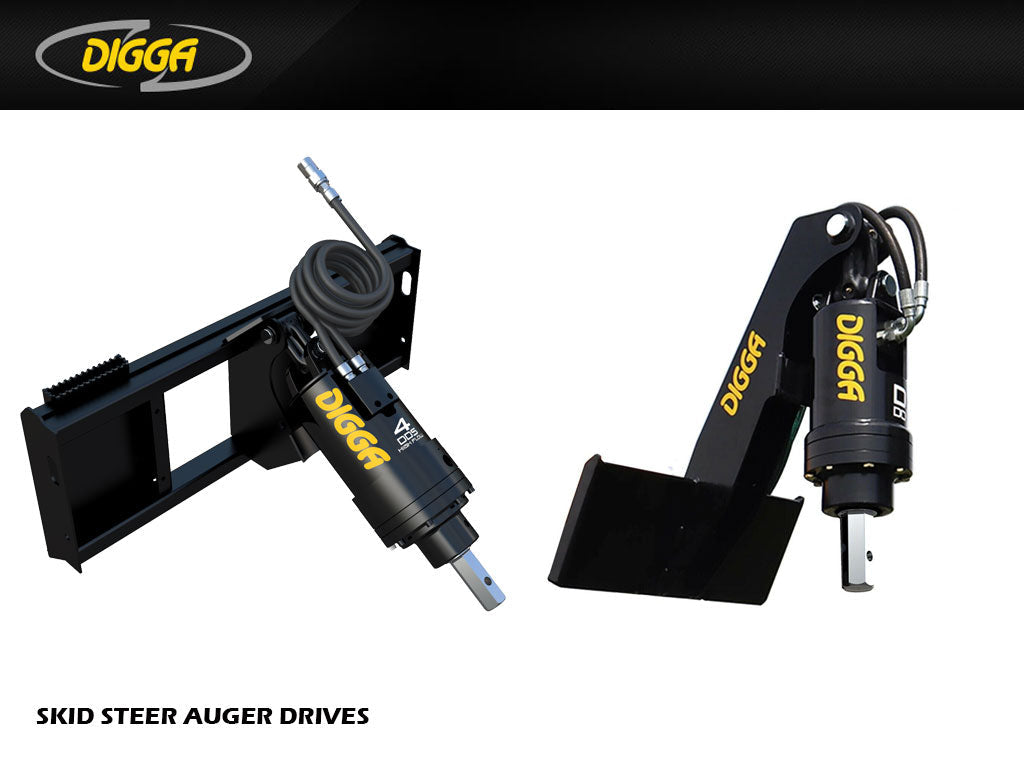

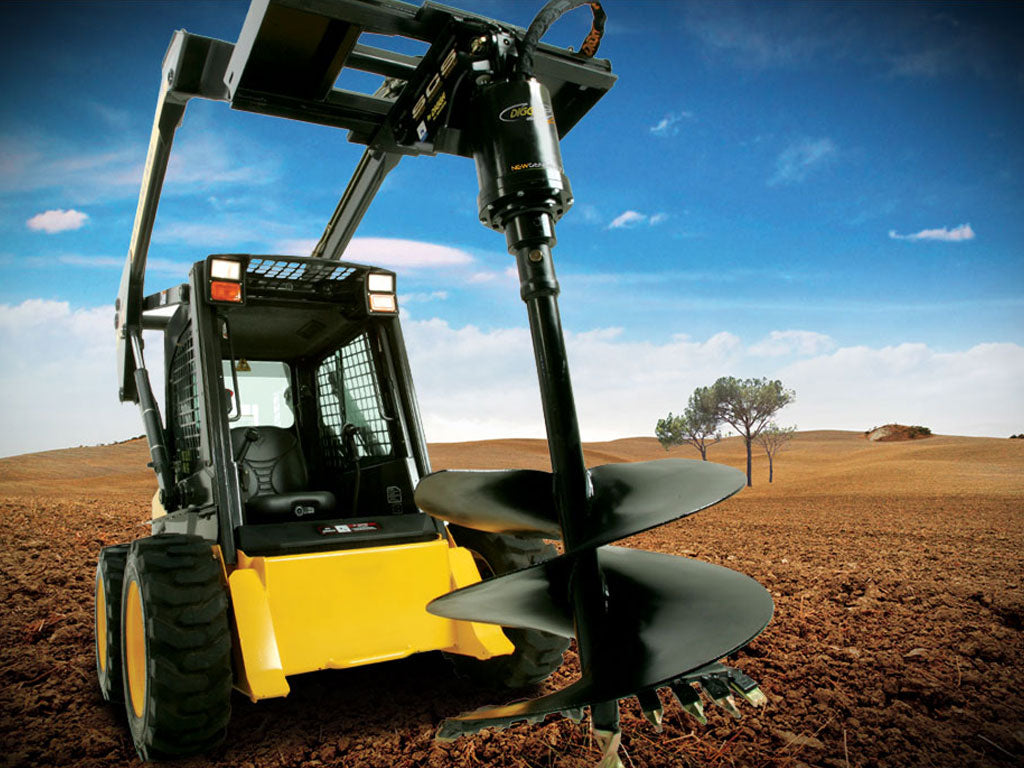

AUGERS DRIVES FOR SKID STEER LOADERS WITH HIGH FLOW HYDRAULICS

AUGERS FOR HIGH FLOW SKID STEER LOADERS

Digga's range of drilling drives for high flow skid steer loaders are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Halo Alignment System available
  • Single speed & two speed models available
  • Lifetime shaft pull out warranty

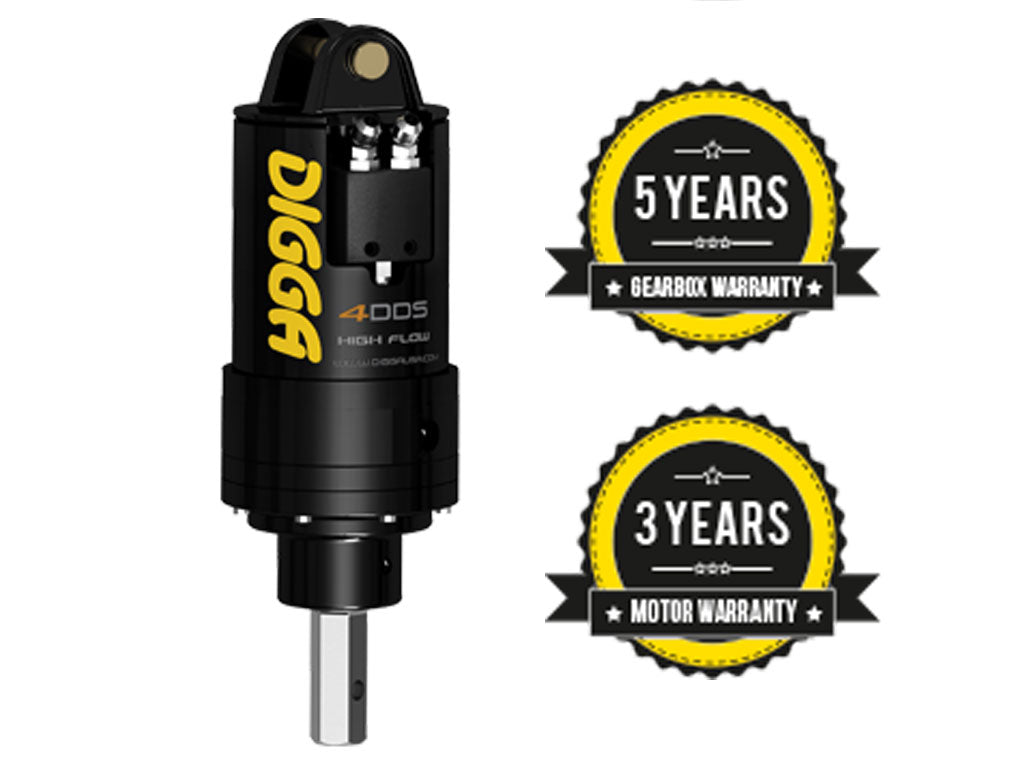

  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

      Includes:

      • HOSES & FITTINGS (7' LONG)

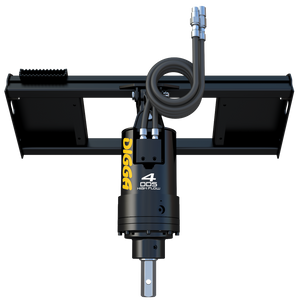

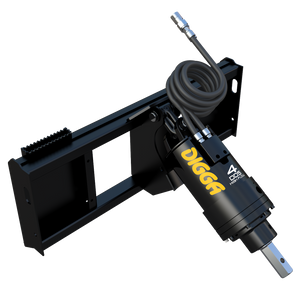

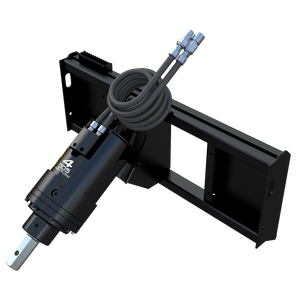

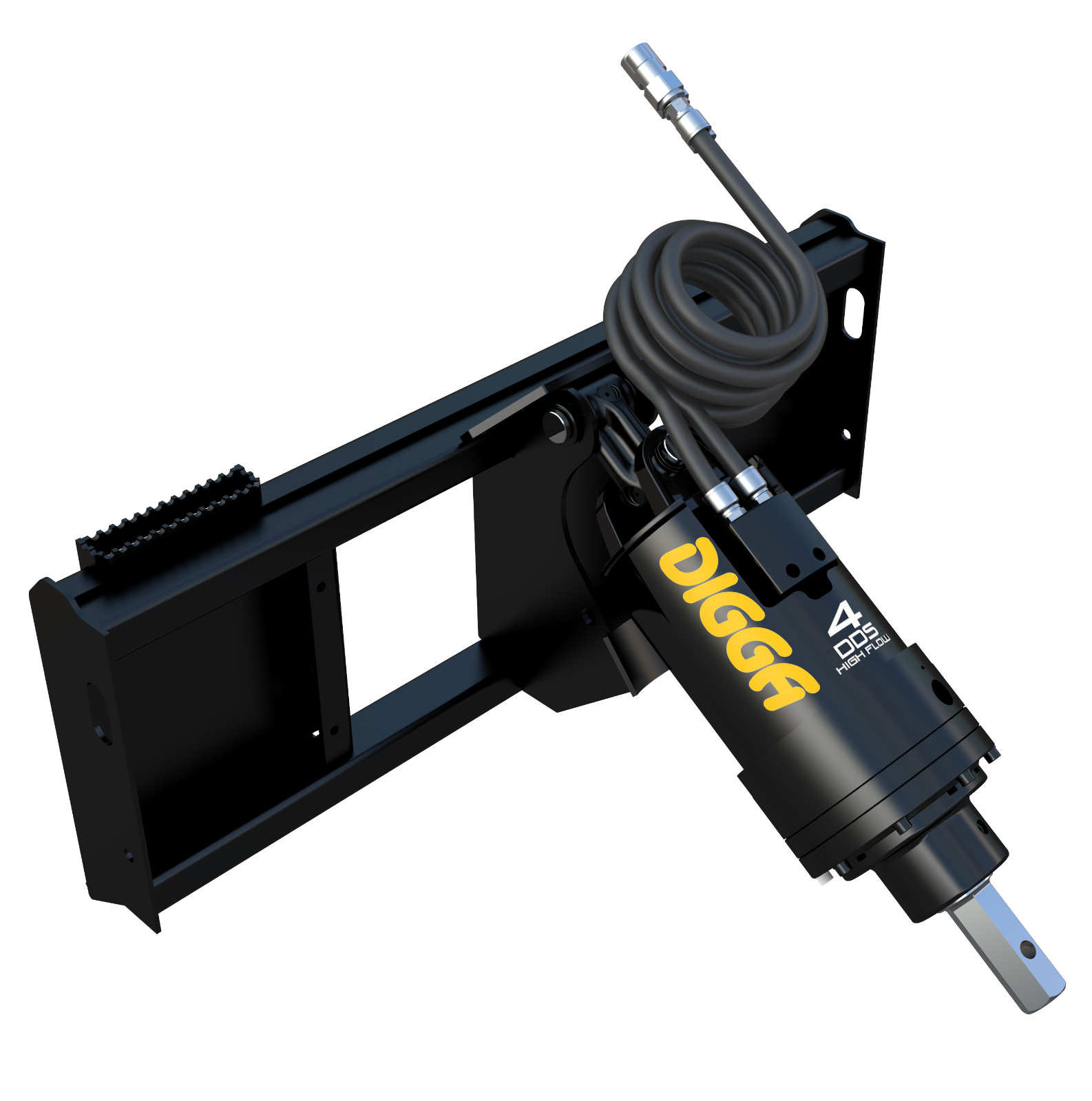

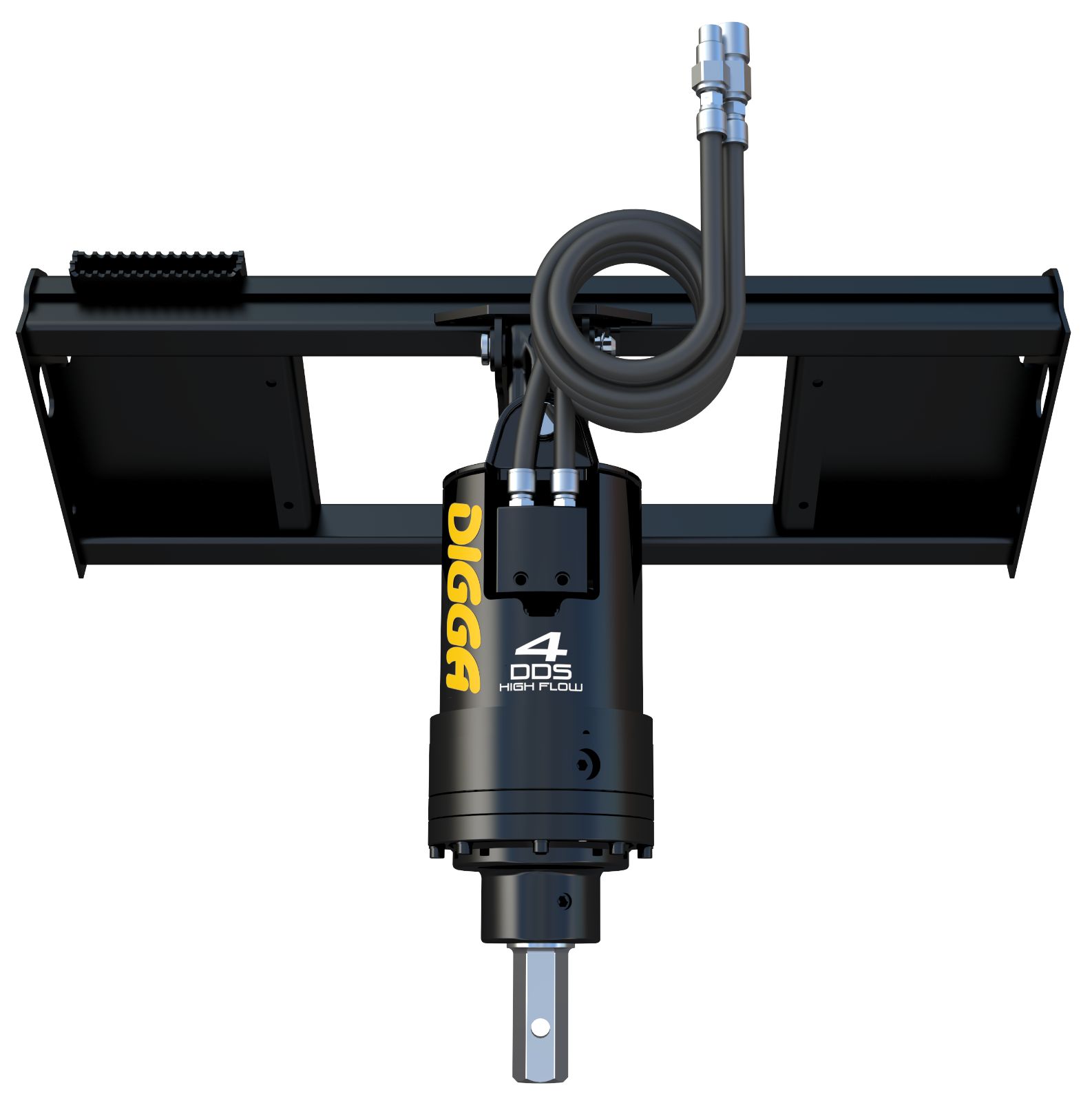

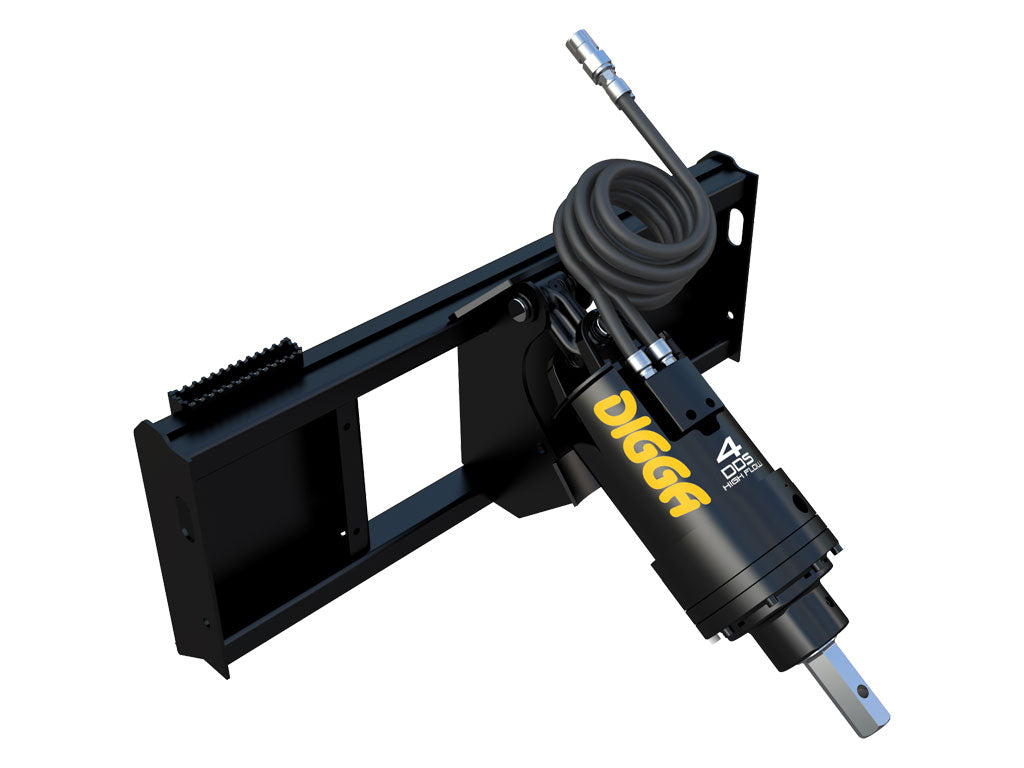

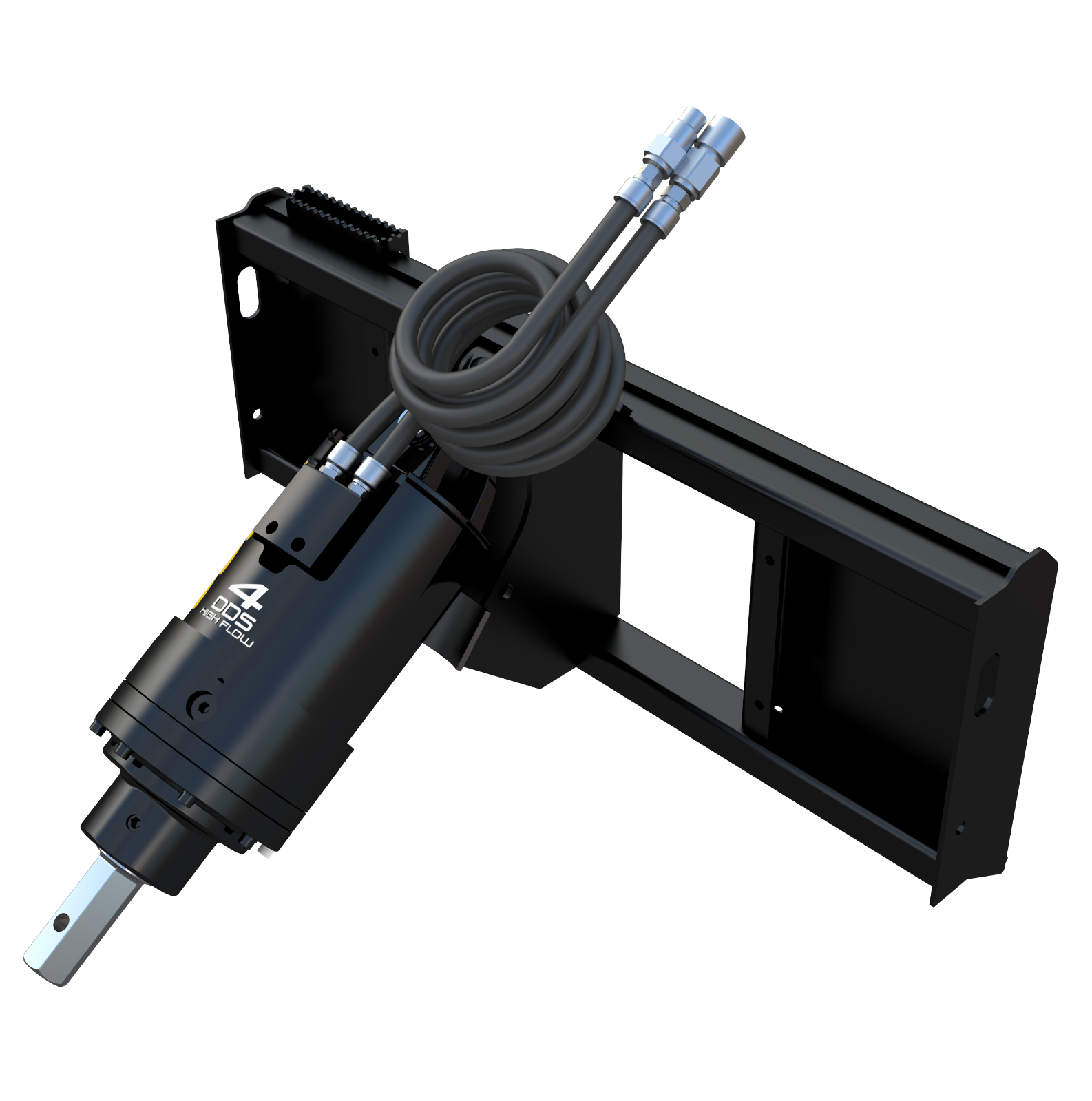

      • UNIVERSAL LOADER MOUNTING (BOBCAT)
      • 2.5" HEX SHAFT

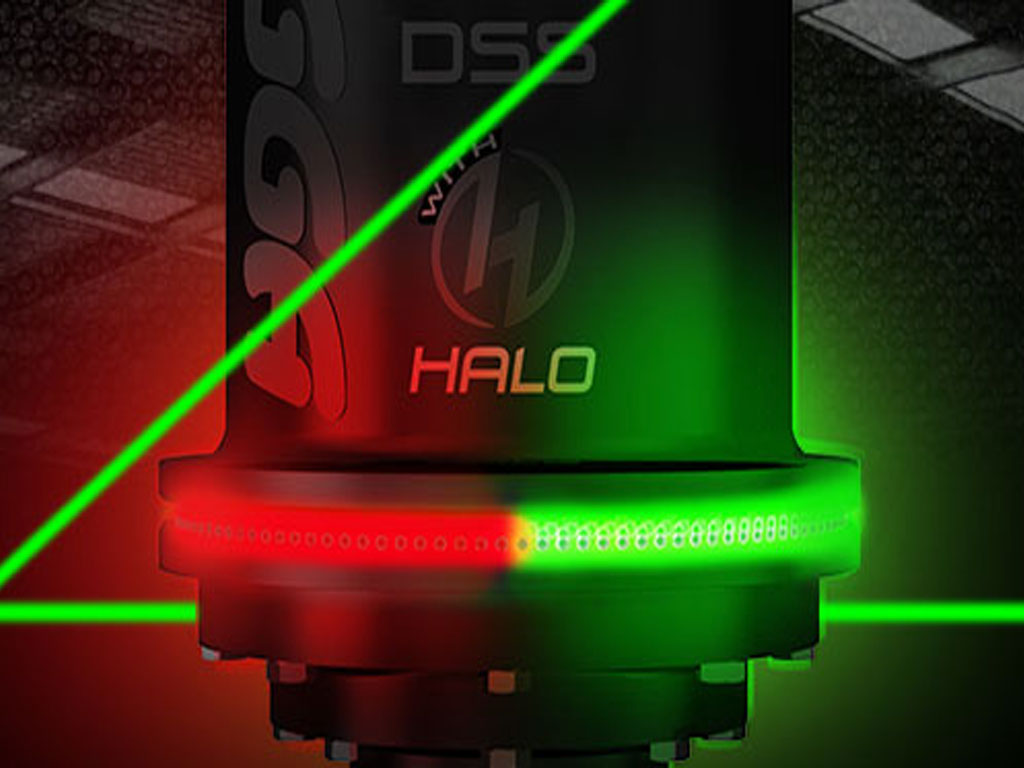

      The Halo Auger Alignment System is located in the hood ring of the auger. It provides the operator with a simultaneous clear line of sight to itself, and the hole being dug. HALO utilizes a band of LED lights, which when fully illuminated green, indicate the auger is plumb. If the auger moves from its plumb position, a sequence of red and green lights will be lit to effortlessly guide the operator back to plumb. Available range at time of launch, will include ALS, ADS, DSS, and DDS augers up to 30t.

      SPECS 4DDS 5DDS 6DDS
      TORQUE (FT-LBS @ 3000 PSI 3,583 3,903 4,909
      MAX TORQUE FT-LBS @ 3500 PSI 4,180 4,553 5,728
      RECOMMENDED FLOW (GPM) 10-36 10-36 12-36
      MOTOR TYPE EATON EATON EATON
      MAX PRESSURE - DO NOT EXCEED 3500 PSI @ 27 GPM
      MAX FLOW - DO NOT EXCEED 42 GPM @ 3100 PSI 55 GPM @ 1700 PSI
      MAX HORSE POWER 55 55 55
      PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED
      STANDARD OUTPUT SHAFT 2” HEX 2.5" HEX 2.5" HEX
      HALO OPTIONAL OPTIONAL OPTIONAL

      RECOMMENDED AUGER A4 / RC4 A6 / RC6 A6 / RC6
      MAX AUGER DRILLING (CLAY / SHALE)* 24" 24" 30"
      MAX DRILLING DIAMETER EARTH* 40" 40" 40"
      WEIGHT (LBS) 180 290 290
      OVERALL LENGTH (IN) 29" 33.7" 33.7"
      DIAMETER (IN) 9.4" 11.4" 11.4"

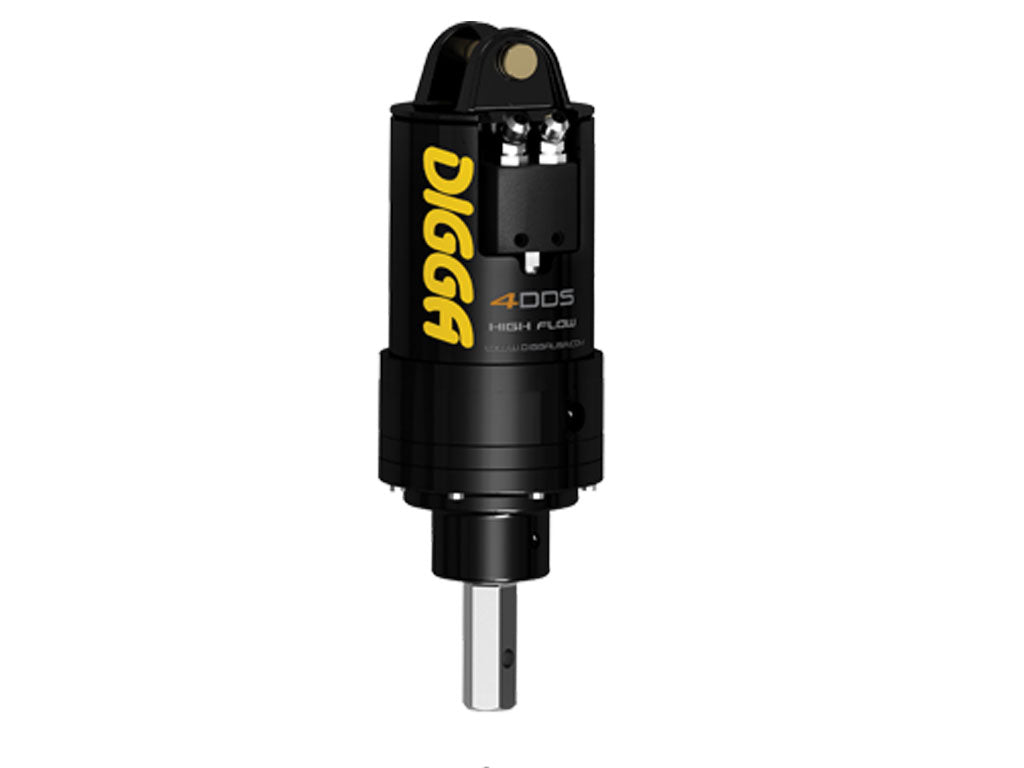

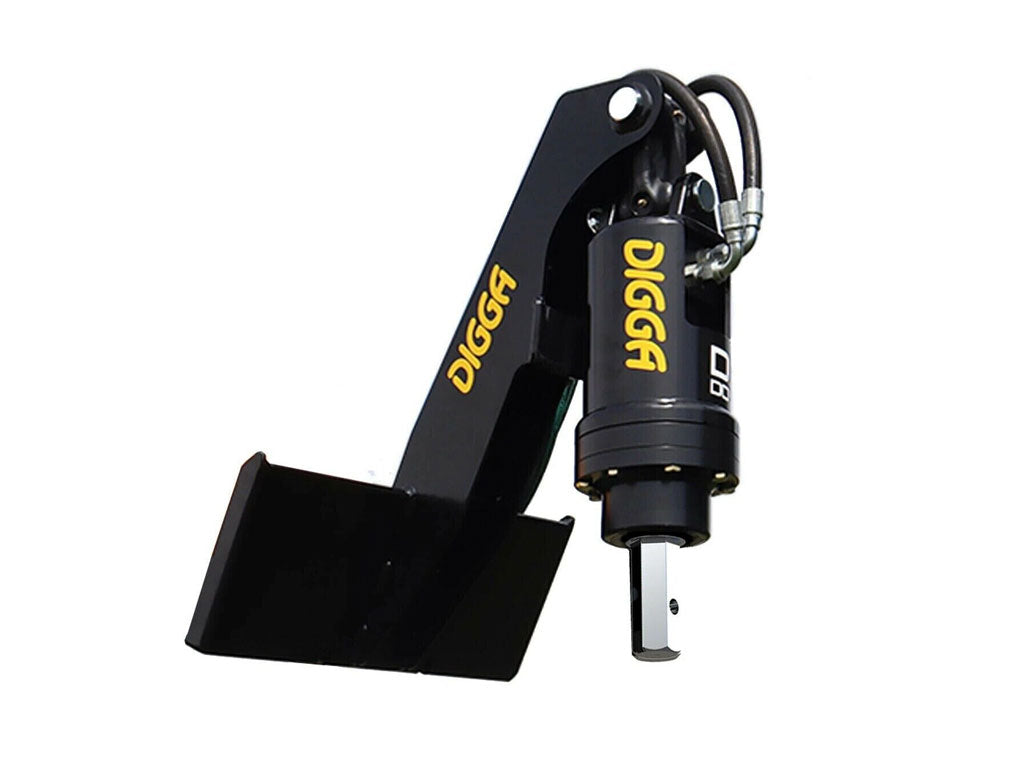

      The 4DDS, 5DDS and 6DDS auger drives are designed for heavy duty drilling. These augers are designed for high flow skid steers depending on the model. These augers have a four way swing mounting (forward and back, side to side). An mounting extension option allows you to use bit extensions to drill deep holes. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
