SD45-SPL300

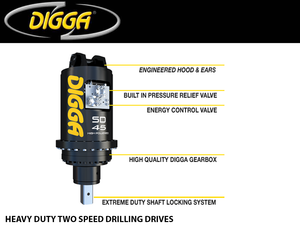

DIGGA Heavy Duty Two speed drilling Drives for excavators, 39700 - 66100 lbs. machines (18-30 ton)

MODEL
MOUNTING

5/24

2 SPEED SUPA ANCHOR DRIVES

HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE

The Supa Drive range provides you with the most versatile selection of supreme planetary drives boasting greater power and speed. Designed for screw piling and ground anchor installation up to 70,000 ft-lbs.

Digga’s innovative compact design and industry leading innovations make this range of drive units the industry’s first choice for anchored applications. With world leading technology as standard inclusions such as the Energy Control Valve (ECV) which prevents rapid decompression of oil caused by pile kick-back, and a built-in Pressure Relief Valve (PRV) to give you peace of mind that your investment is protected.

FEATURES

  • 2 Speed drive system
  • Compact high torque Digga manufactured gearbox
  • The highest volumetrically efficient motor available
    - Maintain consistent & efficient pile installation
  • Extreme duty shaft locking system
  • No complex hoses, valving or filtration
  • Built-in Pressure Relief Valve standard
  • Energy Control Relief Valve
  • 1yr Gearbox & 1yr Motor Warranty

DIMENSIONS

  • Overall Length: from 50.9"
  • Diameter: from 23.6"

    FASTER HIGH POWERED 2-SPEED AUGERS FOR MACHINES BETWEEN 15-30T

    Digga’s High Powered Drives operate at a MAX PRESSURE OF 5,000 PSI providing you the speed and performance without detuning your machine.

    Compact high quality gearbox made by Digga

    Gears are precision machined by Digga from high grade quality alloy steel, providing you with a highly efficient pressurized gearbox which ensures no leaks and minimal maintenance.

    Built-in PRV (pressure relief valve) as standard

    ensures max volumetric effeciency for consistent & efficient pile installation throughout the working day.

    .

    Integrated ECV (energy control valve)

    This revolutionary bypass valve is fitted to the drive to control the rapid decompression of oil.

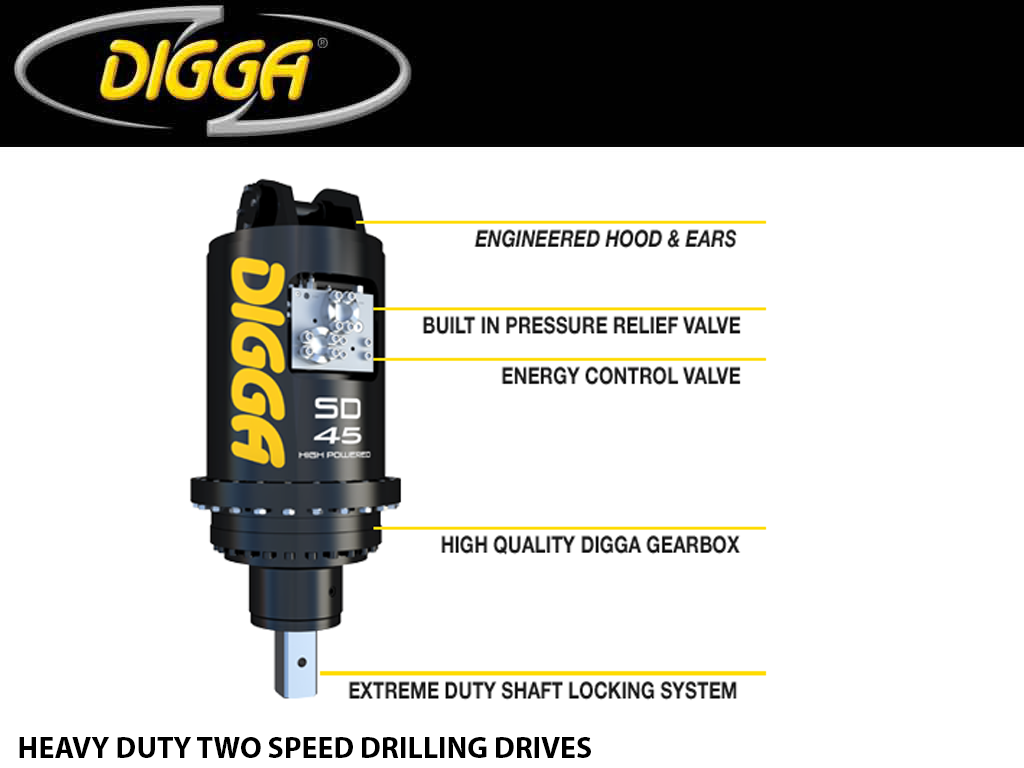

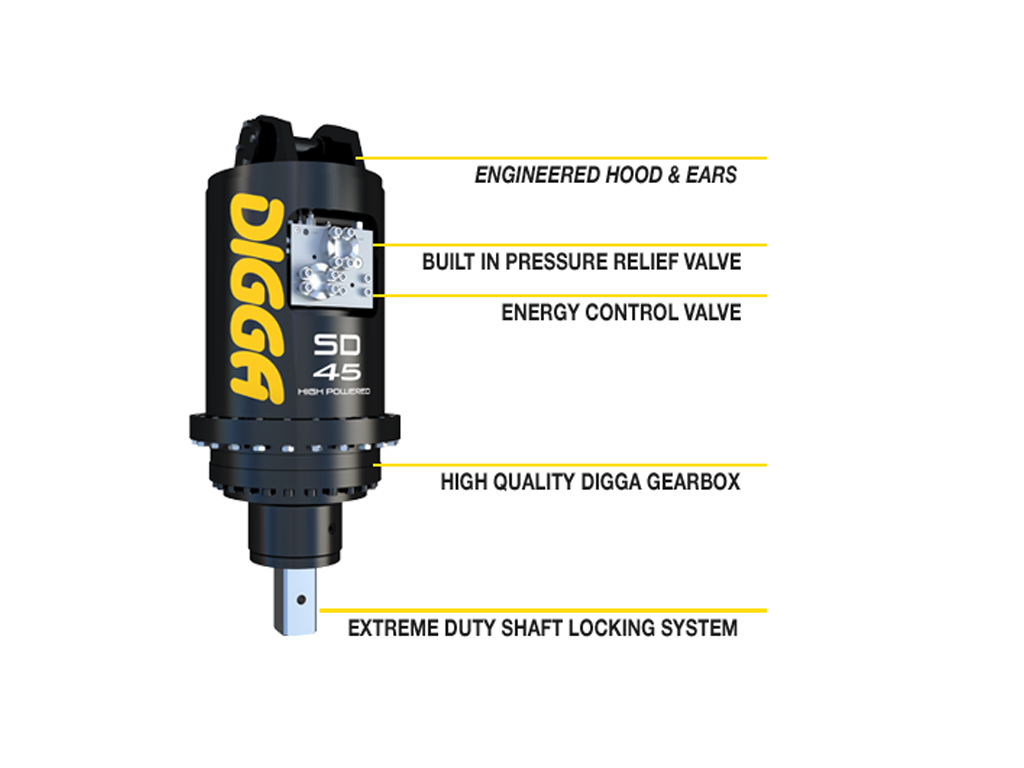

    Engineered hood and ears

    For maximum strength. Specifically designed for heavy duty drilling applications.

    Extreme heavy duty shaft locking system

    The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears fromthe pushing, pulling & bending forces generated by the machine.


        Two Speed

        SPECS SD 45 SD 50 SD 70 SD 80 SD 95
        MAX TORQUE 32,892 FT-LBS 38,569 FT-LBS 50,465 FT-LBS 60,828 FT-LBS 67,675 FT-LBS
        MAX FLOW DO NOT EXCEED 100 GPM @ 3,500 PSI
        MAX PRESSURE DO NOT EXCEED 3,500 PSI @ 100 GPM
        MAX POWER DO NOT EXCEED 201 HP
        MOTOR RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON
        PRV INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
        ECV INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
        OVERALL LENGTH 50.9" 50.9" 50.9" 50.9" 50.9"
        DIAMETER 23.6" 23.6" 23.6" 23.6" 23.6"
        WEIGHT
        (NO HITCH / OIL)
        1848 LBS 1843 LBS 1843 LBS 1843 LBS 1859 LBS
        SHAFT 100MM SQUARE 100MM SQUARE 100MM SQUARE 100MM SQUARE 100MM SQUARE



        Two Speed High power

          SD45HPT SD50HPT SD70HPT SD80HPT SD95HPT
        MAX TORQUE (FT-LBS) 33,654 39,463 51,634 62,638 69,244
        MAX SPEED (RPM) LOW TORQUE 78 66 51 42 38
        MAX SPEED (RPM) HIGH TORQUE 46 39 30 25 22
        MAX FLOW (GPM) 100 GPM @ 3,500 PSI
        MAX PRESSURE - DO NOT EXCEED 5,000 PSI @70 GPM
        MAX HORSE POWER 201 201 201 201 201
        MOTOR TYPE RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON
        PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
        ENERGY CONTROL VALVE INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
        STANDARD OUTPUT SHAFT 100MM
        SQUARE
        100MM
        SQUARE
        100MM
        SQUARE
        100MM
        SQUARE
        100MM
        SQUARE

        RECOMMENDED AUGER RC11 / DR11 RC11 / DR11 RC11 / DR11 RC11 / DR11 RC11 / DR11
        MAX AUGER DIAMETER
        (CLAY / SHALE)*
        60" 60" 60" 60" 60"
        MAX AUGER DIAMETER (EARTH)* 79" 79" 79" 79" 79"
        WEIGHT (LBS) 1,843 1,843 1,843 1,843 1,843
        OVERALL LENGTH (IN) 50.9" 50.9" 50.9" 50.9" 50.9"
        DIAMETER (IN) 23.6" 23.6" 23.6" 23.6" 23.6"
