12DDT-11 / SPL300

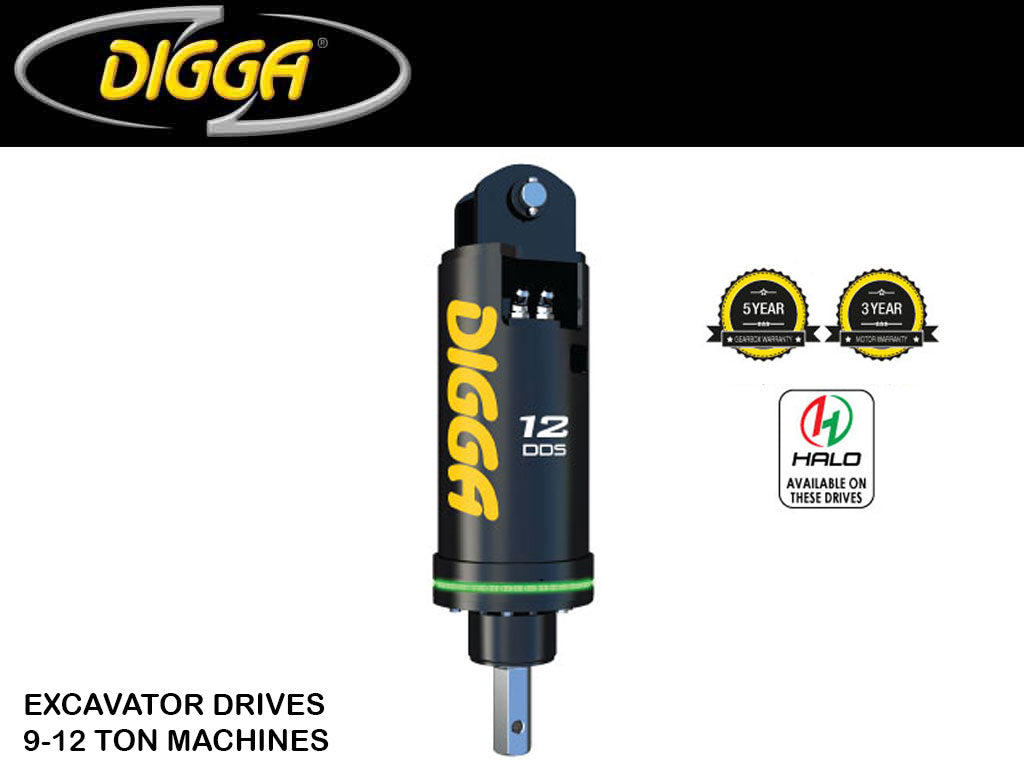

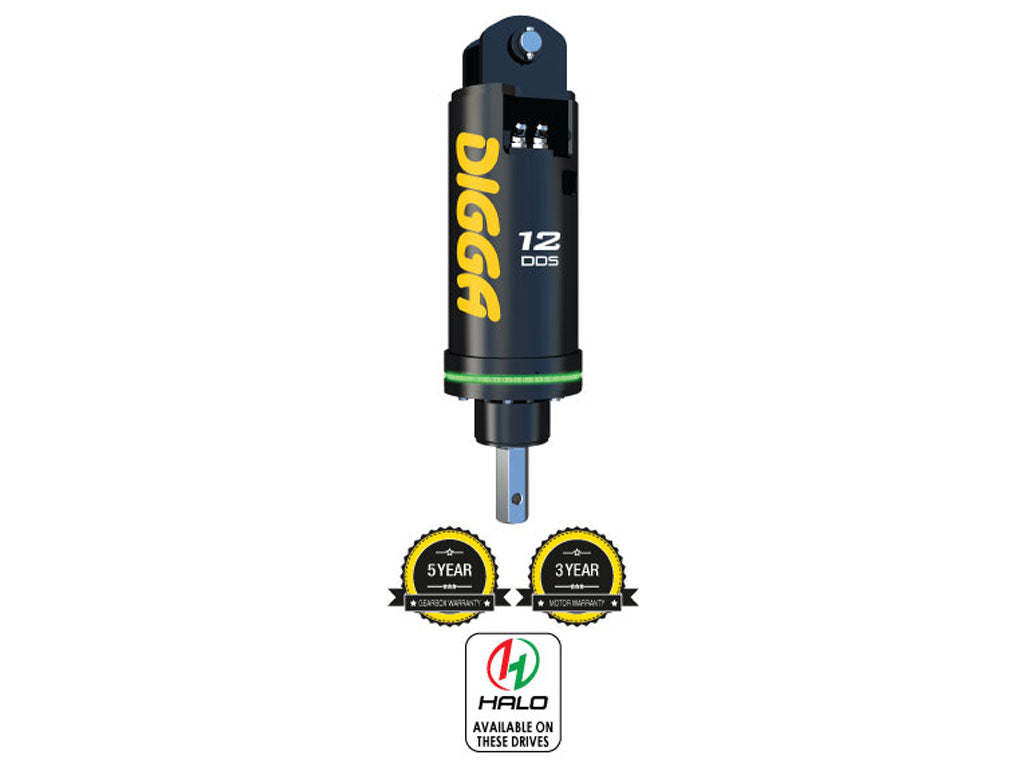

DIGGA Two Speed Auger drives for excavators, 19800 - 26500 lbs. machines (9T-12T)

MODEL
MOUNTING
OPTIONS

5/24

2 SPEED AUGERS FOR EXCAVATORS 9-12T

Digga's 2 Speed Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 10-48gpm. We distribute our 2 Speed Drilling Augers throughout North America.

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton VIS motor
  • Integrated PRV (Pressure Relief Valve)
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • 5 year gearbox and 3 year motor warranty
  • Low maintenance

HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE

    SPECS 12DDT
    TORQUE (FT-LBS @ 3000 PSI) 10,310
    MAX TORQUE (FT-LBS @ 3500 PSI) 12,028
    RECOMMENDED FLOW (GPM) 10-46
    MOTOR TYPE EATON
    MAX PRESSURE (DO NOT EXCEED) 3500 PSI @ 29 GPM
    MAX FLOW (DO NOT EXCEED) 53 GPM @ 1950 PSI
    MAX HORSE POWER 60
    PRESSURE RELIEF VALVE INCLUDED
    STANDARD OUTPUT SHAFT 2.5" HEX
    HALO AVAILABLE YES

    RECOMMENDED AUGER A8 / RC8
    MAX AUGER DIAMETER (CLAY / SHALE)* 36"
    MAX AUGER DIAMETER EARTH* 48"
    WEIGHT (LBS) 376
    OVERALL LENGTH (IN) 35.7"
    DIAMETER (IN) 14.4"
