20DDT-7 / SPL300

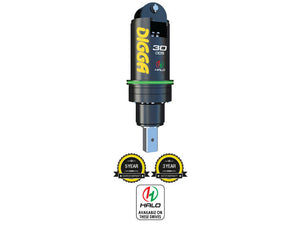

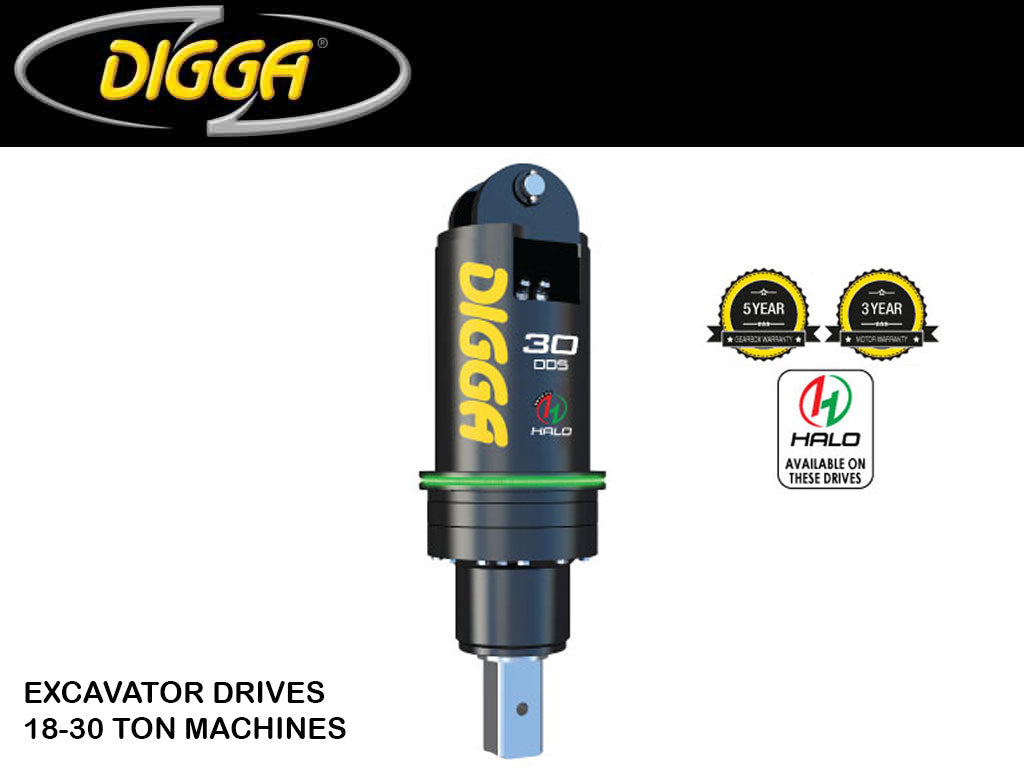

DIGGA Two Speed Auger Drives for excavators, 39700 - 66100 lbs. machines (18-30 ton)
$14,920.00 - $19,320.00
5/24
2 SPEED AUGERS FOR EXCAVATORS 18-30T
Digga's 2 Speed Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 20-53gpm. We distribute our 2 Speed Drilling Augers throughout North America.
FEATURES
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton VIS motor
- Integrated PRV (Pressure Relief Valve)
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- 5 year gearbox and 3 year motor warranty
- Low maintenance
HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE
| SPECS | 20DDT | 25DDT | 30DDT |
| MAX TORQUE (FT-LBS @ 3500 PSI) |
20,309 | 25,027 | 31,489 |
| RECOMMENDED FLOW (GPM) | 20-53 | 20-53 | 20-53 |
| MOTOR TYPE | EATON | EATON | EATON |
| MAX PRESSURE ( DO NOT EXCEED) |
3500 PSI @ 39 GPM | ||
| MAX FLOW ( DO NOT EXCEED) |
53 GPM @ 2600 PSI | ||
| MAX HORSE POWER | 80 | 80 | 80 |
| PRESSURE RELIEF VALVE | INCLUDED | INCLUDED | INCLUDED |
| STANDARD OUTPUT SHAFT | 100 MM SQUARE | 100 MM SQUARE | 100 MM SQUARE |
| HALO AVAILABLE | YES | YES | YES |
| RECOMMENDED AUGER | RC10 / RC11 | RC10 / RC11 | RC10 / RC11 |
| MAX AUGER DIAMETER (CLAY / SHALE)* |
60" | 60" | 60" |
| MAX AUGER DIAMETER (EARTH)* | 72" | 72" | 72" |
| WEIGHT (LBS) | 670 | 670 | 670 |
| OVERALL LENGTH (IN) | 45.9" | 45.9" | 45.9" |
| DIAMETER (IN) | 14" | 14" | 14" |
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
