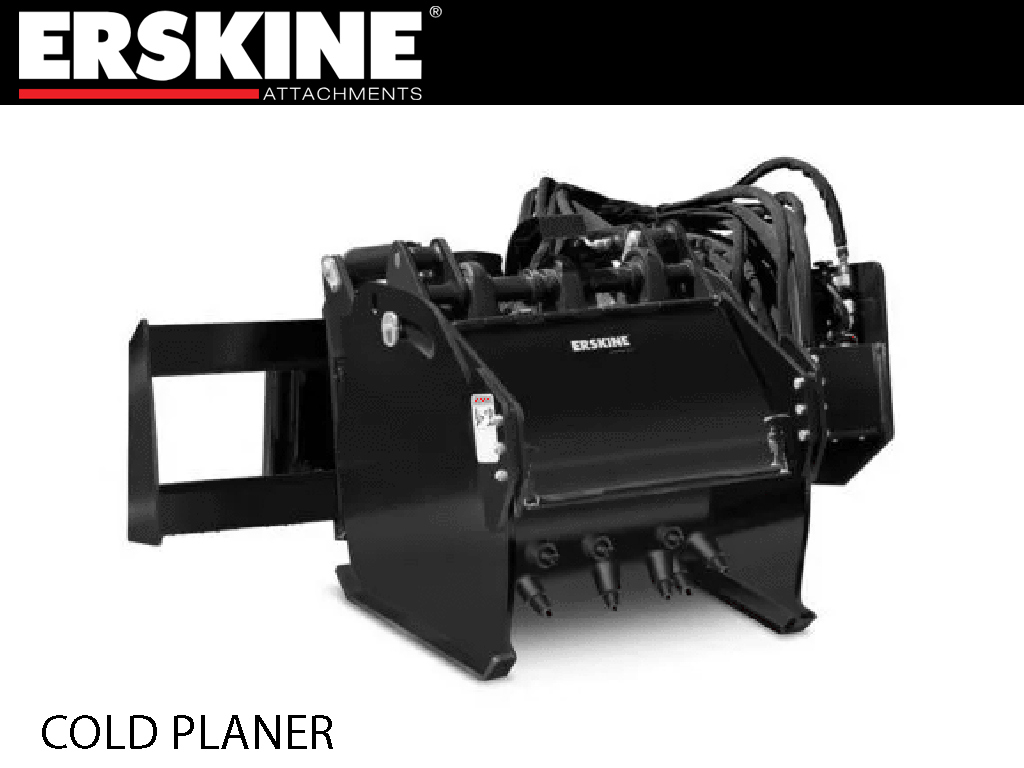

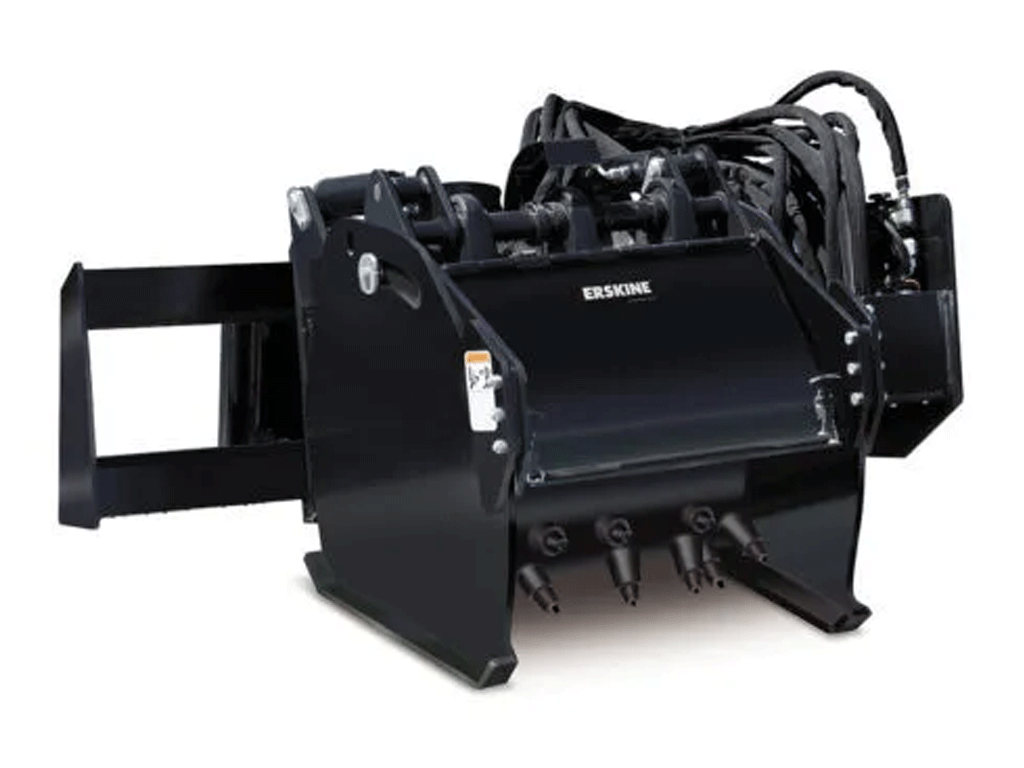

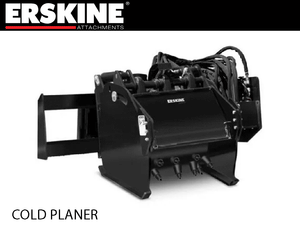

ERSKINE cold planer for skid steer

Size
Harness

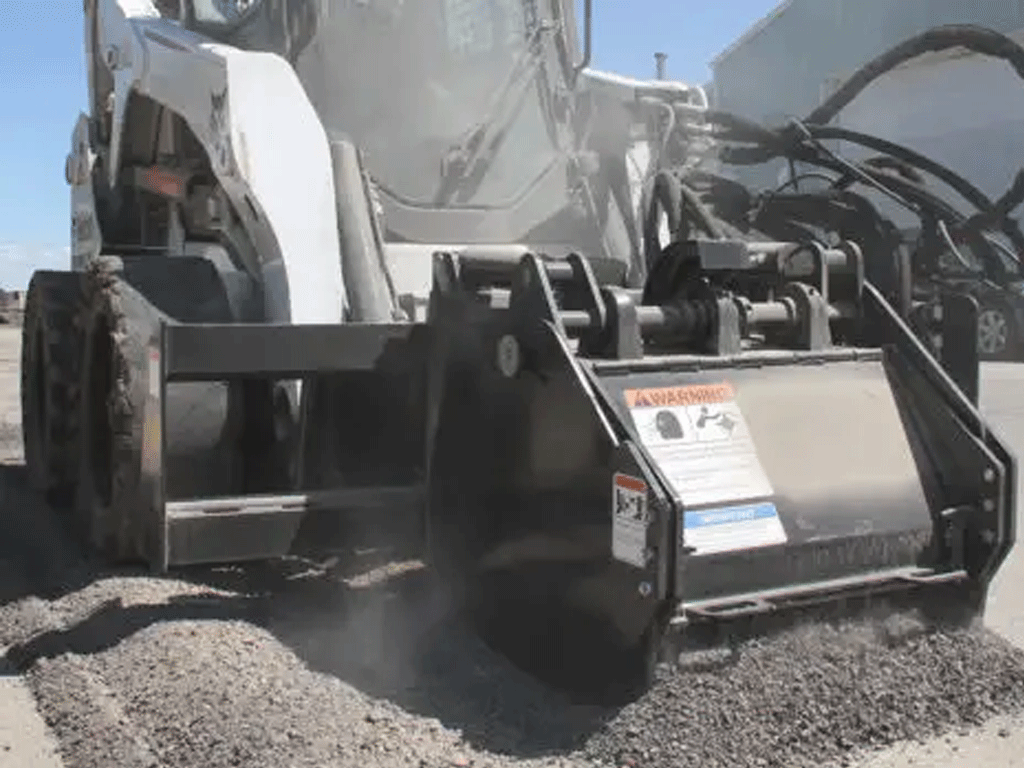

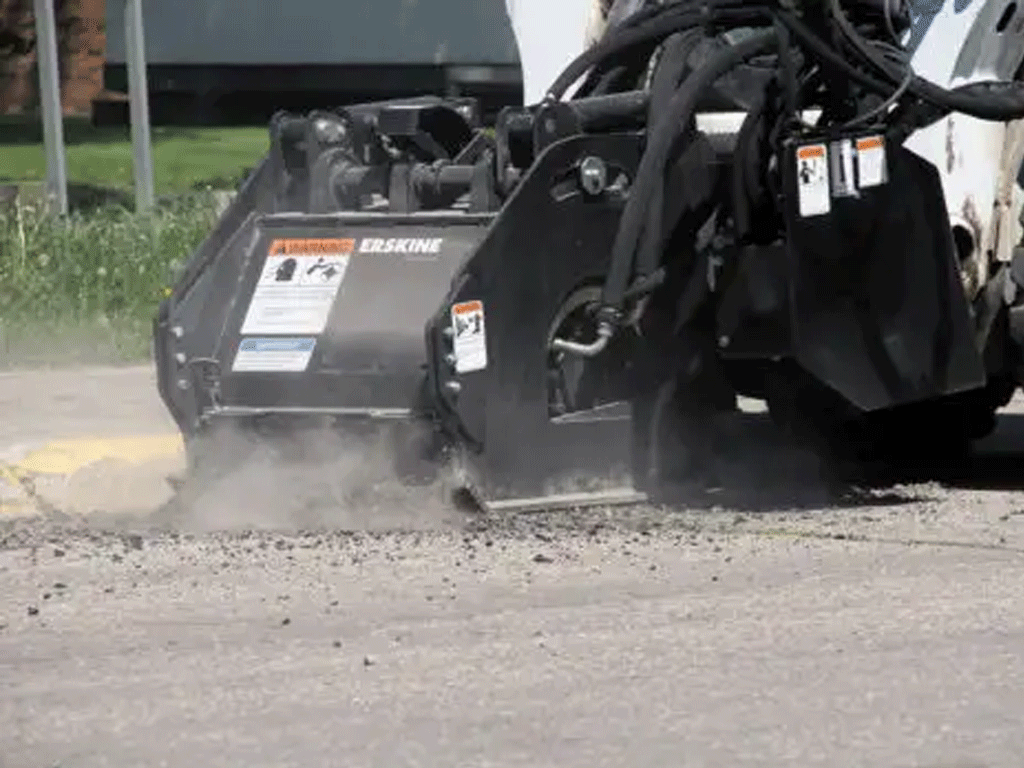

Highly versatile Cold Planers are adaptable to a wide variety of job environments including road repair, bridge deck repair, landscaping, municipal, shopping center and utility work. The Cold Planer is easy to maneuver around manhole and storm drains; excellent for bridge decks where heavier, dedicated planers are not allowed. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat.

Features

  • Adjustable to a wide variety of job environments including road construction, landscaping, bridge deck repair, municipal, shopping center, and utility work
  • Easy to maneuver around manholes and storm drains; excellent for bridge decks where heavier dedicated planers are not allowed
  • Two tools in one; cut asphalt and concrete with the same machine
  • Side-shift feature moves planer from left to right for maximum maneuverability

Model CP18 CP24 CP36 CP48
Part Number 900938 900939 901430 901431
Depth of Cut 0-6” 0-6” 0-6” 0-6”
Width of Cut 18” 24” 36” 48”

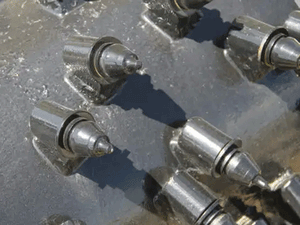

Number of Teeth 48 60 78 90
Standard Side-Shift 24” Hydraulic 24” Hydraulic 24” Hydraulic 24” Hydraulic
Tilt 16° 16°
Hydraulic Requirement 22-40 GPM 25-40 GPM 25-50 GPM 25-50 GPM
2,800-6,525 psi 3,000-6,525 psi 3,000-6,525 psi 3,000-6,525 psi
Weight 1,600 lb. 1,750 lb. 2,550 lb. 2,800 lb.

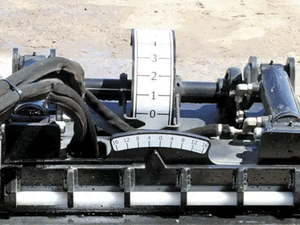

Depth Control Hydraulic Hydraulic Hydraulic Hydraulic
Tilt Control Hydraulic Hydraulic Hydraulic Hydraulic
Case Drain Required Required Required Required
Hydraulic Flow Classification High Flow High Flow High Flow High Flow
Options
Bolt-On Rollers
Pistol Grip Control Harness
Loader Specific Wire Harness
Case Drain Coupler
Factory Installed Couplers
Factory Installed High Flow Couplers
