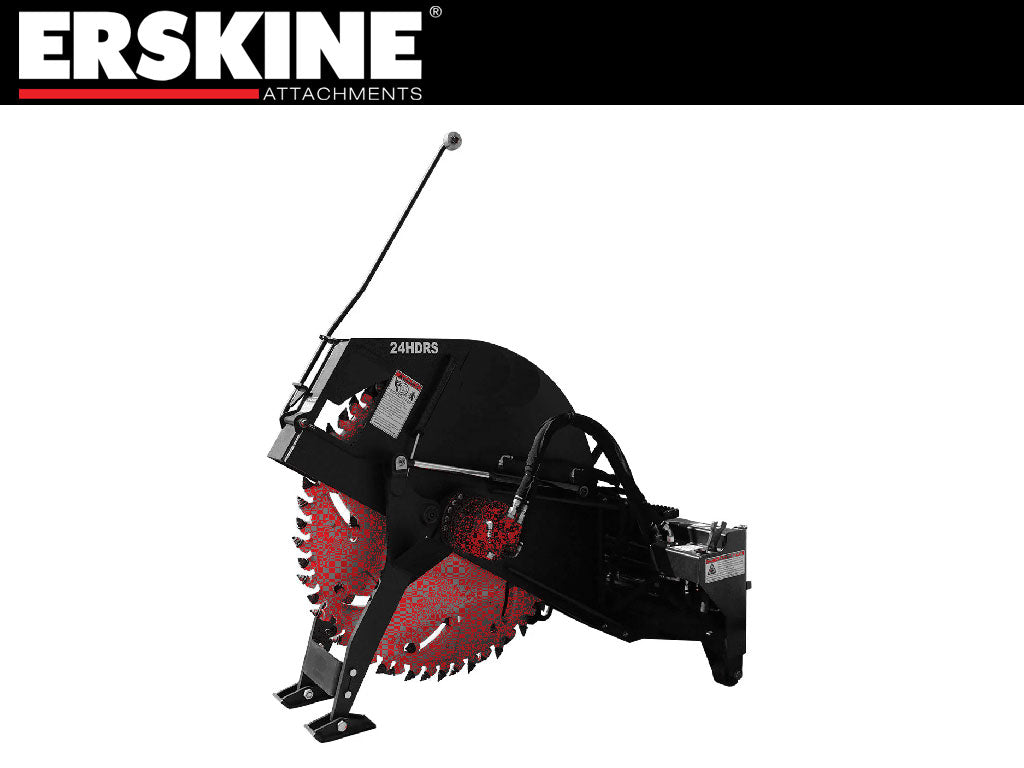

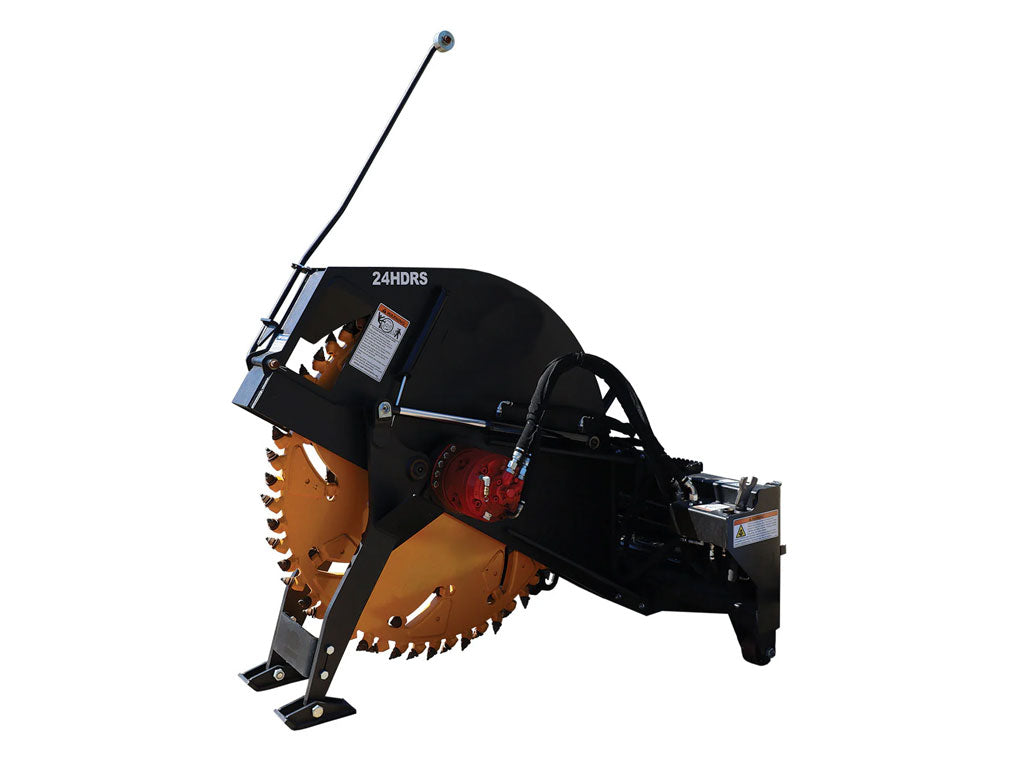

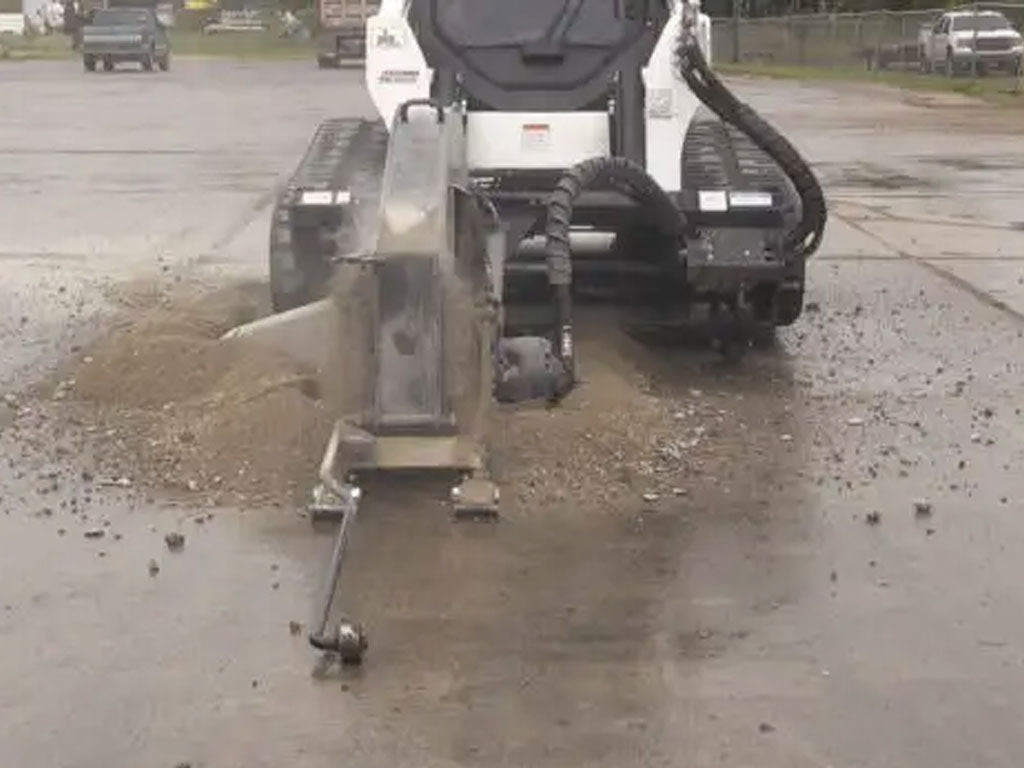

Erskine Heavy Duty Rock Saw for skid steer loader
$28,255.00 - $31,795.00
2/25
Heavy-Duty Rock Saw
SKID STEER

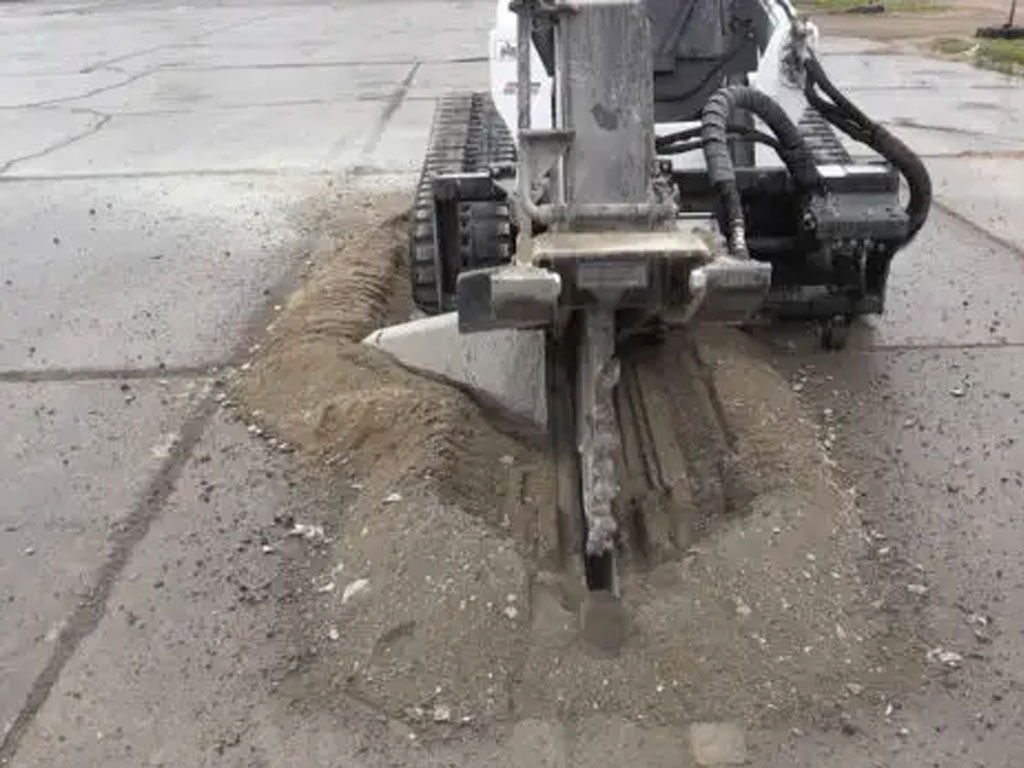

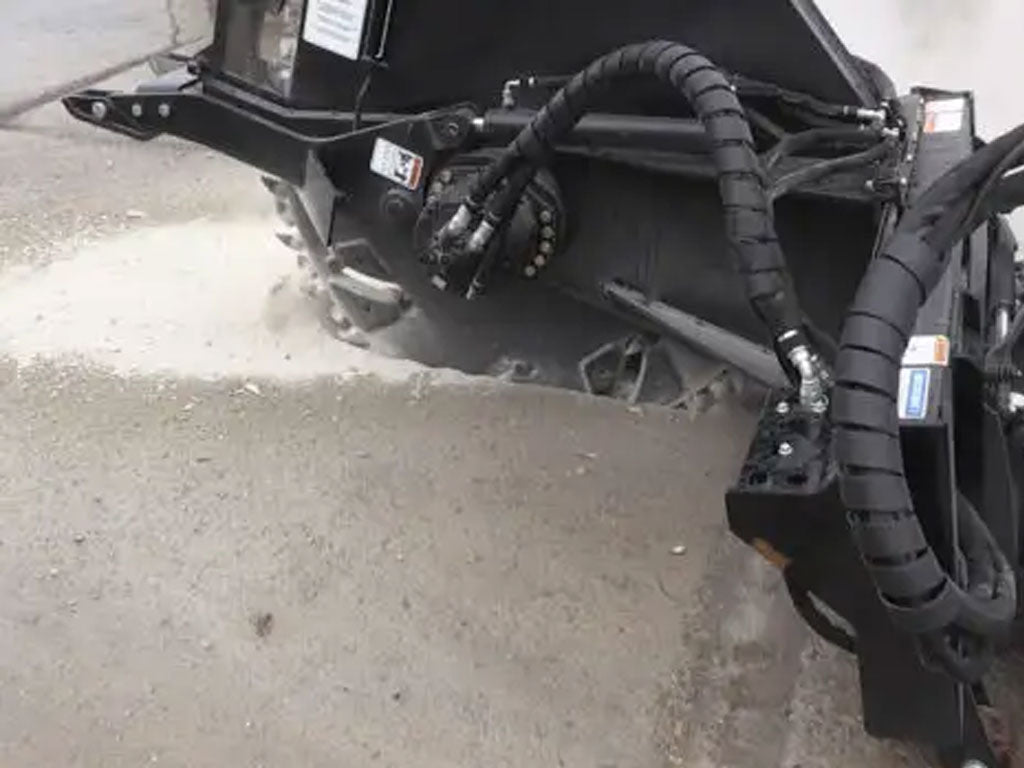

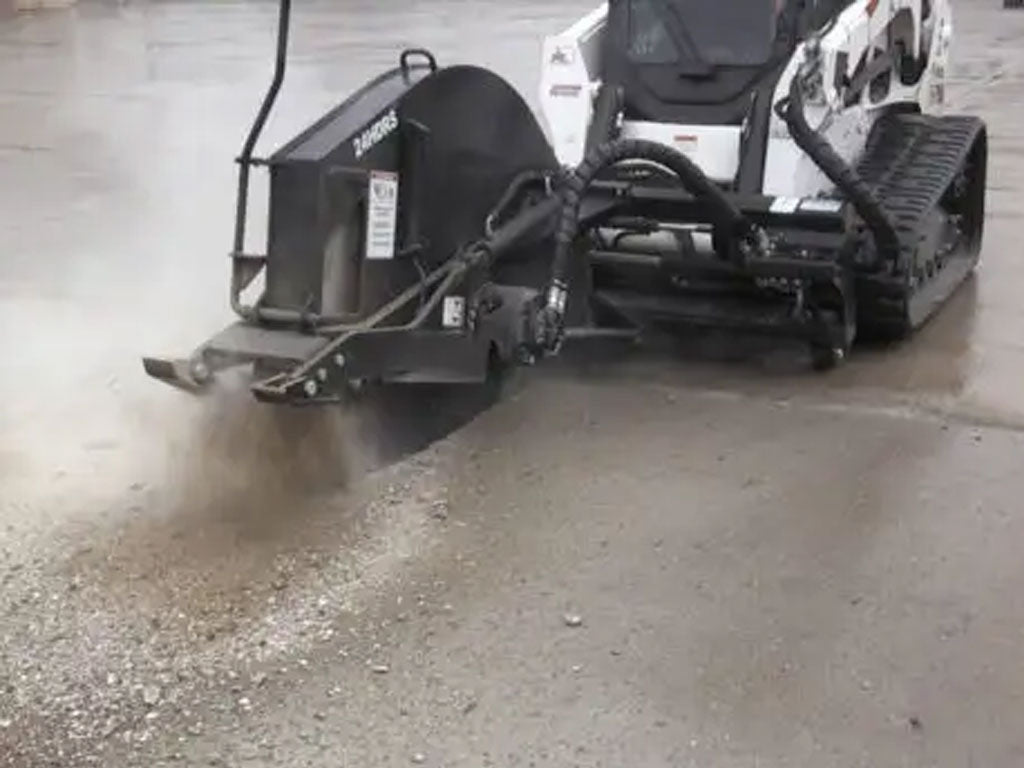

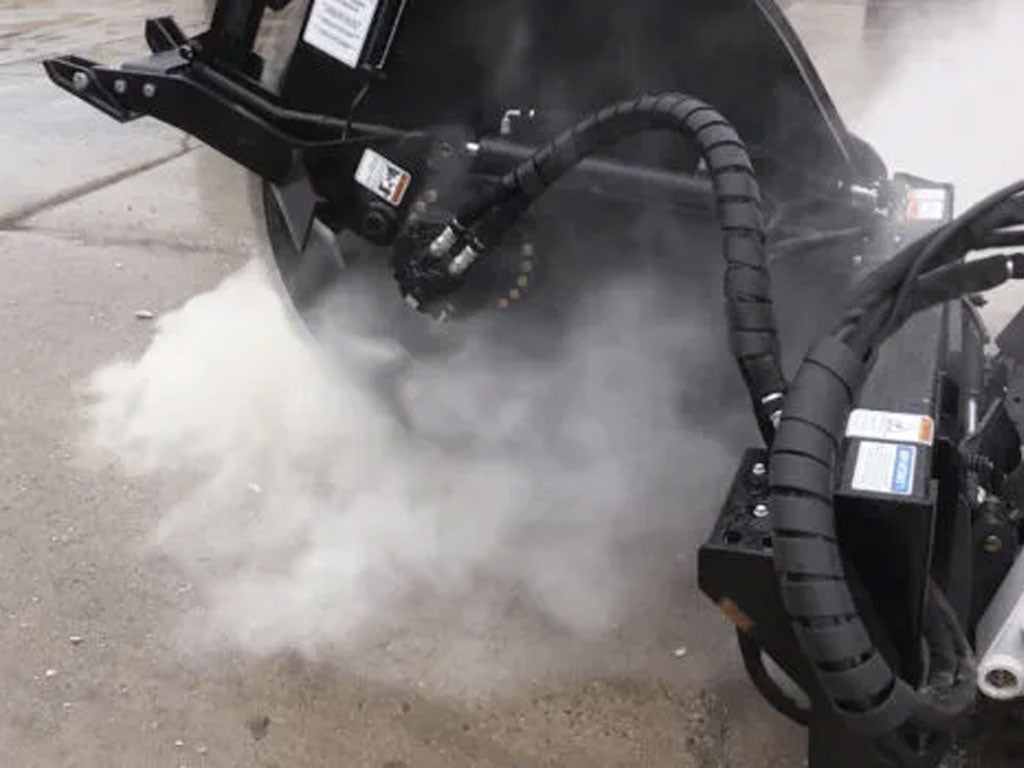

Cut through asphalt and concrete with greater efficiency with the Heavy-Duty Rock Saw. This powerhouse delivers up to 20 FPM cutting speeds. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat. Cut up to 18” or 24” deep. Side cutting teeth, a side motor protection blade, and a floating spoil deflector come standard.
Features

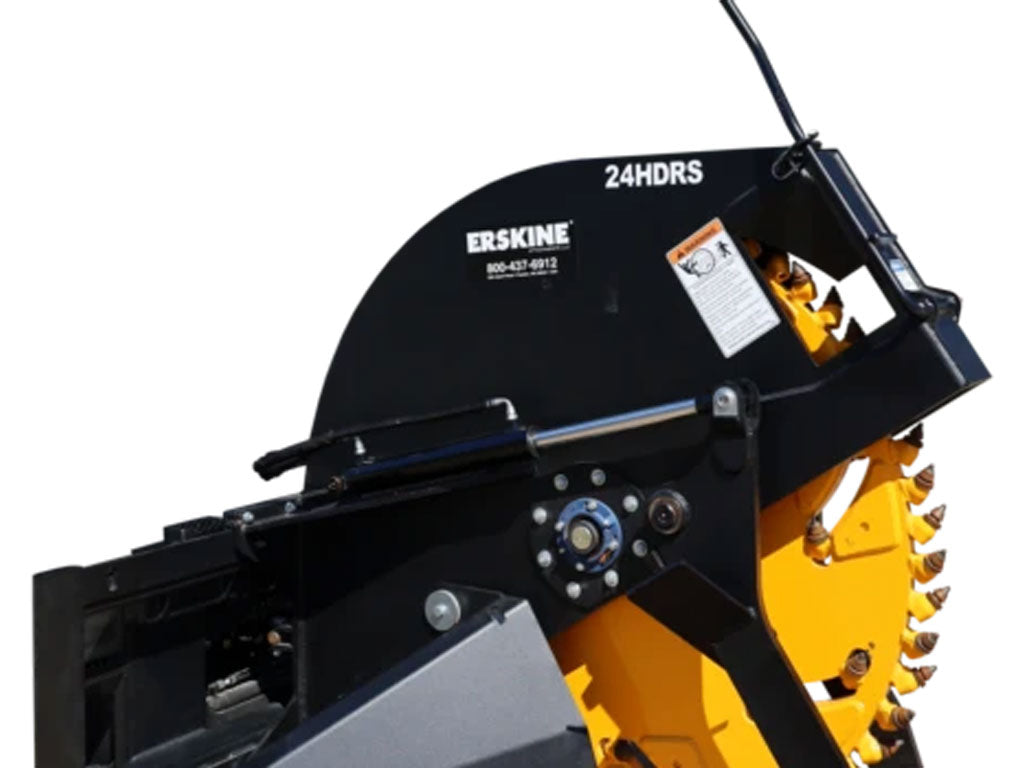

- Highly visible depth gauge allows for more precise control over cutting depth
- Large spindle & support bearing improves cutting efficiency by stabilizing the cutter head
- Side cutter head teeth minimize any cutter head binding while cutting full depth trenches
- Dual depth control legs improve stability while cutting
- New motor & gearbox provides 33% more available torque than the standard Rock Saw
- Our universal quick attach plates fit most skid steers
REQUIRES
- 25-45 GPM HYDRAULIC HIGH FLOW
- 2200-4800 PSI
* WE WILL CONTACT YOU FOR MACHINE MAKE AND MODEL
| Model | 18HDRS | 24HDRS |
|---|---|---|
| Part Number | 901306 | 901307 |
| Motor Specifications | ||
| Minimum Flow Rate | 25 GPM | 25 GPM |
| Maximum Flow Rate | 45 GPM | 45 GPM |
| Maximum Speed | 130 RPM | 130 RPM |
| Minimum Operating Pressure | 2,200 psi | 2,200 psi |
| Maximum Pressure | 4,800 psi | 4,800 psi |
| Maximum Power Output | 80 HP | 80 HP |
| Maximum Torque | 6,640 lb-ft | 6,640 lb-ft |
| Saw Specifications | ||
| Hydraulic Flow Classification | High Flow | High Flow |
| Number of Teeth | 54 | 72 |
| Width of Cut | 2.75"" | 2.75"" |
| Depth of Cut | 18"" | 24"" |
| Depth Control | Hydraulic | Hydraulic |
| Side-Shift Distance | 24"" | 24"" |
| Side-Shift Control | Hydraulic | Hydraulic |
| Overall Width | 66.5"" | 66.5"" |
| Overall Length | 69.5"" | 76.2"" |
| Overall Height | 53"" | 64"" |
| Weight | 2,550 lb. | 3,150 lb. |
| Cutting Speed | Up to 20 FPM | Up to 20 FPM |
| Options | ||
| Pistol Grip Control Harness | ||
| Loader Specific Wire Harness | ||
| Factory Installed Case Drain Coupler | ||
| Factory Installed Couplers | ||
| Factory Installed High Flow Couplers |
