ERSKINE Mini Skid Steer V-Plow
$0.00

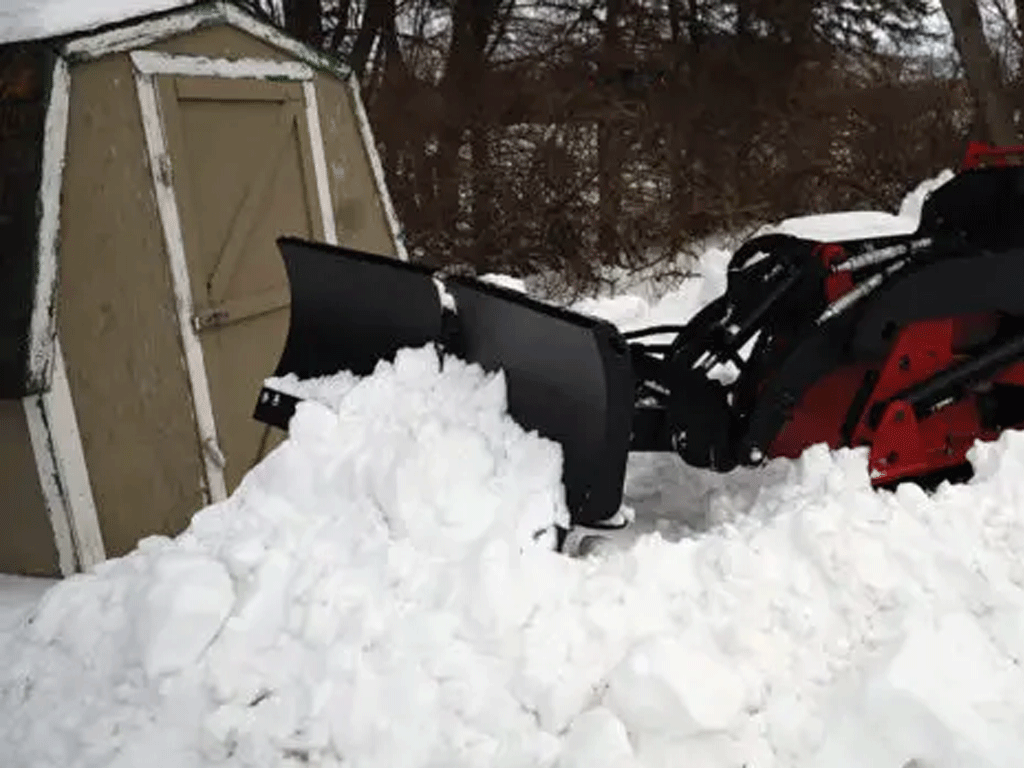

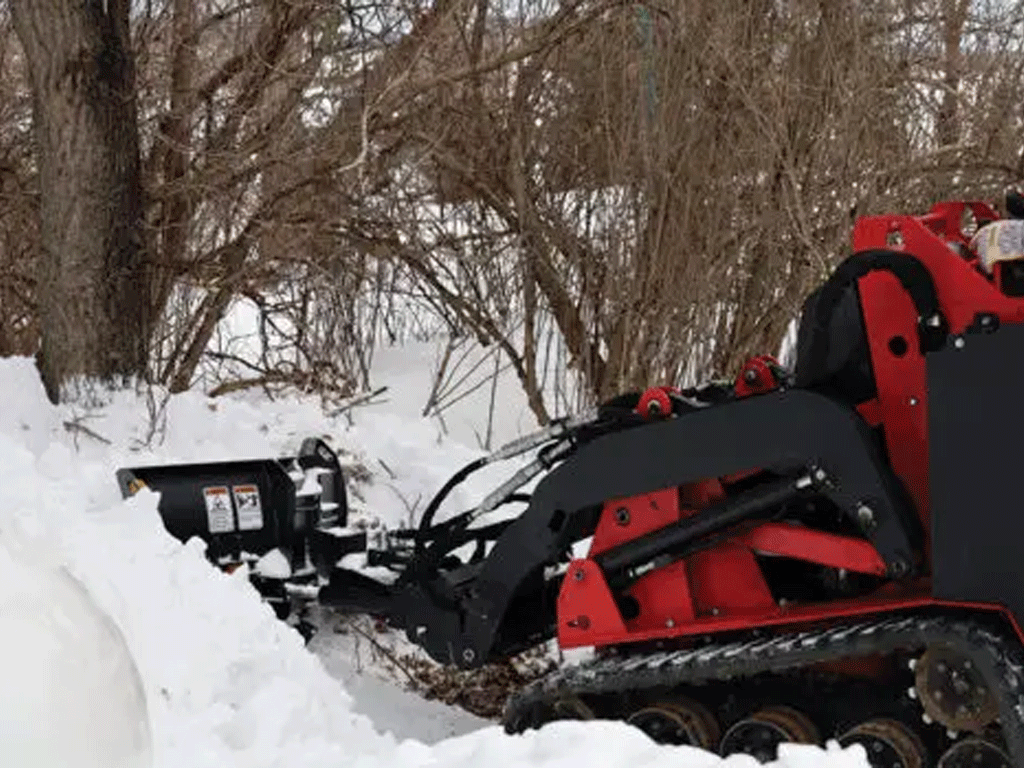

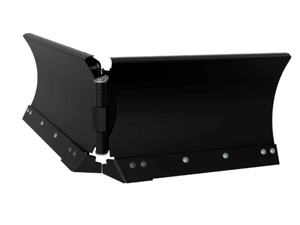

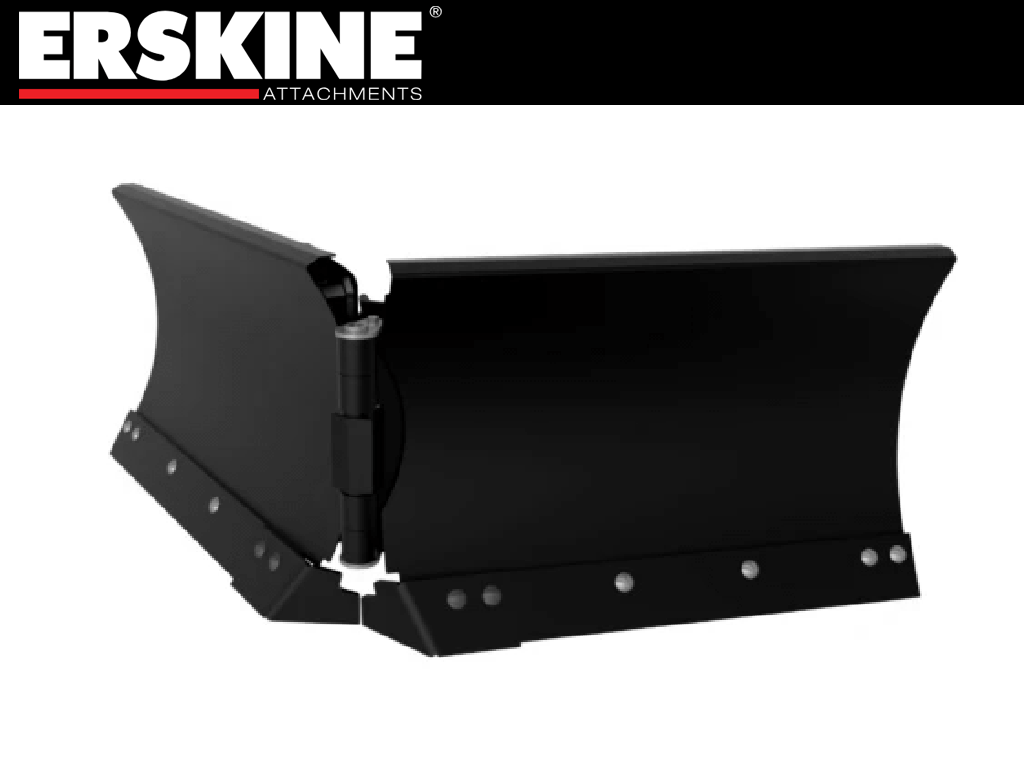

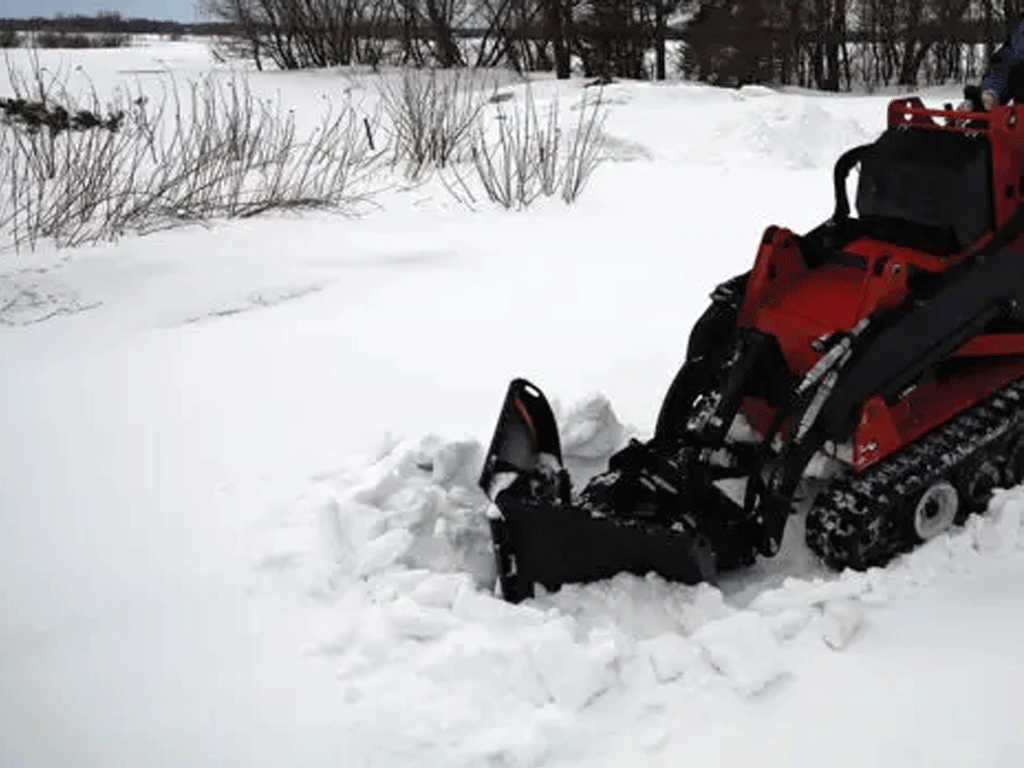

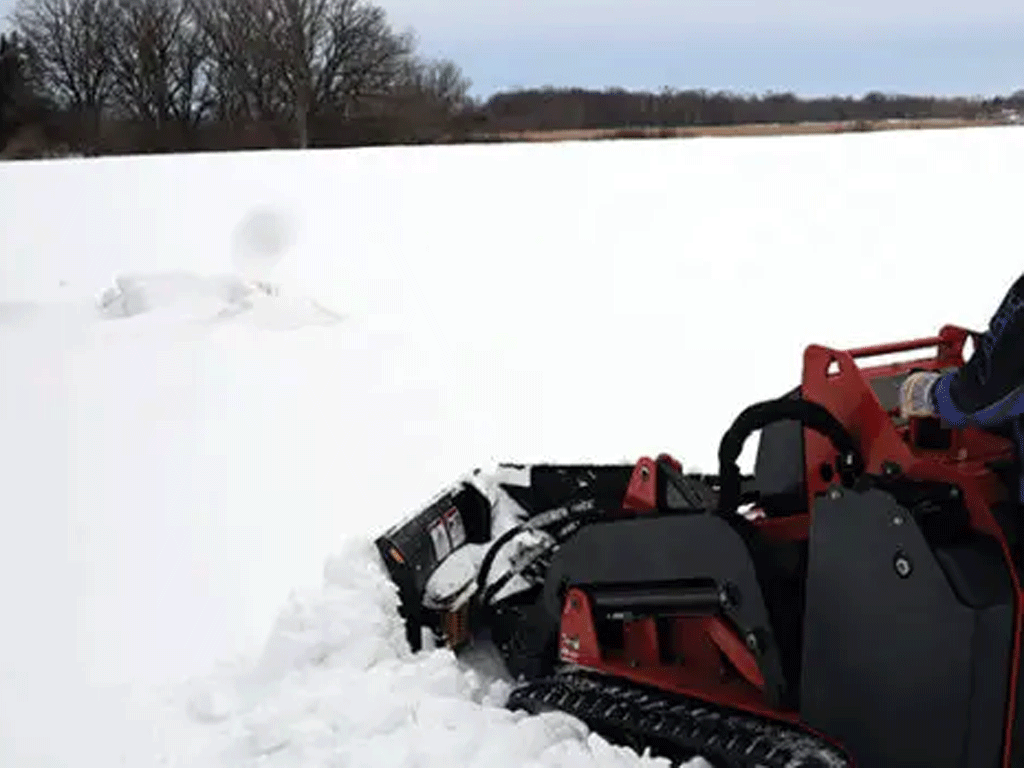

Mini Skid Steer V-Plow
Turn your mini skid steer into a snow moving
machine. This v-plow comes in 48″ and 60″ widths
standard with simple-to-use manual blade position
selection.
Features
- Simple-to-use manual blade position selection
- Float and oscillation allow blade to follow ground contour
- Trip edges protect the attachment, loader, and surface
- Adjustable trip springs
- Greaseable pins at all joints
- Adjustable skid shoes
| Model | 48” | 60” |
|---|---|---|
| Part Number | 901618 | 901619 |
| Straight Blade Width | 53.5” | 68.1” |
| Angled Blade Width | 43.8” | 55.8” |
| V Position Width | 48” | 60” |
| Scoop Position Width | 39.7” | 51.7” |
| Blade Height | 21.3” | 21.3” |
| Length | 33"/35.4"/50" | 33"/35.4"/50" |
| Blade Angle | +/- 30° | +/- 30° |
| Amount of Float | +/- 5° | +/- 5° |
| Moldboard Thickness | 12 ga | 12 ga |
| Bolt-on Cutting Edge | 1/2” x 4” AR400 | 1/2” x 4” AR400 |
| Approximate Weight | 360 lb. | 390 lb. |
| Options | ||
| Hydraulic Angling | ||
| Factory Installed Couplers |
