HCR50L

EZG crusher for skid steer

MODEL

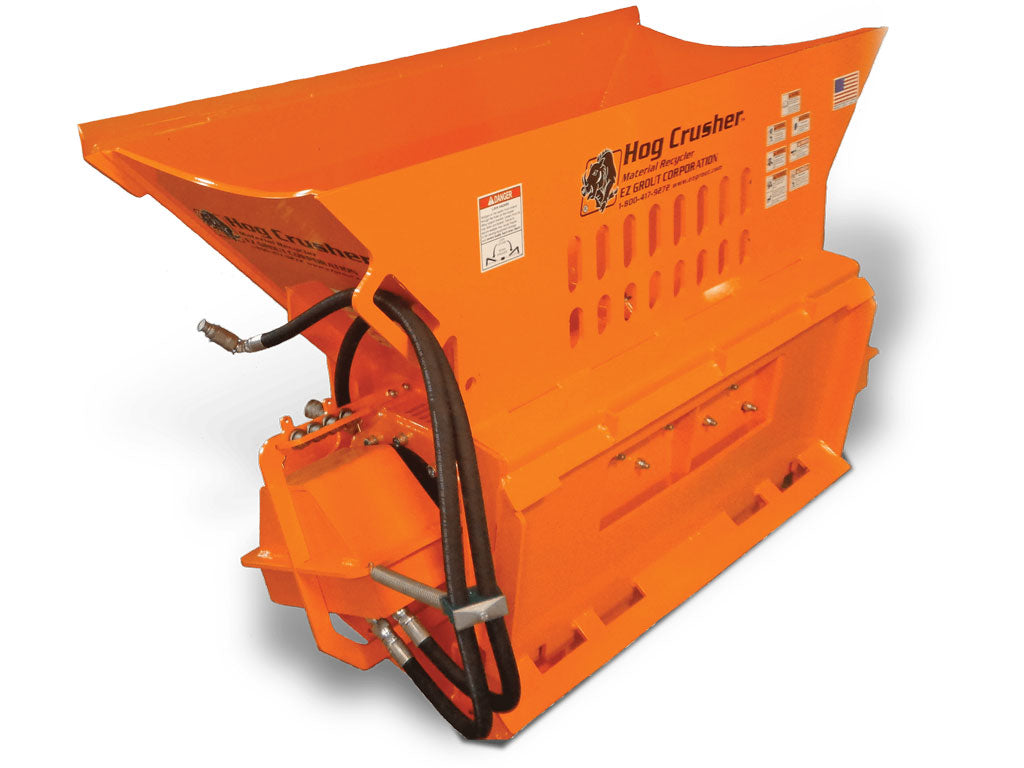

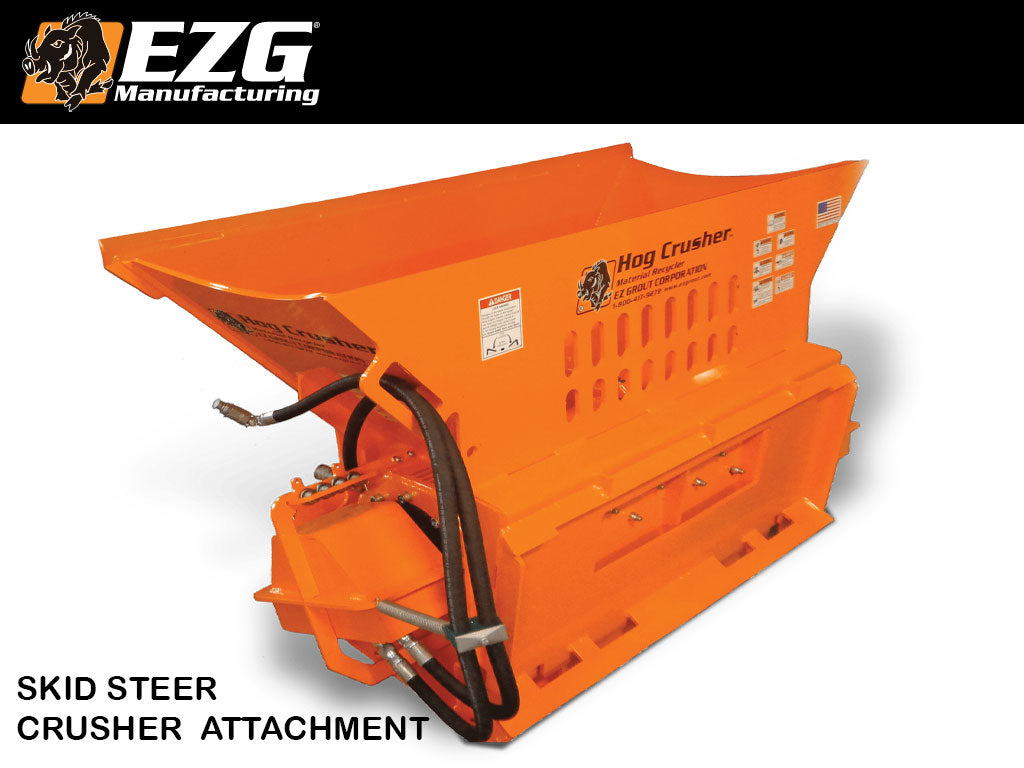

The Hog Crusher Skid Steer Concrete Crusher is a heavy duty constructed attachment ideal for recycling concrete, block, brick, and stone materials on the jobsite by crushing it into back-fill material so it does not have to be hauled off, saving thousands of dollars in disposal costs. The attachment is capable of crushing 10 tons of asphalt or 8 tons of concrete per hour and the wear parts are constructed of abrasion resistant Tri-Braze steel that easily crush stone into gravel and reduce excess jobsite debris to 25% or less of it's size.

FEATURES

  • Final Crush Size - 2" or smaller
  • Up to 10 tons per hour discharge
  • Heavy plate reinforced construction
  • One-half yard hopper capacity
  • 24” wide crushing rotor
  • Built-in forklift pockets
  • Wear items constructed of abrasion resistant Tri-Braze steel
  • Replaceable carbide bits, hardened breaker, cleaner and cheek plates – easy on-site maintenance
  • Designed for brick, block, asphalt, unreinforced concrete and other applications



  • Empty weight 1700 lbs. (771 kg)
  • Minimum hydraulic flow rate 15 gal @ 3000 psi
  • Maximum hydraulic flow rate 21 gal @ 3500 psi
  • 72" wide bucket
  • 24" crushing rotor
  • Overall dimensions 72" × 24" × 48" (l × w × h)
  • Optional standard or high torque motor

MODEL

HCR50L

HCR50H

  Dimensions

72" x 24" x 48" (183 x 61 x 122 mm)

72" x 24" x 48" (183 x 61 x 122 mm)

  Gross Weight

1700 lbs. (771 kg)

1700 lbs. (771 kg)

  Discharge Rate

Up to 10 tons per hour

Up to 10 tons per hour

  Drum Thickness

24" (61 mm)

24" (61 mm)

  Motor

Standard Flow

High Torque 22+ GPM
