FAE DML/SSL forestry mulcher for skid steers

Model

MULCHERS FOR SKID STEERS

DML/SSL/VT - DML/SSL/BL - DML/SSL/SONIC - DML/SSL/BL/SONIC

Forestry mulchers for skid steers up to 75 HP. with 16-33 GPM. hydraulic flow

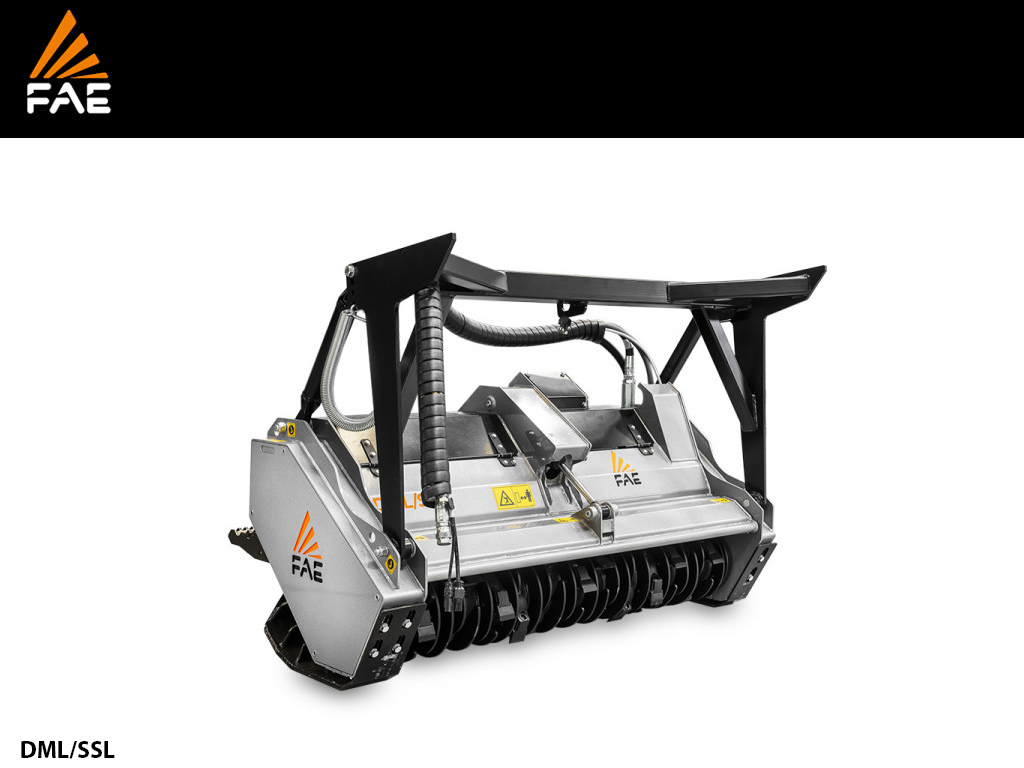

The DML/SSL forestry mulcher, designed for skid steer from 50 to 75 hp, is able to shred material up to 5” in diameter. This head is ideal to have high productivity in vegetation management and provide high shredding capacity in wooded and forestry areas, where the agility and compactness of a skid steer is required. The head is designed to offer high productivity, durability and ease of maintenance for the operator. The DML/SSL is available in VT version with fixed tooth rotor or in BL version with Bite Limiter rotor with fixed blades. For the VT or BL versions, Sonic technology is available, a FAE exclusive.

APPLICATIONS:

  • ROADSIDE AND RAILWAY VEGETATION MAINTENANCE
  • CANALS, RIVERS, PONDS OVERGROWTH CLEANUP
  • ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS
  • ORCHARD & VINEYARDS MAINTENANCE AND RESTORATION
  • AGRICULTURAL RECLAMATION
  • MAINTENANCE OF COMMERCIAL AND RESIDENTIAL GREEN AREAS


STANDARD EQUIPMENT

  • Enclosed, dust-resistant machine body
  • Motor enclosed in the frame
  • Working pressure control gauge
  • Interchangeable protection chains
  • Welded Spike counter blades
  • Hydraulic hoses for connections
  • Mechanical adjustable guard frame
  • Sonic System
  • Anti-shock block Valve with relief and anti-cavitation valves
  • Diverter valve 12 V
  • 55 cc VT hydraulic piston motor variable displacement (DML/SSL/VT and DML/SSL/ BL)
  • 55 cc Sonic hydraulic piston motor electronic control (DML/SSL/SONIC e DML/SSL/BL/SONIC)
  • V-belts transmission
  • Interchangeable and adjustable support skids
  • Hydraulic front trap door


TOOLS MINI/BL MINI/C3
EQUIPPED STANDARD OPTIONAL
APPLICATION

HARDWOOD TREES

SOFTWOOD TREES

EXPOSED STUMPS

HARDWOOD TREES

BRUSH & BRANCHES

EXPOSED STUMPS

PHOTO Mini Blade BL | FAE Mini C/3 | FAE







Optional Equipment

  • Integrated Oil Cooler Kit
  • Customized Hydraulic Motor Setting
  • Control Box Diverter Valve 24V
  • Multiple Tooth options
  • Adaptor Wiring
  • Roof Mounted Cooler Kit
 MODEL DLM/SSL/SONIC 150
Power (HP) 50-75
Flow rate (gal/min) 16-33
Pressure (PSI)  2600-5080
Working width (in) 58
Total Width (in) 68
Weight (lbs) 1610
Rotor diameter (in) 12.2
Max shredding diameter (in) 5
No. of blades 32
