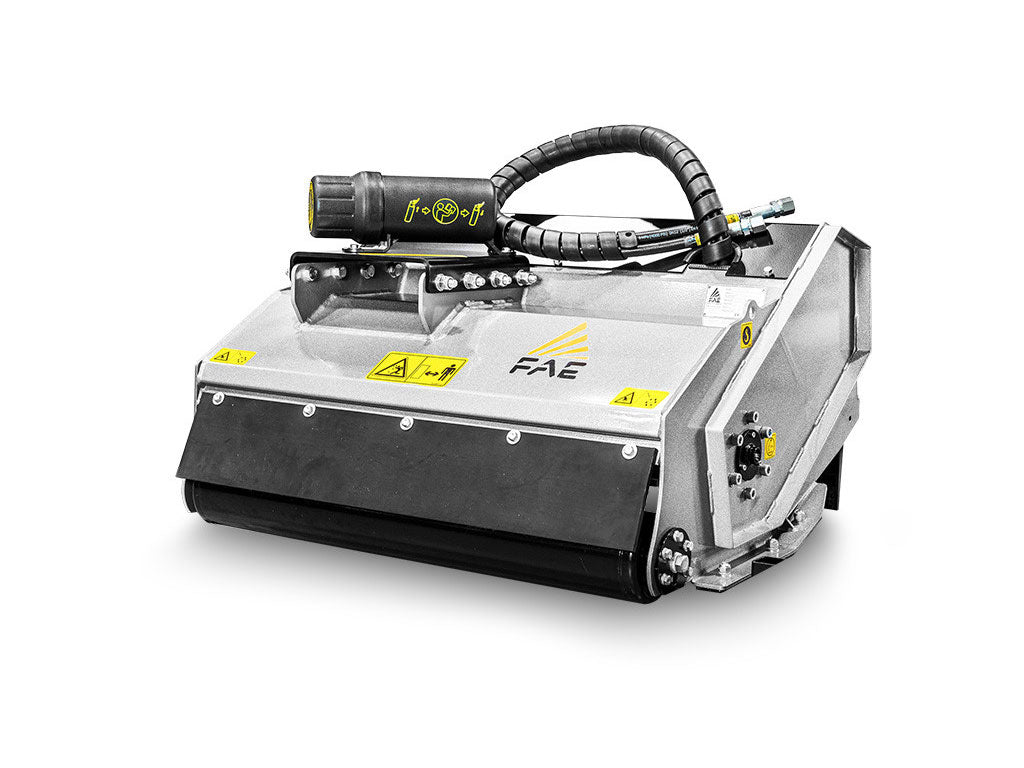

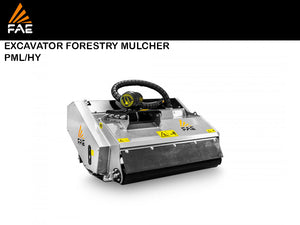

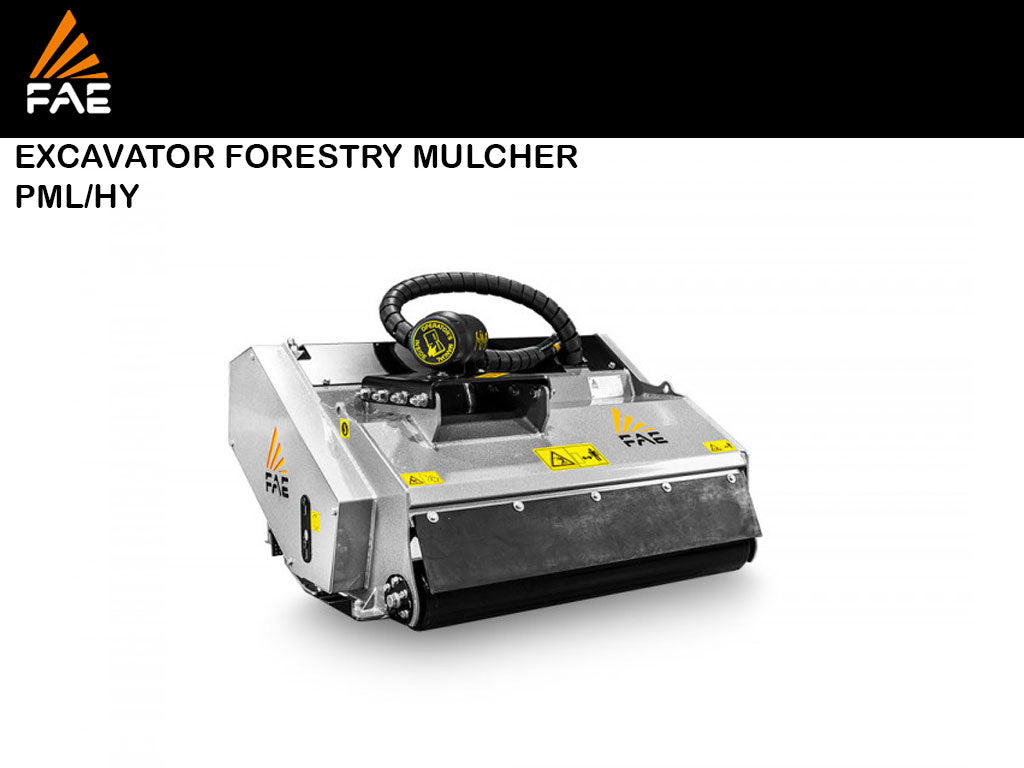

FAE PML/HY forestry mulcher for mini-excavators, 3000 - 7000 lbs.

MODEL
MOUNTING
TEETH

MULCHERS FOR EXCAVATORS

PML/HY

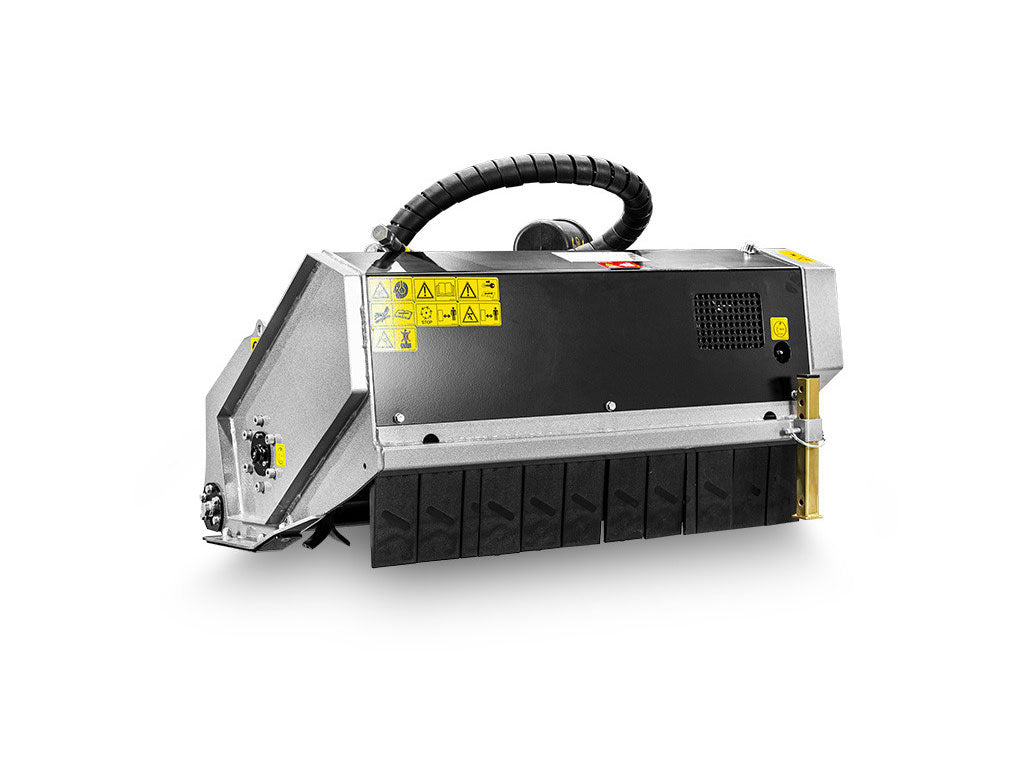

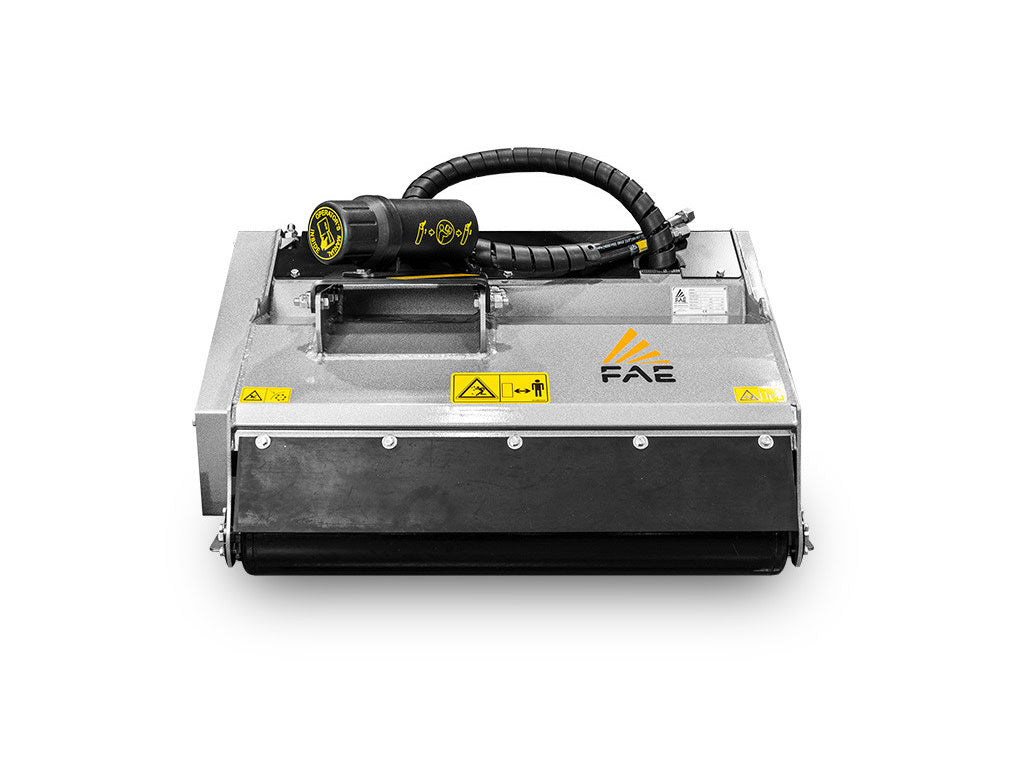

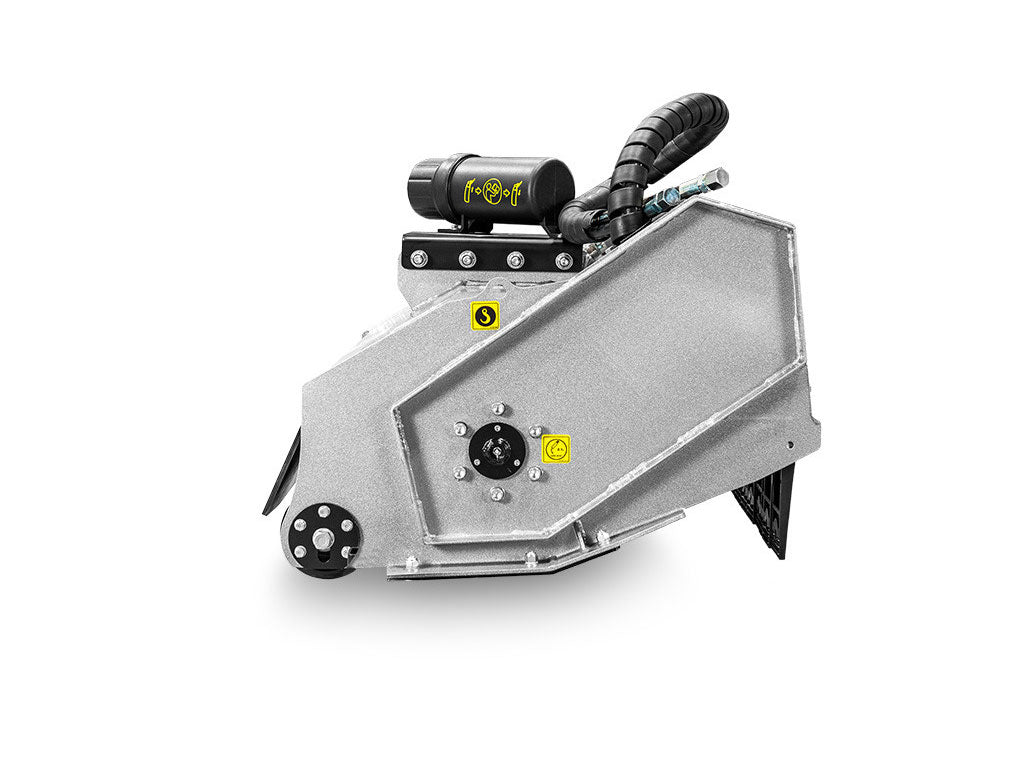

FAE forestry flail mulcher for mini-excavators.

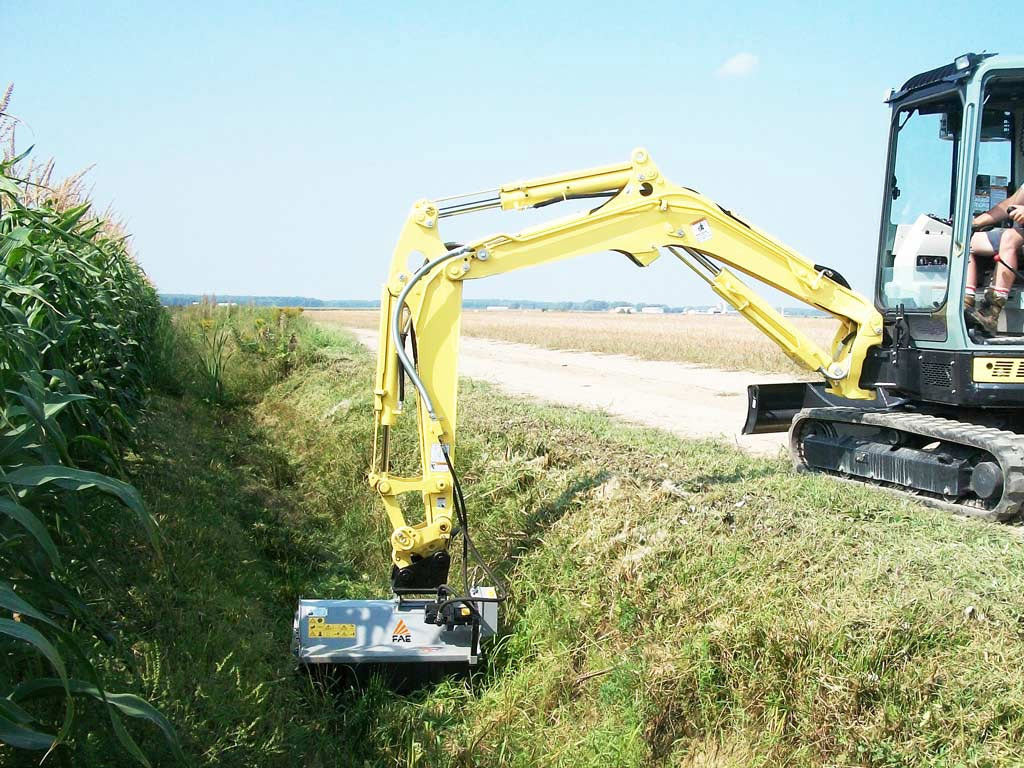

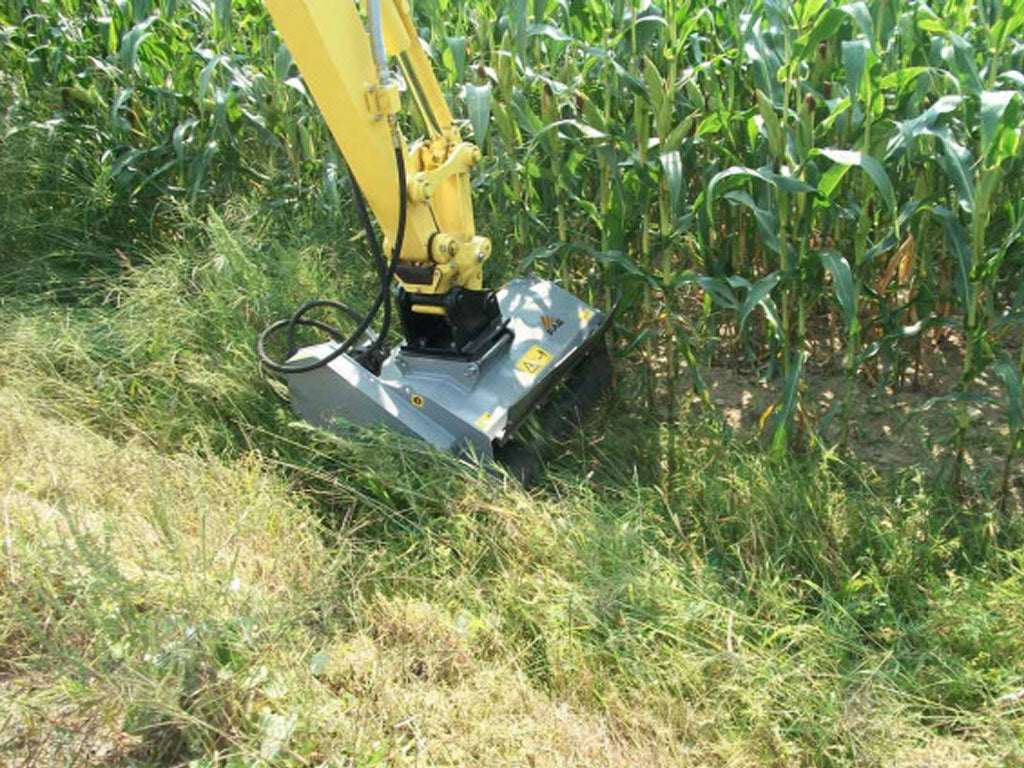

The PML/HY is FAE’s smallest forestry mulcher head for excavators. It is perfect for clearing saplings and shredding brush up to 1.6 inch in diameter.

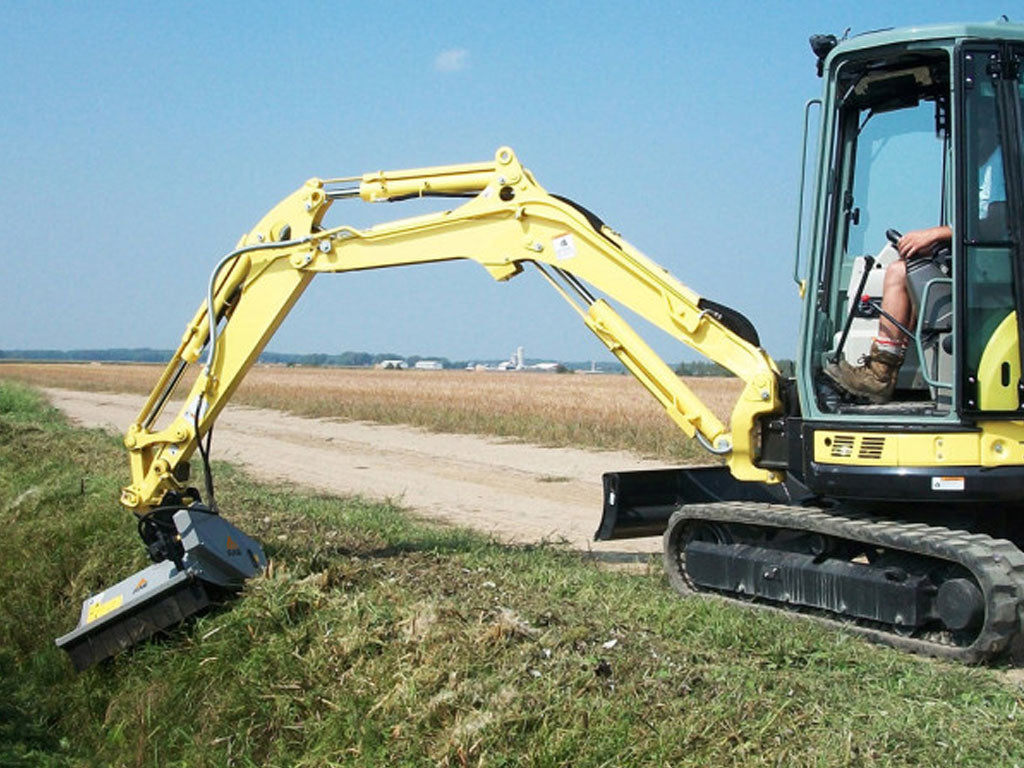

The PML/HY forestry mulcher can come equipped with a standard 8 cc engine or an optional 16 cc engine, and can be mounted on 1.5-3.5 ton excavators.

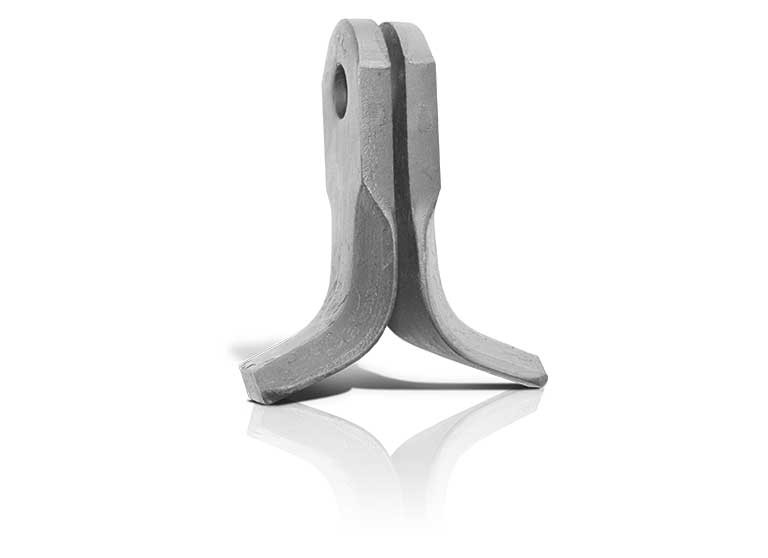

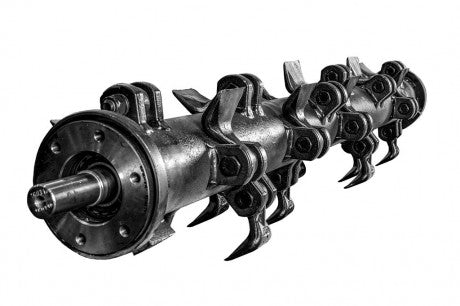

The rotor on the PML/HY is available with two different types of teeth: the PML hammer or the Y/2 blade.
Internal counter blades, flying debris protection, a rear roller, and steel construction provide professional quality and superior performance.

APPLICATIONS:

STANDARD EQUIPMENT

  • Enclosed/anti dust machine body
  • Welded steel counter-blades
  • Motor enclosed in the frame
  • Hydraulic hoses
  • Self levelling protection rubber
  • Supporting service leg
  • Transmission with belts
  • 8cc gear motor with integrated anti-cavitation valve
  • Rear roller
TOOLS Hammer PML Blade Y/2
EQUIPPED STANDARD OPTIONAL
APPLICATION Bushes and branches Bushes and branches

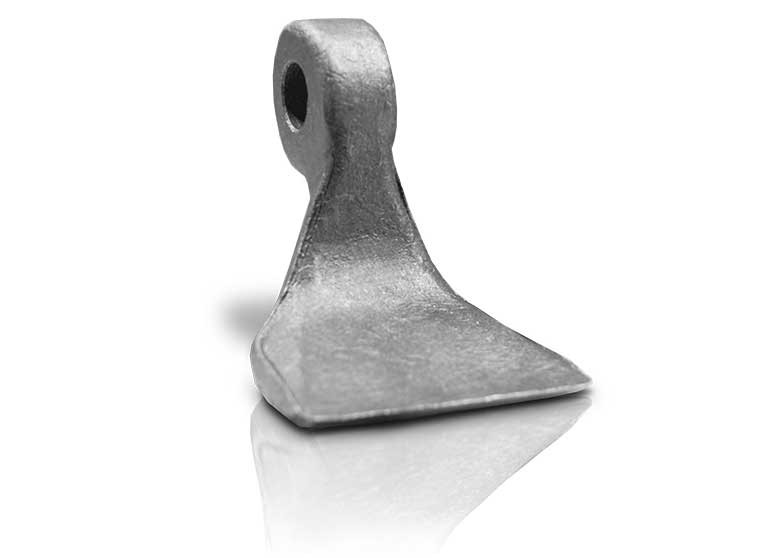

PHOTO Hammer PML | FAE Blade Y/2 | FAE



OPTIONS

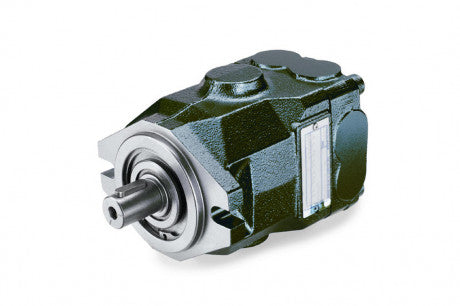

  • 16CC GEAR MOTOR WITH INTEGRATED ANTICAVITATION VALVE

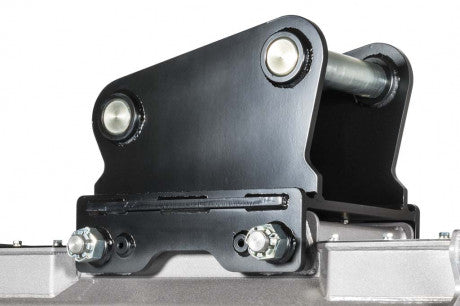

  • CUSTOMIZED ATTACHMENT BRACKET WITH PINS

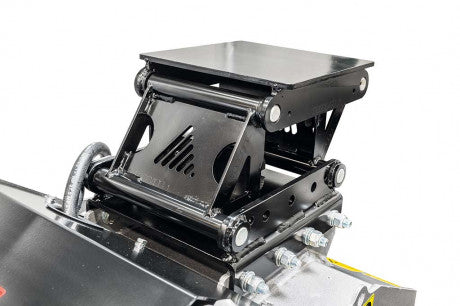

  • ATTACHMENT PLATE WITH SELF LEVELLING DEVICE
  • POSSIBILLITY TO HAVE THE ROTOR EQUIPPED WITH PML HAMMERS OR Y-FLAILS

 MODEL PML/HY 50 PML/HY 70 PML/HY 90
Flow rate (gal/min) 5-15.9 5-15.9 5-15.9
Pressure (PSI)  2200-3050 2200-3050 2200-3050
Excavator weight (t) range 1.5-3.5 2.0-3.5 2.5-3.5
Working width (in) 20 28 35
Weight (lbs) 397 430 463
Rotor diameter (in) 14.2 14.2 14.2
Max shredding diameter (in) 1.6 1.6 1.6
No. hammers type PML 8 10 14
No. flails type Y/2 8 10 14
