MIJ

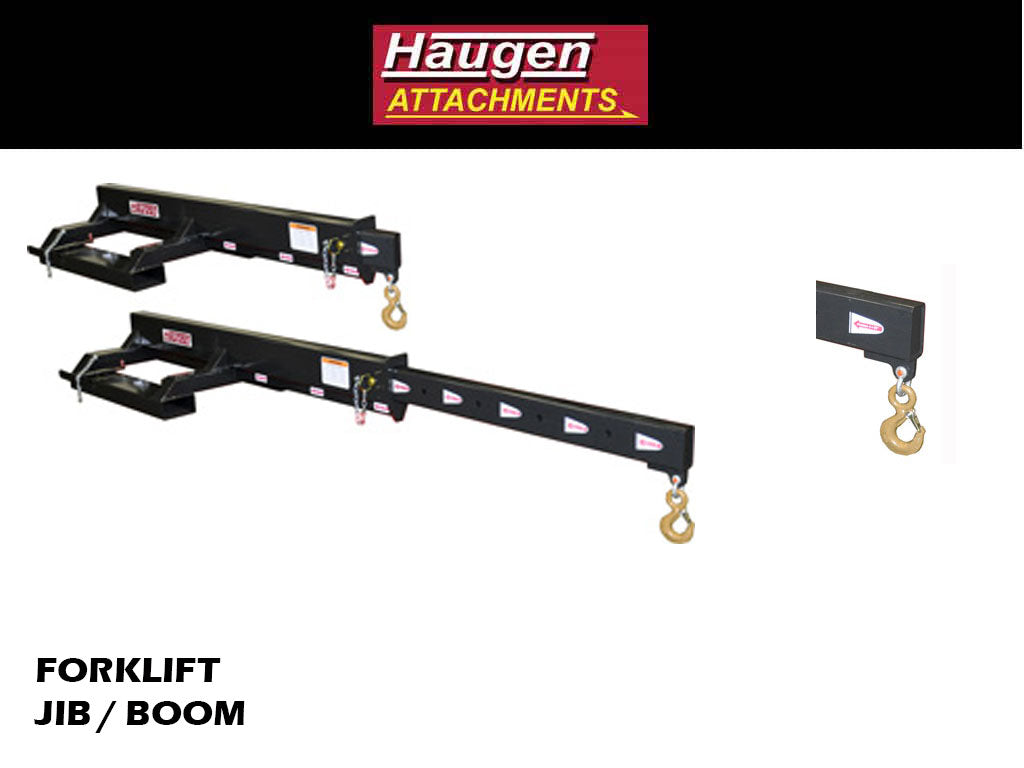

HAUGEN BOOM / JIB FOR FORKLIFT
$2,695.00 - $3,574.00
Industrial Jib
- Adjustable jib booms for telehandlers
- Adjusts from 4 feet to 12 feet with 8 positions
- Comes standard with one 5-ton Crosby eye hook and shackle
- Meets ANSI and OSHA standards
- Easily adjusts and held with a heavy duty pin
- Position indicators ensure the operator knows the correct position on the load chart
- Standard pocket size 3 1/2” x 7 1/2”
- Pocket spacing is 22.50” ID. and 37.50” OD.
- Empty weight:
- Model #MIJ = 525 lbs.
- Model #MIJ-3000 = 640 lbs.
| Model# | Description | Capacity@ 12' | Weight | ||||
|---|---|---|---|---|---|---|---|
| MIJ | Industrial Jib | 2050 lbs | 525 lbs | ||||
| MIJ-3000 | Industrial Jib Heavy Duty | 2900 lbs | 640 lbs | ||||
| Upgrade and add Swivel Hooks | |||||||
| Order Code | Description |
|---|---|
| M001 | Upgrade to one Swivel Hook for an MIJ (6,000 lbs hook) |
| M002 | Upgrade to two Swivel Hooks for an MIJ (6,000 lbs hook) |
| M003 | Upgrade to one 5 ton Swivel Hook for an MIJ-3000 (10,000 lbs hook) |
| M004 | Upgrade to two 5 ton Swivel Hooks for an MIJ-3000 (10,000 lbs hook) |
Industrial Jib Capacity Chart for Model MIJ
| Jib Position | Length | Lift Capacity |
|---|---|---|
| 1 | 48" | 6,000 lbs. |
| 2 | 66" | 6,000 lbs. |
| 3 | 84" | 4,700 lbs. |
| 4 | 96" | 3,500 lbs. |
| 5 | 108" | 3,100 lbs. |
| 6 | 120" | 2,650 lbs. |
| 7 | 132" | 2,450 lbs. |
| 8 | 144" | 2,050 lbs. |
Industrial Jib Capacity Chart for Model MIJ-3000
| Jib Position | Length | Lift Capacity |
|---|---|---|
| 1 | 48" | 10,000 lbs. |
| 2 | 66" | 8,000 lbs. |
| 3 | 84" | 6,800 lbs. |
| 4 | 96" | 5,300 lbs. |
| 5 | 108" | 4,200 lbs. |
| 6 | 120" | 3,800 lbs. |
| 7 | 132" | 3,300 lbs. |
| 8 | 144" | 2,900 lbs. |
These Lift capacity rating are for the Industrial Jib only. The lifting capacity is ultimately determined by the host machine. Never lift more than the operating capacities of this Industrial Jib or the capacities stated by the Manufacturer of the host machine.
