Name: HAUGEN DIRT BUCKETS FOR SKID STEERS
Brand: HAUGEN
SKU: MHDB 60
Price: 1595.0 USD
Availability: InStock

DESCRIPTION
SPECIFICATIONS

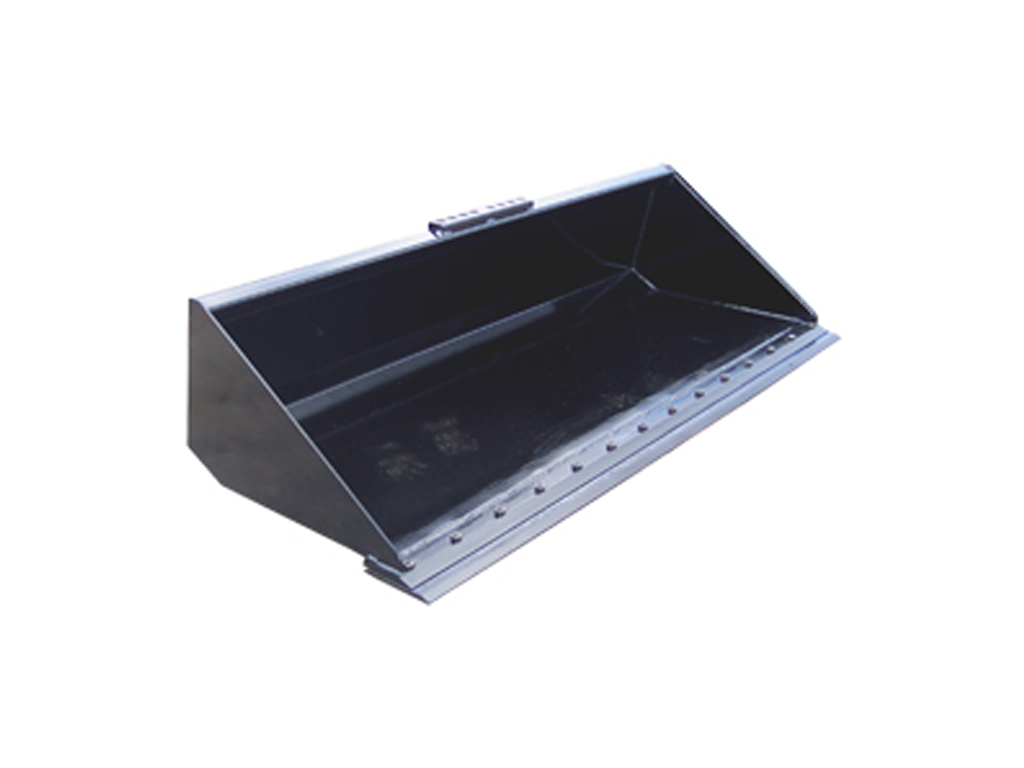

Dirt Bucket

Our Skid-Steer Dirt Buckets are available in Heavy Duty and Standard series. All our dirt buckets are built with a low profile for great visibility.

Features ( Heavy Duty Series)

1/2" x 3" wear bars on the bottom of the buckets for wear and superior strength.
1/4" bucket wrapper and side plates with an extra gusset on the leading edge
3/4" x 6 high carbon edge drilled to accept and Bolt-on Edge
Heavy Duty full skid-steer quick attach plate.
Built in Step

Features ( Standard Series)

1/2" x 3" wear bars on the bottom of the buckets for wear and superior strength.
1/4" bucket wrapper and side plates with an extra gusset on the leading edge
3/4" x 6 high carbon edge drilled to accept and Bolt-on Edge
Heavy Duty full skid-steer quick attach plate.
Built in Step

Options

5/8" x 8" reversible bolt-on Cutting edge
Weld-on Teeth ( heavy duty buckets only)
Tooth Bars
Rolled Inserts

Call for pricing on optional bolt on tooth bar.

__________________________________________________________________________________________________________________________________________________________________________________________

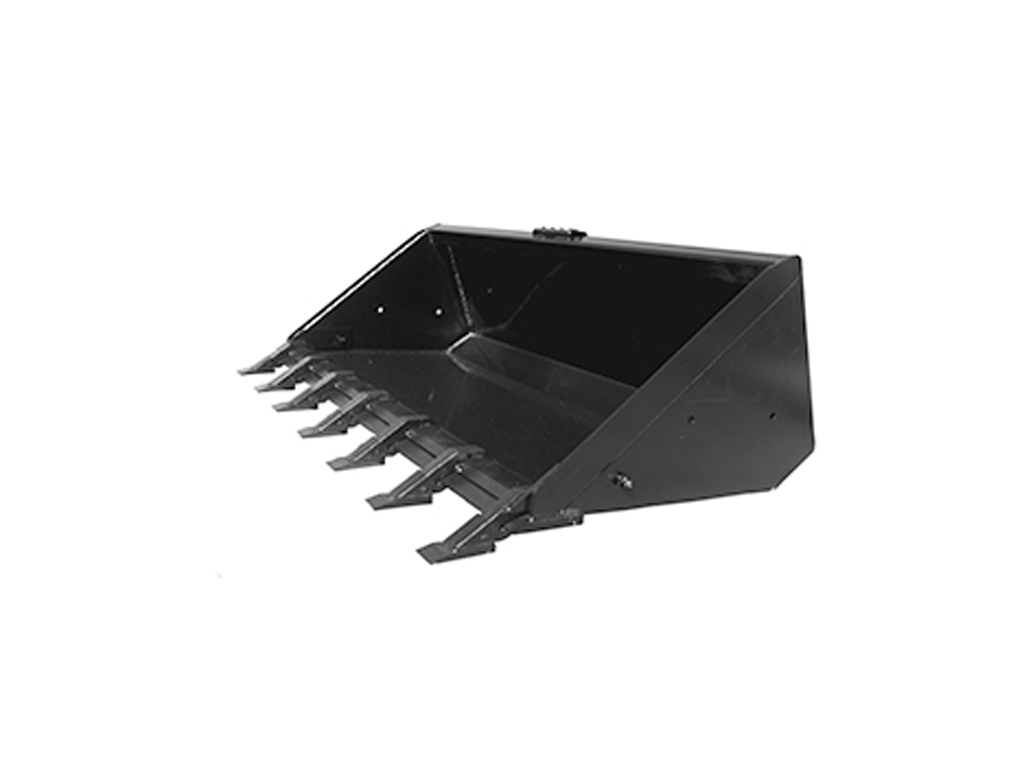

Tooth Bucket

Heavy duty 3/8" skidsteer plate
Series 23 weld-on teeth with replaceable tips
GR 50 side plates and stiffners
3/4" x 6 beveled edge

Model	Bucket Height	Inside Depth	Bucket Width	Heaped Capacity	Weight
MHDB 60	20.5"	34"	60"	14.25 Cu.Ft.	570 lbs
MHDB 66	20.5"	34"	66"	15.80 Cu.Ft.	605 lbs
MHDB 72	20.5"	34"	72"	17.25 Cu.Ft.	635 lbs
MHDB 78	20.5"	34"	78"	18.75 Cu.Ft.	665 lbs
MHDB 84	20.5"	34"	84"	20.50 Cu.Ft.	695 lbs
MHDB 90	20.5"	34"	90"	22.75 Cu.Ft.	730 lbs
MHDB 96	20.5"	34"	96"	24.50 Cu.Ft.	765 lbs

Model	Description	# of Teeth	Weight
MHDB 60 WT	60" Tooth Bucket	6	630 lbs
MHDB 66 WT	66" Tooth Bucket	7	662 lbs
MHDB 72 WT	72" Tooth Bucket	8	690 lbs
MHDB 78 WT	78" Tooth Bucket	9	722 lbs
MHDB 84 WT	84" Tooth Bucket	10	752 lbs
MHDB 90 WT	90" Tooth Bucket	11	782 lbs
