HAUGEN PIPE FORK FOR WHEEL LOADERS

MWFP 96 25-6-60-J416

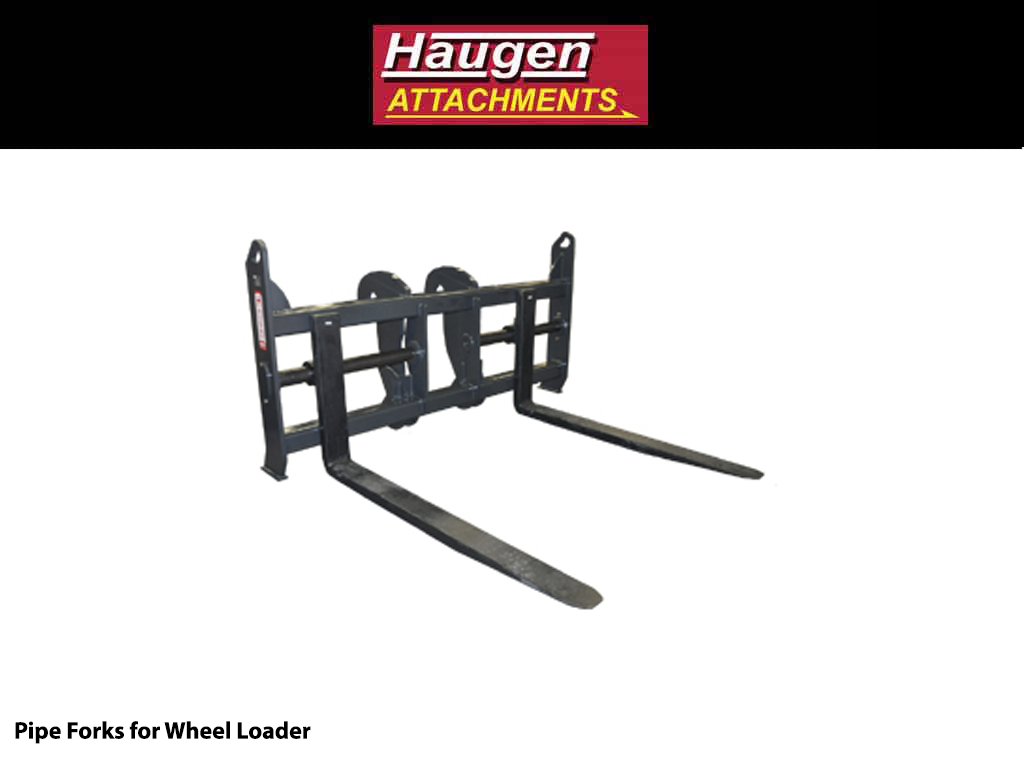

HAUGEN PIPE FORK FOR WHEEL LOADERS

$9,495.00 - $14,995.00

Business Financing Available

Style
Fork Tine Size

Wheel Loader Pipe Forks

For JRB 416 & 418 Couplers

  • Heavy duty shaft style non-swinging forks
  • Our forks are shaft mounted with the eye of the fork welded on the back of the fork
    tine. This allows it to be easily adjusted and there are no rails or hooks that can be
    damaged making adjustments hard or impossible
  • Choose between different shaft sizes. All shafts are made of stress relieved material
  • Extra wide 96" frame, great for handling pipe

____________________________________________________________________________________________________________________________________________________________________________________________

For Cat Fusion

  • Heavy duty shaft style non-swinging forks
  • Our forks are shaft mounted with the eye of the fork welded on the back
    of the fork tine. This allows it to be easily adjusted and there are no rails
    or hooks that can be damaged making adjustments hard or impossible
  • Choose between different shaft sizes. All shafts are made of stress relieved material
  • Hardened Steel Forged Fork Tines
  • Extra wide 96" frame great for handling pipe

              JRB 416 Mount

              Model
              		 Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
              		 Capacity at 24"
              MWFP 96 25-6-60-35
              		 98"
              		 21.25"
              		 94" 3.50" 2.5" x 6" x 60"
              		 20,000 lbs
              MWFP 96 25-6-72-35
              		 98"
              		 21.25" 94" 3.50" 2.5" x 6" x 72" 20,000 lbs
              MWFP 96 25-6-96-35
              		 98"
              		 21.25" 94" 3.50"
              		 2.5" x 6" x 96" 20,000 lbs
              MWFP 96 3-7-72-35
              		 98"
              		 24"
              		 94" 3.50"
              		 3" x 7" x 72" 34,000 lbs
              MWFP 96 3-7-96-35
              		 98"
              		 24"
              		 94"
              		 3.50"
              		 3" x 7" x 96"
              		 34,000 lbs



              JRB 418 Mount

              Model Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
              		 Capacity at 24"
              MWFP 96 3-7-60-35
              		 98"
              		 24"
              		 94" 3.50" 3" x 7" x 60"
              		 34,000 lbs
              MWFP 96 3-7-72-35
              		 98"
              		 24"
              		 94" 3.50" 3" x 7" x 72" 34,000 lbs
              MWFP 96 3-7-96-35
              		 98"
              		 24"
              		 94" 3.50"
              		 3" x 7" x 96" 34,000 lbs


              Cat Fusion Mount

              Model
              		 Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
              		 Capacity at 24"
              MWFP 96 25-6-60-35
              		 98"
              		 21.25"
              		 94" 3.50" 2.5" x 6" x 60"
              		 20,000 lbs
              MWFP 96 25-6-72-35
              		 98"
              		 21.25" 94" 3.50" 2.5" x 6" x 72" 20,000 lbs
              MWFP 96 25-6-96-35
              		 98"
              		 21.25" 94" 3.50"
              		 2.5" x 6" x 96" 20,000 lbs
              MWFP 96 3-7-72-35
              		 98"
              		 24"
              		 94" 3.50"
              		 3" x 7" x 72" 34,000 lbs
              MWFP 96 3-7-96-35
              		 98"
              		 24"
              		 94"
              		 3.50"
              		 3" x 7" x 96"
              		 34,000 lbs
