HT1035

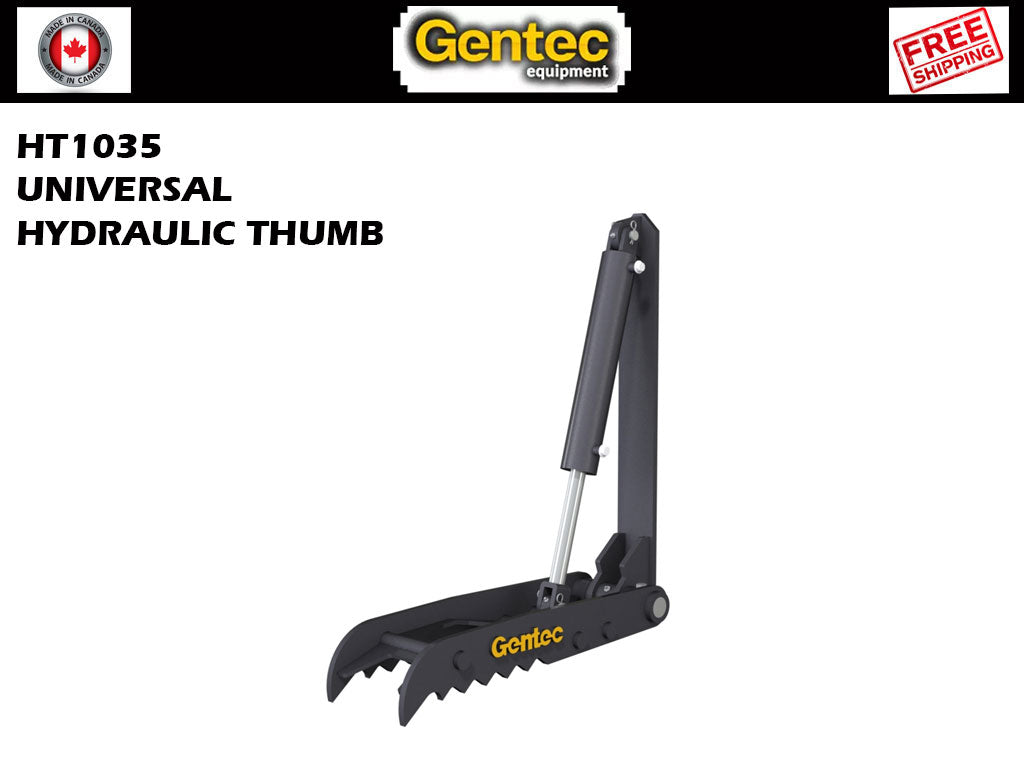

HT1035 Gentec Universal hydraulic excavator thumbs, 10000-15000 lbs excavators

2/24

Gentec Equipment

Built-Tough

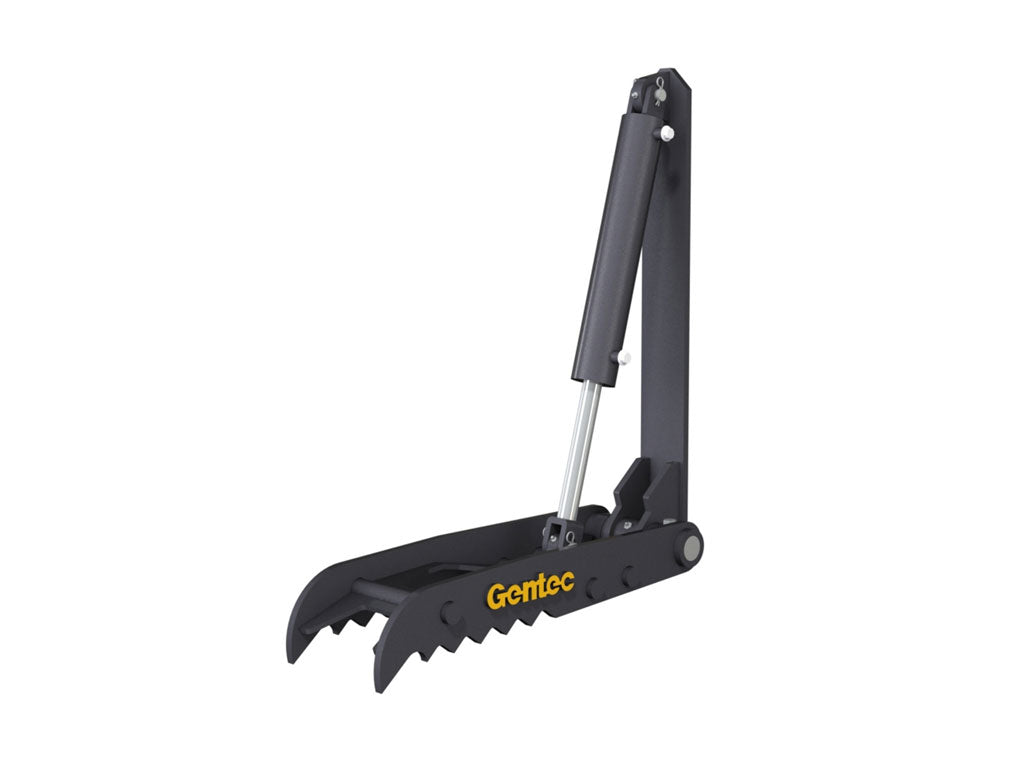

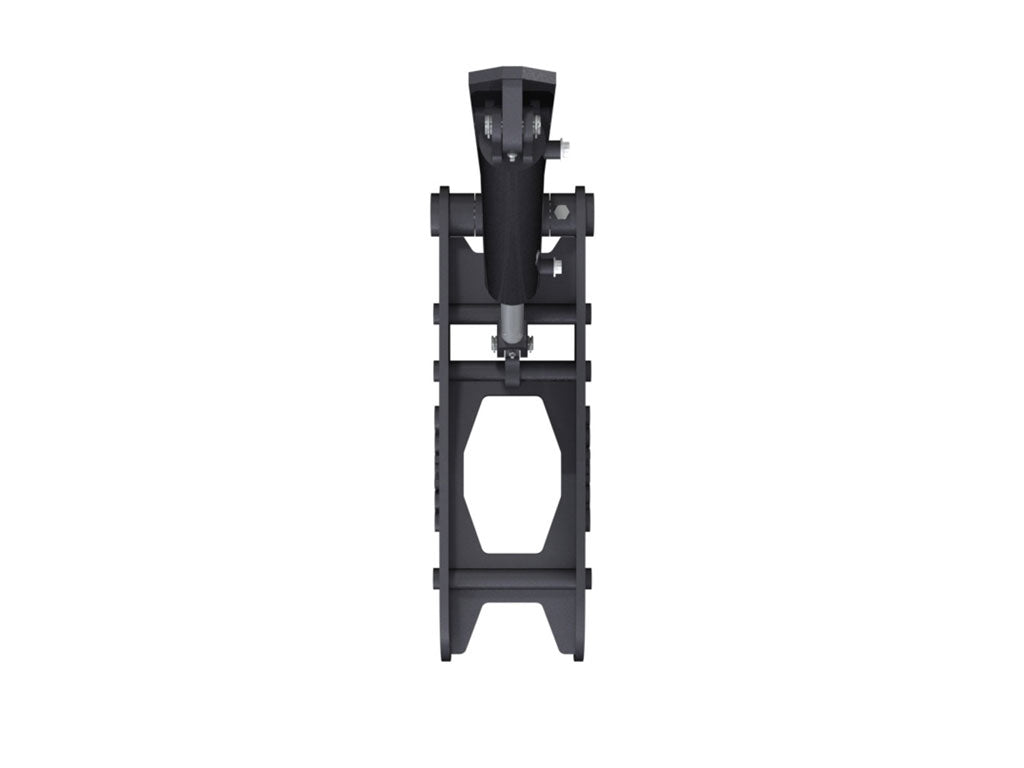

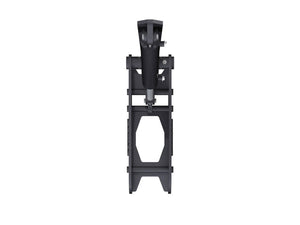

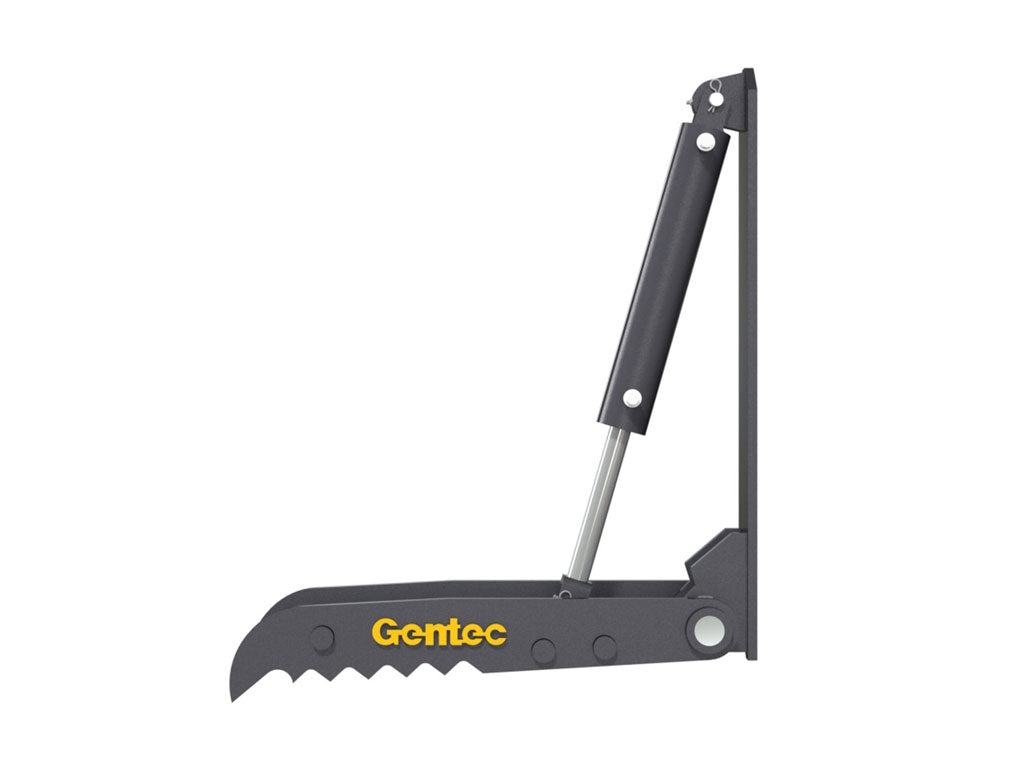

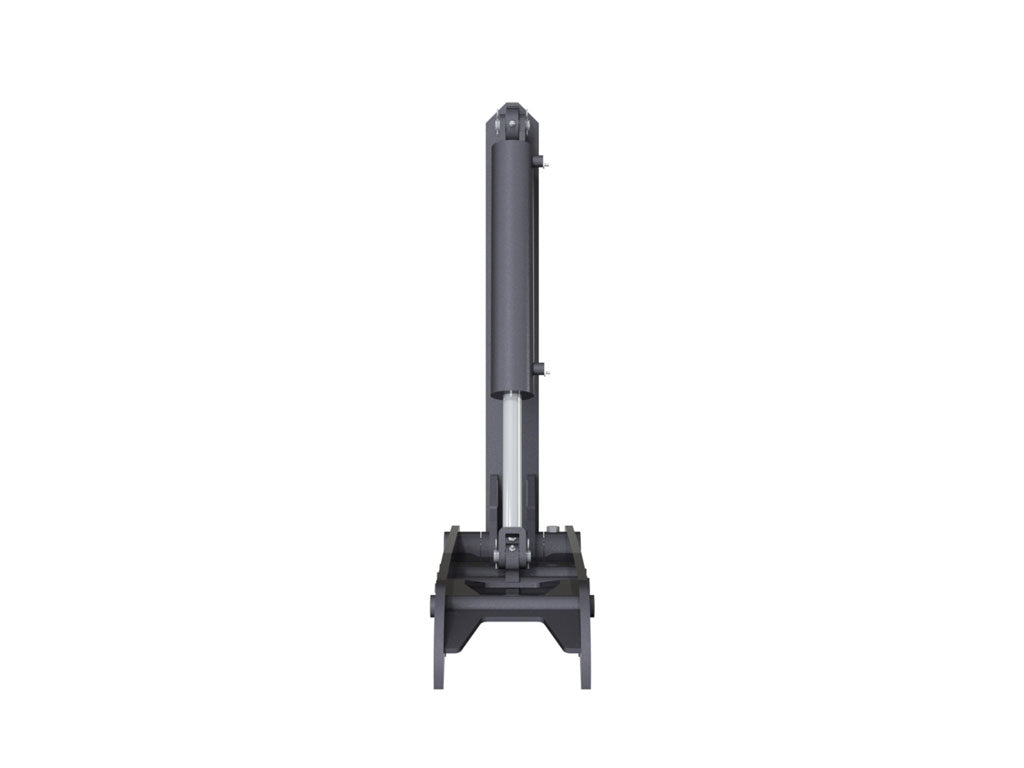

Introducing the HT1035 Hydraulic Weld-On Thumb by Gentec – built tough for contractors and landscapers. This 10" wide and 35" long thumb is designed for machines between 10,000lbs and 15,000lbs and weighs 187lbs. Constructed with 5/8" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT1035 thumb is designed for increased strength and long-lasting durability. The double-sealed welded cylinder enhances reliability, ensuring your work remains uninterrupted. Both cylinder pins and the thumb main pin are greaseable, making maintenance a breeze.

Superior Geometry

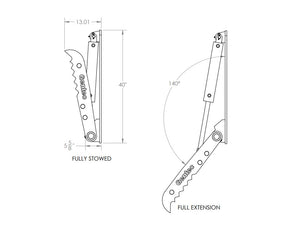

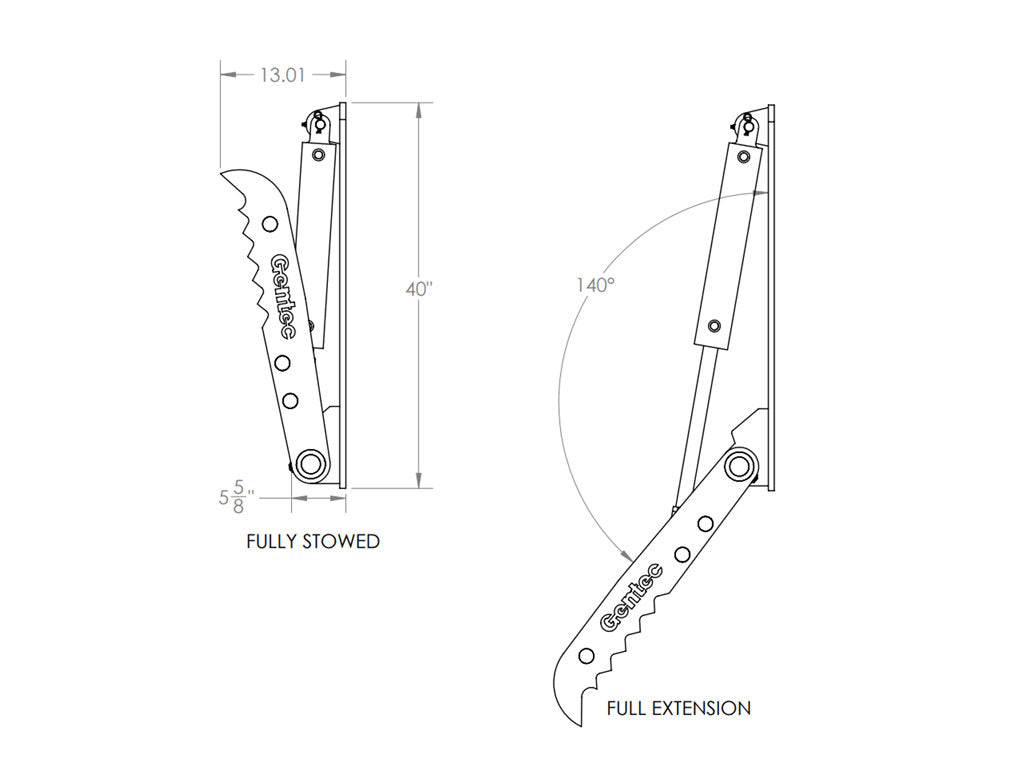

Experience superior geometry with the HT1035. The thumb boasts a maximum extension angle of 140 degrees, outperforming the competition. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 13" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 40”, and the hydraulic cylinder is included.

Maximize Your Investment

Invest in the HT1035 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT1035 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

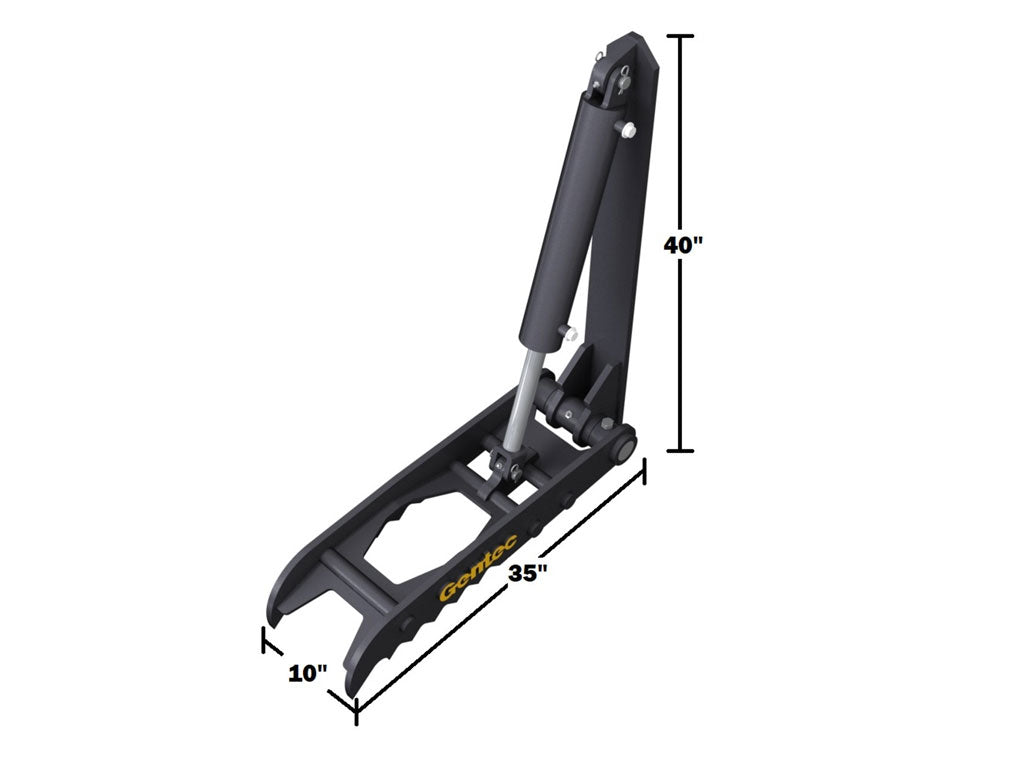

  • 10” wide, 35” long hydraulic thumb
  • Ideal for machines between 10,000lbs and 15,000lbs
  • 5/8” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder for increased reliability
  • Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
  • Maximum extension angle of 140 degrees
  • Minimized stowed dimensions for optimal digging performance
  • Greaseable pins for easy maintenance
  • 40” backplate
  • Hydraulic cylinder included
  • 1-year warranty
  • Replacement parts available

                    ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

                    ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.


                    Mounting Weld-On
                    Operation Hydraulic
                    Width 10"
                    Length 35"
                    Net Weight 187lbs
                    Tine Thickness 5/8"
                    Tine Material Hardox 400
                    Main Pin Diameter 2"
                    Stowed-Position Height 40"
                    Max. Extension Angle 140 Degrees
                    Min. Operating Weight 10,000lbs
                    Max. Operating Weight 15,000lbs
                    Excavator Weight Class 10,000lbs to 22,000lbs


                     SAMPLE LIST ONLY

                    MAKE MODEL 10000 TO 12000 LB
                    BOBCAT 337, 341, 435ZHS, E42,E45,E50,E55
                    CASE CX50B, CX50, CX47
                    CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
                    DAEWOO 50,55
                    DEERE 50ZTS, 50C, 50D, 50G
                    DOOSAN 55V, 55W
                    GEHL 503Z,603,502,602,652
                    HYUNDAI R55-7,R55W-7
                    IHI / KATO 45V4,55V4,60V4,45NX,55NX
                    JCB 8040,8045,8050,8052,48Z,51R,55Z
                    HITACHI EX50, ZX50
                    HYUNDAI R55-7, R55W-7
                    KOBELCO 50SR-3, SK045, SK050
                    KOMATSU PC40MR-2, PC50MR-2, PC58UU-3, PC45
                    KUBOTA KX151-3, KX61, KX161-3, U45
                    NAGANO NS-45
                    NEW HOLLAND E50, EC45, EH45
                    TAKEUCHI
                    TEREX HR16/TC35, HR3.7/TC37, TC48, TC50, TC60
                    THOMAS T45
                    VOLVO EC45PRO, EC50BPRO, ECR58, EW55B, EC55B
                    WACKER 50Z3,6003,6503
                    YANMAR VIO40-3, VIO50-3



                    MAKE MODEL 12000 TO 16000 LB
                    BOBCAT E63,E80,E85,442,
                    CASE

                    580, 590

                    9007,CX75,CX80

                    CAT

                    307C,308C CR,E70B

                    416C, 420D, 428F, 432F, 434F

                    DAEWOO
                    DEERE

                    310K, 310SK, 410K

                    310J, 310SJ, 410J

                    310G, 310SG, 410G, 510

                    DOOSAN S75-V, S70-III, SOLAR75-V
                    FORD

                    455, 555, 655

                    555E, 655E, 675E

                    GEHL
                    HYUNDAI R75-7, R80-7
                    IHI / KATO 65VX, 80VX, 55N, 65NX, 80NX
                    JCB 214, 3CX, 4CX, 8085, JS70
                    HITACHI Z80L, Z75US
                    KOBELCO SK70SR, 80CS
                    KOMATSU

                    WB146-5/156-5, WB140/150

                    PC60 ,PC75R-2, PC78

                    KUBOTA
                    LINK BELT 75, 80, 1600Q
                    NAGANO
                    NEW HOLLAND

                    LB75, LB115

                    LB90, LB110

                    TAKEUCHI TB290, TB285, TB180FR, TB175
                    TEREX HR32, TC75
                    THOMAS
                    VOLVO ECR88, BL60, BL70
                    WACKER
                    YANMAR VIO75,VIO70, B7, B7-5A









                    Thumbs usually ship out within (3) days

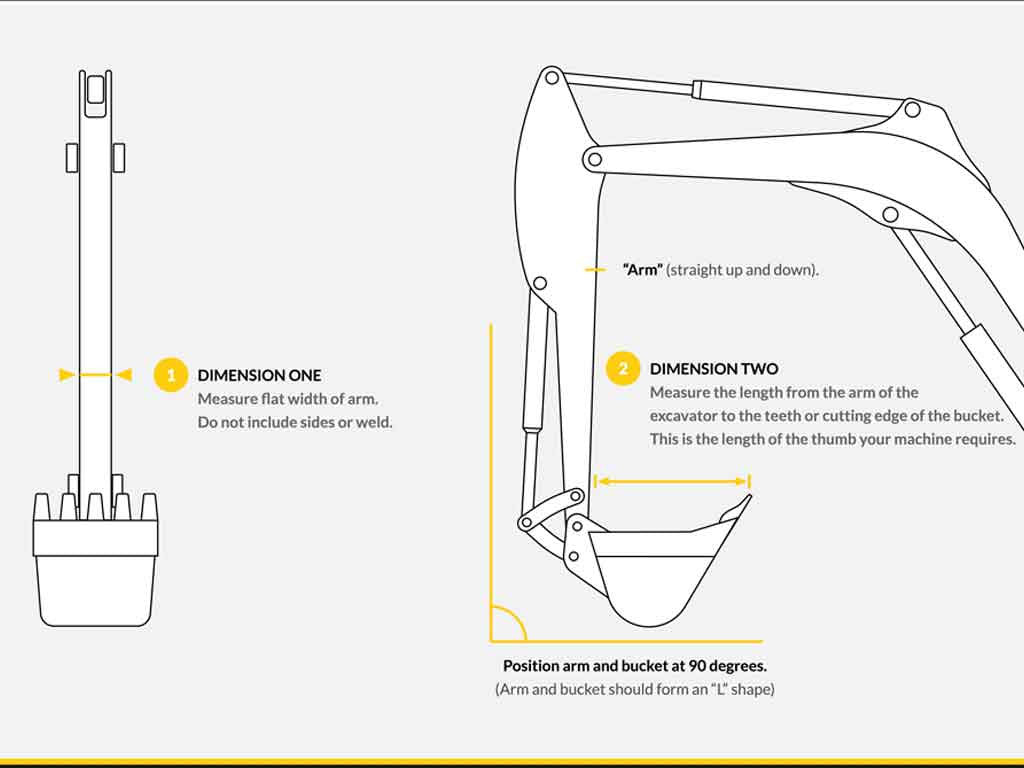

                    MEASUREMENTS

                    Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

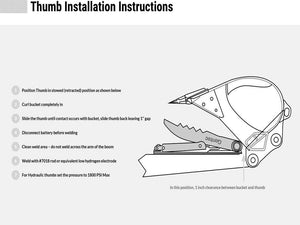

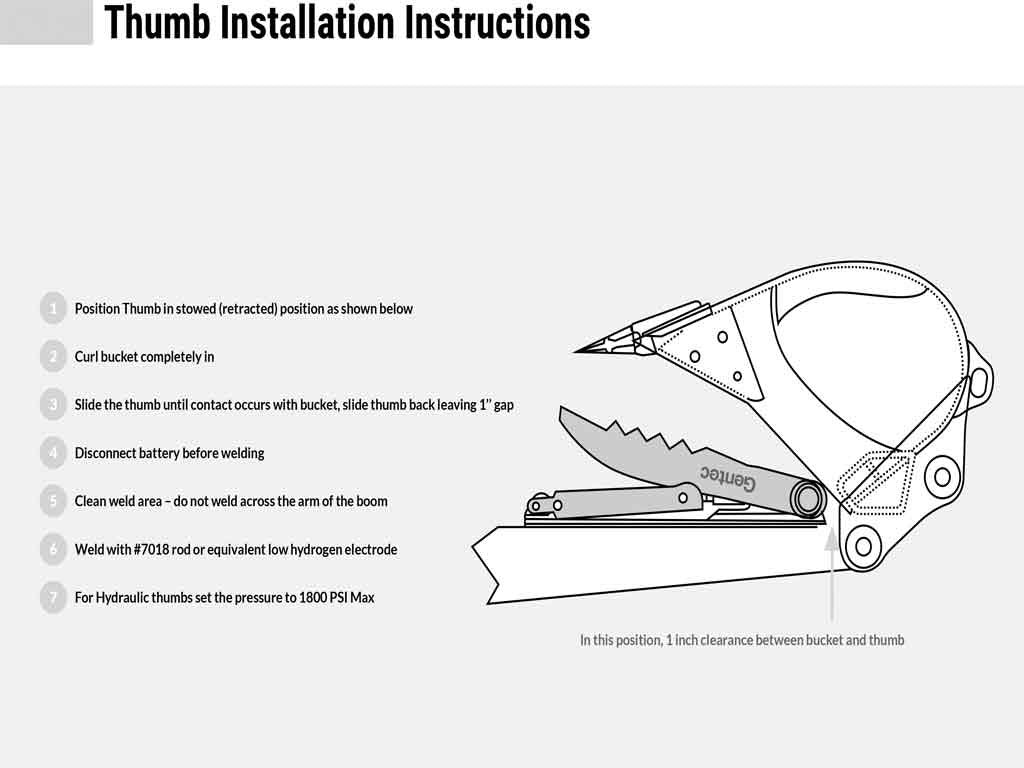

                    INSTALLATION

                    Please follow these instructions when installing your thumb.
