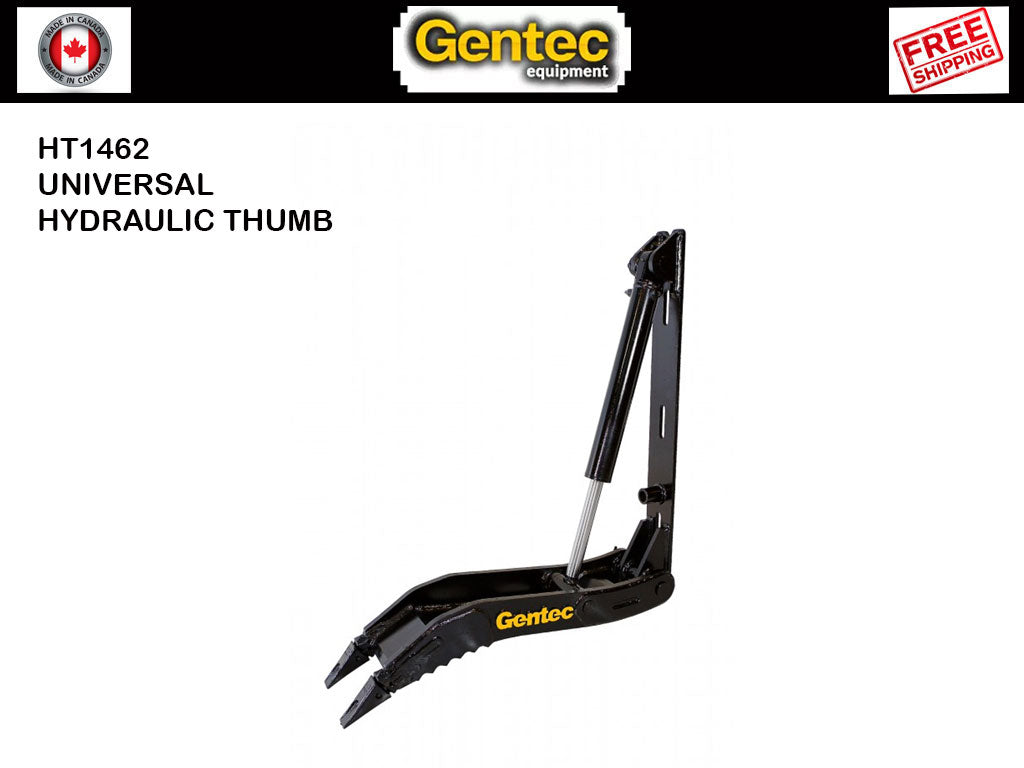

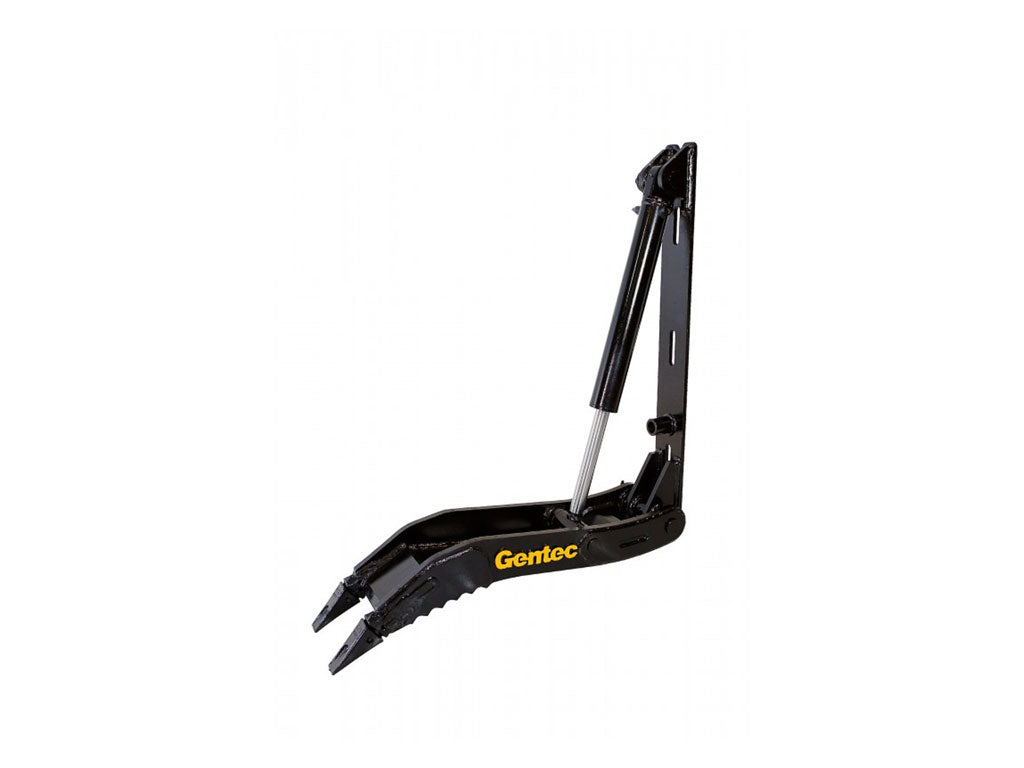

HT1462
2/224
This heavy duty thumb makes it easier to pick, hold and move all types of material such as rocks, concrete, branches, and debris, increasing handling performance and versatility.
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
Mounting | Weld-On |
---|---|
Operation | Hydraulic |
Width | 14" |
Length | 62" |
Net Weight | 800lbs |
Tine Thickness | 1 1/2" |
Tine Material | Hardox 400 |
Min. Operating Weight | 40,000lbs |
Max. Operating Weight | 50,000lbs |
Excavator Weight Class | 40,000lbs to 54,000lbs |
SAMPLE LIST ONLY
40000-45000 LBS | |
BRAND | MODELS |
CASE | CX210, CX225, CX235, 9030B |
CAT | 318C, 320C, E200B |
DAEWOO | 200-3, 220-3, S225, S255 |
DEERE |
180CW, 180G, 190GW, 200C, 200D 225CRTS, 245G, 210G, 210CW, 690D/E |
DOOSAN | S225-V, S225N-V, S225S-V |
HITACHI | Z200LC, Z210LC, Z225US |
HYUNDAI |
R210LC7 |
JCB | JS220 |
KOBELCO |
SK210, 200SR, 235SR, |
KOMATSU | PC200LC-7, PC228 |
LINK BELT | X3, 235LX, 210LX, LS2800Q |
NEW HOLLAND |
EH215, EW200 |
SANY | SY215 |
TEREX | TXC225 |
VOLVO | EC210B |
45000-60000 LBS | |
BRAND | MODELS |
CASE |
9040, 9045, CX240, CX280 CX240D, CX290, CX270 |
CAT | 322CL, 325C, 225B/D |
DEERE |
300G, 290G, 250G, 230G, 270C, 230C, 790D/E |
DOOSAN | SOLAR255-V |
HITACHI | ZX250, ZX290, ZX245, ZX240-3, ZX270-3, 270LCV |
HYUNDAI |
R220LC-9S, R250LC7 |
JCB | JS220, JS260 |
KOBELCO |
SK250, SK220-IV, SK270-IV |
KOMATSU | PC220, PC250, PC270-8, PC308 |
LINK BELT | 225MSR, 240LX, 290LX, 3400 |
NEW HOLLAND |
EC215, EC240, E215 |
SANY | SY235 |
SAMSUNG | 280 |
TEREX | TXC255 |
VOLVO | EC240B, 290B |
Thumbs usually ship out within (3) days

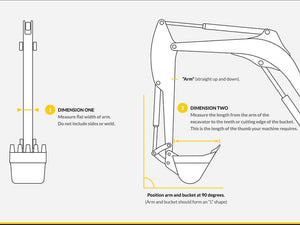

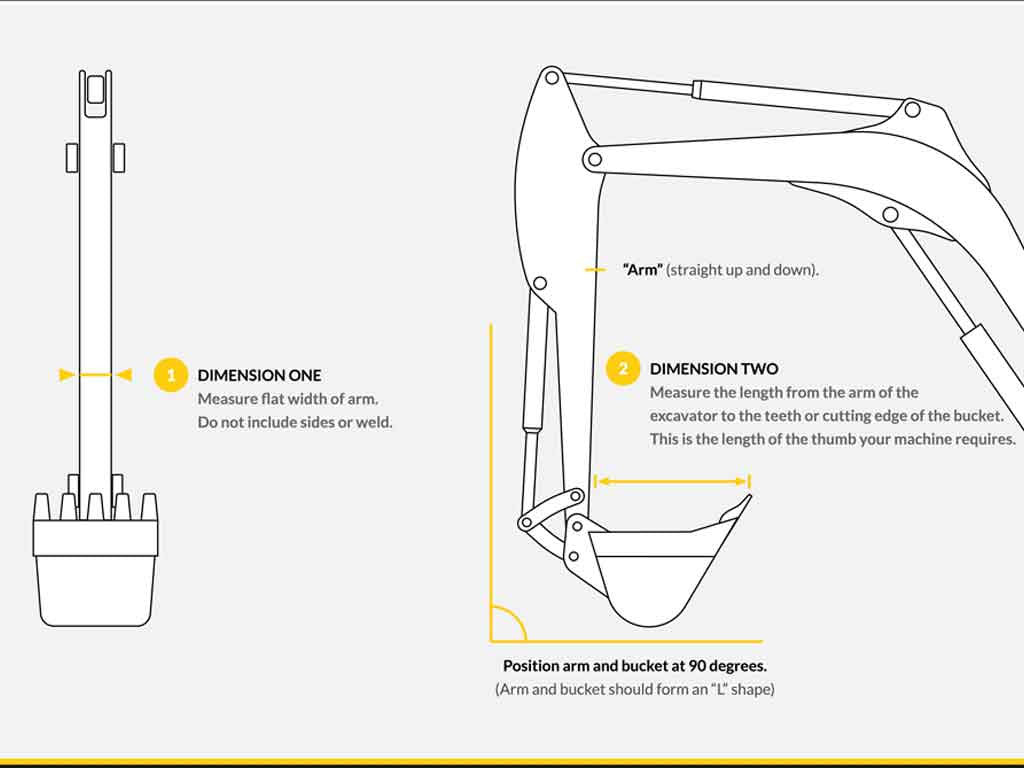

MEASUREMENTS
Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

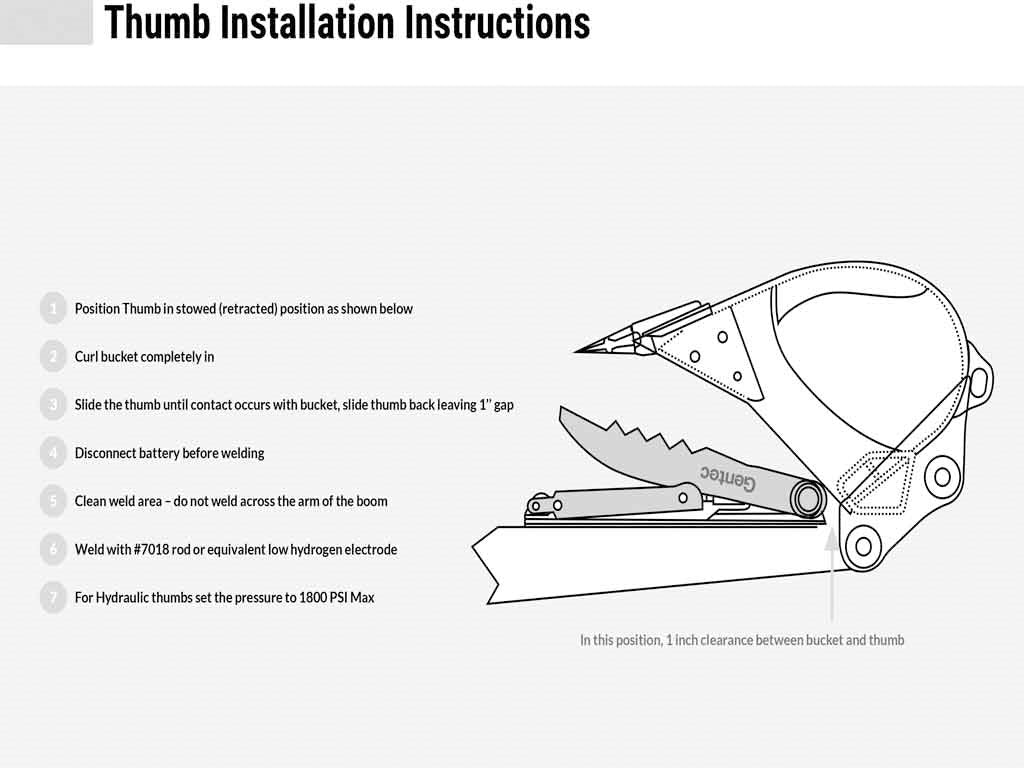

INSTALLATION
Please follow these instructions when installing your thumb.
