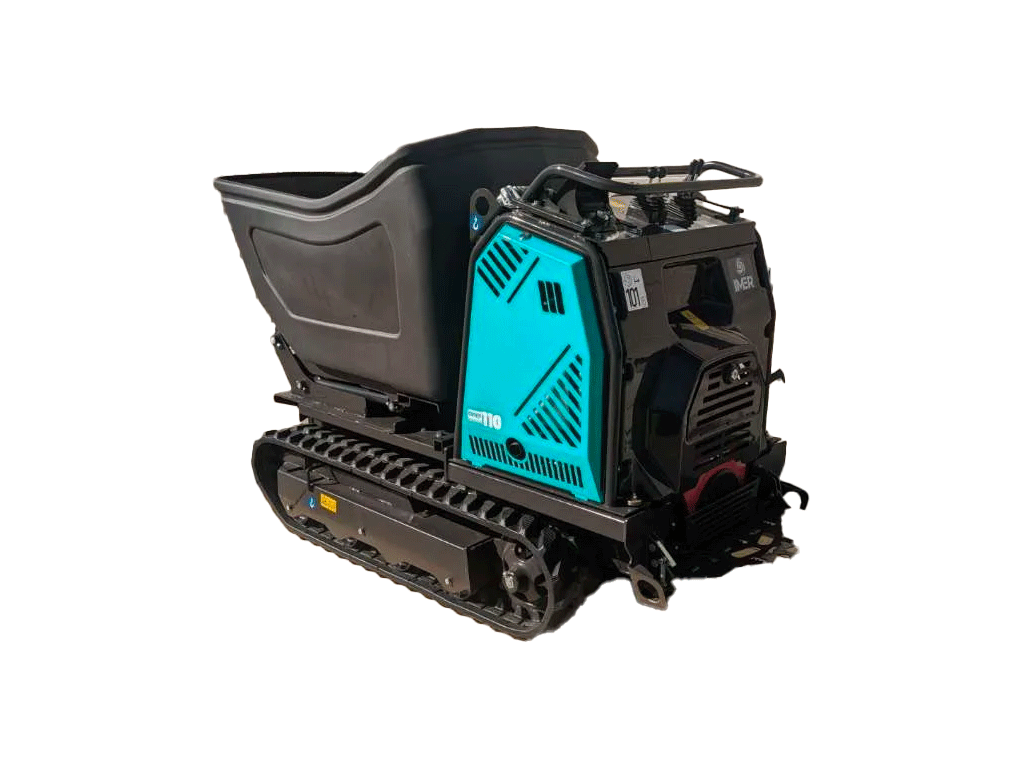

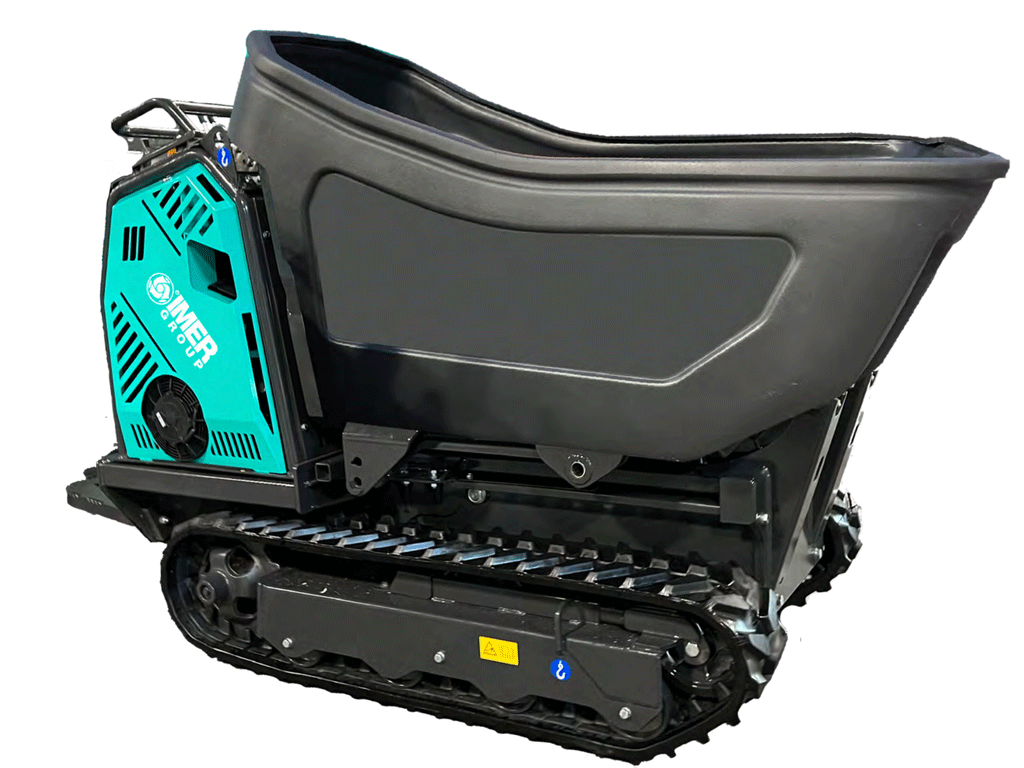

IMER CARRY 110 - COMING SOON

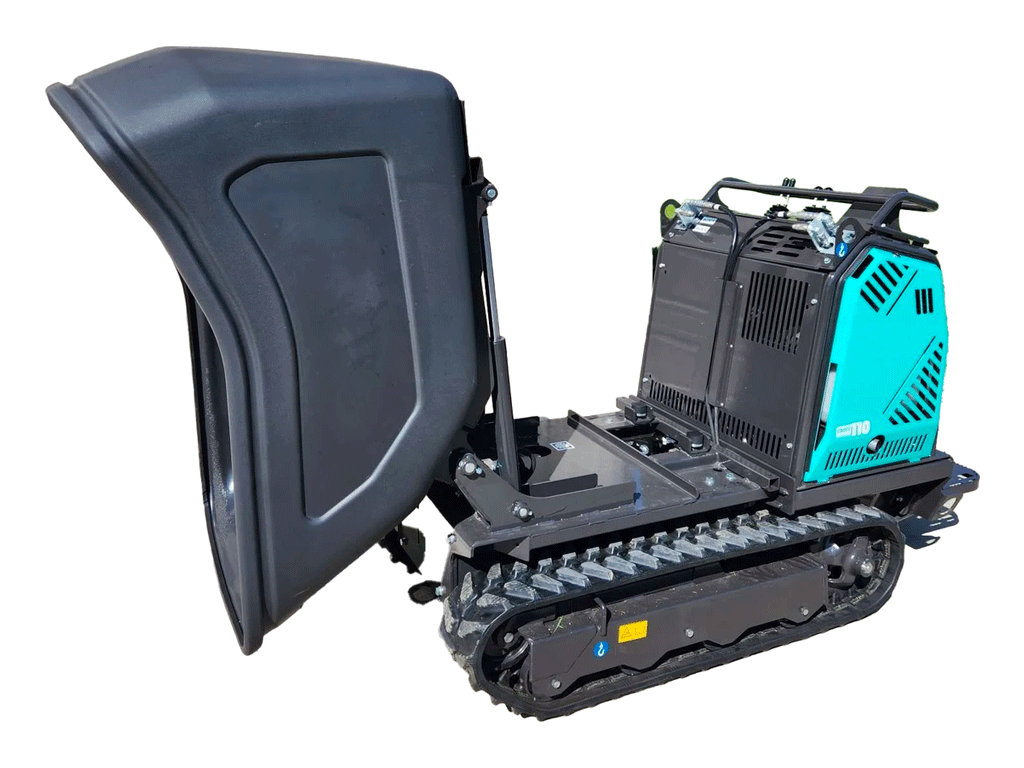

The CARRY 110 checks all the columns for the busy concrete contractor. From driveways to patios and across rough terrain this tracked unit can handle it. Equipped with a poly drum and IMER’s expected dedication to quality of design and manufacturer this latest addition to IMER’s large line of track dumpers will satisfy your needs. Powered by Honda’s latest and most powerful electronic controlled gasoline engine it also features 3-level speed control, auto idle, and electronic controlled start up. Can Bus digital touch screen dashboard provides information on hours, battery voltage, fuel consumption, percentage engine load, and diagnostic capabilities. For operator comfort the platform is double rubber shock mounted and features a hydraulic joystick for speed control.

FEATURES

• Intuitive controls with reduced vibration for operator comfort
• A manual parking brake prevents the drive from running by mechanically locking the LH wheel
• The amount of oil in the machine’s hydraulic circuit allows long intervals between servicing
• Extremely compact dimensions and limited weight guarantees high-level performance
• Narrow enough to fit through standard 36” doors and gates
• The innovative track system ensures the rubber tracks are always perfectly tensioned, easily adjusted via a bolt on the lower carriage
• The Honda engine is low noise, which meets established noise pollution standards. The engine is mounted on vibration dampers to significantly reduce the amount of vibration transmitted.

ADDITIONAL MODELS:

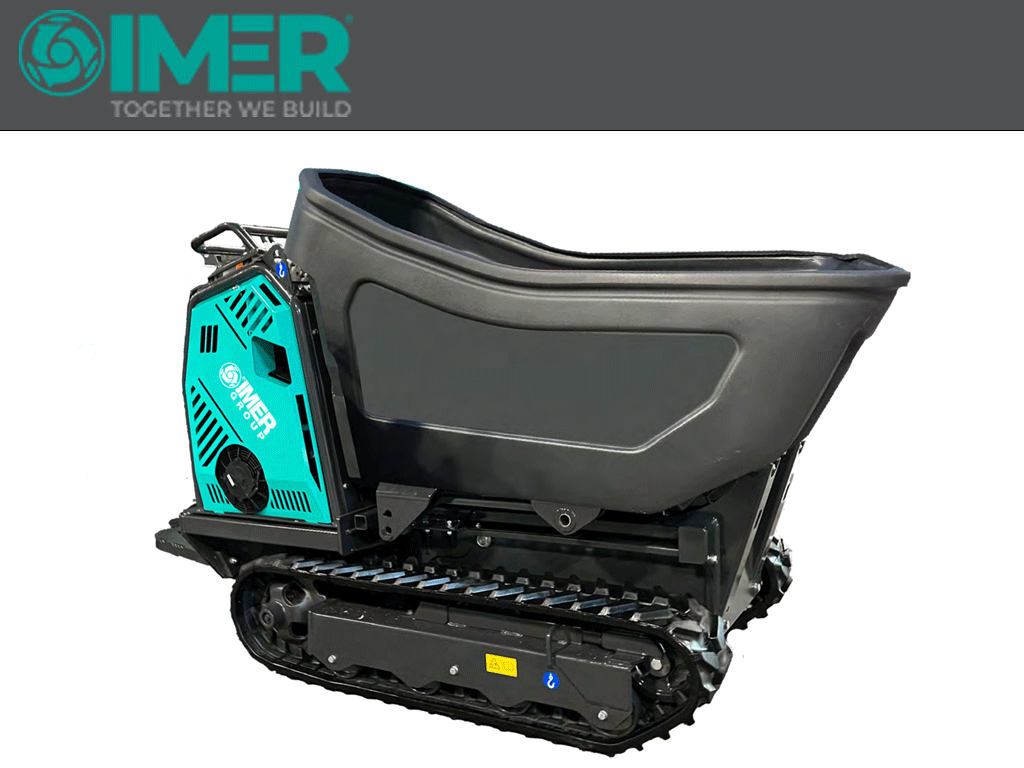

• POLY TUB OPTION

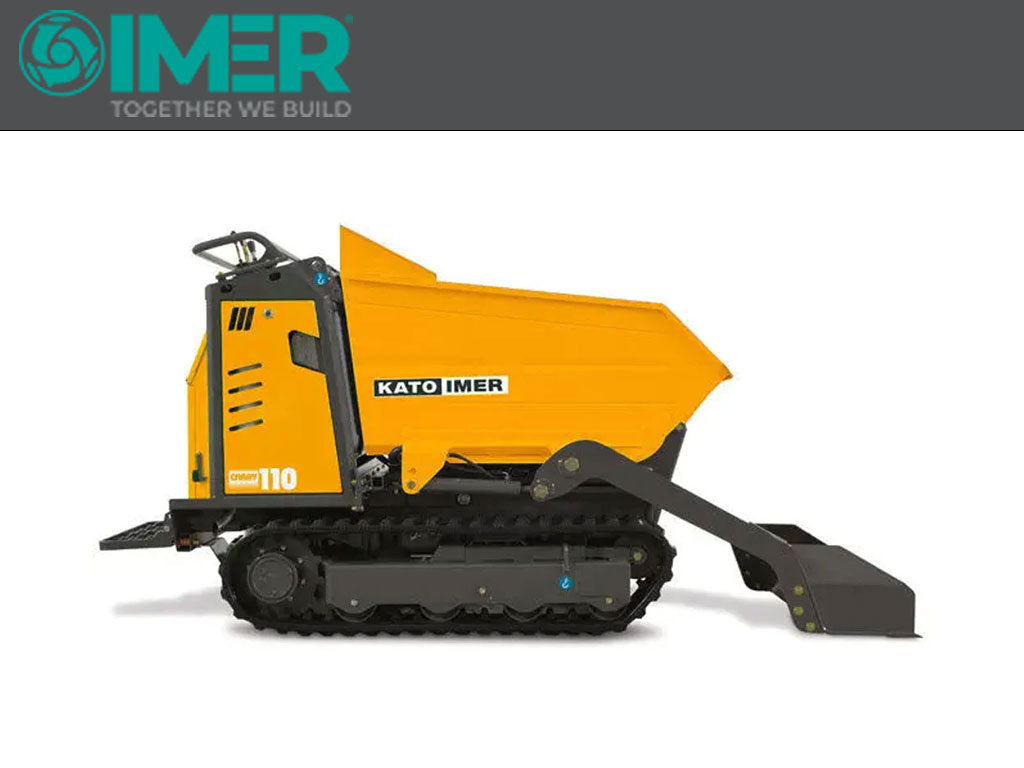

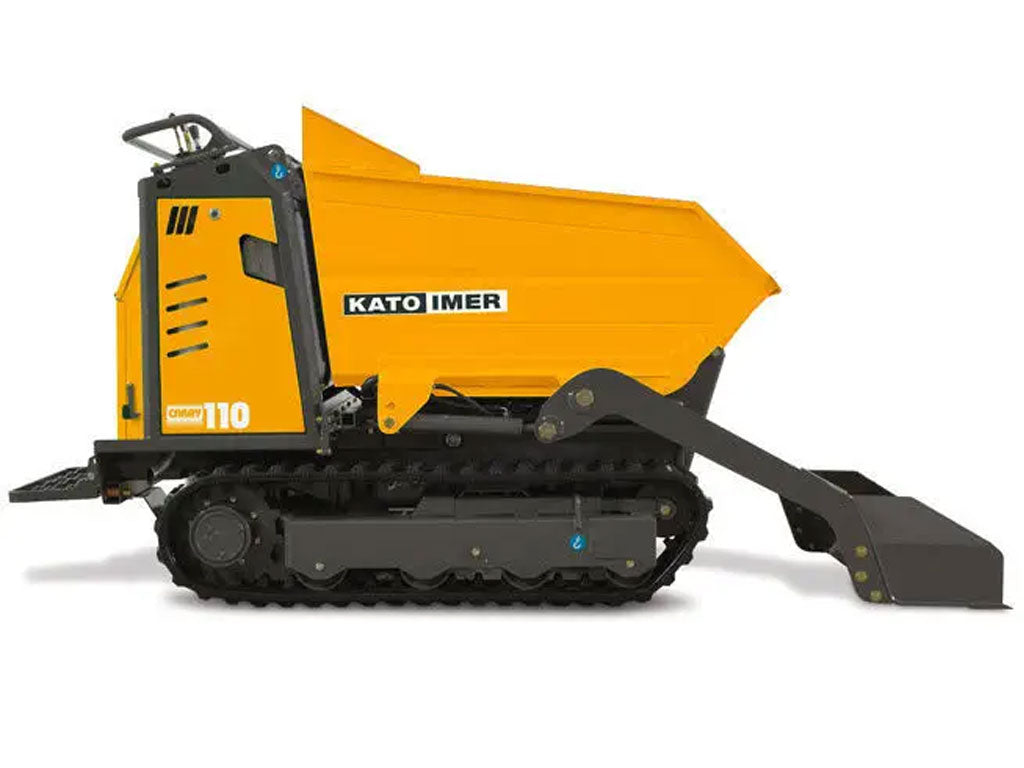

• HIGH FLOW VERSION W/ ATTACHMENTS
• 180 SWIVEL BUCKET AND DUMP

CARRY 110
Engine* Honda GX800IRH-TX-F9-OH
Machine weight 1,521 lbs
Operating load 2,205 lbs
Payload capacity (struck / heaped) 14.83 / 17.66 cu ft
Speed (forward / reverse) 4.97 / 2.49 mph
Max allowed slope when empty 20° - 36%
Max allowed slope when loaded** 11° - 20%***
Ground clearance 5 1/2 in
Start Electric
Length 75 1/2in
Height 52 in
Width 35 3/8 in
