60V5

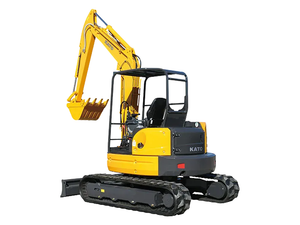

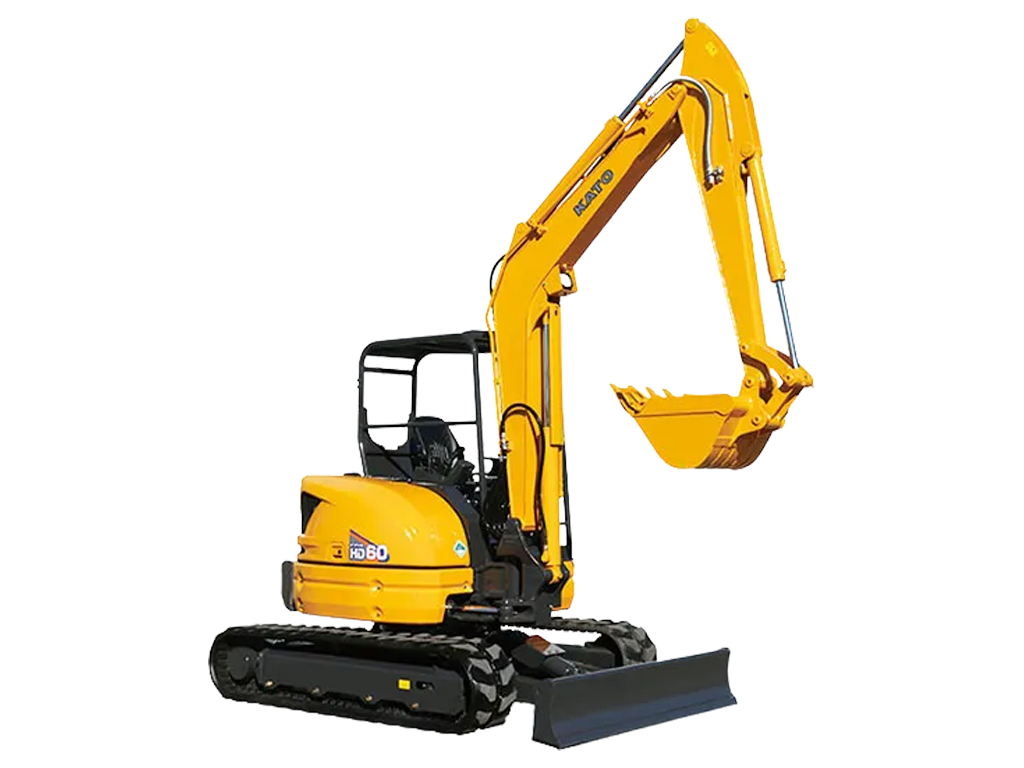

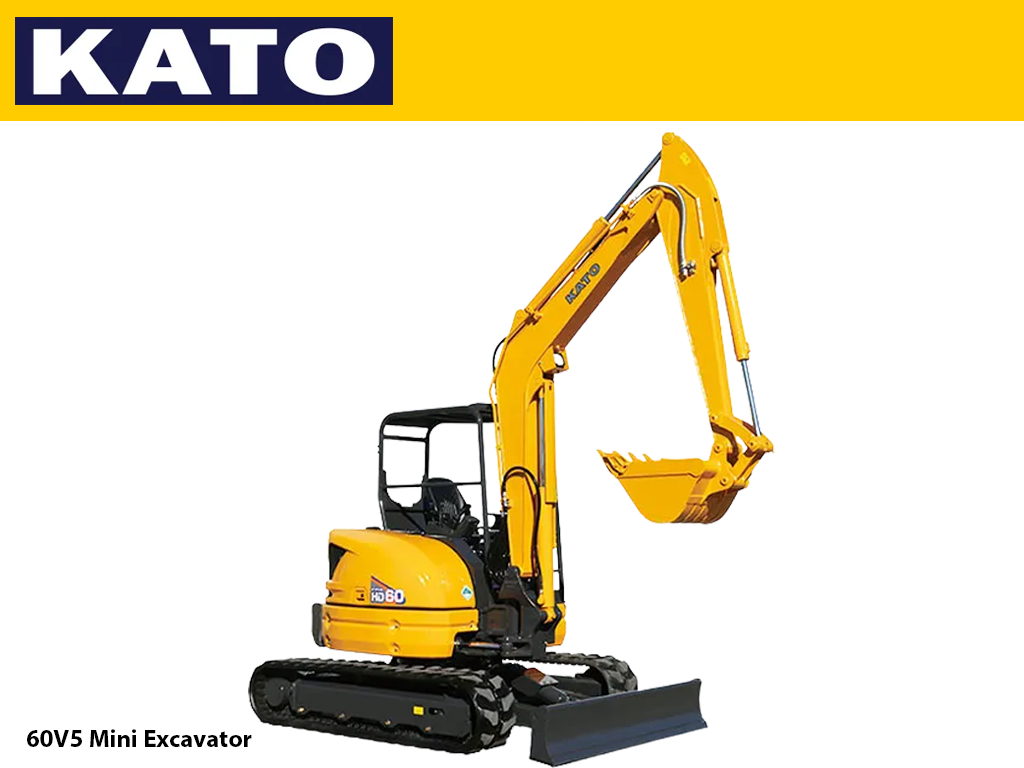

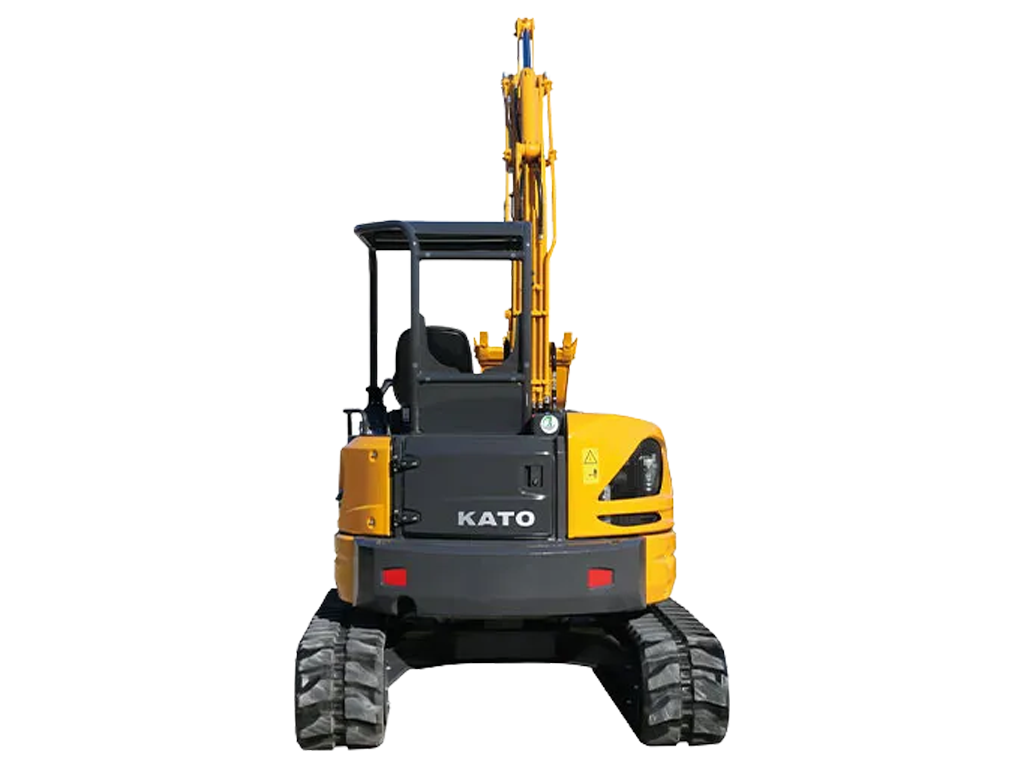

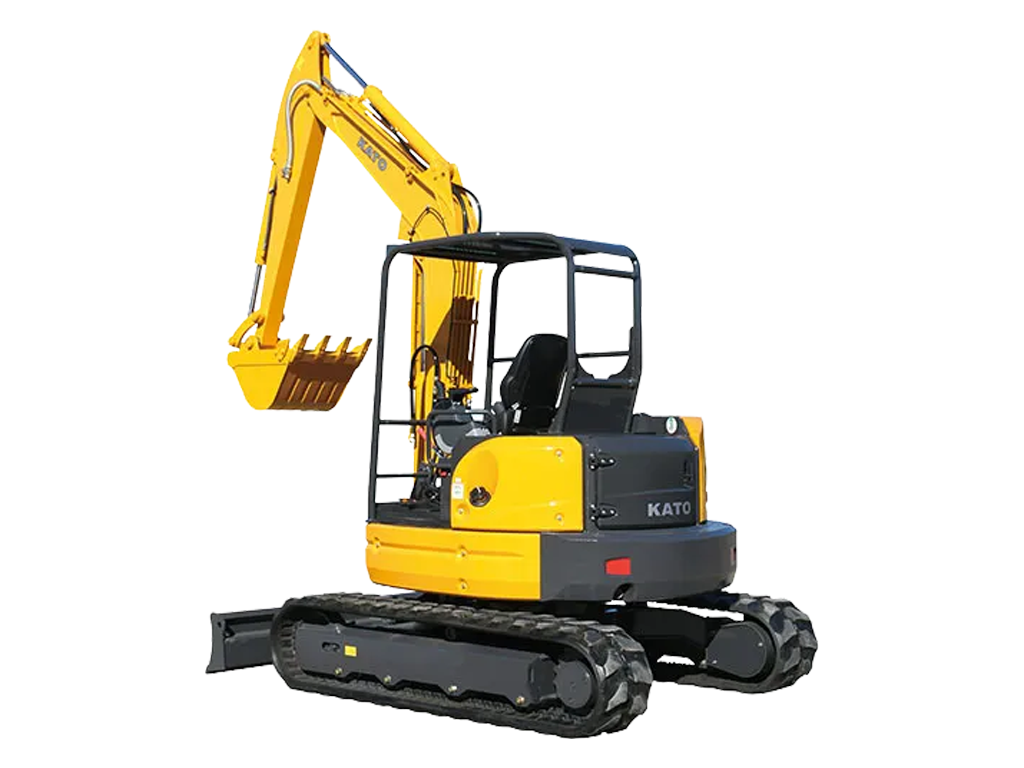

KATO 60V5 Mini Excavator
$66,500.00 - $78,000.00
60V5 Mini Excavator
Comfortable, Easy-to-Use, and Stable
The V5 Mini Excavator series not only has zero tail swing, but its high-powered digging force is increased by 10%, and the 4-pump system is quick to respond, making this the ultimate mini excavator.
Comfortable and easy-to-use, the V5 mini excavators are also fuel efficient and easy to maintain. With an auto-parking brake and a neutral engine-start, the V5 mini excavators are proactive in error-prevention.
Specifications
| Bucket Capacity | 6.4 ft3 |
| Bucket Width | 24″ |
| Operating Width | 12,351 lbs. |
| Transport Weight | 11,839 lbs. |
| Swing Speed | 9.3 rpm |
| Travel Speed (Low/ High) | 1.8 / 2.9 mph |
| Gradeability | 30° |
| Ground Pressure | 4.5 psi |
| Bucket Digging Force | 10,165 lbs. |
Engine
| Model | Kubota V2403-CR-E5B |
| Output Rating | 43.5 hp @ 2400 rpm |
| Fuel Tank Capacity | 17.4 gallons |
Boom Swing System
| Type | Offset Boom w/ Hydraulic Cyl. |
| Swing Angle (L / R) | 50° / 80° |
Hydraulic System
| Total Hydraulic System Flow | 43 gpm |
| Max Auxiliary Hydraulic Flow | 16 gpm |
Dozer Blade
| Size | 1’ 3” x 6’ 6” |
| Lift Above / Drop Below Ground | 1’ 6” / 1’ 5” |
